redwngr replied to Tunnelgas's topic in 2015 / 2016 / 2017 / 2018 Chevrolet Silverado & GMC Sierra 2500/3500 HDFactory one is the same or similar to the front one that rcmike posted.
redwngr replied to Lee Nettnin's topic in 2000-2006 & 2007-2014 Chevrolet Silverado & GMC Sierra 2500HD/3500HDIs this the 2007 Tahoe? Curious what you recommend as the proper brake fluid change interval?
This one shows use of the drain valve to drain the fuel filter as part of filter change.
Isn't the drain valve opened by the smaller hex inside the large hex on the bottom of the folter housing? (I haven't crawled under and tried it, but that was may understanding) pics in this thread: http://www.duramaxforum.com/forum/2017-l5p-duramax-powertrain/972034-l5p-fuel-filter-replacement-noise-question.html
Filter used on the LML was known to be an EXCELLENT water separator. If a L5P gives a 'water in fuel' warning, instructions are to drain the fuel filter, so I'm betting it is as well. They do have a water sensor and will give a message. There is a drain valve on bottom of filter. I'm really fussy about fuel source, but I've never had a water-in-fuel problem on any of my diesel trucks or diesel equipment. ( I have helped drain water from fuel in others equipment.) page 49: Water in Fuel Improper fuel tank inspection or cleaning, or contaminated fuel from suppliers, can cause water to be pumped into the fuel tank along with the diesel fuel. If a WATER IN FUEL SERVICE REQUIRED message displays, the water must be drained immediately. page 51: Removing Water from the Fuel Filter To drain water: 1. Turn the engine off and apply the parking brake. 2. Place a container under the filter drain valve. The filter drain valve is on the bottom of the fuel filter. The filter drain valve is under the vehicle on the driver side, inside the frame rail. 3. For 8-cylinder pickup and 4-cylinder van models, open the drain valve by turning it counterclockwise. Allow the filter to drain until all of the water has been removed. Close the valve. For 4-cylinder pickups, open the fuel filter drain valve by turning it two to three turns. Allow the filter to drain until all of the water has been removed. Close the valve hand tight. 4. Properly dispose of the water contaminated fuel. 5. Start the engine and let it run for a few minutes. During the draining process, air may have entered the fuel system. If the engine stalls, the fuel system may need to be primed. See “Fuel Priming” following. For fuel filter changes, the DIC should be reasonably accurate. It measures the restriction of the filter. Seems like the L5P filter is going to require changing much earlier than the on on the LML. Based on monitor percentages I'm seeing and other dmax forum reports, I'm expecting/planning that a convenient interval to change the fuel filter will be at every other engine oil change.
redwngr replied to Tunnelgas's topic in 2015 / 2016 / 2017 / 2018 Chevrolet Silverado & GMC Sierra 2500/3500 HDMine has the rectangular factory boards and the optional small fold down step ahead of rear wheel on drivers side. So far so good. The rectangular boards do a reasonable job of hiding the passenger side def tank.
redwngr replied to gmcleer's topic in 2015 / 2016 / 2017 / 2018 Chevrolet Silverado & GMC Sierra 2500/3500 HDDon't overfill! There are pics of the 9 locations here: http://www.duramaxforum.com/forum/11-16-lml-duramax-powertrain/345513-lml-front-end-grease-fittings.html The 2010 and earlier had 11 zerks, 2011 and later 9.
redwngr replied to Coxryan1's topic in 2014 / 2015 / 2016 / 2017 / 2018 Silverado & Sierra Accessories & ModificationsAny idea what the tongue weight is for the trailer, as loaded?

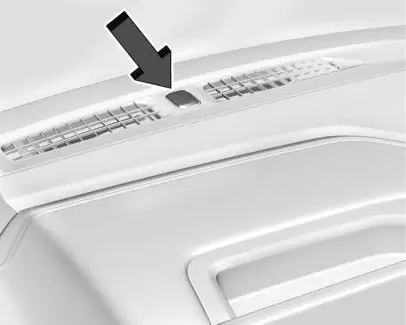

Me? Now, mine is straight up and down (or slightly less) most of the time - which is 14 on the Denali video screen.
Voltage on my current truck varied a lot more when it was new than it does now.
redwngr replied to 2009GMC's topic in 2015 / 2016 / 2017 / 2018 Chevrolet Silverado & GMC Sierra 2500/3500 HDLots never have any issues with Dmax trucks. DEF usage should be proportional to fuel burned. Lots of dmaxes never got def tank filled at the dealer, messing up perception of how much they use. Like fuel tanks, the factory does not fill def tanks.
These trucks do not use traditional/old school alternator with voltage sensing charging systems. As much info as the ECM must have to do what is described, it seems likely that a fault in either alternator would result in a message. This is a little of GM's info on this system as presented in the upfitter guides: Charging System Description and Operation Electrical Power Management Overview The electrical power management system is designed to monitor and control the charging system and send diagnostic messages to alert the driver of possible problems with the battery and generator. This electrical power management system primarily utilizes existing on-board computer capability to maximize the effectiveness of the generator, to manage the load, improve battery state-of-charge and life, and minimize the system's impact on fuel economy. The electrical power management system performs 3 functions: • It monitors the battery voltage and estimates the battery condition. • It takes corrective actions by boosting idle speeds, and adjusting the regulated voltage. • It performs diagnostics and driver notification. The battery condition is estimated during ignition-off and during ignition-on. During ignition-off the state-of-charge of the battery is determined by measuring the open-circuit voltage. The state-of-charge is a function of the acid concentration and the internal resistance of the battery, and is estimated by reading the battery open circuit voltage when the battery has been at rest for several hours. The state-of-charge can be used as a diagnostic tool to tell the customer or the dealer the condition of the battery. Throughout ignition-on, the algorithm continuously estimates state-of-charge based on adjusted net amp hours, battery capacity, initial state-of-charge, and temperature. While running, the battery degree of discharge is primarily determined by a battery current sensor, which is integrated to obtain net amp hours. In addition, the electrical power management function is designed to perform regulated voltage control to improve battery state-of-charge, battery life, and fuel economy. This is accomplished by using knowledge of the battery state-of-charge and temperature to set the charging voltage to an optimum battery voltage level for recharging without detriment to battery life. The Charging System Description and Operation is divided into 3 sections. The first section describes the charging system components and their integration into the electrical power management. The second section describes charging system operation. The third section describes the instrument panel cluster operation of the charge indicator, driver information center messages, and voltmeter operation. Charging System Components Generator The generator is a serviceable component. If there is a diagnosed failure of the generator it must be replaced as an assembly. The engine drive belt drives the generator. When the rotor is spun it induces an alternating current (AC) into the stator windings. The AC voltage is then sent through a series of diodes for rectification. The rectified voltage has been converted into a direct current (DC) for use by the vehicles electrical system to maintain electrical loads and the battery charge. The voltage regulator integral to the generator controls the output of the generator. It is not serviceable. The voltage regulator controls the amount of current provided to the rotor. If the generator has field control circuit failure, the generator defaults to an output voltage of 13.8 V. Body Control Module (BCM) The body control module (BCM) is a GMLAN device. It communicates with the engine control module (ECM) and the instrument panel cluster for electrical power management (electrical power management) operation. The BCM determines the output of the generator and sends the information to the ECM for control of the generator turn on signal circuit. It monitors the generator field duty cycle signal circuit information sent from the ECM for control of the generator. It monitors a battery current sensor, the battery positive voltage circuit, and estimated battery temperature to determine battery state of charge. The BCM performs idle boost. Battery Current Sensor The battery current sensor is a serviceable component that is connected to either the negative or positive battery cable at the battery. The battery current sensor is a 3-wire hall effect current sensor. The battery current sensor monitors the battery current. It directly inputs to the BCM. It creates a 5-volt pulse width modulation (PWM) signal of 128 Hz with a duty cycle of 0–100 percent. Normal duty cycle is between 5– 95 percent. Between 0–5 percent and 95–100 percent are for diagnostic purposes. Engine Control Module (ECM) When the engine is running, the generator turn-on signal is sent to the generator from the ECM, turning on the regulator. The generator's voltage regulator controls current to the rotor, thereby controlling the output voltage. The rotor current is proportional to the electrical pulse width supplied by the regulator. When the engine is started, the regulator senses generator rotation by detecting AC voltage at the stator through an internal wire. Once the engine is running, the regulator varies the field current by controlling the pulse width. This regulates the generator output voltage for proper battery charging and electrical system operation. The generator field duty terminal is connected internally to the voltage regulator and externally to the ECM. When the voltage regulator detects a charging system problem, it grounds this circuit to signal the ECM that a problem exists. The ECM monitors the generator field duty cycle signal circuit, and receives control decisions based on information from the BCM. Instrument Panel Cluster The instrument panel cluster provides the customer notification in case a concern with the charging system. There are 2 means of notification, a charge indicator and a driver information center message of SERVICE BATTERY CHARGING SYSTEM if equipped. Charging System Operation The purpose of the charging system is to maintain the battery charge and vehicle loads. There are 6 modes of operation and they include: • Battery Sulfation Mode • Charge Mode • Fuel Economy Mode • Headlamp Mode • Start Up Mode • Voltage Reduction Mode The engine control module (ECM) controls the generator through the generator turn ON signal circuit. The ECM monitors the generator performance though the generator field duty cycle signal circuit. The signal is a pulse width modulation (PWM) signal of 128 Hz with a duty cycle of 0–100 percent. Normal duty cycle is between 5–95 percent. Between 0–5 percent and 95– 100 percent are for diagnostic purposes. The following table shows the commanded duty cycle and output voltage of the generator: Commanded Duty Cycle Generator Output Voltage 10% 11 V 20% 11.56 V 30% 12.12 V 40% 12.68 V 50% 13.25 V 60% 13.81 V 70% 14.37 V 80% 14.94 V 90% 15.5 V The generator provides a feedback signal of the generator voltage output through the generator field duty cycle signal circuit to the ECM. This information is sent to the body control module (BCM). The signal is PWM signal of 128 Hz with a duty cycle of 0– 100 percent. Normal duty cycle is between 5– 99 percent. Between 0–5 percent and 100 percent are for diagnostic purposes. Battery Sulfation Mode The BCM will enter this mode when the interpreted generator output voltage is less than 13.2 V for 45 minutes. When this condition exists the BCM will enter Charge Mode for 2–3 minutes. The BCM will then determine which mode to enter depending on voltage requirements. Charge Mode The BCM will enter Charge Mode when ever one of the following conditions are met. • The wipers are ON for more than 3 seconds. • GMLAN (Climate Control Voltage Boost Mode Request) is true, as sensed by the HVAC control head. High speed cooling fan, rear defogger and HVAC high speed blower operation can cause the BCM to enter the Charge Mode. • The estimated battery temperature is less than 0° C (32°F). • Battery State of Charge is less than 80 percent. • Vehicle speed is greater than 145 km/h (90 mph) • Current sensor fault exists. • System voltage was determined to be below 12.56 V When any one of these conditions is met, the system will set targeted generator output voltage to a charging voltage between 13.9–15.5 V, depending on the battery state of charge and estimated battery temperature. Fuel Economy Mode The BCM will enter Fuel Economy Mode when the estimated battery temperature is at least 0°C (32°F) but less than or equal to 80°C (176°F), the calculated battery current is less than 15 amperes and greater than −8 amperes, and the battery state-of-charge is greater than or equal to 80 percent. Its targeted generator output voltage is the open circuit voltage of the battery and can be between 12.5–13.1 V. The BCM will exit this mode and enter Charge Mode when any of the conditions described above are present. Headlamp Mode The BCM will enter Headlamp Mode when ever the headlamps are ON (high or low beams). Voltage will be regulated between 13.9–14.5 V. Start Up Mode When the engine is started the BCM sets a targeted generator output voltage of 14.5 V for 30 seconds. Voltage Reduction Mode The BCM will enter Voltage Reduction Mode when the calculated ambient air temperature is above 0°C (32° F). The calculated battery current is less than 1 ampere and greater than −7 amperes, and the generator field duty cycle is less than 99 percent. Its targeted generator output voltage is 12.9 V. The BCM will exit this mode once the criteria are met for Charge Mode. Instrument Panel Cluster Operation Charge Indicator Operation The instrument panel cluster illuminates the charge indicator and displays a warning message in the driver information center if equipped, when the one or more of the following occurs: • The engine control module (ECM) detects that the generator output is less than 11 V or greater than 16 V. The instrument panel cluster receives a GMLAN message from the ECM requesting illumination. • The instrument panel cluster determines that the system voltage is less than 11 V or greater than 16 V for more than 30 seconds. The instrument panel cluster receives a GMLAN message from the body control module (BCM) indicating there is a system voltage range concern. • The instrument panel cluster performs the displays test at the start of each ignition cycle. The indicator illuminates for approximately 3 seconds. Display Message: BATTERY NOT CHARGING SERVICE CHARGING SYSTEM or SERVICE BATTERY CHARGING SYSTEM The BCM and the ECM will send a serial data message to the driver information center for the BATTERY NOT CHARGING SERVICE CHARGING SYSTEM or SERVICE BATTERY CHARGING SYSTEM message to be displayed. It is commanded ON when a charging system DTC is a current DTC. The message is turned OFF when the conditions for clearing the DTC have been met.
redwngr replied to redwngr's topic in 2020 Chevrolet Silverado & GMC Sierra 2500HD/3500HDTHIS is the 2020HD section the Mods created...
redwngr replied to bcazier's topic in 2015 / 2016 / 2017 / 2018 Chevrolet Silverado & GMC Sierra 2500/3500 HDthanks....fixed it... (but it will do 25 on flat ground with no wind)
redwngr replied to bcazier's topic in 2015 / 2016 / 2017 / 2018 Chevrolet Silverado & GMC Sierra 2500/3500 HDThe job it's doing / how it's being used can make a HUGE difference in dmax fuel efficiency. At least it always has with mine. They all do the best when run at steady speed, so stoplights and speed variation in town is the enemy. Cruise control is a best friend. If running unloaded and not towing, and if fuel economy is more important than time, then letting engine run at min speed to stay in 6th will give best efficiency. If find that when warmed up they will shift to 6th somewhere around 52 mph. This means that 55 will be better than 60, and 60 will be better than 65, etc. Headwinds, cornering winds and cross winds will mess up any number comparisons. For me some days fuel economy wins and some days time wins.
