Daytime Running Lights not working


  • Please log in to reply
21 replies to this topic

#16 txab

txab

    Your worst fWONking nightmare

  • Moderator
  • 8,762 posts
  • Location:Texas
  • Gender:Male
  • Drives:2014 GMC Sierra

Posted 26 March 2012 - 10:28 AM

DAYTIME RUNNING LAMPS (DRL)
The daytime running lamps (DRL) will operate when the ignition switch is in the RUN position, for automatic transmissions (A/T), the gear selector is not in the PARK position, the headlamp switch is in the AUTO position, and for manual transmissions (M/T), the park brake is released. When these conditions have been met and the ambient light sensor indicates daytime conditions, the DRL will illuminate. The ambient light sensor is a light sensitive transistor that varies its voltage signal to the body control module (BCM) in response to changes to the outside (ambient) light level. When the BCM receives this signal it will either turn on the DRL or the headlamps for auto headlamp operation. Any function or condition that turns on the headlights will cancel the daytime running lamps operation. The DRL can be manually turned OFF by depressing the AHL/DRL switch in the headlamp switch. The AHL/DRL defeat switch sends a ground signal through the DRL switch signal circuit to the BCM. The BCM then turns OFF the DRL and headlamps switch to manual control. When the AHL/DRL are manually turned OFF at the headlamp switch, the AHL/DRL will default to ON with the next ignition cycle. The DRL are separate lamps independent of the headlamps. With the headlight switch in the AUTO position, the DRL will either be turned ON or OFF, after an approximate 8-second delay depending on whether daylight or low light conditions are sensed. The DRL 10-amp fuse in the underhood fuse block supplies battery positive voltage to the DRL relay switch contacts and relay coil. When the BCM energizes the DRL relay , the DRL receive voltage on the DRL supply voltage circuit. Ground for the DRL is at G100.

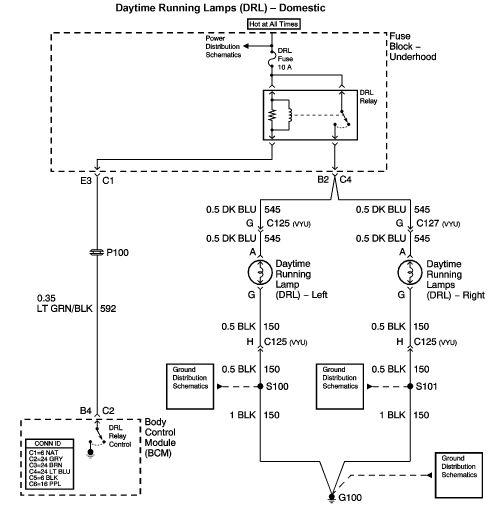

Posted Image

Edited by txab, 26 March 2012 - 10:55 AM.

"When the people find they can vote themselves money, that will herald the end of the republic."
-- Benjamin Franklin



#17 jeb

jeb

    Enthusiast

  • Member
  • 112 posts
  • Location:Rogers, Arkansas
  • Gender:Male

Posted 26 March 2012 - 12:06 PM

Thanks. I'll find some time to see if I can trace it back. Looks like the BCM relay might need a look. But you'd think that since the DRL's do work for the lock/unlock, that'd be okay, too.
2004 GMC Yukon XL 2500 SLT 6.0 gas, Quadrasteer, 4x4, original owner

#18 tesnoboy

tesnoboy

    Enthusiast

  • Member
  • 277 posts
  • Location:People's Republic of Massachusetts
  • Gender:Male
  • Drives:1999 SIERRA 1500 SLE EXT CAB

Posted 27 March 2012 - 06:09 PM

Did you buy this truck used? It sounds like somebody monkeyed up the DRL circuit. They should not be acting that way.

#19 jeb

jeb

    Enthusiast

  • Member
  • 112 posts
  • Location:Rogers, Arkansas
  • Gender:Male

Posted 27 March 2012 - 07:44 PM

Nope. As I said above, I bought it brand new. Been a great truck.
2004 GMC Yukon XL 2500 SLT 6.0 gas, Quadrasteer, 4x4, original owner

#20 Gmcgeorge

Gmcgeorge

    Enthusiast

  • Member
  • 3 posts
  • Drives:2008 Gmc sierra 1500

Posted 08 September 2013 - 10:58 AM

I have a 2008 gmc sierra 1500 and I am the second owner. I just bought the truck and recently noticed that the driver side DRL light won't come on, but the passenger side does. Like you said about them flashing when you lock/unlock the doors, mine does the same, they flash but but when I turn the one won't stay on? I am totally confused about what is happening. I have been through it a million times and will take it in, maybe someone else can figure out what I can't!

#21 Gmcgeorge

Gmcgeorge

    Enthusiast

  • Member
  • 3 posts
  • Drives:2008 Gmc sierra 1500

Posted 08 September 2013 - 12:05 PM

I found out it was just a fuse under the hood that I didn't check #26 (Driver Side Park Lamps) also the (passenger side park lamps) in your case is #27 if you haven't checked those under the hood that could be it!!

#22 Gmcgeorge

Gmcgeorge

    Enthusiast

  • Member
  • 3 posts
  • Drives:2008 Gmc sierra 1500

Posted 08 September 2013 - 12:08 PM

I found out it was just a fuse under the hood that I didn't check #26 (Driver Side Park Lamps) also the (passenger side park lamps) in your case is #27 if you haven't checked those under the hood that could be it!!
