Remote Tailgate Release


28 replies to this topic

#1 beavo451

beavo451

    Enthusiast

  • Member
  • 6 posts

Posted 13 July 2017 - 06:04 PM

So, I really liked the feature on the Ford F-150 where you can release the tailgate using the key fob. I wanted to do it on my 2017 Silverado. I found a past topic on this forum that mentioned it, but had no instructions. I was able to piece together enough information from various forums and came up with a working solution for anybody that is interested. I have attached a diagram for making the connections. I tapped off the power lock in the tailgate and used a T-connector to tap power from the trailer wiring.



T-Connector: https://www.amazon.c...e?ie=UTF8&psc=1

Video showing it working: https://www.youtube....h?v=YmF4Gk3bHnM



The PAC TR-7 counts a set number of pulses within a defined time. When it detects the programmed number of pulses, it sends a pulse to the actuators to open the tailgate. I have mine set to count four pulses in three seconds.



Parts needed:

2 Heavy Duty power door lock actuators

2 Bosch style relays

PAC TR-7

Wire



The major hurdle was that the power lock system is "energized" at six volts and sends a 12 volt pulse for locking/unlocking. The PAC module detects the 6 volts as a "pulse" and thus would lock out the timer. So it would open the tailgate every fourth or whatever number that was set. Using 2 relays solved this problem.

Attached Thumbnails

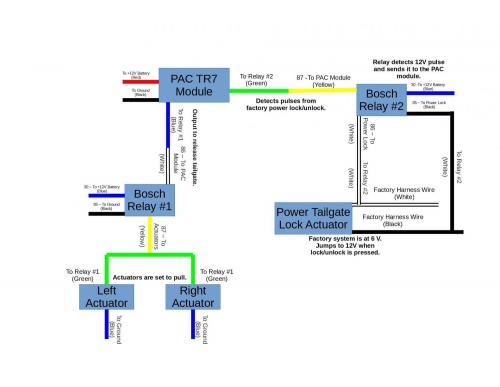

  • Silverado Tailgate Remote Release Diagram.jpg


#2 JCV461

JCV461

    Enthusiast

  • Member
  • 11 posts

Posted 13 July 2017 - 06:24 PM

That's awesome. To bad I stink at electrical work otherwise I'd definitely look to do this.

Sent from my SM-G955U using Tapatalk

#3 15BlueSilverado

15BlueSilverado

    Enthusiast

  • Member
  • 253 posts
  • Location:Pasadena, TX
  • Gender:Male
  • Drives:2015 Deep Ocean Blue Metallic Silverado CC LT

Posted 17 July 2017 - 02:43 PM

Any pics of how you mounted the actuators in the tailgate? I've been wanting to do this along with adding the power lock/unlock feature to the tailgate.


2015 Deep Ocean Blue Metallic Silverado CC LT All Star Edition | See my build thread for list of mods so far | http://www.gm-trucks.com/forums/topic/199547-15bluesilverados-15-deep-ocean-blue-cc-lt/

2.5 inch front level

#4 Loco-diablo

Loco-diablo

    Enthusiast

  • Member
  • 235 posts
  • Name:John
  • Location:Boston
  • Drives:2017 Silverado 1500 LT midnight

Posted 17 July 2017 - 03:10 PM

That's awesome. To bad I stink at electrical work otherwise I'd definitely look to do this.

Sent from my SM-G955U using Tapatalk


Ha ha!! Me too! I'd definitely blow my warranty out of the water if I attempted this and fried my electrical system.
Very cool feature though.


Sent from my iPhone using Tapatalk

#5 cbrsilv15

cbrsilv15

    Senior Enthusiast

  • Member
  • 2,064 posts
  • Name:Matt
  • Location:Ohio
  • Gender:Male
  • Drives:2014 LT CCSB 4x4

Posted 17 July 2017 - 03:23 PM

There's an aftermarket version called the pop and lock. It's probably a little easier to install than piecing this together.

#6 JeremyW426

JeremyW426

    Enthusiast

  • Member
  • 198 posts
  • Name:Jeremy
  • Location:Edmonton AB
  • Gender:Male
  • Drives:2015 Silverado 1500 DC WT Blackout Edition.

Posted 17 July 2017 - 04:24 PM

Pop & Lock PL8140. Just bought mine and hope to have it in next week. Luckily I'm friends with a GM tech who specializes in the electrical side of things so he'll be doing the wiring, he just doesn't know it yet.



#7 beavo451

beavo451

    Enthusiast

  • Member
  • 6 posts

Posted 17 July 2017 - 07:23 PM

There's an aftermarket version called the pop and lock. It's probably a little easier to install than piecing this together.

Pop & Lock PL8140. Just bought mine and hope to have it in next week. Luckily I'm friends with a GM tech who specializes in the electrical side of things so he'll be doing the wiring, he just doesn't know it yet.


I just looked that up. It appears to add a power locking feature to the tailgate.

My mod remotely opens the tailgate. It doesn't appear that the PL8140 does the same thing. Am I missing something?

#8 cbrsilv15

cbrsilv15

    Senior Enthusiast

  • Member
  • 2,064 posts
  • Name:Matt
  • Location:Ohio
  • Gender:Male
  • Drives:2014 LT CCSB 4x4

Posted 17 July 2017 - 08:08 PM

You're right. I had a brain fart when I wrote that.

#9 JeremyW426

JeremyW426

    Enthusiast

  • Member
  • 198 posts
  • Name:Jeremy
  • Location:Edmonton AB
  • Gender:Male
  • Drives:2015 Silverado 1500 DC WT Blackout Edition.

Posted 18 July 2017 - 09:33 AM

I just looked that up. It appears to add a power locking feature to the tailgate.

My mod remotely opens the tailgate. It doesn't appear that the PL8140 does the same thing. Am I missing something?

My bad, I misunderstood about power opening vs power lock.



#10 bndawgs

bndawgs

    Enthusiast

  • Member
  • 870 posts
  • Name:Steve
  • Location:NoVa
  • Gender:Male
  • Drives:2016 Tungsten Metallic Z71 LT

Posted 18 July 2017 - 10:23 AM

I'd love to see some pics of the wiring and install.



#11 ChevyRoofer

ChevyRoofer

    Enthusiast

  • Member
  • 894 posts
  • Location:Austin
  • Gender:Male
  • Drives:2017 Silverado CCSB E-Assist

Posted 18 July 2017 - 01:30 PM

I just looked that up. It appears to add a power locking feature to the tailgate.

My mod remotely opens the tailgate. It doesn't appear that the PL8140 does the same thing. Am I missing something?



You also have the remove tailgate lock on your 2017?

Would there be any issues having that and trying to add this?

Would you have to unlock the tailgate first and then press the button for letting down the tailgate?


2017 Silverado 1500 CCSB E-Assist

Fox 2.0 Front Coilovers & 2.0 Rear Shocks, 285/70/17 10-ply E-rated KO2 & 17x8.5 Method NV Matte Black, BakFlip MX4, Putco Switchblade LED Tailgate Bar, Black Borla S-Type Exhaust, Kicker PowerStage Amp & Sub, Valentine One Radar V 3.8952 & V1 Connection Hardwired w/ Blendmount, DL3 Mirror Conversion w/ power folding switch.





Future Mods: Katzkin Leather, LTZ Headlights, LTZ Taillights, Color Matched, Front metal skid plate/valence, bed liner


#12 beavo451

beavo451

    Enthusiast

  • Member
  • 6 posts

Posted 18 July 2017 - 01:44 PM


You also have the remove tailgate lock on your 2017?
Would there be any issues having that and trying to add this?
Would you have to unlock the tailgate first and then press the button for letting down the tailgate?

I don't understand what you mean by remove tailgate lock.

My truck has factory power locks. Everything works as it did before except I now have the option to open the tailgate from the key fob. Using the key fob to open will open the tailgate regardless of whether or not the tailgate is locked. The locking mechanism merely disconnects the handle on the tailgate from operating the release mechanism.

#13 ChevyRoofer

ChevyRoofer

    Enthusiast

  • Member
  • 894 posts
  • Location:Austin
  • Gender:Male
  • Drives:2017 Silverado CCSB E-Assist

Posted 18 July 2017 - 01:53 PM

I don't understand what you mean by remove tailgate lock.

My truck has factory power locks. Everything works as it did before except I now have the option to open the tailgate from the key fob. Using the key fob to open will open the tailgate regardless of whether or not the tailgate is locked. The locking mechanism merely disconnects the handle on the tailgate from operating the release mechanism.



Sorry, was asking whether you had the factory installed tailgate lock.  My tailgate locks/unlocks when I push the lock/unlock button on my FOB.



I see now you do.


2017 Silverado 1500 CCSB E-Assist

Fox 2.0 Front Coilovers & 2.0 Rear Shocks, 285/70/17 10-ply E-rated KO2 & 17x8.5 Method NV Matte Black, BakFlip MX4, Putco Switchblade LED Tailgate Bar, Black Borla S-Type Exhaust, Kicker PowerStage Amp & Sub, Valentine One Radar V 3.8952 & V1 Connection Hardwired w/ Blendmount, DL3 Mirror Conversion w/ power folding switch.





Future Mods: Katzkin Leather, LTZ Headlights, LTZ Taillights, Color Matched, Front metal skid plate/valence, bed liner


#14 Marv88

Marv88

    Enthusiast

  • Member
  • 339 posts
  • Name:Marv
  • Location:Monterey Bay California
  • Gender:Male
  • Drives:2016 Silverado LS Regular Cab 5.3L

Posted 20 July 2017 - 07:07 PM

So, I really liked the feature on the Ford F-150 where you can release the tailgate using the key fob. I wanted to do it on my 2017 Silverado. I found a past topic on this forum that mentioned it, but had no instructions. I was able to piece together enough information from various forums and came up with a working solution for anybody that is interested. I have attached a diagram for making the connections. I tapped off the power lock in the tailgate and used a T-connector to tap power from the trailer wiring.



T-Connector: https://www.amazon.c...e?ie=UTF8&psc=1

Video showing it working: https://www.youtube....h?v=YmF4Gk3bHnM



The PAC TR-7 counts a set number of pulses within a defined time. When it detects the programmed number of pulses, it sends a pulse to the actuators to open the tailgate. I have mine set to count four pulses in three seconds.



Parts needed:

2 Heavy Duty power door lock actuators

2 Bosch style relays

PAC TR-7

Wire



The major hurdle was that the power lock system is "energized" at six volts and sends a 12 volt pulse for locking/unlocking. The PAC module detects the 6 volts as a "pulse" and thus would lock out the timer. So it would open the tailgate every fourth or whatever number that was set. Using 2 relays solved this problem.

 I did this on my truck a while back and had all kinds of issues with the tailgate opening when I put it in park etc. Another member posted a solution that was beyond my electrical understanding so I'm going to try the second relay you did to see if I can get it to work properly. Thanks for the tip!



You can't see the pictures in my thread below due to photobuckets new policy I'm not sure I'm going to pay for but if you search MrMarv on photobucket you can find the album in the left column of the home page.



http://www.gm-trucks...ening-tailgate/


<p>2016 Deep Ocean Blue Silverado LS Regular Cab Standard Bed 5.3L 6 speed with 22" x 9" OE Replica Wheels and Falken 305/40r22 tiresth_20170430_155404-1_zpswnwi1vk0.jpegBuild threadhttp://www.gm-trucks.com/forums/topic/193849-marv88-2016-silverado-ls-regular-cab-53l/

#15 beavo451

beavo451

    Enthusiast

  • Member
  • 6 posts

Posted 20 July 2017 - 07:19 PM

 I did this on my truck a while back and had all kinds of issues with the tailgate opening when I put it in park etc. Another member posted a solution that was beyond my electrical understanding so I'm going to try the second relay you did to see if I can get it to work properly. Thanks for the tip!



You can't see the pictures in my thread below due to photobuckets new policy I'm not sure I'm going to pay for but if you search MrMarv on photobucket you can find the album in the left column of the home page.



http://www.gm-trucks...ening-tailgate/

Yep, that was the thread I was referring too. I could never get his posted solution about using the brake light to trigger another relay to work correctly.



I understood the general premise, but on my TR-7 it would appear that the timer resets with each pulse that it sees. So instead of the first pulse triggering the timer (I have mine set for 3 seconds) and then waiting for three more pulses within three seconds, it just checks to see if it receives another pulse within that three seconds. So essentially, if you wait to the end of the timer, a setting of four pulses and three seconds could trigger the module in as long as nine seconds (Pulse... 3 seconds... pulse... 3 seconds...pulse... 3 seconds... pulse).



So even though the brake light was breaking the trigger pulse cycle, it would open every time using the blinker/hazards no matter what settings I used on the TR-7. (Yeah, there are random bits of left over wire inside my tailgate now)



My solution is also electrically simpler and not subject to that weird double pulse counting thing (IE the TR-7 will detect 6 pulses when pressing unlock three times). The relay does not activate until it detects a 12 volt pulse versus the detection range of the TR-7 starting as low as something like 0.65volts. So when the relay detects 12 volts (the real pulse, not just the system standby/wakeup/whatever it is) it sends a pulse to the TR-7. The original relay as described is just for sending power to the actuators.
