5.3 Aluminum "m" Code Vs. 5.3 Iron "j" Code


This topic has been archived. This means that you cannot reply to this topic.
20 replies to this topic

#1 my07silvy

my07silvy

    Enthusiast

  • Member
  • 287 posts
  • Location:Buffalo, NY
  • Gender:Male

Posted 16 August 2007 - 04:17 PM

Can someone please shed some light on this for me? I've been trying to find the answer with no luck...What is the difference between the iron block and aluminum block motor besides the difference in material that it's made from? Is there a performance gain either way? Weight difference? Difference in internals? I am dying to know the difference.
Posted Image

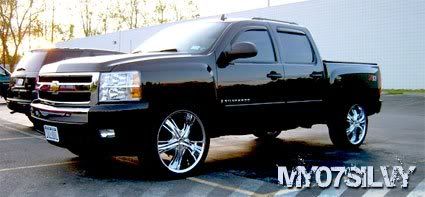

07 NBS Silverado, Black/Black crew cab. 5.3 aluminum block, GM tonnoe cover and bedliner, 20% tint front windows, 24" incubus banshee wheels with 315/35/24 pirelli scorpions. Much more mods to come!

#2 Westlotorn

Westlotorn

    Enthusiast

  • Member
  • 200 posts
  • Location:Sacramento, CA
  • Gender:Male

Posted 16 August 2007 - 04:33 PM

Can someone please shed some light on this for me? I've been trying to find the answer with no luck...What is the difference between the iron block and aluminum block motor besides the difference in material that it's made from? Is there a performance gain either way? Weight difference? Difference in internals? I am dying to know the difference.


Aluminum Blocks are desireable for weight savings, offers better performance and mileage only because of weight savings.
I would guess it saves as much as 40 pounds over the same block in Steel. Same basic design and parts inside.
No Specific power advantage. If GM is offering the Aluminum Block and stating more horsepower it is because of other changes not the material used. They may use a better cam choice or better flowing heads, intake or exhaust that give more power. The block material will not make more power by itself.

Cast Iron blocks are always used in heavy duty use for the increase strength they offer with less distortion under extreme loading.

Cast Iron blocks are cheaper to produce.

From 2000 up GM uses Aluminum heads on all small block V-8 truck engines. Cast Iron Block or Aluminum Block.
These heads in Aluminum offer better flow than cast iron and run cooler because of better heat transfer. All Good.

Hope this helps.

#3 my07silvy

my07silvy

    Enthusiast

  • Member
  • 287 posts
  • Location:Buffalo, NY
  • Gender:Male

Posted 16 August 2007 - 05:04 PM

I am more wondering specifically what the difference is inside the motor......Or if the horsepower ratings are the same?
Posted Image
07 NBS Silverado, Black/Black crew cab. 5.3 aluminum block, GM tonnoe cover and bedliner, 20% tint front windows, 24" incubus banshee wheels with 315/35/24 pirelli scorpions. Much more mods to come!

#4 breecher_7

breecher_7

    Enthusiast

  • Banned
  • 120 posts

Posted 16 August 2007 - 05:35 PM

Internal components are all the same. The only difference is the material the block is made out of as stated above. There horespower differences come from Different head and cam combinations, thats all....

Edited by breecher_7, 16 August 2007 - 05:36 PM.


#5 my07silvy

my07silvy

    Enthusiast

  • Member
  • 287 posts
  • Location:Buffalo, NY
  • Gender:Male

Posted 16 August 2007 - 09:32 PM

Internal components are all the same. The only difference is the material the block is made out of as stated above. There horespower differences come from Different head and cam combinations, thats all....



Ok now we're getting somewhere. So there are different heads and cam in the aluminum block huh? How much more HP does it actually have? I drove an avalanche with the flex fuel motor in it and it was a complete dog....the silverado felt like 30% faster and the brakes felt that much better too, no joke. I was going to buy the AV until I drove my silverado for the hell of it right before I signed the papers!Thanks god I got my silvy instead! I love it

Edited by my07silvy, 16 August 2007 - 09:32 PM.

Posted Image
07 NBS Silverado, Black/Black crew cab. 5.3 aluminum block, GM tonnoe cover and bedliner, 20% tint front windows, 24" incubus banshee wheels with 315/35/24 pirelli scorpions. Much more mods to come!

#6 AgDoctor

AgDoctor

    Enthusiast

  • Member
  • 787 posts
  • Location:GA
  • Gender:Male
  • Drives:2011 Silverado Z71

Posted 16 August 2007 - 09:42 PM

OK, lets say that they are the same. I like many others was interested in a programmer for my Z71 and was considering the diablo. The guys at diablo told me that if the 8th # in the VIN that they didnt offer a programmer for that application. It makes no sense to me beacuse the HP ratings are they same and torque so if there is no difference then why not use the same programmer. Mike at diablo said that there wasnt enough demand with the "M" VIN to produce for that app. What exactly does the M stand for?

2011 Chevy Silv. CC LTZ Z71 4X4 Sh. Silver Met.
LT275/70-18 BFG AT
Black Leather Interior
Wheel well Liners
6 Disc Changer
Rough Country Leveling Kit
Tinted Windows 15% Front and 5% Rear
Blackbear AutoCal Tuned
AMP Research Steps
Firestone Ride Rite bags and Compressor kit

2013 Chevrolet Tahoe Z71 4X4 LT Silver
Ebony Leather Interior
Factory DVD Player/ Sunroof
30% Tinted Windows
Bose System
Bucket Rear Seats
Luxury Pkg
All Weather Mats


#7 trever1t

trever1t

    Enthusiast

  • Member
  • 325 posts
  • Location:San Jose, California
  • Gender:Male

Posted 16 August 2007 - 09:53 PM

A lot of misinformation above, sorry. I can't say i'm familliar with the M code but the Aluminum "B" engine, L33 differs from the Iron block LM7 in a few ways.

1) Aluminum block is ~90lbs lighter, disapates heat quicker.
2) L33 has LS6 type heads with larger intake and exhaust ports, larger 64cc combustion area.
3) L33 has flat top coated pistons bringing the compression ratio to 9.9:1 Vs. LM7's 9.5:1
4) Cam specs are slightly different, i forget the exact numbers

-Trever

PS, I have an L33....did a little research.

Edited by trever1t, 16 August 2007 - 09:55 PM.

2005 SIERRA [email protected] CLICK PIC FOR MODS
Posted Image
566/613 My other ride is a '91 Electraglide custom.


#8 Westlotorn

Westlotorn

    Enthusiast

  • Member
  • 200 posts
  • Location:Sacramento, CA
  • Gender:Male

Posted 17 August 2007 - 01:04 AM

A lot of misinformation above, sorry. I can't say i'm familliar with the M code but the Aluminum "B" engine, L33 differs from the Iron block LM7 in a few ways.

1) Aluminum block is ~90lbs lighter, disapates heat quicker.
2) L33 has LS6 type heads with larger intake and exhaust ports, larger 64cc combustion area.
3) L33 has flat top coated pistons bringing the compression ratio to 9.9:1 Vs. LM7's 9.5:1
4) Cam specs are slightly different, i forget the exact numbers

-Trever

PS, I have an L33....did a little research.


Would your L33 be the 320 HP version of the 5.3L? The LS 6 heads are an improvement for All 5.3L 6.0L and the 5.7L LS1 Engines. They offer better flow. Flow makes HP

#9 Babydeuce

Babydeuce

    Enthusiast

  • Member
  • 80 posts
  • Location:Box Elder, SD
  • Gender:Male

Posted 17 August 2007 - 01:36 AM

A lot of misinformation above, sorry. I can't say i'm familliar with the M code but the Aluminum "B" engine, L33 differs from the Iron block LM7 in a few ways.

1) Aluminum block is ~90lbs lighter, disapates heat quicker.
2) L33 has LS6 type heads with larger intake and exhaust ports, larger 64cc combustion area.
3) L33 has flat top coated pistons bringing the compression ratio to 9.9:1 Vs. LM7's 9.5:1
4) Cam specs are slightly different, i forget the exact numbers

-Trever

PS, I have an L33....did a little research.


Would your L33 be the 320 HP version of the 5.3L? The LS 6 heads are an improvement for All 5.3L 6.0L and the 5.7L LS1 Engines. They offer better flow. Flow makes HP


They may flow more, but they have larger combustion chambers.....so all things being equal, you lose power over stock 5.3 heads.

Jack

#10 Clump

Clump

    Enthusiast

  • Member
  • 9 posts
  • Location:Frederick, MD

Posted 17 August 2007 - 06:11 AM

For the GMT 900 trucks the m and j code engines are rated exactly the same horsepower (315) and torque (338). The MPG ratings are also identical. If you read the descriptions here they are identical except the aluminum version mentions it's a "Lightweight yet strong deep-skirt aluminum block".

My conclusion from all of this is that the internals are the same and the block material is the only difference. My truck is an extended cab, with the iron block. It looks like the aluminum block only comes in the crew cab, probably as a way to offset a bit of the extra weight.

I would bet that the heads are the same. When I get a chance later today I'll take a look at my head casting numbers and post them.

#11 jake1530

jake1530

    Enthusiast

  • Member
  • 233 posts
  • Name:Jim Leahy
  • Location:MA
  • Gender:Male
  • Drives:2005 GMC Sierra

Posted 17 August 2007 - 07:24 AM

I just wanted to say thanks. I have the Aluminum in my 2005 Sierra, and have always wondered the difference. I am glad this subject came up; I kind of gave up looking for answers a while ago. Is the L33 my engine? Thanks again.
When the wolf arrives at your door..... Pull him in and eat him!

#12 trever1t

trever1t

    Enthusiast

  • Member
  • 325 posts
  • Location:San Jose, California
  • Gender:Male

Posted 17 August 2007 - 07:39 AM

sorry duplicate post

Edited by trever1t, 17 August 2007 - 07:45 AM.


#13 trever1t

trever1t

    Enthusiast

  • Member
  • 325 posts
  • Location:San Jose, California
  • Gender:Male

Posted 17 August 2007 - 07:42 AM

They may flow more, but they have larger combustion chambers.....so all things being equal, you lose power over stock 5.3 heads.

Jack


WRONG: The larger combustion chamber with the flat top piston creates a higher CR equals more power, sorry.
Again; the L33 aluminum block has FLAT TOP, specially coated pistons.

Edited by trever1t, 17 August 2007 - 07:48 AM.


#14 trever1t

trever1t

    Enthusiast

  • Member
  • 325 posts
  • Location:San Jose, California
  • Gender:Male

Posted 17 August 2007 - 07:46 AM

I just wanted to say thanks. I have the Aluminum in my 2005 Sierra, and have always wondered the difference. I am glad this subject came up; I kind of gave up looking for answers a while ago. Is the L33 my engine? Thanks again.

YES! The L33 was first offered in 2005 but only in Chevy/GMC ECSB trucks.

2005 SIERRA [email protected] CLICK PIC FOR MODS
Posted Image
566/613 My other ride is a '91 Electraglide custom.


#15 bigdogxx

bigdogxx

    Enthusiast

  • Member
  • 474 posts

Posted 17 August 2007 - 02:49 PM

I just wanted to say thanks. I have the Aluminum in my 2005 Sierra, and have always wondered the difference. I am glad this subject came up; I kind of gave up looking for answers a while ago. Is the L33 my engine? Thanks again.


If your truck is a ext cab and has a aluminum block then yes it is a l33 as i have one in mine also, they are rated at 310hp not 320 unless they upped it in the new truck line.
2005 Ext. Cab 4x4 z71
Dark Grey Metallic
L33 310HP H.O. 5.3
