Silverado Alternator Charging Wire Upgrade


  • Please log in to reply
10 replies to this topic

#1 slvbeard

slvbeard

    Enthusiast

  • Member
  • 5 posts

Posted 24 January 2009 - 02:10 PM

I have a 2004 Silverado and I just upgraded the alternator to a 210 amp high output for my sound system in the truck. I need to upgrade the charging cable that runs from the back of the alternator to the power block near the battery. Checked the local auto parts stores but no one has a large enough connector that will fit the size of the bolt at the power block.

Any ideas where I can get an upgraded charging cable, 4 gauge or so that will fit the Silverado?

#2 bossier62guy

bossier62guy

    Senior Enthusiast

  • Member
  • 1,656 posts
  • Name:John
  • Location:Zachary, LA
  • Gender:Male
  • Drives:2002 Silverado Z-71

Posted 24 January 2009 - 03:22 PM

I have a 2004 Silverado and I just upgraded the alternator to a 210 amp high output for my sound system in the truck. I need to upgrade the charging cable that runs from the back of the alternator to the power block near the battery. Checked the local auto parts stores but no one has a large enough connector that will fit the size of the bolt at the power block.

Any ideas where I can get an upgraded charging cable, 4 gauge or so that will fit the Silverado?



Are you talking about replacing the fusible link w/ 4ga wire? If so I would advise against it....

#3 slvbeard

slvbeard

    Enthusiast

  • Member
  • 5 posts

Posted 24 January 2009 - 05:53 PM

I left the small gauge wire that goes to the junction block (covered by red plastic), and ran a 4 gauge wire directly to the battery. Works great, no voltage drop anymore.

#4 bossier62guy

bossier62guy

    Senior Enthusiast

  • Member
  • 1,656 posts
  • Name:John
  • Location:Zachary, LA
  • Gender:Male
  • Drives:2002 Silverado Z-71

Posted 24 January 2009 - 06:42 PM

I left the small gauge wire that goes to the junction block (covered by red plastic), and ran a 4 gauge wire directly to the battery. Works great, no voltage drop anymore.


So what's the use in having the fusible link in place now? Might as well do away with it too and cross your fingers....

#5 2500hdee

2500hdee

    Enthusiast

  • Member
  • 48 posts

Posted 11 April 2009 - 08:14 AM

I have a 2004 Silverado and I just upgraded the alternator to a 210 amp high output for my sound system in the truck. I need to upgrade the charging cable that runs from the back of the alternator to the power block near the battery. Checked the local auto parts stores but no one has a large enough connector that will fit the size of the bolt at the power block.

Any ideas where I can get an upgraded charging cable, 4 gauge or so that will fit the Silverado?


I know the the thread is older but here's some relevant info. NAPA carries a 4G copper lug that perfectly fits the bolt on the back of the alt and has enough room to drill out the lug for a bigger bolt Part#785906. I'm currently installing a 250amp alternator on my 2500HD with 4G wire and let me assure you guys that it's not a good idea to eliminate the fusible link whether it's a smaller gauge wire or an actual fuse.

Edited by 2500hdee, 11 April 2009 - 08:18 AM.


#6 sonjaab

sonjaab

    Member

  • Member
  • 2,159 posts
  • Location:syracuse ny
  • Gender:Male

Posted 13 April 2009 - 12:15 AM

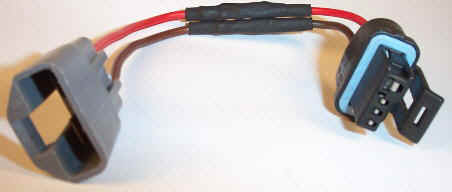

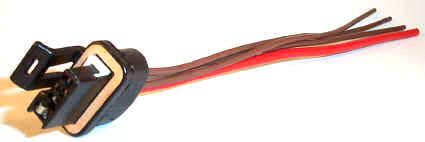

If your swapping from a Delco cs-130 unit to a cs-140 unit
and you need wiring connectors go here:
http://www.alternato....uv_upgrade.htm
Posted Image
Posted Image
Posted Image

Edited by sonjaab, 13 April 2009 - 12:18 AM.


#7 RaGiN Z

RaGiN Z

    Enthusiast

  • Member
  • 138 posts
  • Location:CT
  • Gender:Male

Posted 27 April 2009 - 11:17 AM

Don't change the existing wire, just add another one. As if you are doing the big three, which if you have any sort of electrical issue with your amperage and battery with your sound system, is the first thing that should be done.

So don't change, the exisiting wiring, add too it. Be sure that you add a fuseable link with the new wiring as well. If something goes wrong you don't want to have a battery melt down.

The fuseable link should be no more than what the wire can handle.

I'm using 2 gauge so I grabbed a 200amp breaker.

I believe 1/0 can handle 250amps.

Not much info on the web about this.

#8 rochestercam

rochestercam

    Enthusiast

  • Newbie
  • 4 posts

Posted 03 May 2009 - 05:27 PM

This is a late reply to the original post but might help some of you out. After speaking with some pro-installers. If you can't find a 250 amp fusable link for 1/0 wire or any for the 2 and 4, here's something else to consider. I'm running 1/0 to my alternator, within 6 inches is an ANL 250 amp fuse & fuse holder. As everyone else has suggested, I've also kept the original power wire with fusible link in place. Nice, safe setup.

#9 RaGiN Z

RaGiN Z

    Enthusiast

  • Member
  • 138 posts
  • Location:CT
  • Gender:Male

Posted 03 May 2009 - 06:08 PM

I got my 200amp breaker off ebay for 18 bux shipped. Its the straight thru type with the ends covered so it won't ground out.

#10 t3kn0logix

t3kn0logix

    Enthusiast

  • Member
  • 7 posts

Posted 17 December 2009 - 06:08 AM

what is the big three?

#11 krobocop

krobocop

    Enthusiast

  • Member
  • 480 posts
  • Name:justin
  • Location:san antone
  • Gender:Male
  • Drives:o7 imperial blue metallic silverado cc tx edition

Posted 17 December 2009 - 11:09 AM

cant find anything on gm-trucks so i'll link to another forum for it..

but u bumped a 7 month old thread :P

big 3 info

anyone who's done it want to read this and make it gm-truck specific?
