Ignition Switched Add A Circuit - Drivers side panel

tmkilburn · September 21, 2016

Anyone know which of these fuses is ignition switched? Going to use it to power a switch for a behind grill light bar install. Tried searching and couldn't find the info.

obrien19 · September 22, 2016

Right next to that 50 amp fuse is a male wire connector for RAP. I have it powering my radar detector and my amp.

Sent from my iPhone using Tapatalk

tmkilburn · September 22, 2016

Right next to that 50 amp fuse is a male wire connector for RAP. I have it powering my radar detector and my amp.

Sent from my iPhone using Tapatalk

Found it. Exactly what I needed. Thanks!

adam.busch · May 11, 2017

Can you circle exactly where you're talking about?

Ozer · May 12, 2017

Once you figure out how to hold the panel cover with the fuse labels, you can find RAP written next to one of those.

Took me few minutes to figure out the right way to look at the sticker lol

Related: can someone post a link to a add a fuse that works with these fuses? I got the mini A type from walmart and they wouldnt fit.

The bigger fuses have 3 tabs which i never seen before. Need it to wire dash cam.

avgas · May 12, 2017

FYI if you change the position of the 50 amp fuse you will change your 12 volt power outlets from always on to only on with ignition.

I used a fuse tap like this to hard wire my radar detector.

x219c · May 14, 2017

I found a fuse tap that also fuses your new load.

Sent from my iPhone using Tapatalk

adam.busch · May 20, 2017

You're right. Reading most fuse box labels crosses the eyes. When you all said there was a male wire connector, I was thinking something else. Those micro2 add-a-circuits are great.

Edited May 20, 2017 by Adam P.B.

adam.busch · May 20, 2017

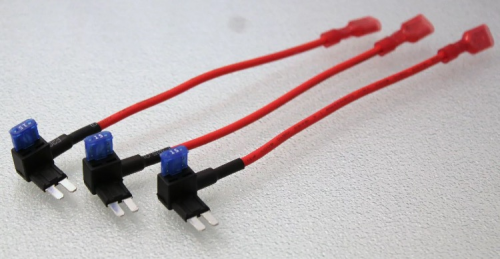

Bought a 3 pack on eBay for $8.75 and they each came with a 15amp fuse. Search micro2 add-a-circuit fuse tap 3 pack. Seller was formulaoneracer001 from Greenfield, Indiana. Hope that helps if that's the style you're looking for. There are two ports in the black body. Bottom is for the fuse spot you just used. Top is for your added accessory.

Edited May 20, 2017 by Adam P.B.

sk · May 22, 2017

Instead of going in the fuse panel on the side of the dash use the one above the parking brake pedal. In the X61A connector there are a bunch of switched and constant power taps. Search these forums for some pics of the taps. There is even a member who will make you a harness with the factory plug and a bunch of pigtails all labeled, fused, etc.
