2014-2018 Chevy T- Harness for Audio Upgrade (Non-Bose)

[Chino1777]

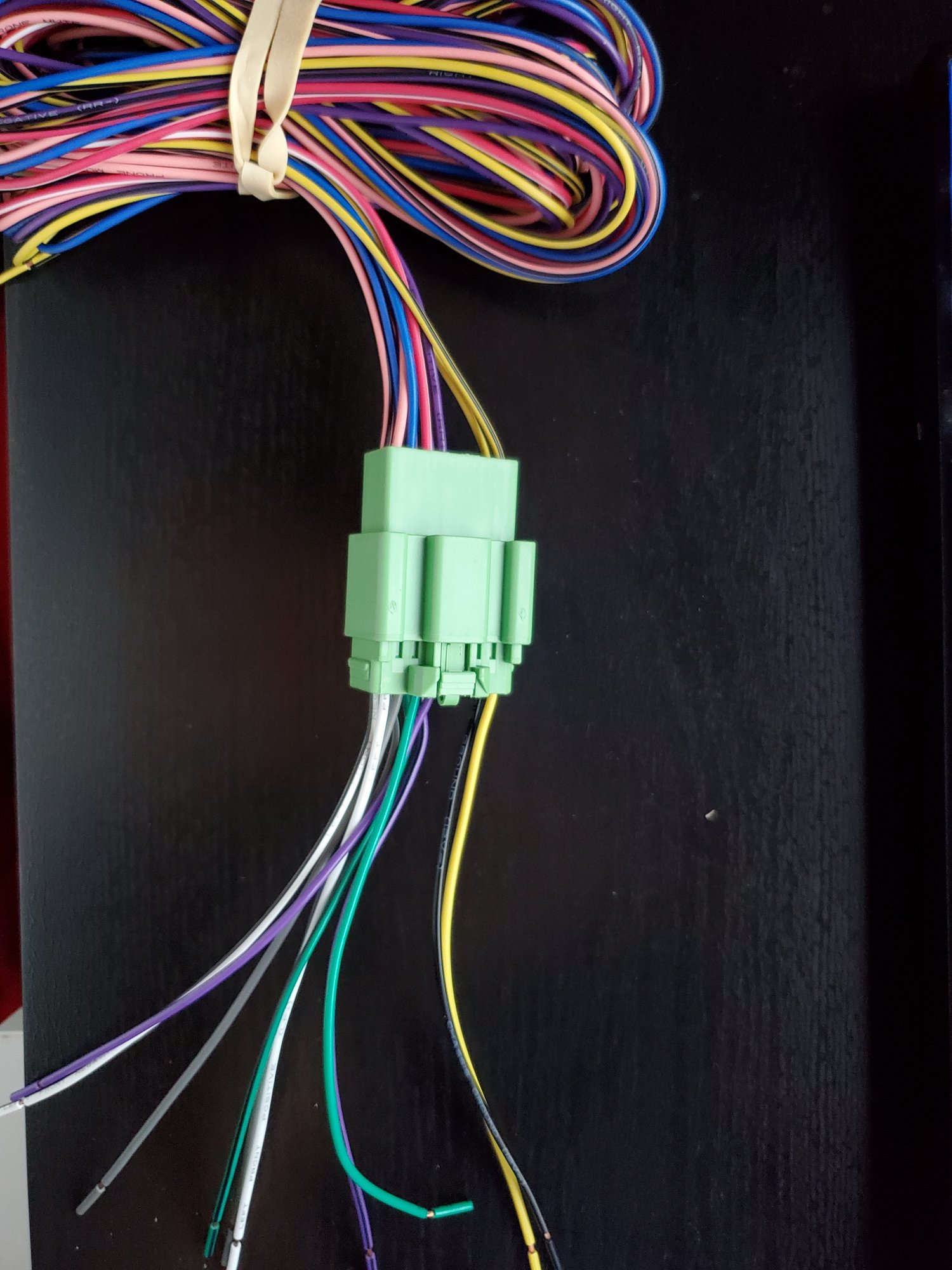

This T-Harness will work if your going to add a 4 Channel amp.



The Metra 71-2107 Reverse Wiring Green Harness will provide the output of the headunit to the amplifier. Then connect from the amp to the Metra 70-2057 Amp Bypass Green Harness which this create the T- Harness.

Which then it connects to the Factory Green Harness to provide the power signal from the amp to your aftermarket speakers. For power and ground connect the yellow (pin 8) and black (pin 16) wires from the Metra 71-2107 to the Yellow/Black (Pin 1) and Yellow/Black (Pin 9) of the Metra 70-2057.



Factory Green Harness

Left Front/Dash Speaker (+/-) Blue – Brown/Blue // pins 1 - 9

Right Front/Dash Speaker (+/-) Yellow – Yellow/Black // pins 2 - 10


Left Rear Speaker (+/-) Green – Green/Black // pins 3 - 11

Right Rear Speaker (+/-) White – Blue/Black // pins 4 – 12


Power // Red // pin 8

Ground // Black // pin 16


Metra 71-2107 Reverse Wiring Green Harness

Left Front (+/-) White – White Black // pins 1 - 9

Right Front (+/-) Gray – Gray Black // pins 2 - 10


Left Rear (+/-) Green – Green Black // pins 3 - 11

Right Rear (+/-) Purple – Purple Black // pins 4 – 12


Power // Yellow // pin 8

Ground // Black // pin 16


Metra 70-2057 Amp Bypass Green Harness

Left Front (+/-) Pink – Pink Black

Right Front (+/-) Blue – Blue Black


Left Rear (+/-) Red White – Red Black

Right Rear (+/-) Purple – Purple Black



Edited May 3, 2019 by Chino1777

[Rally_18]

do you have anymore pictures of everything hooked up?

[TrueBlueSilverAdo]

EXTREMELY INTERESTED! PLEASE SAY MORE!

[Chino1777]

I haven't able to hook it up since I had to work out of town. I'll have more pictures once I hook it up.

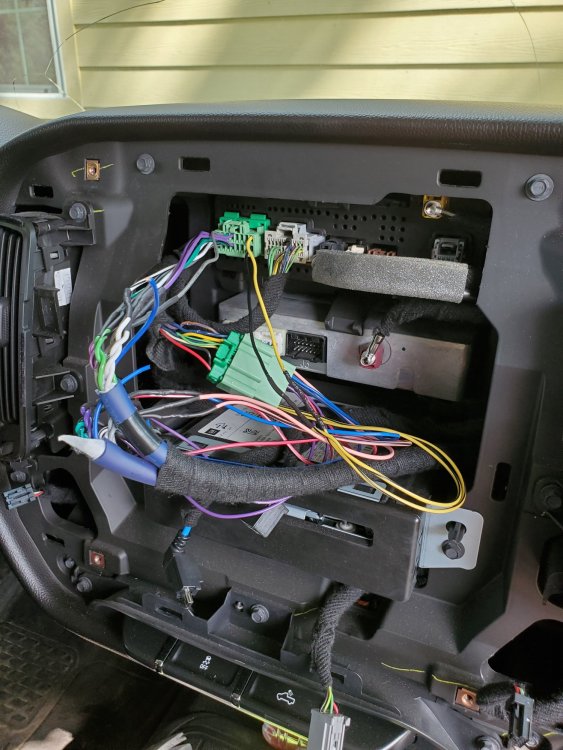

[Chino1777]

[Extreme597]

Do you have a video making the harness? That would be great
