Dual exhaust install on LT stock bumper without dual cutouts

SilveradoTex4
 Share

Recommended Posts

SilveradoTex4 Enthusiast

SilveradoTex4

Posted
Posted

I can’t narrow my search results for this, anyone know if there’s a difference between the single vs dual exit exhaust on the 2019 LT+ trims? I have the single side exhaust with the stock bumper without dual cutouts, I found a good deal on RC dual exhaust kit and thinking I could mod the tips with down tips.


thanks for the assist.

Link to comment
Share on other sites
Josh11 Enthusiast

Josh11

Posted
Posted
22 hours ago, SilveradoTex4 said:

I can’t narrow my search results for this, anyone know if there’s a difference between the single vs dual exit exhaust on the 2019 LT+ trims? I have the single side exhaust with the stock bumper without dual cutouts, I found a good deal on RC dual exhaust kit and thinking I could mod the tips with down tips.


thanks for the assist.

It’s doable I did it on my LT Silverado but I swapped the bumper at the same time to one with dual exhaust. Keep in mind that on the driver side there won’t be any hangers to hold it so you will have to support it by yourself. Other than that it’s possible

Link to comment
Share on other sites
SilveradoRST Enthusiast

SilveradoRST

Posted
Posted
28 minutes ago, Josh11 said:

It’s doable I did it on my LT Silverado but I swapped the bumper at the same time to one with dual exhaust. Keep in mind that on the driver side there won’t be any hangers to hold it so you will have to support it by yourself. Other than that it’s possible

Are the hangers on the drivers side for a Z71 usually welded onto the frame?

Link to comment
Share on other sites
Josh11 Enthusiast

Josh11

Posted
Posted (edited)

They are welded. I did a diy from hangers sold at auto zone and it worked . I meant to get it fixed properly but been driving like that for almost a year without a problem

Edited by Josh11
Link to comment
Share on other sites
SilveradoTex4 Enthusiast

SilveradoTex4

Posted
  • Author
Posted
1 hour ago, Josh11 said:

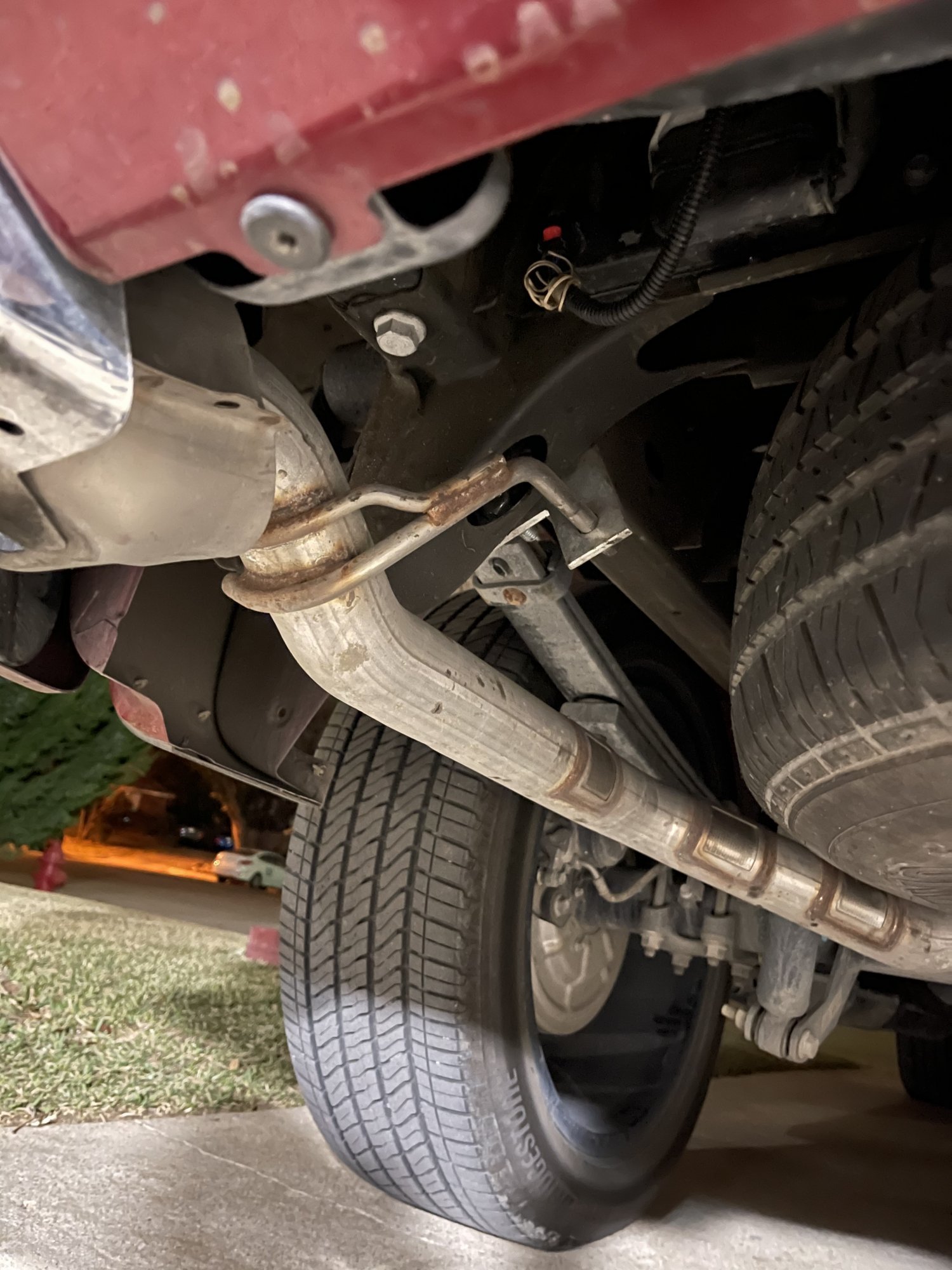

Same with passenger side since old hanger wouldn’t work as seen in picture


These are very helpful thanks. I assume it’s just like this for the exit tubes, the entry tube into the muffler has the right hanger fitting placement?

Link to comment
Share on other sites
jaimeastin Enthusiast

jaimeastin

Posted
Posted

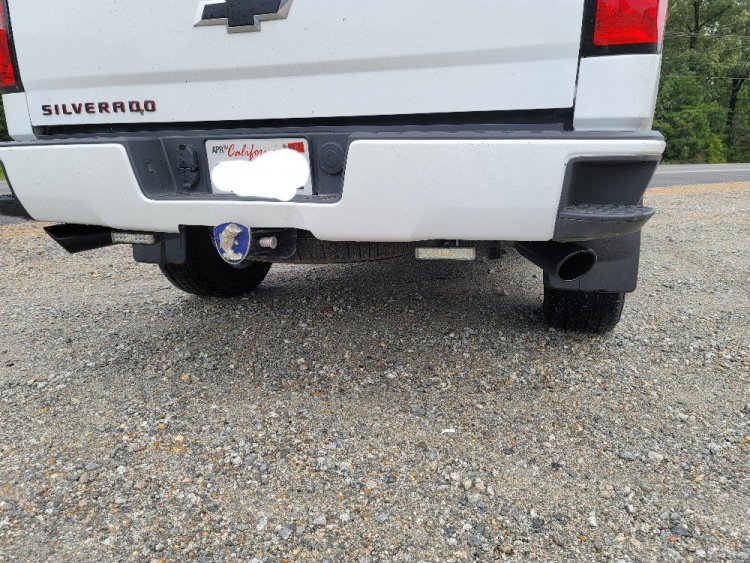

It's a 2018... But I had the shop do a custom job.  It's a magnaflow muffler that duels out.  I originally had a single side out on the passenger.  What he did was angled them down at each bumper corner.  I like this .  Still out of the water at most boat ramps.  I I used to used a hitch haul with my FJ Cruiser... I always like tail pipes that go out re side... No need to roast my cargo.


  • Like 1
Link to comment
Share on other sites
