23 (or maybe 21-23?) Soft folding tonneau cover pics please

[Rob Mugs]

• I had the dealership install my tonneau (and remove it) on my 2020.
• On my 2023, I do not see anywhere to mount the brackets that the handles sat on near the tailgate.
• Was there a design change?
• Anyone with pics of how theirs mounts would be greatly appreciated



[Rob Mugs]

This is the part:

https://www.gmpartsdirect.com/oem-parts/gm-bed-tonneau-cover-by-advantage-19416976

[newdude]

There are no changes to the bed.  All the tonneaus from 19-22 are the same 22+up.

[Rob Mugs]

3 minutes ago, newdude said:

There are no changes to the bed.  All the tonneaus from 19-22 are the same 22+up.

So strange, it had brackets that the handles clipped to on the old truck but everything I can find online, shows them simply clipping to the bed rail.  Thanks for the heads up though!

[newdude]

3 minutes ago, Rob Mugs said:

So strange, it had brackets that the handles clipped to on the old truck but everything I can find online, shows them simply clipping to the bed rail.  Thanks for the heads up though!



Instructions below.



TPOTPO31005104-30.pdf (tonnopro.com)



TonnoPro is a Truck Hero brand, Truck Hero is the manufacturer of the "Advantage" branded prodcuts that are via GM.  We've put on a few 19416976 covers and I can't recall there being brackets?  The old trucks had brackets on the OE covers from 14-19, that I do know.





Edited May 16 by newdude

[Rob Mugs]

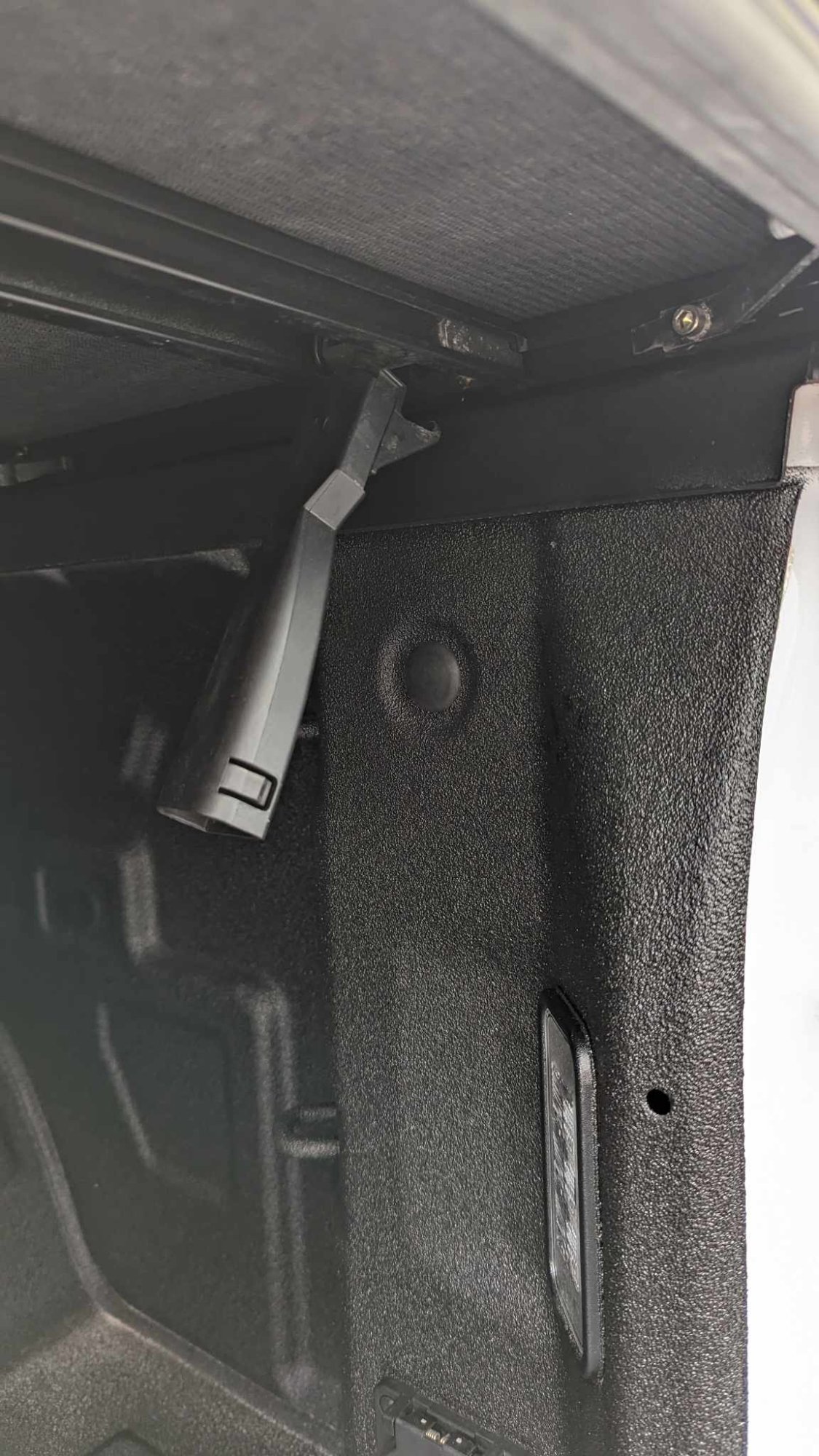

Seen that but this is how it was mounted on old truck:





There's nowhere to install those clamps on the new one

[Rob Mugs]

Perhaps I just need to cut out that piece of plastic as mentioned and the tech that installed it on the old truck just hacked things together

[Rob Mugs]

Interesting, there is no sheet metal here.  Well, there is, but there is no lip, so if I cut the plastic out, there'd be NOTHING to hold it
