JCunningham

My 87866808 switches just came in at the dealer. now I have everything to install upfitter switches on my 22.5 refresh. new 193c bulletin out /https://www.gmupfitter.com/wp-content/uploads/2023/08/UI-Bulletin-193c-2.pdf UI-Bulletin-193c-2.pdf

so does the button on the dash and you dont loose fuel milage.

if you dont want it on id recommend just getting the Auto Stop Eliminator. its a easy install. everything just pops apart.

2022.5 refresh Silverado RST 3.0L I was given part number 13542523 sensors new from my dealer. online it shows both these and 13533166 are the same sensor. I just drove 70 miles and they still have not relearned. The truck sat for maybe a hour before i left the shop and for several hours leaving before leaving my parents house. I do have the summer tires in the bed. could that interfere with the relearn prosses?

delete

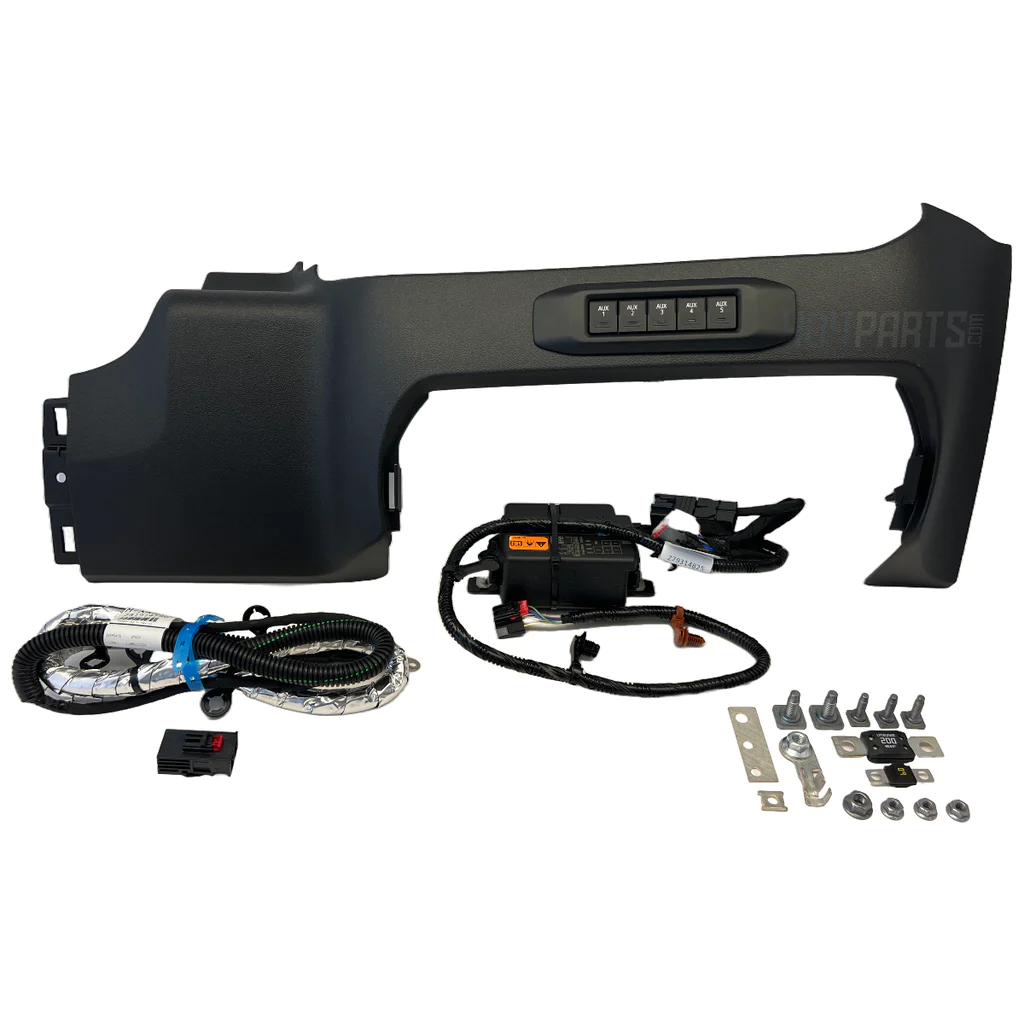

look whats available but price on this sight is $495. the 20-23 kit can be had new for $190. same kit just a different trim piece that cost $48. switches are not available yet. https://404parts.com/products/2024-silverado-sierra-hd-upfitter-auxiliary-switches-package?variant=44999220002986

that piece pulls right off. im going to paint it all gloss black like the rest of the trim. I was traveling through the Midwest and it was blinding me. I know everything snaps together so it just grabbed it and it popped off with very little effort.

so the dealer can price gouge you.

the only part numbers that have change from the 20-23 to the 22i 1500 and 24 HD trucks is the switch's. everything else is the same. you will get a center stack panel instead of a knee bolster to put the new switches in. the wholes for the switch panels are different but i bet you can install the current kit by just making your own hole. Dont know why they would have changed the switch bezel though.

they updated the instructions again 193b http://www.gmupfitter.com/wp-content/uploads/2023/08/UI-Bulletin-193b.pdf

www.gmupfitter.com/wp-content/uploads/2023/08/UI-Bulletin-193-wip-1.pdf it using the old part numbers for the 2020 up for the kit 84942073. that is incorrect. the new kit shown it comes with the center console panel and new switches.

Any chance there is a 30a accessory line in the cab anywhere? I need to hook up my 2 way radio. it requires 20amps. I want to mount it behind the rear seat.

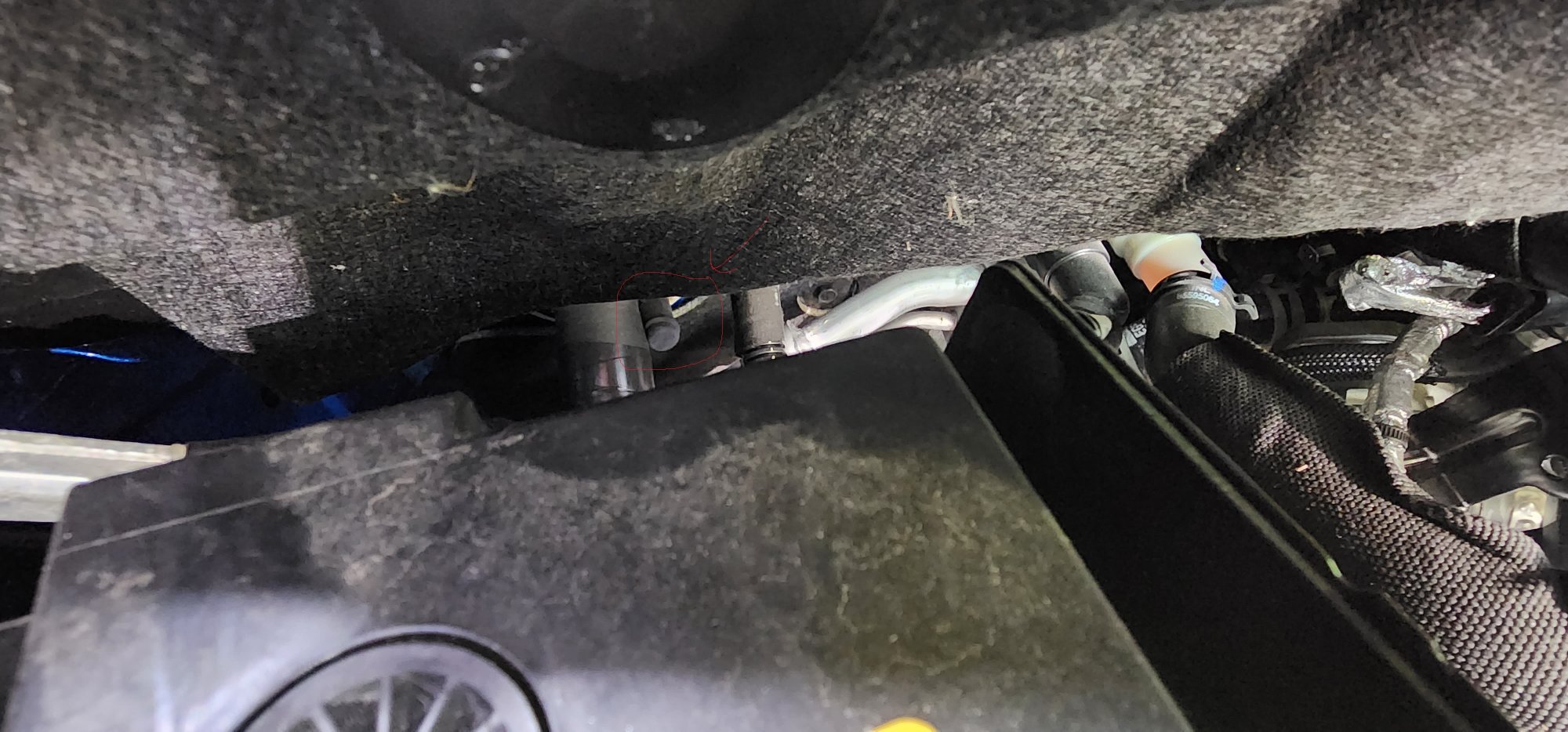

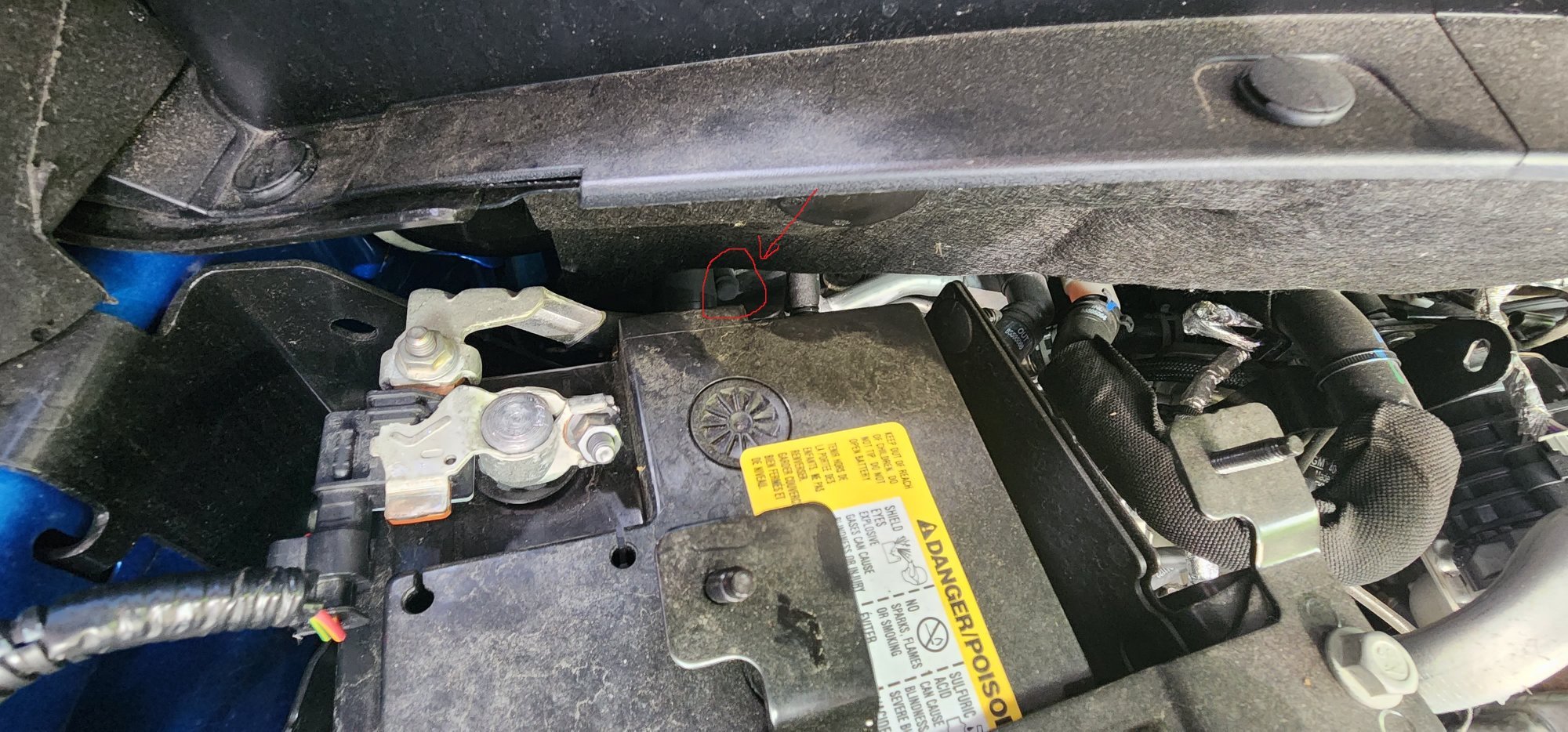

I haven't got a kit yet. i should have made that clear. Everyone is looking for the place to pass the wire through. I think this is were it is supposed to go through. the switches on the new interior are in the middle so id think they wont run the wire to the drivers side. and so you know this is my 22 refresh 1500 with 3.0l Should be the same though.

behind the the battery on the pass side.

if anybody has a kit to sell im looking

There should be a nipple that is on the other side of that Gromit. for the switches or the woofer box.

thanks

the pass through is might be the same one they use for the Kicker sub woofer. its a nipple on the pass side fire wall. 1:30 in 1

i sent Amsoil a question about both kits. Im sure I will receive a we didn't test it so you cant use it. Just like they told me they dont have a adapter for the PH66. Yes they do have a adapter. The BK300.

Came here because Id like to add the upfitter switches to my 22.5 refresh 1500. I see they still haven't offered the upfitter kit for the new 24 HDs. Anyone have any info on it?

ya after looking into it farther im just going to forget it.

well i haven't found a bypass pressure but i did find a oil filter that does not have a by pass. its the filter from the 08-22 6.7L Cummings. Amsoil EA080. its a 1qt filter. It also has a 1-16 thread with same size gasket as the PH66. So if it fits in the same location as the PH66 it should work with the 3.0L. My Amsoil by pass kit calls for a 3/4-16 SBF filter but can only find the hard to get Jomar 9025 filter to fit that without a bypass. I did find a 3/4-16 to 1-16 adapter that i will use so the EA080 filter fits. The Amsoil EA080 cross references to a K&N HP-4003 you can find in the parts store.

I want to do a Amsoil bypass filter kit I have (BMK23) new in the box. I found out i needed a 1-16 thread adapter (BK300) to replace the PF66 filter. The only thing is the factory oil filter has no by pass so it must be in the filter block on the engine. Anyone know what PSI the bypass is set at? Seams the only filters I can get for the BMK23 are 3/4-16 and have a 11-17psi bypass. From what I'm seeing the LM2 runs 20-30psi normal. I dont want to be bypassing oil to soon.

nope look at the map. its the google maps dont gave terrain and the options on the side are different. this is android auto. I put the correct link up.

it doesn't save any fuel. it takes more fuel to restart then idle at a stop sign. You will pay more in early repair costs then you would save if it did work. I cant be leave they put it in my 22 1/2 3.0L and good god this truck got me 27.5mpg on my 80mile run today. auto stop was off. My Auto stop eliminator was supposed to come today. It didn't.
