Josh11

Correct most roads don’t have the speed limit updated but the white sign can always be removed in settings if that bothers you

The radio trim with leather sits on top of the trim that goes around the speedometer that’s why it needs to be removed

The actual swap is not so complicated but radio will have to be removed

150 for the cluster and programming is 299 since it was used

They had it programmed for my Silverado so I’m guessing they used the gauges as the high and country. The Denali cluster was my cheapest option than purchasing a new HC one

Tools Needed 7mm Socket t-15 Torx screw driver flat head to pry off plastics Step 1 remove Radio - Remove Plastic Trim around screen it has 11 Clips -The remove bottom cover by removing the 7mm screw next to driver pedal then pry off the plastic should have 3 clips -remove middle plastic should have 4 clips -remove radio by removing 6 t-15 torx screws 2 located on bottom and 2 on each side - pry off the back leather trim doesn’t have to be completely removed just enough to have room for trim attached to the cluster Step 2 removing trims - remove the top leather trim above the speedometer should have 6 clips - remove side trim next to the driver door that access the fuses - remove 2 T-15 screws that attaches to the switches -remove the 3 7mm screws on the trim in front of the speedometer that are located on top of the trim Step 3 removing cluster -cluster has 4 7mm screws one on each corner -unplug cluster and replace it Step 4 Put everything back together

I was successfully able to swap out my Speedometer on my 2019 Silverado to the digital Cluster from a 19 Sierra Denali thanks to White Automotive & Media Services. It took a bit of effort to get to cluster out but looks Great. Highly recommended the swap

They programmed the cluster for me already just need to install it

Does anybody have the layout on how to remove the speedometer on a 19 Silverado? Planning on swapping it out for a Denali Speedometer

When I had mine installed at first the light on the cluster didn’t turn on and then after they flashed the bcm the light worked every time the fog lights where turned on

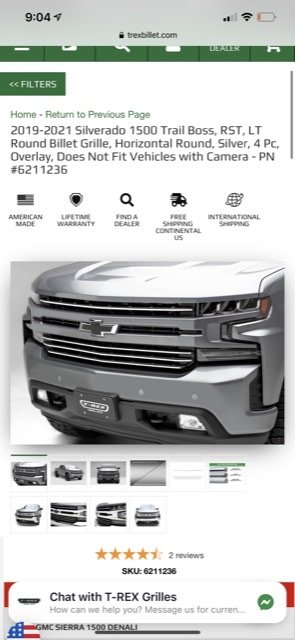

I would also recommend going aftermarket with trex grill add on which makes it looks like a high and country at a low price

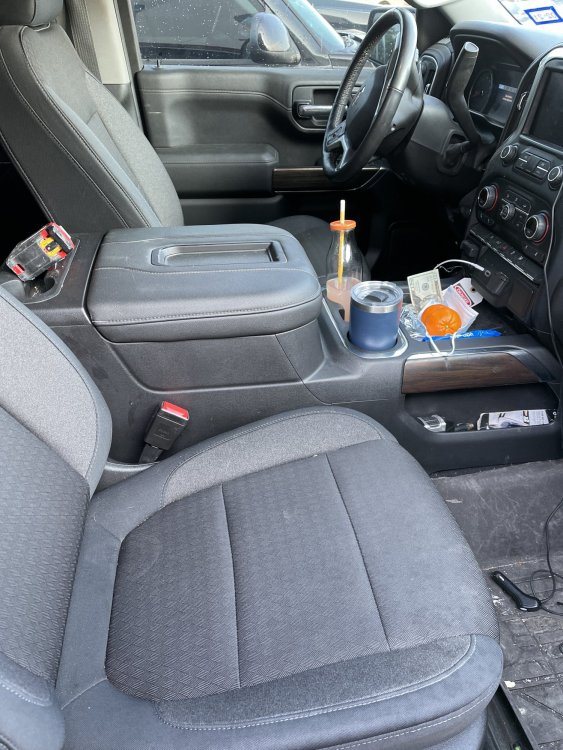

I have a jump seat with storage on bottom and top if anybody interested in it planning on swapping out for console

Also btw if you order the kit it doesn’t comes with instructions it says you have the ask your local dealership but when i installed them 5/6 dealers didn’t want to give them out

The kit comes with both fog lights, a switch, a harness and an extra wire In case if its not already installed from factory. Keep in mind that you have install at least one wire into your bcm harness during the installation. It will require 1 hour of labor for the programming in case if you decide to install them on your own
