Daniel Formichelli

Thank you.

i forgot about all data. Thank you!

Is any one able to provide me a part of the bose amp wire harness? I cracked a connector. I have a 2022 1500 LTD Pre Refresh. Or even pinout or wiring diagram.

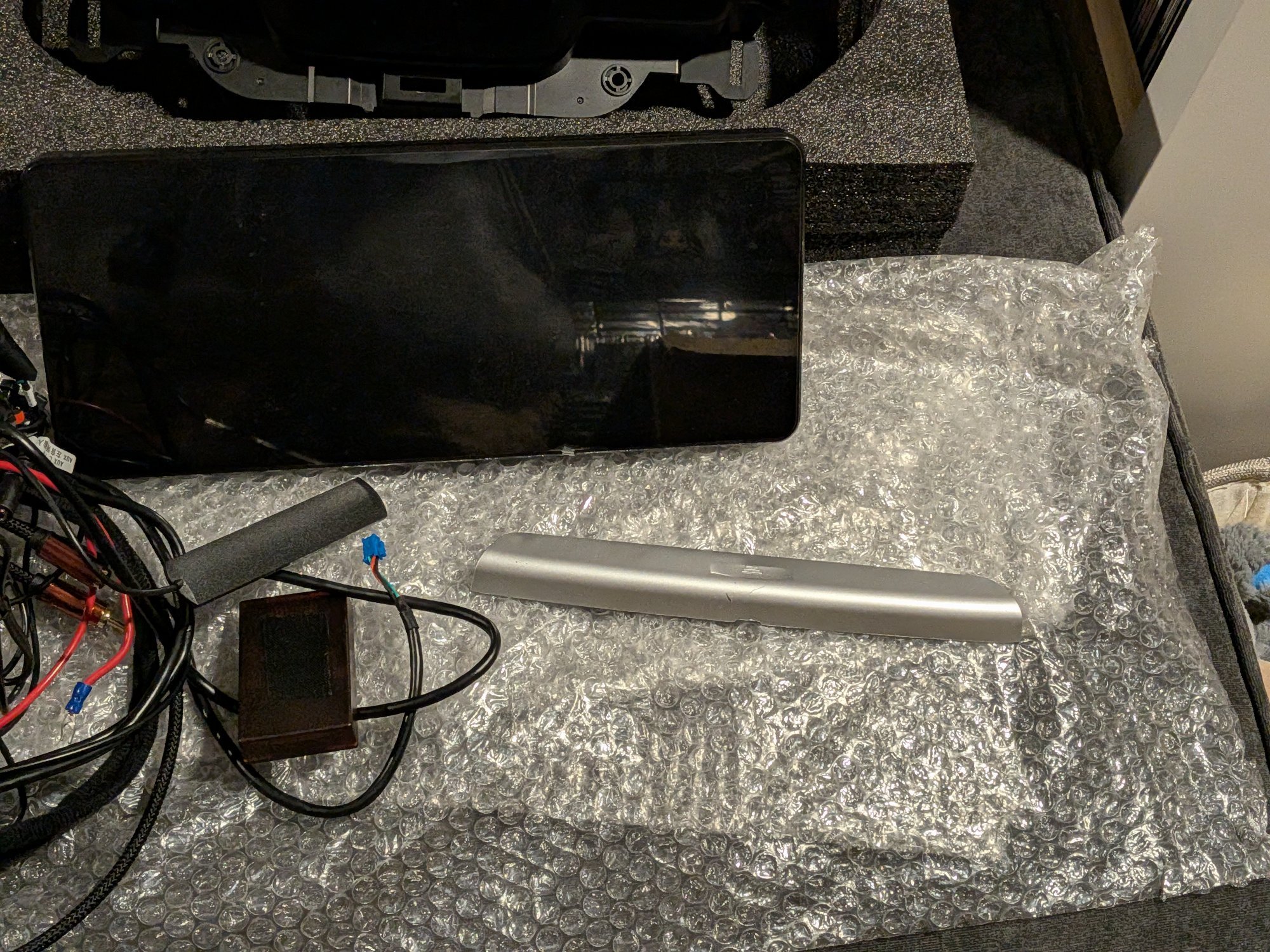

No longer needed. Had this for almost a year. Loved it. Went back to stock, looking at getting something different or trading truck in. The New Z Innovations Android Head Units are designed to replace the factory fascia with our built-in screen upgrade and the latest software only from Z Innovations. Plug & play, very easy to install. Google Z Innovations it is an Australian company. Plenty of videos on install and reviews. With high-speed booting, fast connectivity, and easy-to-use operating software, we offer a head unit to replace your existing unit with 2k resolution that has the latest Android operating system at your fingertips. The silver top has some scratches from poor choice or removing it. Screen Size 12.3 Inch Operating System Android 15 Ram 6 GB Samsung Rom 128 GB Built in Storage Screen HD IPS Screen, Samsung Panel 2K Processor Intel Octo Core CPU Carplay Wireless Carplay Android Auto Wireless Android Auto Microphone Factory Steering Wheel Controls Compatible (multimedia buttons) Camera's 2 Camera input (factory system Included) Bluetooth Yes Speaker Output Yes Wifi Yes RCA Input/Output Yes USB Input 3 USB Inputs Factory Syestem Compatible OBD Compatible Plug and Play Yes Offline Maps Included Hema Downloadable from the App Store Google Maps Downloadable from the App Store Dash Cam Compatable Original car info functions Yes including onstar and Sirius XM radio Sim card Yes Door Open Warning Maintained Yes Factory Speaker Compatible Yes Warranty 1 Years non transferable

@PureZ71 what rack is that? Do you have a tonneau cover?

Bump

Will do man. Thanks!!

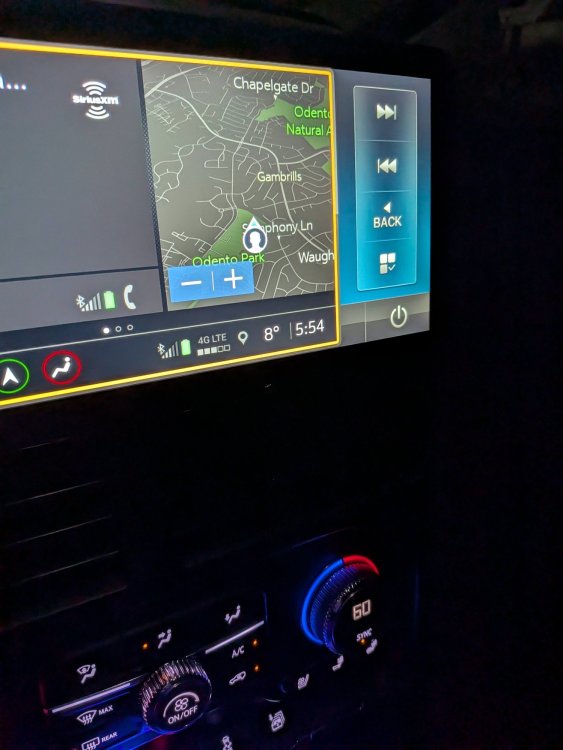

I have the infotainment upgrade bought it 2 years ago. Works great. Recently got the Z innovations 12 inch screen. Its fantastic. Still learning how to setup everything up.

Just replace the seat. Its PITA.

@fondupot Installed one in my Silverado this past weekend. I have 2 questions for you, one. How the heck do stop the factory rear camera from switching to an aftermarket one? I will see my rear camera for like 5 secs then it switches to the tablet one. How do you connect the carplay? I click the green icon and it just says verifying connection and never loads. I can not do it wired or wireless. I am plugged into the single usb. I have the aux connected to audio out rcas and plugged into the aux plug in the console. Am I missing something? Any assistance would be greatly appreciated. Happy Holidays!

061914e or 012122A possibly... True North was the Canadian counterpart to the US All Star Edition.

Well if any one else is interested they are called stAK50H Hybrid Receptacle made by Molex. Just have to look at the datasheets to get the mating one. https://www.molex.com/en-us/part-list/0340?taxonomyPathValueLast=Connector+Housings&pageSize=50

These are for radio receiver the one tucked underneath passenger side footwell. Essentially the connectors you would use for a T-Harness. Need to make a custom connector for my camera box. I now have the female side which is shown I just need the male side. 2020-2024 Silverado with the IOT radio as the IOR has different connectors.

Is any one willing to share or know the part numbers I can get these connectors? Male and Female. Thanks

Well I do believe this guy @Rally6.2RST did something like this but it was with the now defunct AUTOSYNC. Read this post here: Cameras I added this Silverado Cameras with creativity you could add up to 4 extra cameras.

Selling Brand New. Only opened to take inventory of contents. Purchased Level 2 instead. Can not return. 600 Local/675 Shipped to East Coast ONLY. I couldn't figure out how to delete or edit previous post.

Think its this Bolt is 11519388. M8x1.25, 25mm length. Nut is 11561740.

86790873 86790857 Does not say anything about leather though. Have a picture of one?

still waiting for mine.

Or the splice wire is 19370262 - which looks like what that is. i

May not be helpful... https://www.amazon.com/gm-ecm-connectors/s?k=gm+ecm+connectors https://www.customconnectorkits.com/product-listing/all?manufacturer=aptiv-delphi Hard to tell wire gauge and actual terminal picture.

How are you liking these? Loud? Smooth?

bump

bump
