Hello I added a OEM wireless charging pad to RST Silverado. Here is what I needed... -Harness 84482759 ($56, this harness also gives me option to add heated rear seat later) -Charger Module 13521065 (did not need to program) ($50) -Duct 23391625 ($10) -Trim Panel 84505586 ($45) -Mat 84555398 ($9) -Bracket for module 84075152 ($10) Everything works nice charger icon lights up on radio when I place phone on it. Thanks
-
Got my full console from Ebay used in like new condition. I did alot of research to figure out how to wire it so all the functions would work. I.e. wireless phone charger and usb/ cigarette liter ports for the rear passenger. I have a currently have a 22 2.7l Custom that doesn't have the required connection under the front passenger seat. After hours of looking at schematics and testing wires, I managed to hard wire my center console to the fuse box on the passenger side. Wire on the CC harness to Fuse box Both Red/white to F5 (Battery positive) Violet to F20 (Accessory on) Violet/yellow to F23 (Accessory on) BOTH Black to Ground below the Fuse box. The only section I wasn't able to get working yet is the USB in the middle of the console (the one with the map SD card). This one I believe needs to be connected to the radio that has the built in navigation. (once I get one I'll update this post.
-
I’m swapping my jump seat (with storage- which is for sale) for a floor center console - I don’t have the wiring for it under the seat so I am making a harness to power the rear usb and 12v receptacle - the console that I bought comes with wireless charging - anyone know how to wire the wireless charger to a 12v source (it has multiple wires coming out of it)? Thanks
-
Wireless Charger in Center Console Lid
pipdicker posted a topic in 2014-2018 Silverado & Sierra Mods

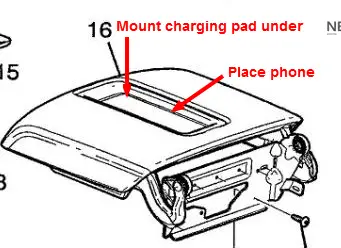

I would like to mount a wireless charger for my phone underneath my console lid, so that when I set my phone in the tray it charges. The challenge is I would need to disassemble the lid so that I can attach the charger close enough to the outer surface of the tray for the phone to charge. Please see my crude illustration below: a) Has anyone done this? b) Is anyone familiar with disassembling the lid? Not removing it from the console, but separating the outer and inner pieces to place charger inside.
-
I am curious is anyone has taken apart the entire wire harness for a 2018 Sierra wireless charger. The harness would run from the charger to the back of the console. If you have pictures of the connector that is at the back of the console that would be appreciated as well. -
Modifing my new 2017 gmc sierra pickup truck to install a wireless smartphone charger in the arm rest... -
Cannibalize my existing Samsung Wireless Charger and installed wireless charging ability to my 2016 Chevy Silverado 1500 LS. Minimal modifications (3 non-visible drilled wholes). Parts required are: Phillips screw driver, Drill and Drill bit. Source Charger might requiring some other parts. My job required micro Phillips screw driver, soldering iron, solder, sander, speaker wire (3") Electrical tape, and pliers. Enjoy and pass along any suggestions.
