Will O'Daniel

I did happen to fab one up. Only, one. I can do it again and it runs the same price of my winch carriers. It will take me about 30 days to get one going as I will be out of the county at the end of this month.

Thanks! Just a hitch? I can do one of those. Haven’t built one but could fab one up.

I haven’t shipped one to Canada yet so I couldn’t tell you what that entails. I can look into it here, but that will be tomorrow. The brackets are pretty straight forward and the plate can be picked up from amazon or another plate builder and cut to size. I can even just do the brackets and send them you with the hardware when I check with the shipping companies. Most of the weight comes from the plate when shipping it all together. That would knock of at least $75 of my going prices.

Others make a plate holder for Hawse fairleads. This is one link I found. It will completely depend on how you mount your winch. https://www.quadratec.com/p/tuffy/flip-license-plate-holder-hawse-fairleads?gclid=EAIaIQobChMIq67ugNXi5gIVQyCtBh3y-gO0EAQYBCABEgJP4vD_BwE

I can still make these. No manufacture makes them as it requires drilling into the frame.

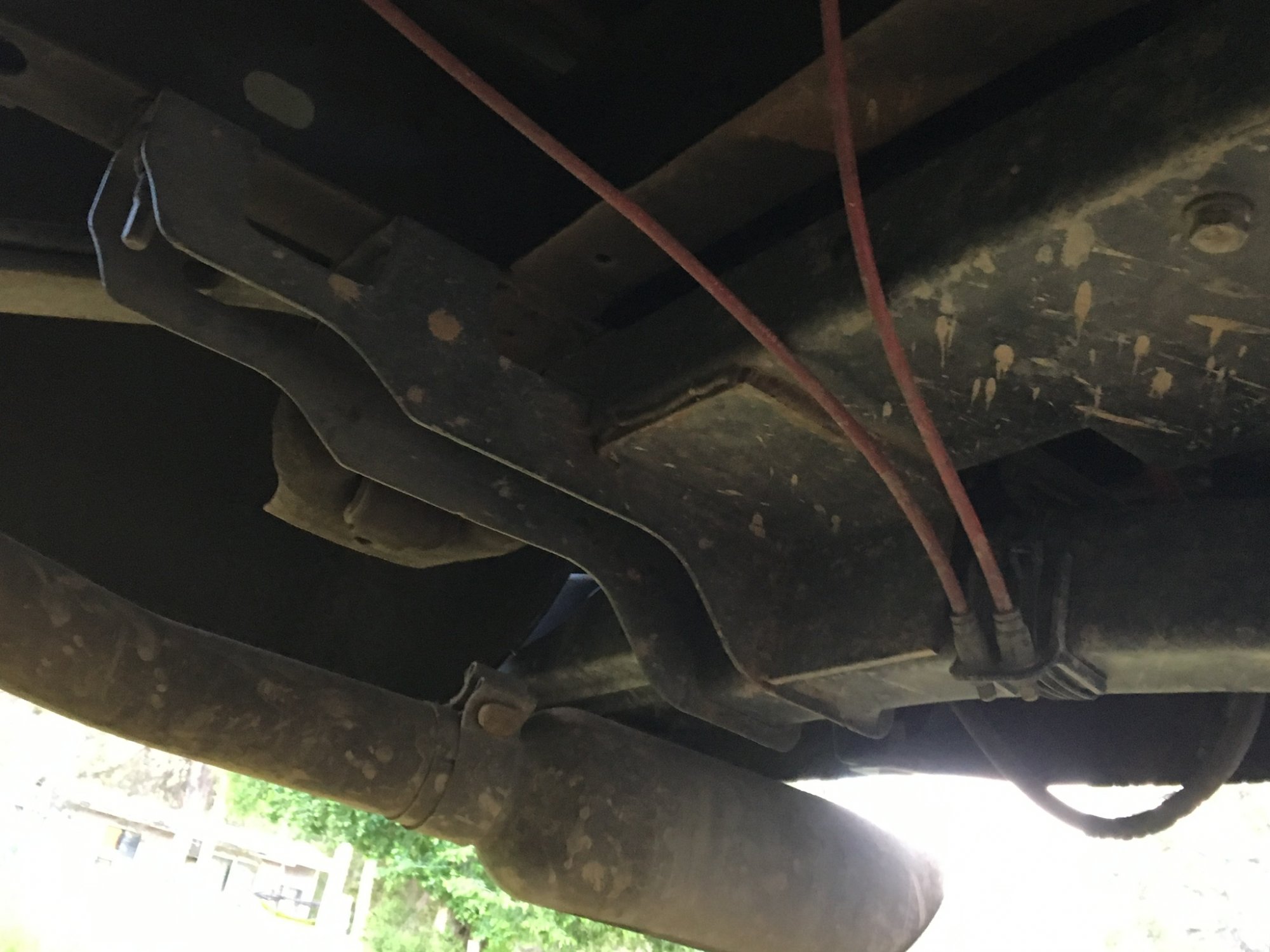

All I did was made L brackets and welded them to the hitch receiver that bolts onto the truck. I have made a couple brackets for other people that bolt on to the receiver, but it does require holes to be drilled. The winch plate had to be cut to size to fit where I wanted it to go right behind the bumper. I also had to remove the shaft for the spare tire drop. The factory spare will not fit back in place with this. I run 35’s and that wasn’t an issue for me.

Yes sir! It fits 2014 through 2018 1500’s.

Thank you!

I have got a bracket built. I will say it’s not a a successful build as the original bumper fascia cannot be used without reducing ground clearance. I used a badlands winch, which has the lowest mounting height available on the 12,000lbs market. This is the same case with both diesel and gas. The transmission cooler would have to be relocated and the engine skid plate reduces available room as well. I am sorry I couldn’t accomplish this one.

I sent you a PM.

We have some brackets worked up and I am waiting for the plates to come in so I can test for them this upcoming weekend. We should have a full update in 2 weeks time.

Depends on the winch you use. I have tried to design a lever to assist with free spool, but it doesn’t work with all winches and each one is different. I have upgraded to the Zion 12 for my winches and it has an electronic free spoil via a wireless remote.

It’s the 6.2. As far as mechanical. I have 4.11 gears, BTR stage 2 cam, full exhaust with custom headers, K&N intake, and a Black Bear dyno tune. It’s still a work in progress, but I have several other builds I am working on as well.

Due to recent uptick in interest. I am posting the pricing on here. I have a 2-3 week build time per unit. This is just a hobby and I am more than happy to help anyone with getting their truck to the look they want it. I am in the process of designing and building the 2500/3500 series hidden which setup. I use 1/4 inch steel. I can pre drill all the holes but we have found that the factory holes and frames can be off by as much as 1/4 inch. It is best for you to drill your own holes in the brackets and plates. This setup does require you to drill 2 holes in the frame of the truck. One on each side. And drill out the threads to the rear of the tow hook nuts. I provide all nuts, bolts, and washers in grade 8. The front factory tow hook nut and bolt will be reused. All bolts are 1/2 inch thread. I also provide the snap brackets and bolts for the front license plate cover if your state required it. Plate, brackets, and fascia bracket: $450 includes shipping Plate, brackets, and 2” receiver: $475. Includes shipping.

I have not built one for the 2500’s yet. I can get the measurements and do one from one of the dealers here. What year do you have?
