Keagan

I got it sorted out, thanks, they were in correct, I just needed to adjust my up and down alignment.

Just added my Red Recovery Hooks

Now i know how my tow hooks will look on my truck!

There is a parts swap thread for those looking to swap bumpers and grill.

Man does 16/17 HC's really look nice. I'm torn if I should of gotten that year instead, however the 16/17 seems a bit "soft" on the front end compared to what I believe is a more "buff" look on the 14/15. That's just me.

Did yours come with the black emblems?

Very nice! Is your tonneau soft?

Late to the party but here is my contribution.

Thanks man!

Anyone have or know where I can get the wiring diagram for my front park assist? Initially I thought I had this figured out, hooked it up to a friends scanner and he said the 12v was missing, he also found water in the harness. Drained out as much and sprayed electric cleaner and let it sit. It worked for a week or so and it began to be intermittent. Last he checked, all sensors were good and clean. Any diagrams? P.S. The park assist light on the switch bank does come on when you turn the ignition to on without start but then goes away while the lane departure one stays light until I start the truck. Thanks!

Thanks! When I do my oil change I'll take a look what's going under. Thought I had to but that will give more reason to get them now.

Yeah I know man, I actually planned to get the XB fogs but after reading through this thread I thought some members mentioned the XBs output would fade over a period of time. Although this hasn't happened yet with my Avalanche. The only thing stopping me is having to take off the bumper.

I thought about it, I have them on my Avalanche but I thought the HIDs gave more output.

My first install video, bear with me.

Lol, it happens. I had a couple brain farts during my installation. Nothing a few choice words and a beer didn't fix. You only need one for source. You can take out the other one.

Thanks man, will have to double check how it went in. Really don't feel like taking out that air box again right now.

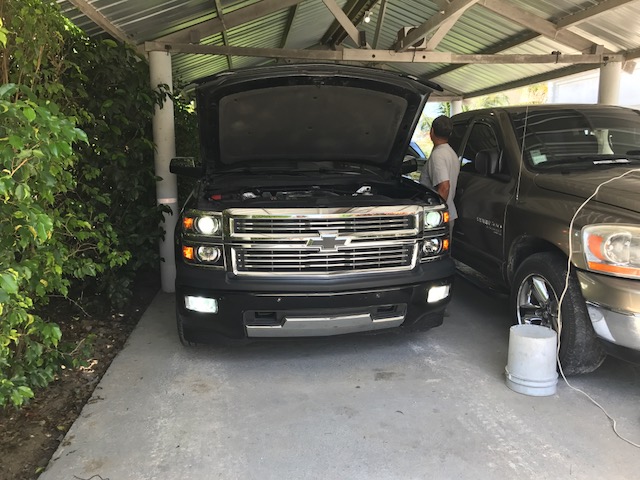

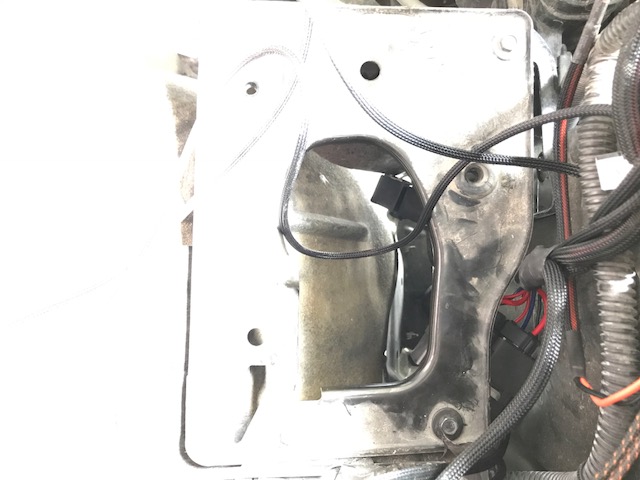

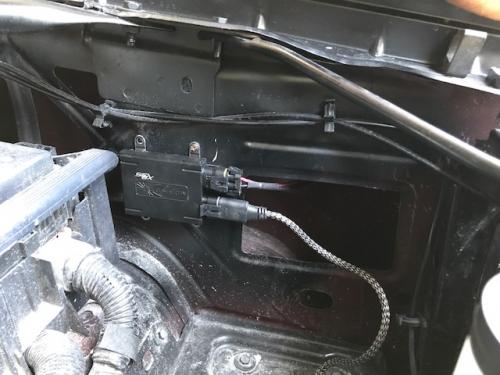

Finally did the HID upgrade. I used the Morimoto Silverado Kit 35W, 5500k with extension and Capacitor Link. After doing the fogs this was pretty easy, although it took us 3 hours because we could not get the damn thing to light. Checked all connections and power, fuses, come to find out the pins at the OEM source wasn't making good contact. Got that sorted out and viola! Took some not so good pictures for those who may need a hand. Installation: Laid out everything and made sure it worked before running harnesses. -Driver side ballast as you can see is on the fender with 3M tape behind to kill any vibrations. -Passenger side ballast was a bit of pain, but managed to mount it on rad support in front of air box. -HD Relay Harness was mounted on the bottom of the Air Box tray, I used one of the tray bolts to slide the hole of the HD Harness bracket on to and find a matching nut. Wanted to put this on the fender but I only got 1 ext and for some reason that wasn't enough. - Cap Link sat on top of the rad support with 3M tape with the wires also running on top of the rad support. - Dust cap, worst enemy ever!!! ? Couple things I noticed, whatever alignment issues I had with OEM bulbs have been magnified big time with the HID bulbs. It really is a big difference but I need to do some adjustments on the passenger side particularly. I read to make sure that the bulbs are set a certain way but these only go in one way so I don't know if the rod on the bulb is where it should be? Anyone? All in all a 2/5 difficulty rating to do the job!

Edit: reading is fundamental. I just did my HID'S Today. Wish I saw this last week. Good deal!

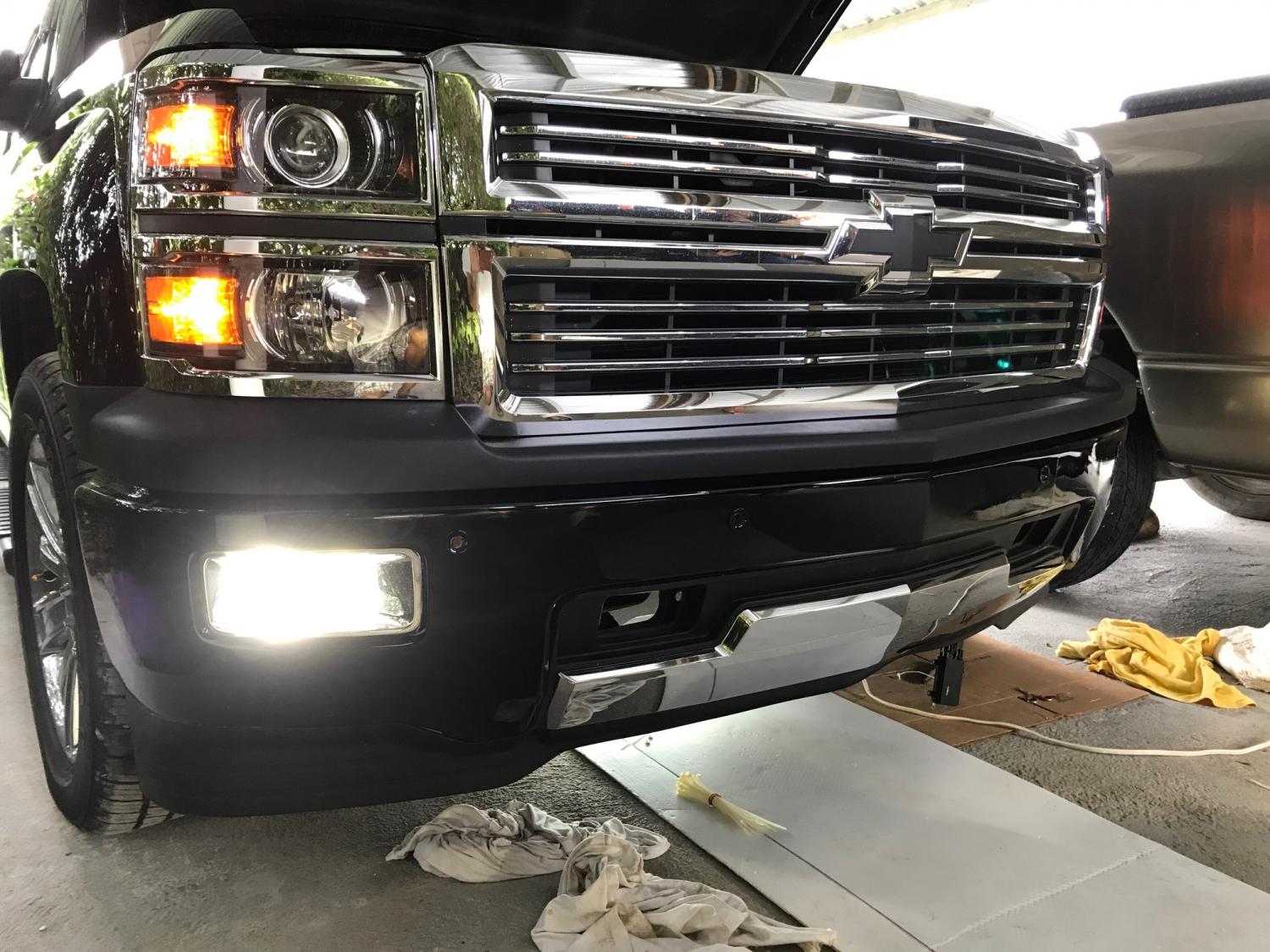

Did my fogs last week. Morimoto 4500k HID 5202 Kit, I ordered a capacitor link and found out later I didn't need it. I was told by TRS that it didn't work while I was wiring up because of reverse polarity from the source. No biggie, I can always go back and put it in. I also got Morimoto 5500k Silverado Kit today and will install tomorrow.

Mine is currently saying service rear parking something. From what I read, I must take it to a dealer to get it checked out. Lucky for me, I don't have a dealer where I live.

Glad someone was able to help you on this.

Some very nice trucks here, I should have my 2015 within the next couple weeks. I'll post up.

47k 2015+ High country
