2" Lift that is built into the Rancho shock/spring housing. I had a ZONE 2" front lift prior. it took the nosedive out of the front-end

Noticeable improvement over the stock Z71's. Not as bouncy and you can dial in your ride

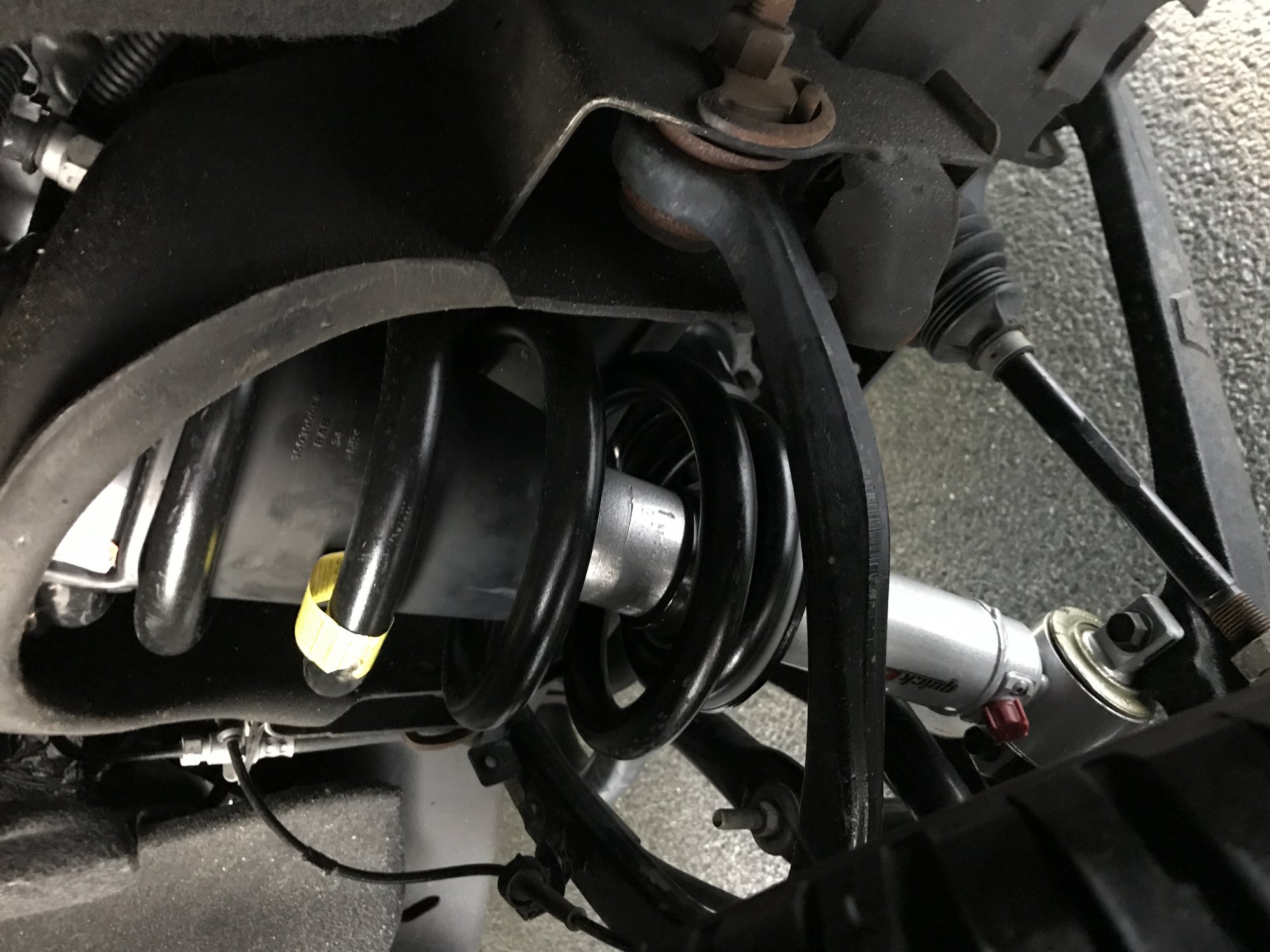

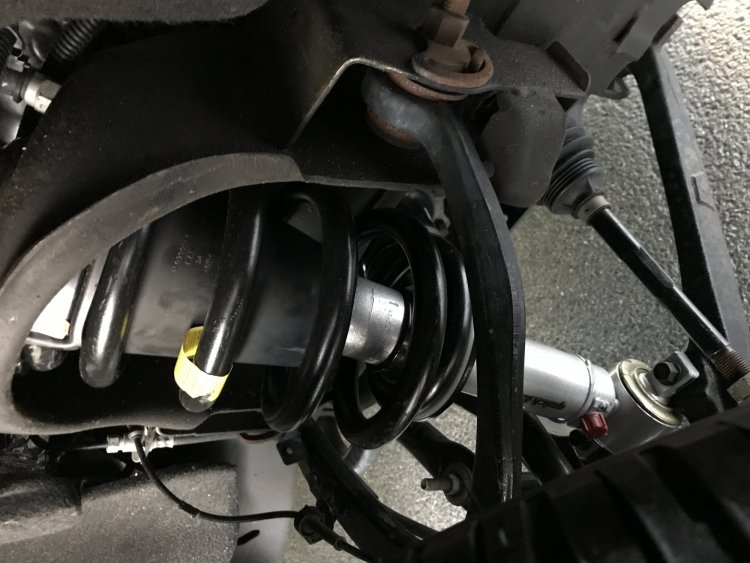

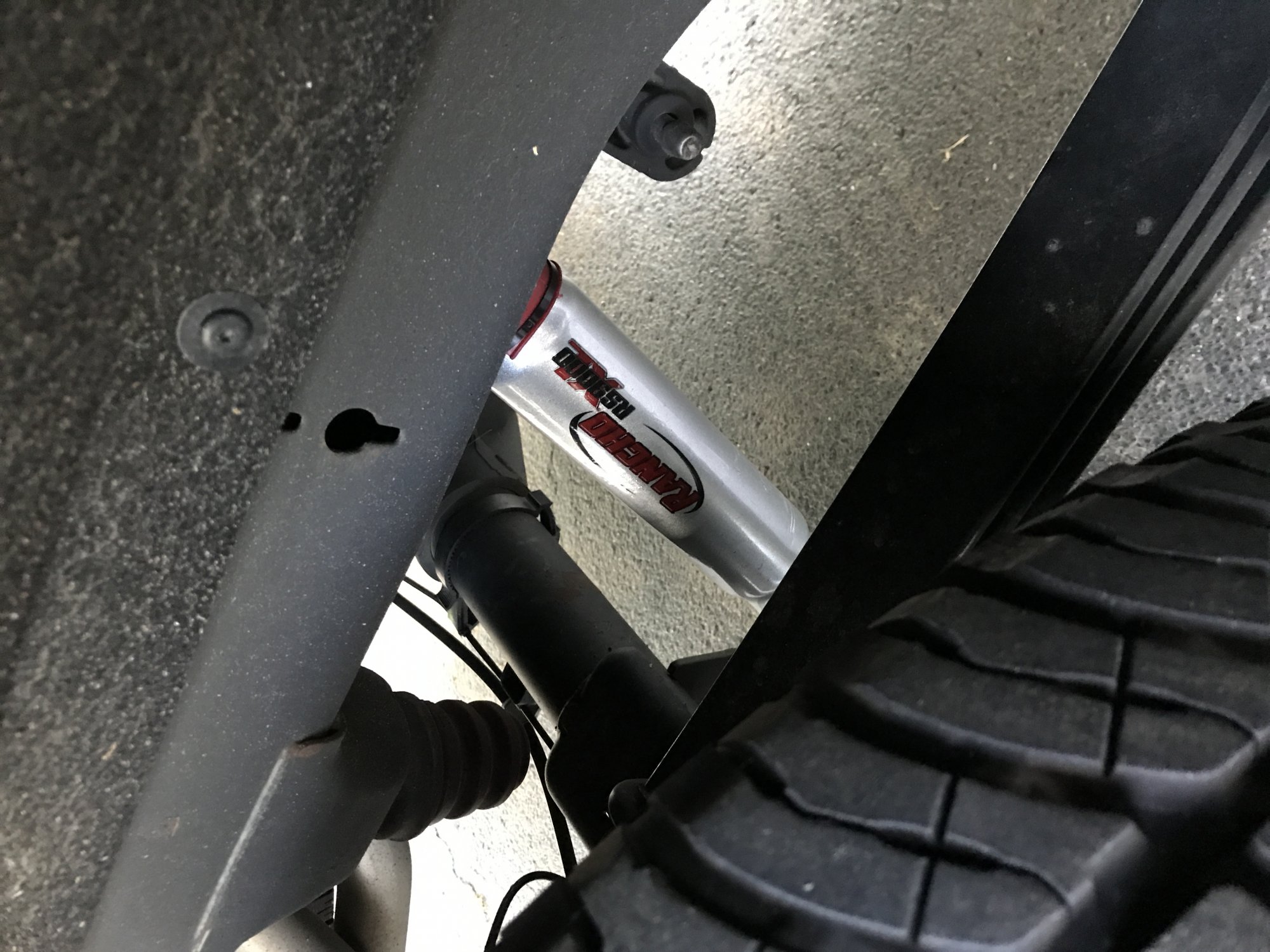

I swapped out the Z71 Rancho "Bricks" to new Rancho quickLIFT Loaded & RS9000XL Front & Rear Suspension

Installed...thanks Chris White!

Received my new 2015.5 Denali Cluster from my GMC dealer last Thursday and shipped same day to Chris White in MI via UPS which he will receive today... Before picture...

Ordered my 2015.5 #84254161 Denali Cluster yesterday from my GMC Dealer, should be here end of week.....

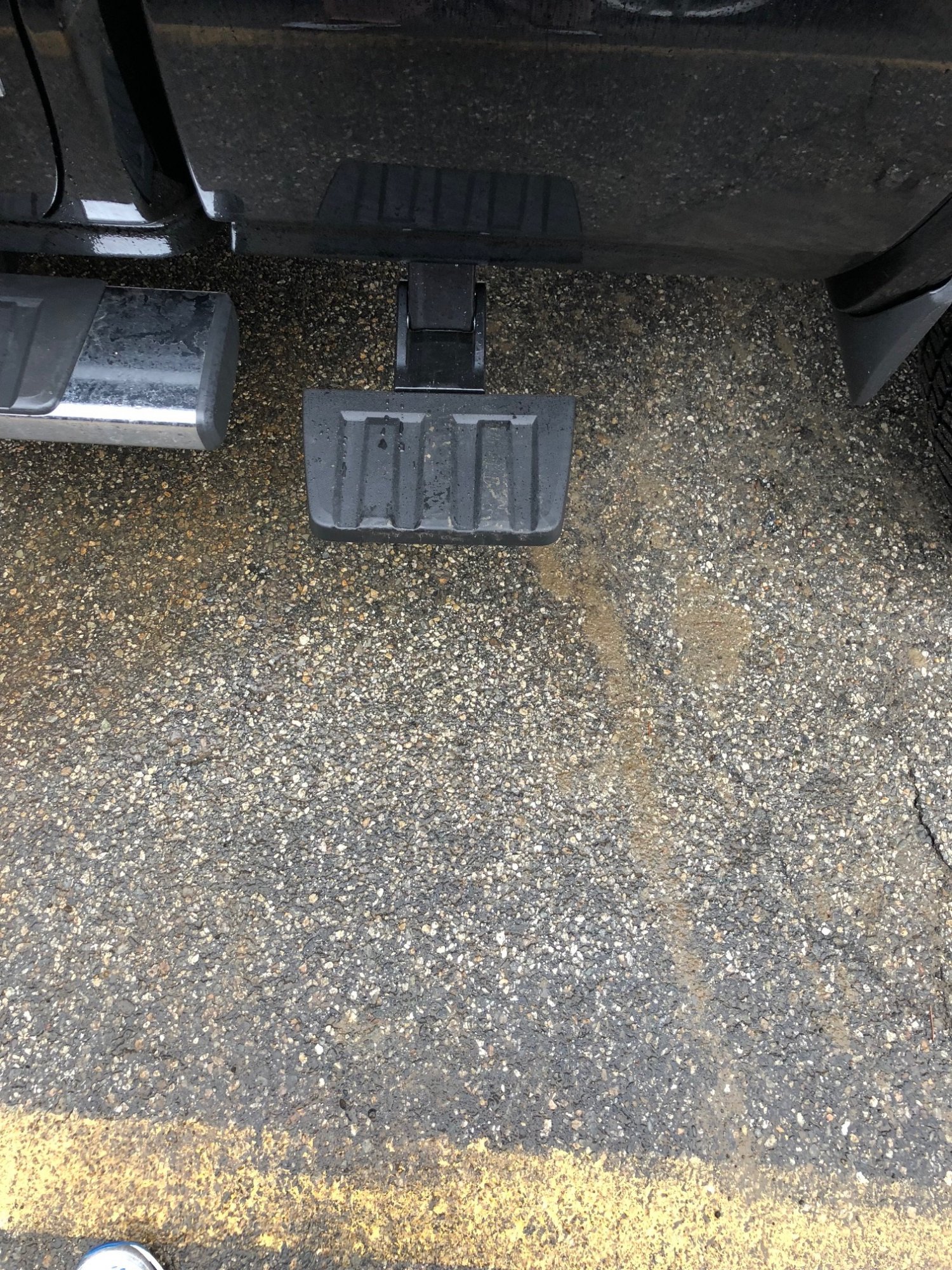

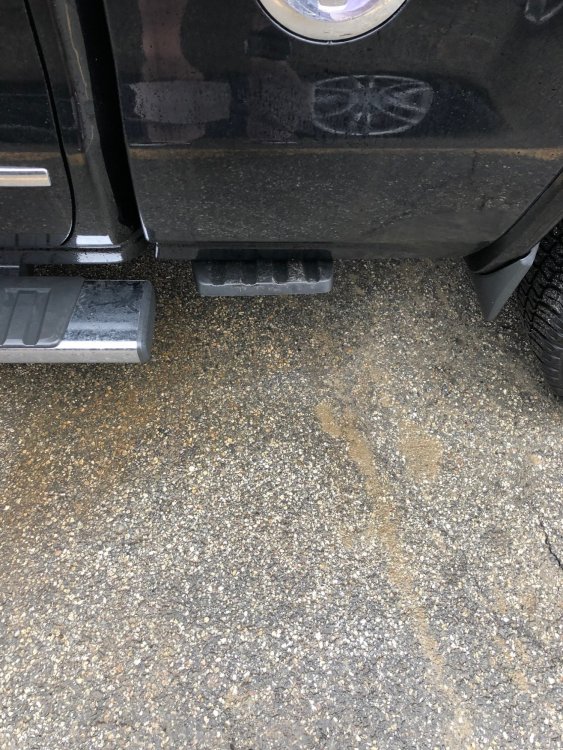

GMC Bed Step Installed. Ordered a Fold-A-Cover Personal Caddy for using this.

Installed....

Mine is a 2105 A/T SLT and my "tray" would not work. Like the hood LEDS BTW, nice touch

Appreciate the insight. What we found out after calling GMC PartsTech hotline is that the 1500' are built with a tray included solely because the engine compartment is relativity the same BOM as a 2500,which allows the option to add a second battery, hence the tray being there. Secondly, the tray that was installed in my engine compartment did not have the proper hold-down lip or the adhered nut on the bottom to hold the retainer & bolt. This is the strange part as others here with 1500's have the tray that does have the ability to secure a battery. We brought in tray #22989633 and that also did not have the lip to hold the battery. My parts guy ordered tray#25826079 which is tray in the 2500 and that tray has the lip and the nut on the bottom which holds down the battery. The only difference is the slight jog for the washer bottle neck, however the tray will fit. Lastly, the tray size requires an AC Delco battery Series 48PG (or similar battery) not a Series 94 which is included with the 1500' truck and 3 inches wider. When you order a 2500 with dual batteries, you receive 2-48 series batteries which includes an isolator. I ordered the GM factory cables for a dual battery install and will have my installation shop add the appropriate isolator and fuses.

Tray would look like this one...see the lip behind the washer fill cap

This is the GMC Part listing the additional tray....see how there is a lip on one side near 10,11,12 o'clock in the photo to retain the battery

I started to add a second battery today when i noticed that the additional battery tray that came with the vehicle did not have a place for the retainer & bolt attach to or the other side of the battery (a Series 48) to hold on to. When we drilled down into the BOM for adding a secondary battery we noticed that there is another battery tray listed #22989633. Has anyone else had to swap-out the tray that came with the truck in order to add the secondary battery so it could be secured? This how it looks now...

$325.96 including the battery w/o the tray, support, nut & bolt for the tray $498.68 with those parts.

I just ordered the parts for installing a second battery if anyone needs the list. I already had the tray so that eliminated 5 of the 12 parts needed including the battery.

2015 GMC SLT AT

My 15' AT Z71 already has a Zone 2" front-end leveling kit installed. Do I order the adjustable 5100's and set it at it's lowest? I recalled seeing a Bilstein video that they did not recommend using the adjustable with a leveling kit.

My truck is a 15' but I purchased it new 7 weeks ago. Have 1400 miles on it now but my passenger side has condensation in it. These headlights are vented, it's in a TSB from GMC

After...

Just leveled my front-end with Zone Level Kit..... Before

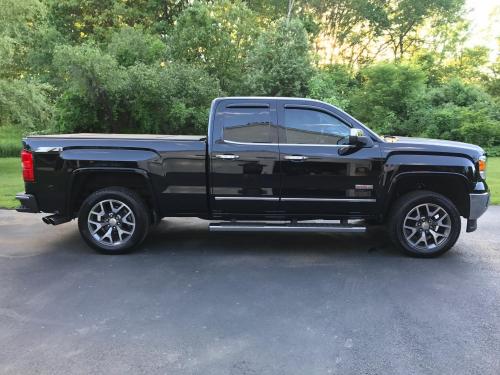

Brand New this week, let the modding begin..... Already added GMC painted wheels flares, Michelin Defender LTX M/S, Quad Fold Tonneau Cover, GMC Weather Mats, Tow-Hitch Plug, and Sunshade Tinted Front windows and V1 Install today Front End Leveling Kit next week
