The intent was for this project to be open source. I don't have access to the firmware nor time to reverse engineer the HMI module meaning the project is at a stand still. For the time being you will have to rely on those who have capitalized on access to gm equipment for updates and modifications.

XD mod.2 9mm Just bought it. Massive improvement on the grip ergonomics over my XDm.

Use our own software. Need to learn more about the bootloader. I found a dev screen by pressing power+home+menu.

I have a 2014 lt2 with Nav, do you need a vin? I can setup a file share as well.

As with any capitalist company, you can bet the only changes they will allow/release will benefit their bank accounts. Don't count on anything truly game changing from gm, its simply not cost effective for them. If the community can break the software then we could potentially use android as the operating system.

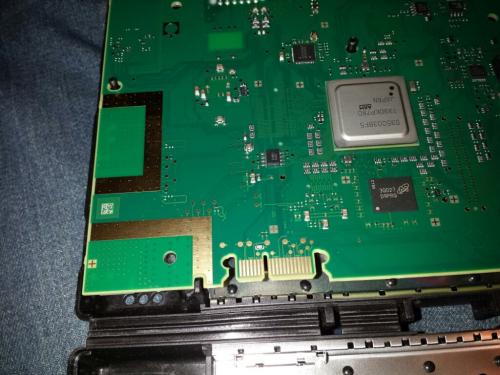

I pm'd a guy about sharing info/files from the map update, would provide some insight about an update procedure or hopefully a bootloader if its more than just maps. Another thing I've been looking into is the emmc chip. There's a test header and pads next to it. If the cmd,clk,and dat0 can be located then a nand dump can be obtained. Probably would be encrypted but its a start. On the opposite side of the emmc chip near the test header there are 6 large test pads that are exposed while the PCB is encased. Would make since if those were associated.

I'm making up some new diagrams for the HMI Module. Here's a text reference for the terminations until the images are finished. Human Machine Interface Control Module NG 2.0 Gray plug [X2] pin - color/stripe - description 01 - White/Violet - 12v+ 02 - White/Green - MOST data 03 - Gray/Violet - MOST data 04 - na 05 - Gray/Yellow - unknown 06 - White/Blue - unknown 07 - na 08 - Gray/Violet - MOST data 09 - White/Green - MOST data 10 - na 11 - na 12 - na Black plug [X1] pin - color/stripe - description 01 - Gray/Yellow - Mic+ 02 - Black/Gray - Mic- 03 - na 04 - na 05 - White/Blue - unknown 06 - na 07 - Red/Violet - 12v+ Battery 08 - Black - 0v (ground) 09 - Green/White - LIN data 10 - na 11 - Blue - CAN H 12 - White - CAN L 13 - Blue - CAN H 14 - White - CAN L 15 - na 16 - na The CAN bus is jumped through in the module. I'm not sure what side is in and what side is out yet until i meter the wires. The MOST bus is intriguing as it is an A/V bus connected through the HMI, Instrument Cluster, DISC Player, Display, Amplifier(if applicable) and Radio. MOST bus is also jumped through in the module. The LIN bus I think hits the buttons like steering wheel, hvac controls, media controls... I'm still investigating the system setup to further evaluate the next move, rather breaking the HMI software and reusing the hardware, or building a new bit of hardware. My only issue is a MOST controller is nearly impossible to come by. Although there are some aftermarket MOST integration products for foreign cars. The HMI is actually pretty decent at a glance, it has 8Gb DDR3 Ram, 32Gb eMMC, LIN, CAN, MOST50, Accelerometer, BT/Wifi, GPS. I'm may start finding someone with one of the nav map updates to see if they'll share the files. It may have some insight into the update process and maybe an easy way into the software. Otherwise steps will have to be taken to try and read the eMMC memory. More to come...

This is my winter project while I have down time. I received a can bus shield for arduino compatible dev boards. Ill have it setup to record the messages going to the HMI module. Once I compile a database of messages I'll start on implementing something like a pcduino/hummingboard/udoo... Then I'll have some work connecting and programming: Can Bus Vehicle telematics Steering wheel controls HVAC integration Instrument cluster Microphone Display 4ch audio volume control Rear cam Bluetooth This will all run in Android.
