2010 Nnbs Ssteering Wheel Controls

WVMountaineer

Recommended Posts

WVMountaineer Enthusiast

WVMountaineer

Posted
Posted

I'd like to change my present steering wheel on my 2010 Silverado 1500, which has cruise control, to a wheel with cruise and radio controls. i email GMPartsDirect, they say there is no factory wheel for my application. I have done numerous searches and come up with a couple part numbers, none that specifically refers to my 2010. I know folks have done this swap, can anyone give me the correct part number I need? Thanks.

mhenshaw Senior Enthusiast

mhenshaw

Posted
Posted

I think most people including myself buy the wheels off eBay. All you need is one with radio controls.



When I did mine I kept my factory leather wheel and added the radio/cruise controls from the wheel I bought. I also painted the trim pieces since they were pealing. So the only thing I used from the wheel I bought was the buttons and nothing else.

~kyle Enthusiast

~kyle

Posted
Posted



This huge thread should tell you everything you need to know and then some. I changed the steering wheel on my '09 LS and everything was plug and play, had no problems whatsover.

temmert1 Enthusiast

temmert1

Posted
Posted

I see you can purchase the audio controls right from GM. They are past number 15819311. Has anyone done this and just added them to there existing wheel? A heck of alot cheaper than a new wheel.





WVMountaineer Enthusiast

WVMountaineer

Posted
  • Author
Posted
This huge thread should tell you everything you need to know and then some. I changed the steering wheel on my '09 LS and everything was plug and play, had no problems whatsover.





Where did you get your wheel? Part number? Thanks.

~kyle Enthusiast

~kyle

Posted
Posted
This huge thread should tell you everything you need to know and then some. I changed the steering wheel on my '09 LS and everything was plug and play, had no problems whatsover.





Where did you get your wheel? Part number? Thanks.







I believe the part# is 15917931. Mine was a take off from Schram Auto Parts on eBay, but they post them here occasionally also. Mine looked brand new when I got it.

  • 3 weeks later...
WVMountaineer Enthusiast

WVMountaineer

Posted
  • Author
Posted
This huge thread should tell you everything you need to know and then some. I changed the steering wheel on my '09 LS and everything was plug and play, had no problems whatsover.





Where did you get your wheel? Part number? Thanks.







I believe the part# is 15917931. Mine was a take off from Schram Auto Parts on eBay, but they post them here occasionally also. Mine looked brand new when I got it.







Kyle, when I put this part number into GMPartsDirect, they say this wheel will not fit my 2010. Are you sure of the number? Thanks.

BigBlueLB756 Senior Enthusiast

BigBlueLB756

Posted
Posted

Try these part numbers:



25853070 - Ebony wheel with silver spoke trim.



25853068 - Ebony wheel with ebony spoke trim.



Hope this helps.

WVMountaineer Enthusiast

WVMountaineer

Posted
  • Author
Posted
Try these part numbers:



25853070 - Ebony wheel with silver spoke trim.



25853068 - Ebony wheel with ebony spoke trim.



Hope this helps.





Thanks for the numbers. GMPartsDirect just says that these numbers are not for my truck (a 2010 Silverado 1500) and will not give me an answer if these numbers are even the part that I want. WTF? Has anybody done this swap with a '09 or '10 that give a true part number. I doubt that if I order a wheel from them that they would take it back if I screwed it up.

BigBlueLB756 Senior Enthusiast

BigBlueLB756

Posted
Posted

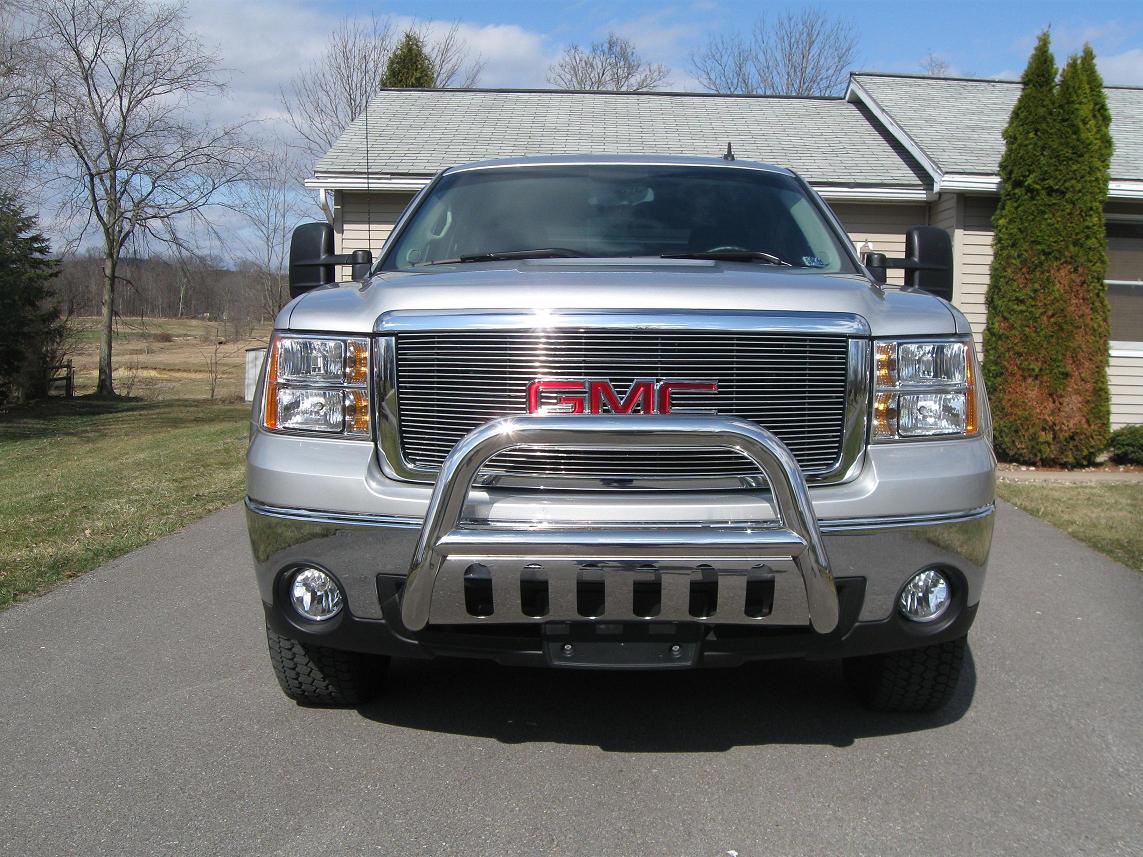

Here's my stock 2009 GMC Sierra:




Here's what I got from Schram"s and it works as advertized:




Schram"s Auto Parts is a forum sponsor. Check with them to see if any are available. Much cheaper than the dealership. email [email protected] or call 1-800-292-1032 EXT 2167 and ask for Blake.

BigBlueLB756 Senior Enthusiast

BigBlueLB756

Posted
Posted

If you put your VIN in at GMPartsDirect, it should say that the wheel with audio controls is not for your vehicle, because it's not one of your listed options. It will work, though.

~kyle Enthusiast

~kyle

Posted
Posted
This huge thread should tell you everything you need to know and then some. I changed the steering wheel on my '09 LS and everything was plug and play, had no problems whatsover.





Where did you get your wheel? Part number? Thanks.







I believe the part# is 15917931. Mine was a take off from Schram Auto Parts on eBay, but they post them here occasionally also. Mine looked brand new when I got it.







Kyle, when I put this part number into GMPartsDirect, they say this wheel will not fit my 2010. Are you sure of the number? Thanks.





Just checked, I'm absolutely 100% sure that was the part# I bought. Sorry. I would have replied earlier but I've been out of town all week.



If you have any doubts, contact Schram either directly or through PM here. They're a forum sponsor, reputable, and quick to reply to inquiries.



(disclaimer: I have no connection to them whatsoever, just a satisfied customer)
