Help with Kenwood DNX-9140 Nav/ Back-up Camera Install


Recommended Posts

I am going to install a Kenwood DNX9140 Nav radio into my 2007 Silverado NBS LTZ and need to find out a few thing. I bought a tail gate bezel with the factory back up camera from a salvage yard and am trying to find a wiring harness to go from the factory camera connection to the back of the Kenwood and have not been able find any info or where to buy it. Could anyone help?

Link to comment
Share on other sites

Don't know if you can do this - depending on the year truck you got the camera out of, you may also need the module that is located under the passenger seat in 2007-10(?) trucks.

Link to comment
Share on other sites

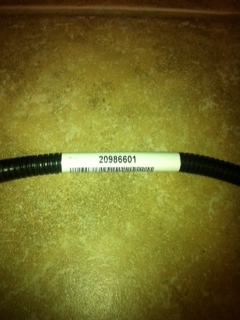

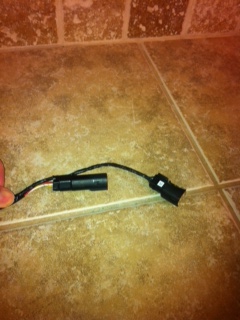

Thanks Walt for the info. What kind of module are you talking about? Here is some more info on the camera I i bought,It looks like it is out of a 2011 Silverado, has 2 plugs, and the part number on it is 20986601. I just paid $25.00 for the bezel with the camera so even if I can't use the camera thats ok. I have a Crime Stopper SV=6713LM CCD camera I bought a few years ago I might be able to use

. Also again thanks for all the help.



Jimmy













Link to comment
Share on other sites

Thanks Walt for the info. What kind of module are you talking about? Here is some more info on the camera I i bought,It looks like it is out of a 2011 Silverado, has 2 plugs, and the part number on it is 20986601. I just paid $25.00 for the bezel with the camera so even if I can't use the camera thats ok. I have a Crime Stopper SV=6713LM CCD camera I bought a few years ago I might be able to use

. Also again thanks for all the help.



Jimmy





Older trucks and SUV's had a module under the passenger seat that the camera plugged into that had a reverse trigger running to it. What else it did, I have no clue.



I believe that the 2010+ had a direct power connection to the camera, so you may be OK if you can get ahold of the factory schematic to decipher the wires.

Link to comment
Share on other sites
