Need help ID'ing wires and connectorsee

SnMMan

Recommended Posts

SnMMan Enthusiast

SnMMan

Posted
Posted

Hello everyone,

I just picked up a 1988 Silverado c1500 regarding cab long box with a 305 and auto. The head gasket was blown on it so I tackled it with my buddy. It went smoothly for being our first time. The questions I have are about a couple wires/connectors that have no where to plug in.



1. There are 3 wires coming out from the firewall behind the engine

2. There's a connector at the rear of the block that goes nowhere

3. Another connector at the front

4. Looks to be a missing vacuum line on the what I assume is the pcv sensor?



Anyways this is my first older truck and I'm just starting to learn my way around.



I will post pics as soon as I figure out how.

slj2008 Senior Enthusiast

slj2008

Posted
Posted

I think the wires are - fuel gauge, oil sender , temp sensor . oil sender block . temp on top , ???? its bin 50 yrs ago since I did this. Good luck

  • 2 weeks later...
sledog Enthusiast

sledog

Posted
Posted

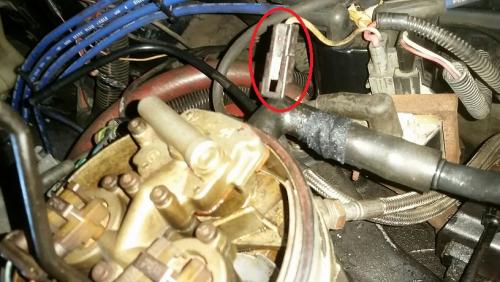

The last pic is circling a white wire with a connector. That is a aux tach wire that is not used
