GM Wiring Connector - Bed Lights

[Rob R]

Good Morning All -



I am looking to make a custom harness this weekend and tie in some bed lights and rear flood lights on my new 2018 Silverado. I bought the parts that ETEXEMT posted in order to make the custom harness, but I am not sure which pins I should connect the Neg and Pos wires to.



Here is my unwired 6-pin harness Plug:

https://photos.google.com/share/AF1QipOUwj3PddhnbBE3JXK0QARIIroGroJV4YlVEnT1VsLsERV5xS2Hj7V9JR1jLYEZLw?key=THNtOXg4Q3FCQ21IeXZhUjR4LWNFY0Jld3ZzNFlB



Here is the DIY on an 8 pin plug from CBRSILV15



Thanks to both CBRSILV15 and ETEXEMT for their posts on this -



Rob



[tbarn]

For $25 or so you can get a factory harness and modify the ends on each side to fit what ever you are doing. You'll get a better terminal seal under the vehicle.

  P/N 23327843

https://www.gmpartsdirect.com/oem-parts/gm-wire-harness-23327843

[cbrsilv15]

4 hours ago, tbarn said:

For $25 or so you can get a factory harness and modify the ends on each side to fit what ever you are doing. You'll get a better terminal seal under the vehicle.

  P/N 23327843

https://www.gmpartsdirect.com/oem-parts/gm-wire-harness-23327843

$26.57 for the harness, but it’s another $20 for shipping.

[tbarn]

Try a local dealer.

[Rob R]

In stock at my local dealer (Henna) - 35.00. Easy enough. Thanks All!

[Rob R]

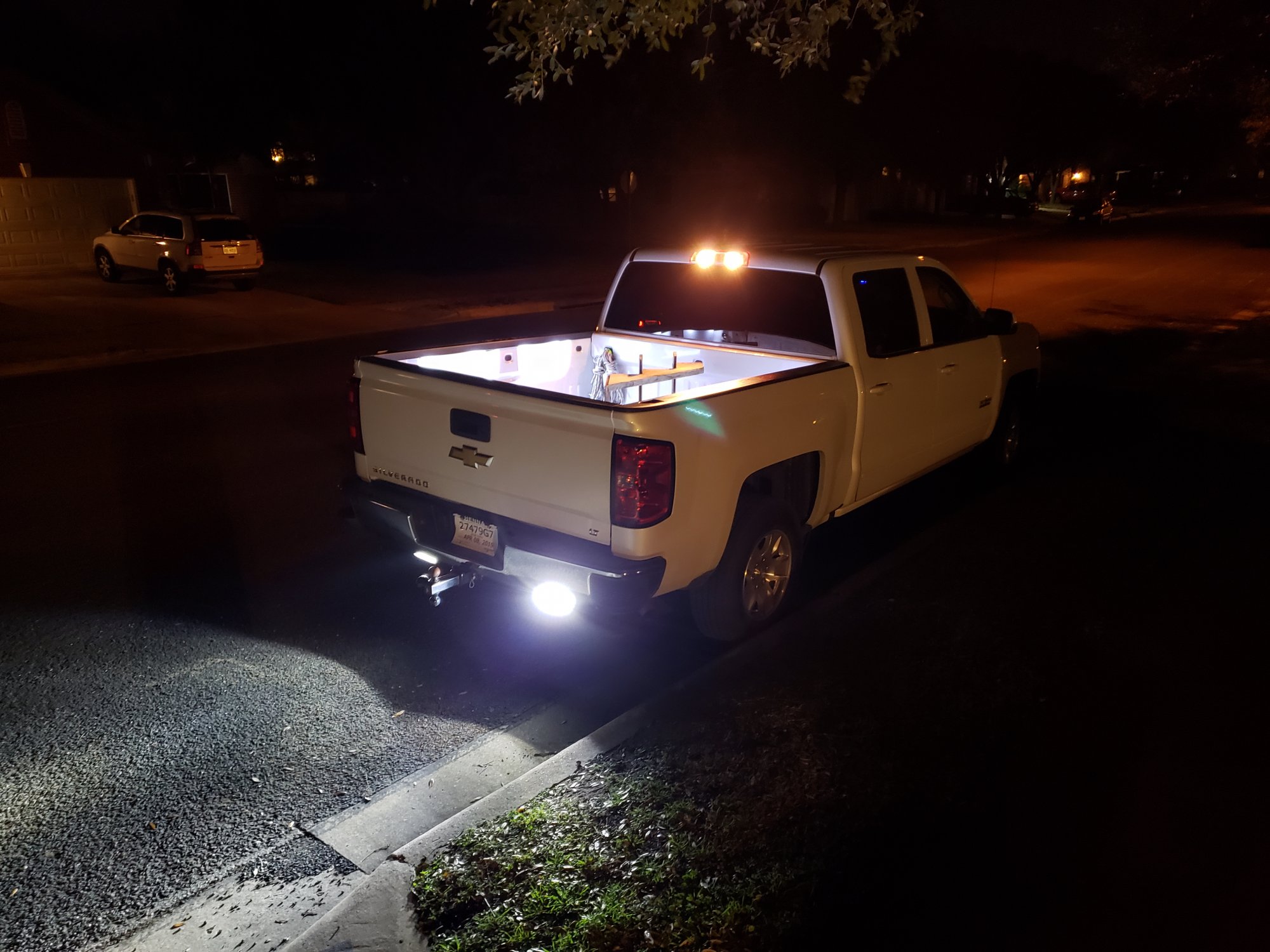

Used the harness to connect 8 pickup bed lights and tied in two Nilight LED driving lights under the rear bumper.



Harness worked great. I had to modify the ends and crimp on butt-splice connectors, but everything worked the first time. The harness is directly  tied to the cargo light switch on the dashboard.



https://www.nilight.com/collections/led-light-bar/products/nilight-2pcs-30w-super-slim-8-spot-led-light-bar-off-road-led-lights-driving-lights-for-jeep-cabin-boat-suv-truck-vehicles-atvs?variant=25013218121
