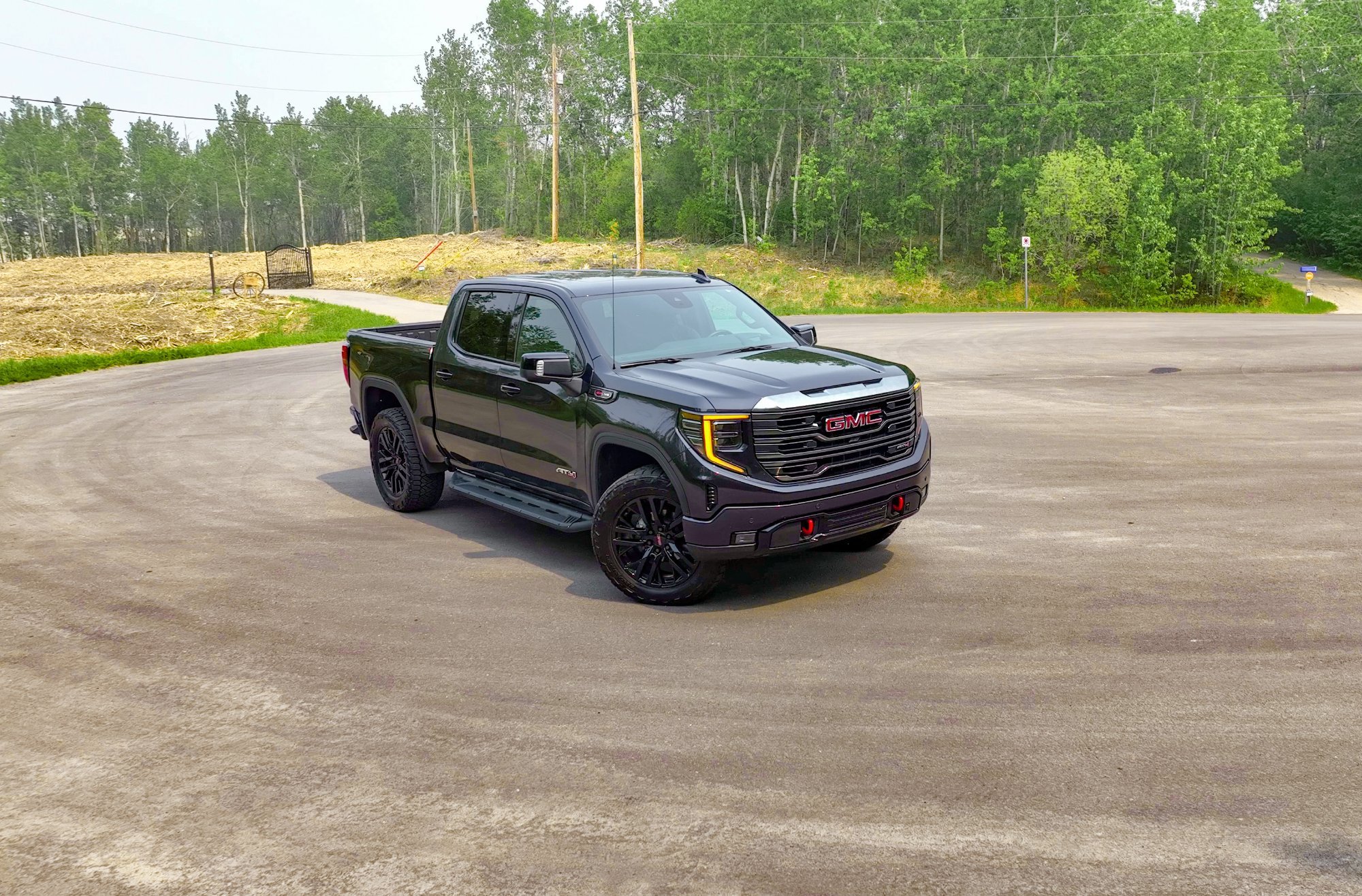

36inch tires on stock AT4 suspension (Pictures)


GM90

Recommended Posts

TIRES - 305/55R22 (35.5inch tall by 12 inch wide) - Actually 35.9inchs with measuring tape - Nitto Recon Grappler Tires

WHEELS - GMC 22 Inch Aluminum 5-Split-Spoke Wheel - Part# 84799395



I added 10mm Bora aluminum spacers to be able to fit 12inch wide tires without rubbing.



Also had to trim the front mudflap brackets and wheel well liners, to eliminate the rubbing at turns.



I didn't want to add any lift because AT4s already come with factory 2inch lift and I like the filled out wheel wells. Don't like the look of empty wheel wells.
















  • Like 1
Link to comment
Share on other sites
