Custom LED Reverse Lights

[XMR15]

Well with tinted windows, and soon to be tinted taillights, I needed something that was much brighter than stock.

I figured 900 lumens each should do the trick.



I didn't want to add LED cubes under the bumper. I like the clean, sleek look and didn't want anything hanging below the bumper. So I came up with this.

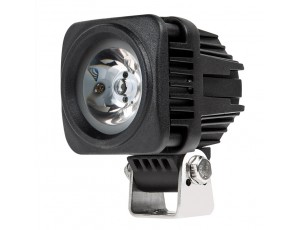

Firstly, I bought the Mini LED cubes from superbrightled.

Specs on the lights: 2x2 inches

60 Degree beam pattern

10 W

900 Lumens each

6500K color temp

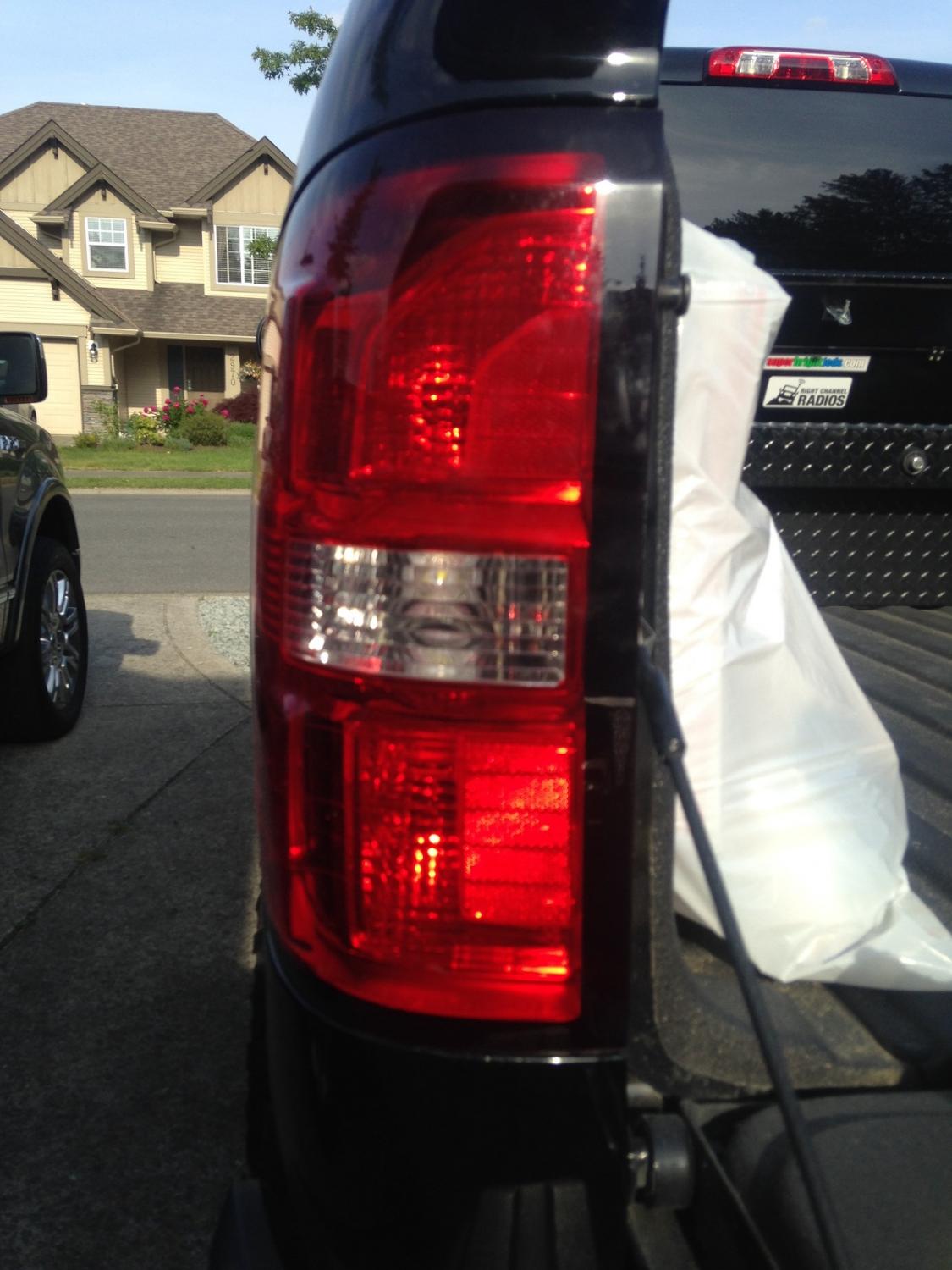

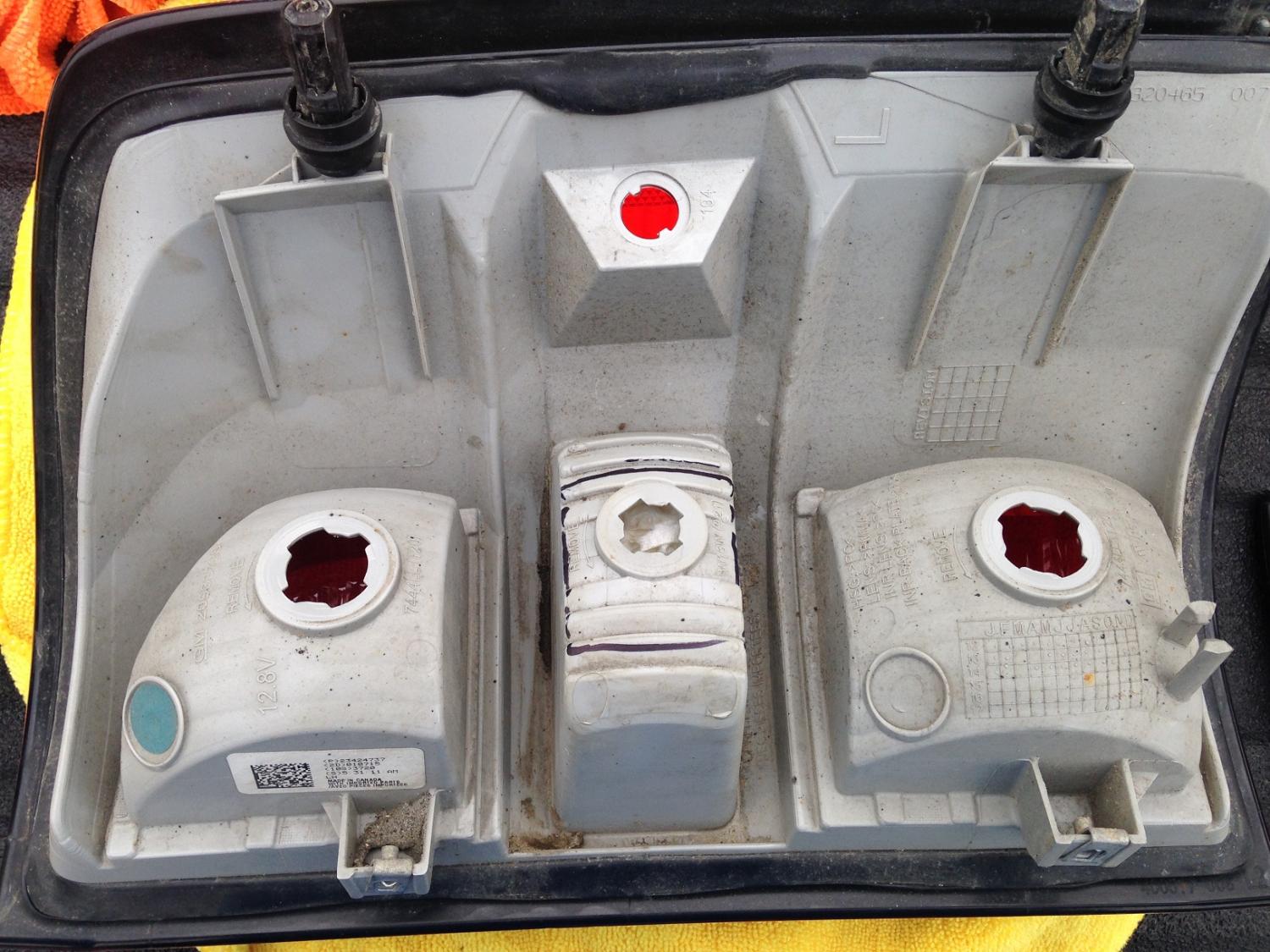

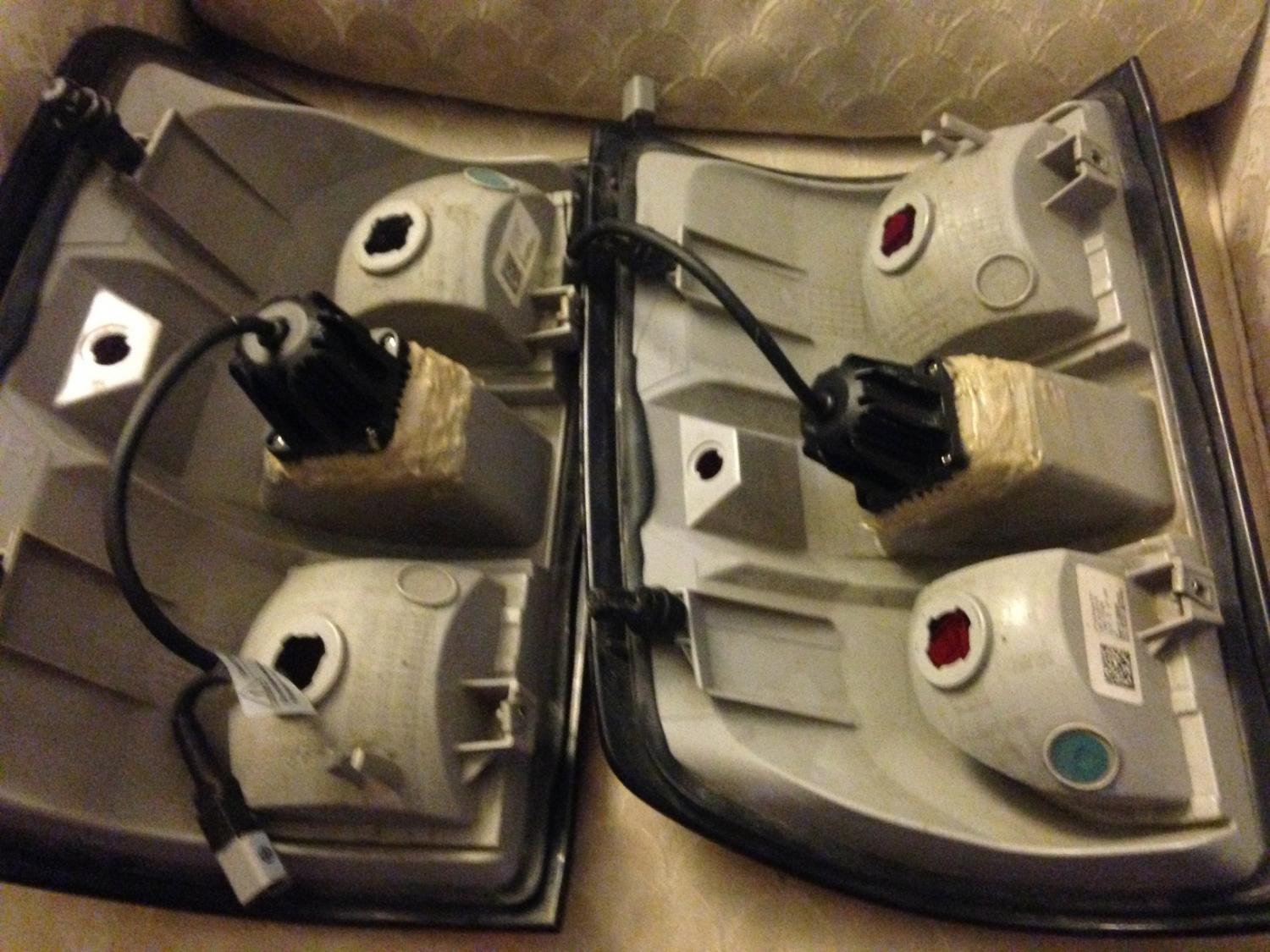

I traced the light size out on the taillight and cut the square with a dremel. This allowed the light to sit down inside the housing a bit. Then I just glued the lights in with PL Premium Construction Adhesive. Plenty strong!



To wire them up. I tapped into the reverse light wire on my trailer package. I was going to tie right into the reverse light at the taillight, however the trailer reverse lights is separately fused. (lime green/white wire) I just ran a ground down to the frame. The light came with male and female waterproof connector so when i want to remove the taillight, the reverse light has a quick disconnect as well.

I just removed the bulb from the stock reverse light, put dielectric grease in the socket and taped it off with electrical tape.



I am extremely happy with them. Would recommend this mod to anyone who is willing to cut up their stock taillights haha



They are awesome at night. I will upload some night pictures soon. Never got a chance to take some. But they are awesome.

















[dylbeau1500]

Well with tinted windows, and soon to be tinted taillights, I needed something that was much brighter than stock.

I figured 900 lumens each should do the trick.



I didn't want to add LED cubes under the bumper. I like the clean, sleek look and didn't want anything hanging below the bumper. So I came up with this.

Firstly, I bought the Mini LED cubes from superbrightled.

Specs on the lights: 2x2 inches

60 Degree beam pattern

10 W

900 Lumens each

6500K color temp

I traced the light size out on the taillight and cut the square with a dremel. This allowed the light to sit down inside the housing a bit. Then I just glued the lights in with PL Premium Construction Adhesive. Plenty strong!



To wire them up. I tapped into the reverse light wire on my trailer package. I was going to tie right into the reverse light at the taillight, however the trailer reverse lights is separately fused. (lime green/white wire) I just ran a ground down to the frame. The light came with male and female waterproof connector so when i want to remove the taillight, the reverse light has a quick disconnect as well.

I just removed the bulb from the stock reverse light, put dielectric grease in the socket and taped it off with electrical tape.



I am extremely happy with them. Would recommend this mod to anyone who is willing to cut up their stock taillights haha



They are awesome at night. I will upload some night pictures soon. Never got a chance to take some. But they are awesome.

















Looks great do you have any pictures of them on at night?



Sent from my SM-G925V using Tapatalk

[XMR15]

Looks great do you have any pictures of them on at night?



Sent from my SM-G925V using Tapatalk



will grab some tonight. Rained lastnight and didnt feel like taking pics haha

[gary.smedley]

Are the tail lights a hassle to remove. I'd just look but the wife has the truck.





Sent from my iPad using Tapatalk

[XMR15]

Are the tail lights a hassle to remove. I'd just look but the wife has the truck.





Sent from my iPad using Tapatalk



Only 2 screws hold the tail lights in. Easiest thing to do.

[gary.smedley]



Only 2 screws hold the tail lights in. Easiest thing to do.

Oh dang. Really simple. My lights should arrive Saturday with Husky mats.

[XMR15]

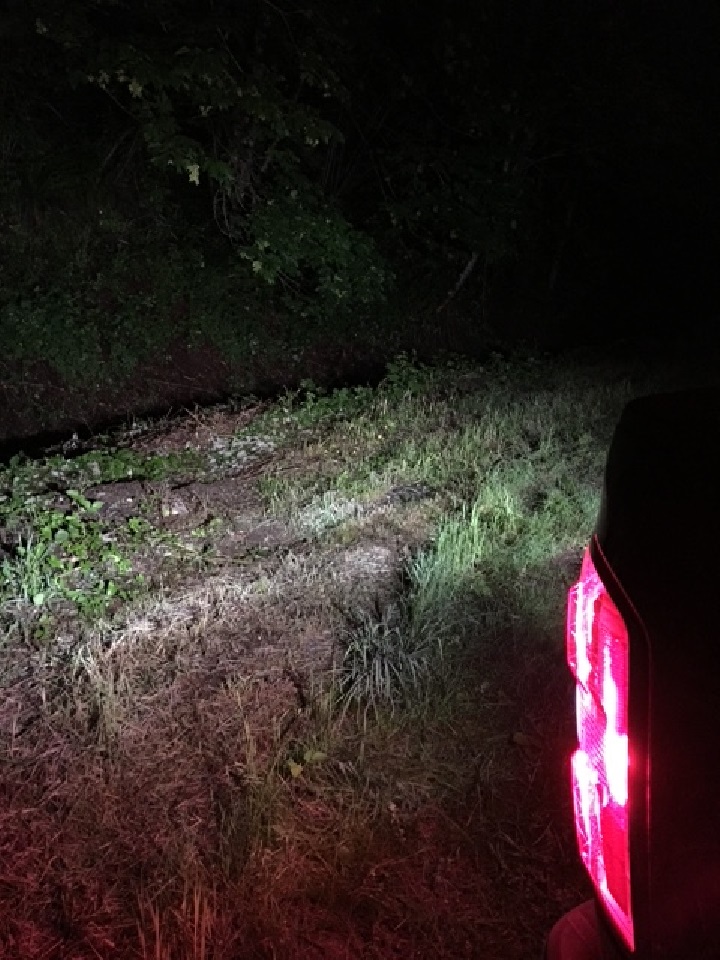

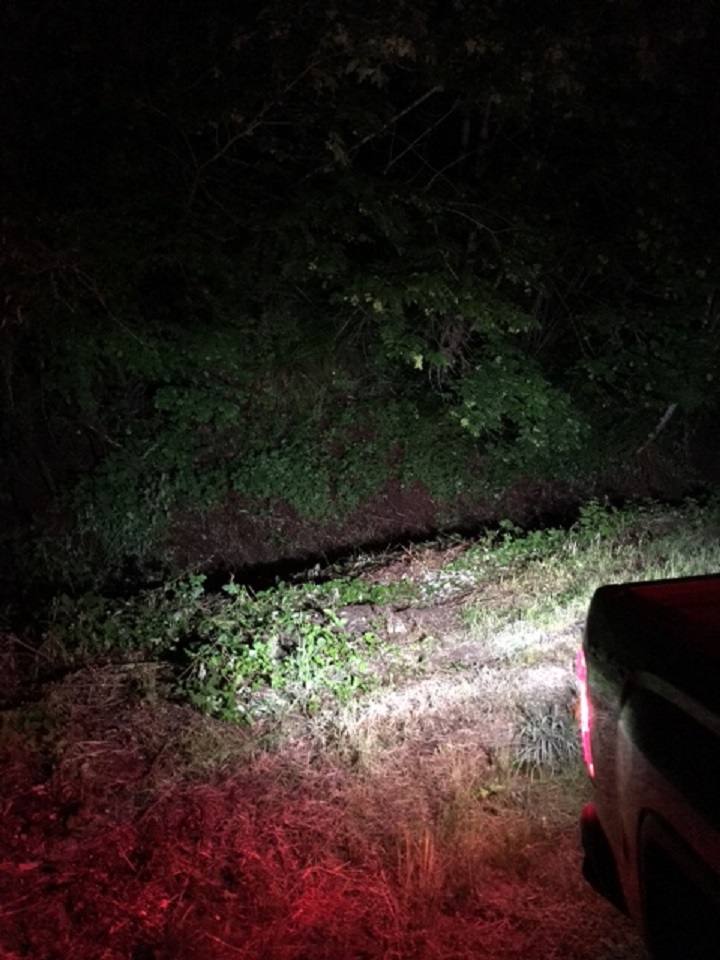

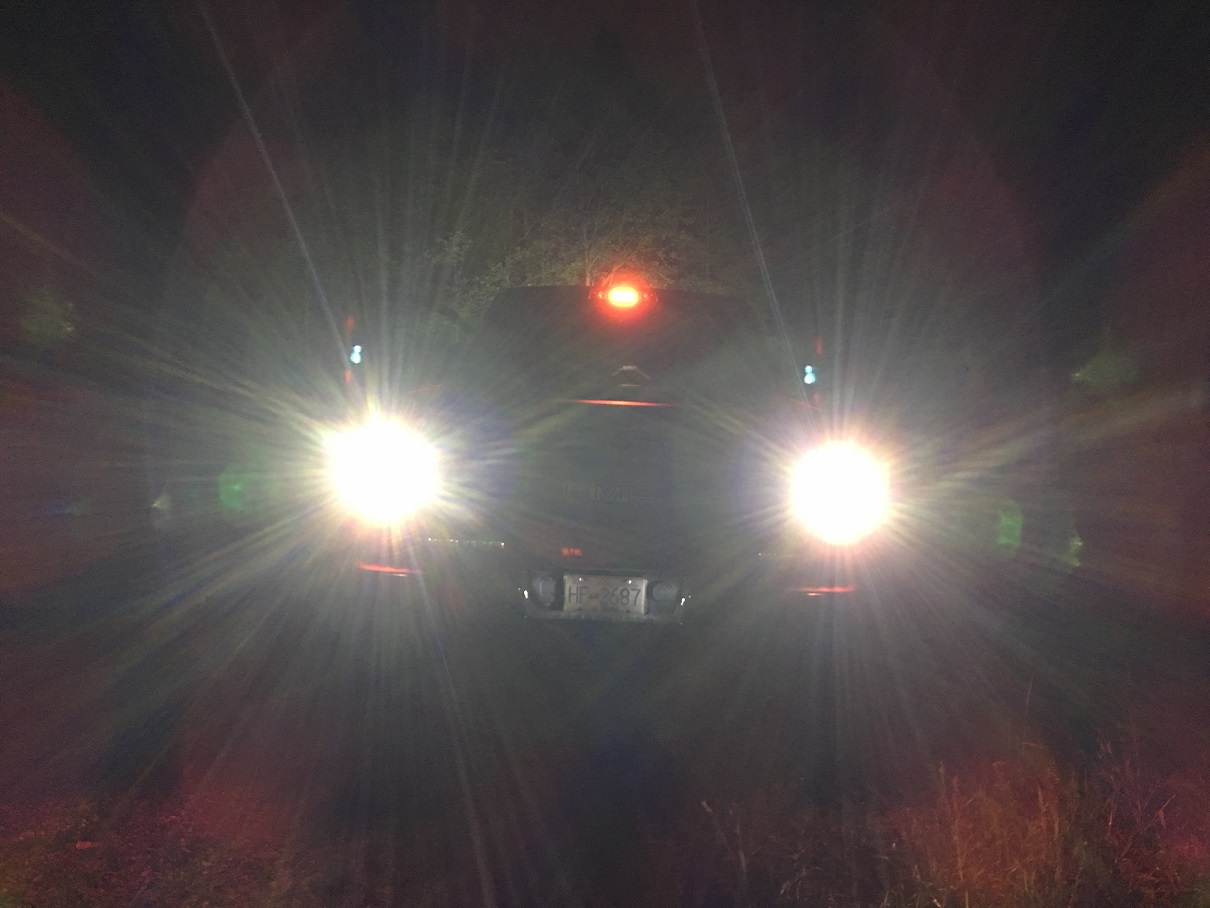

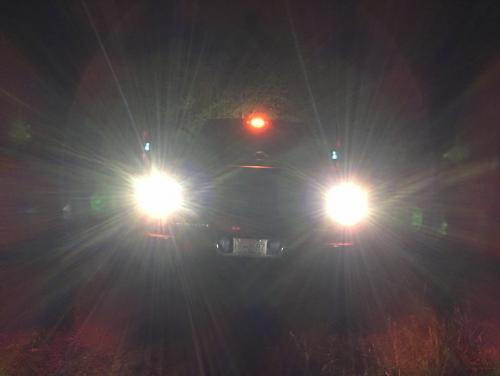

Pictures at night
