Clarifying Front Diff Components

alvocado

Recommended Posts

alvocado Enthusiast

alvocado

Posted
Posted

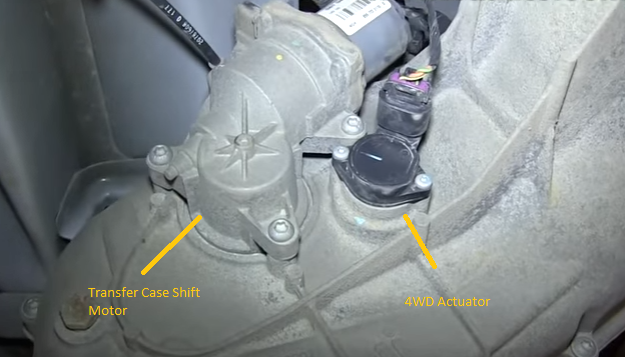

I'm troubleshooting a "service 4wd" dash message and want to make sure I'm identifying the front diff components correctly. The replacement 4wd actuator part looks different than what I'm seeing on the diff so I assume it fully inserts where shown on the picture and there is a cover that bolts to the top and makes the final connection to the wire harness. Did I label and identify the parts correctly in the pic? This is a 2011 GMC Yukon SLT.
