Audio Electrical Diagram

[thatryan]

Anyone have or know where to find a diagram of the audio components for a 2017, Crew Cab Silverado, 8" screen, NON-bose system?

Trying to plan my audio build, but not sure what exists where or where to tap signals, if there is a current amp, and all that.

Thank you!

[jpinoy]



Anyone have or know where to find a diagram of the audio components for a 2017, Crew Cab Silverado, 8" screen, NON-bose system?

Trying to plan my audio build, but not sure what exists where or where to tap signals, if there is a current amp, and all that.

Thank you!



Hope these help....just look at your RPO to see which one you have...



[thatryan]

Thank you, where did you find those?



What is RPO? lol



Odd neither of them match my setup, bottom has subwoofer which my truck does not, and top has 8 speakers mine only has 6 ha.

[jpinoy]

Thank you, where did you find those?



What is RPO? lol



Odd neither of them match my setup, bottom has subwoofer which my truck does not, and top has 8 speakers mine only has 6 ha.



RPO = Regular Production Option... If you open your glove box, you will see a sticker in there, those are your RPO code, it tells you the options you have on your truck. Look for one of those RPO codes in the pictures I attached to see which one you have.

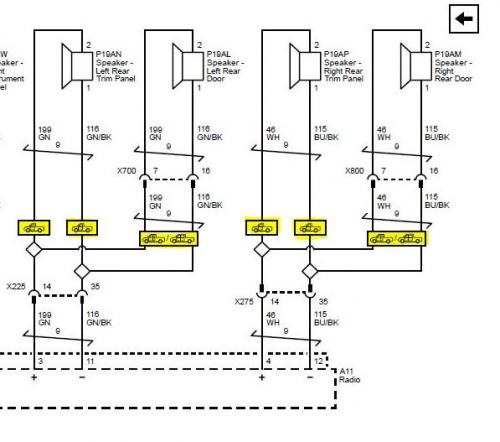

Yours is most likely the top one. If you click on the attachment and look at the little pictures in the schematic, you will see the 'trucks' that they correspond to. 2 of those speakers are for the regular WT. See attached with the highlights showing this. They call out either for the 'trim' for WT, or 'door' for DC/CC.



[thatryan]

Cool, thank you much!
