Backup camera replacement

[cmysstailights]





On mine i have the 6 pin connector

Red 12v +

Yellow video + (inside of rca)

White reverse +

Brown shield

Black (middle) rca - (rca outside )

Black ground



To make camera stay on cut white wire going to camera and splice it to the red. Out of connector tape off white wire. On my pioneer radio this allows me to see camera while not in reverse



I replaced the factory camera with a better one using a spare molex connector.

Wired the new camera to 12v and ground. Then took the yellow and spliced it to the rca i made. Other end of rca i connected to brown and black that would be rca-.



I just ordered a camera on ebay that is 800tvl.

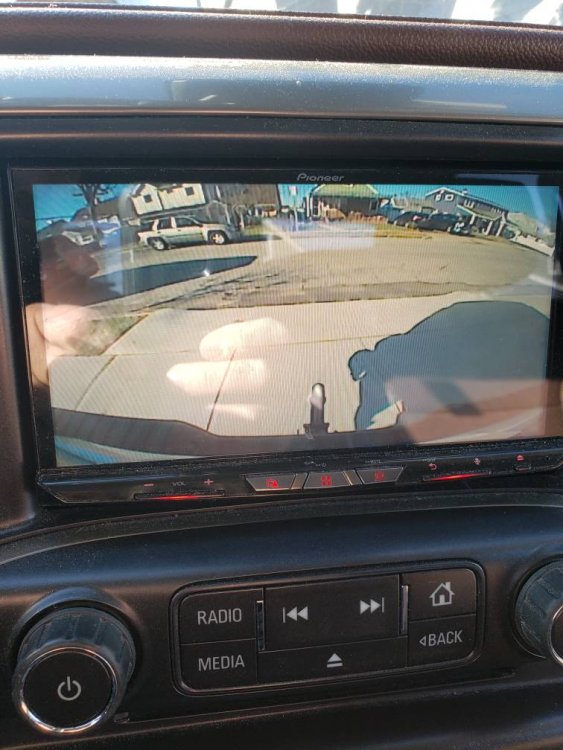

1st one is stock, no lines cause my radio doesn't supply it

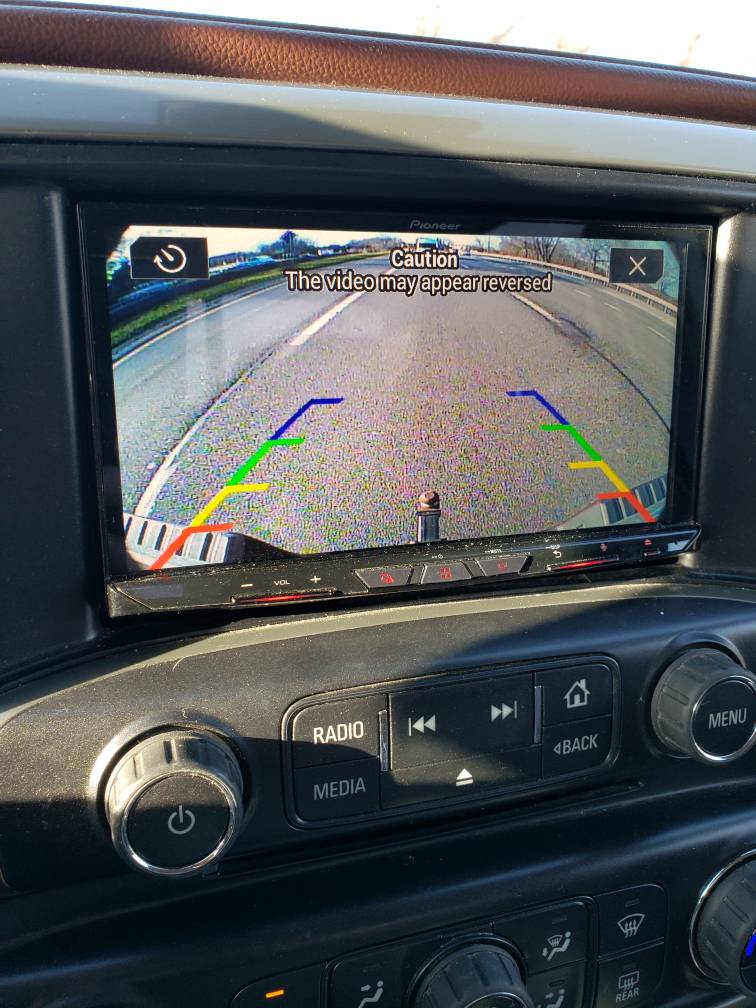

2nd 1 is new camera with built in lines.

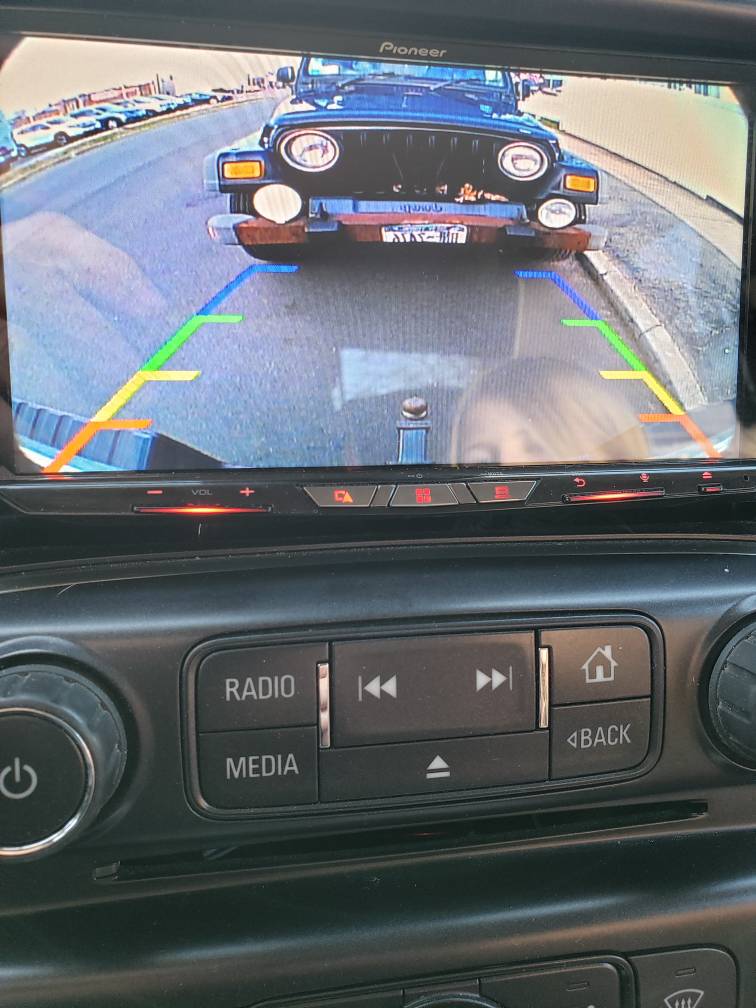

3rd pic is while driving.



Sorry for the glare.



Sent from my SM-G960U using Tapatalk





[cmysstailights]

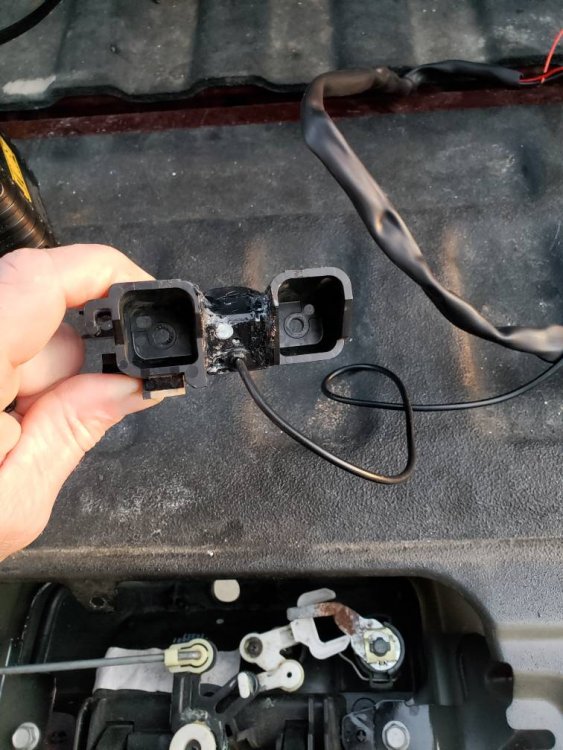

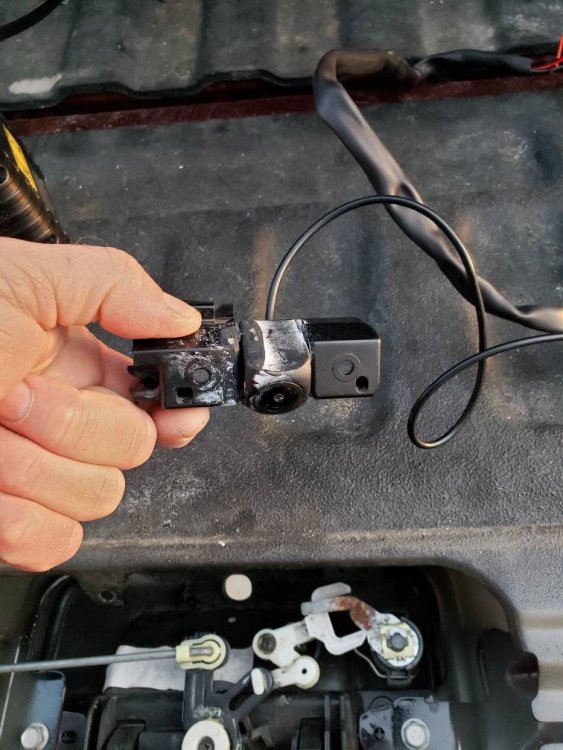

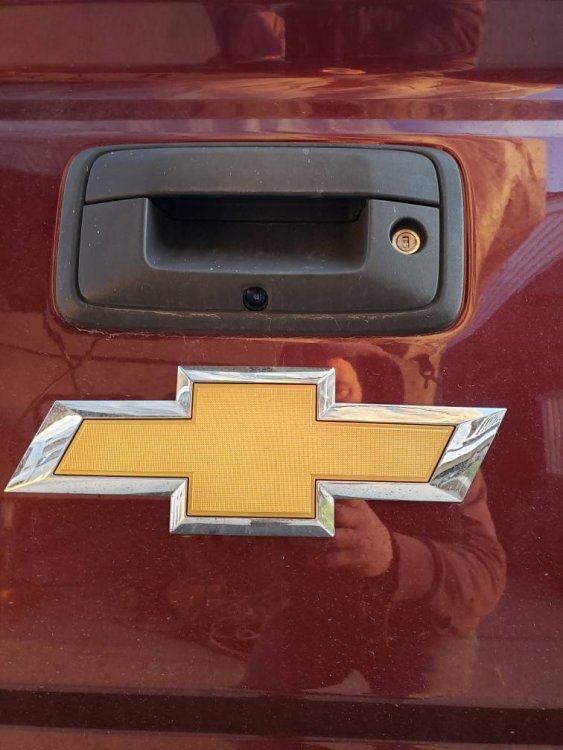

Heres a pic of the new camera mounted to the oem camera bracket. And it mounted in tailgate.

Sent from my SM-G960U using Tapatalk

[cmysstailights]

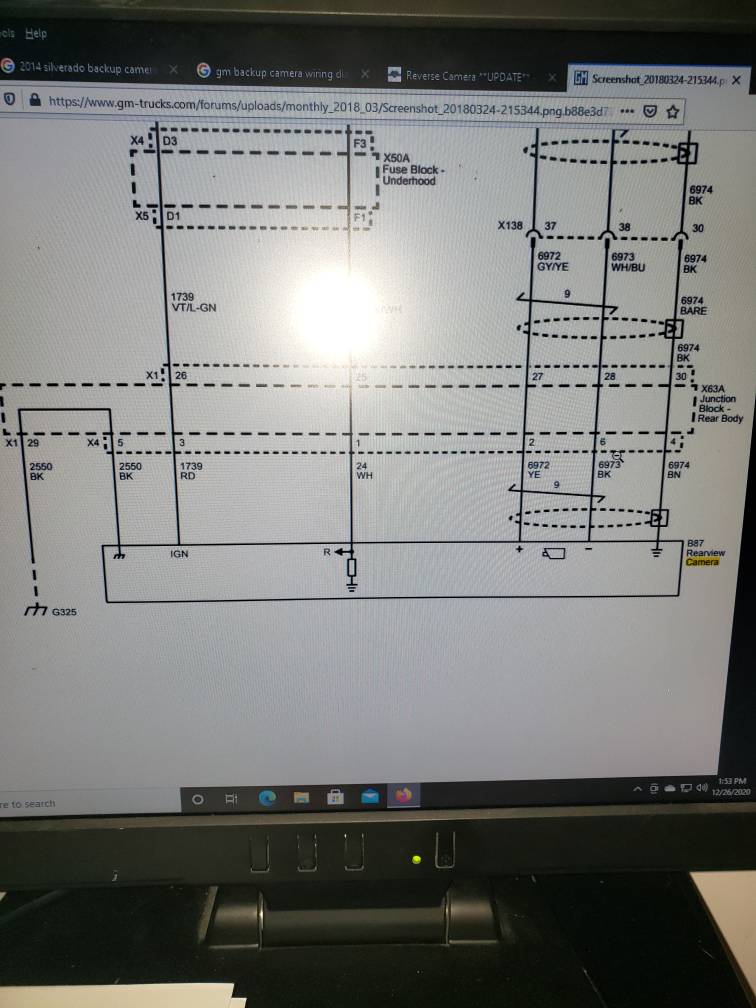

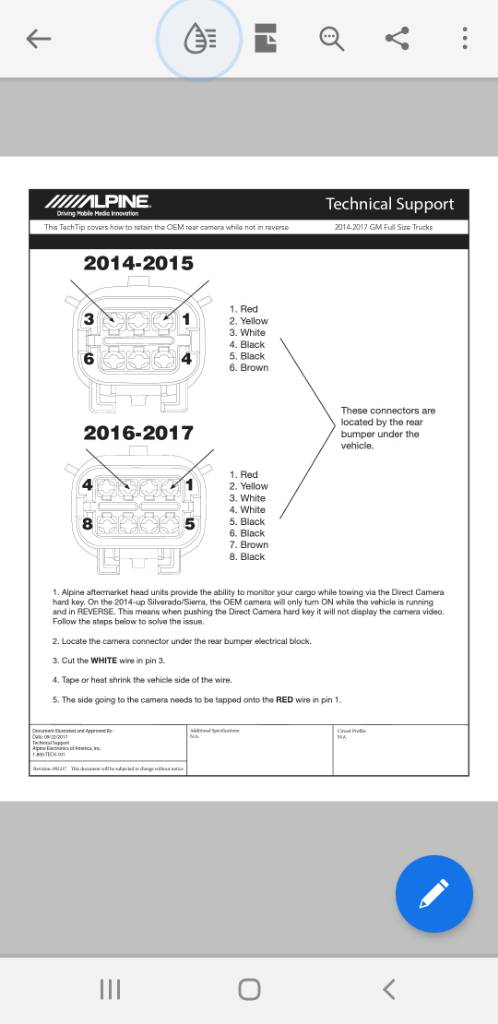

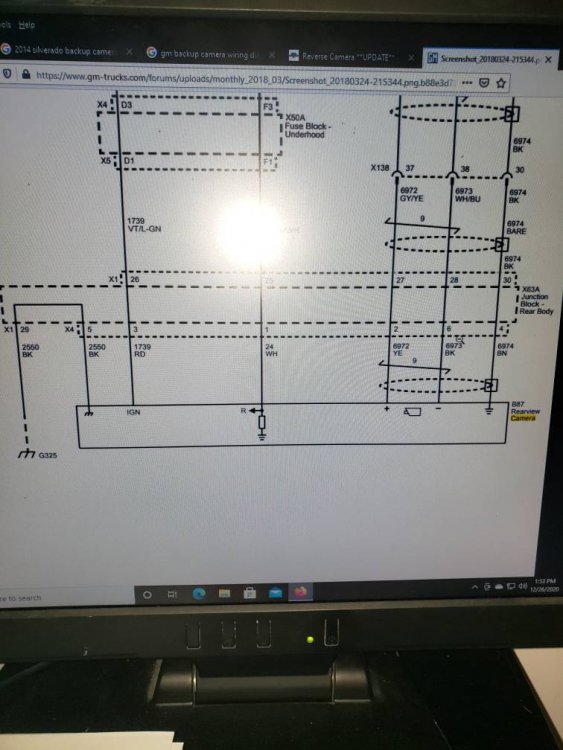

Heres some info on the camera wiring.

Sent from my SM-G960U using Tapatalk

[cmysstailights]

This was done on a 15 2500 high country. Pioneer after market radio using factory camera harness.
