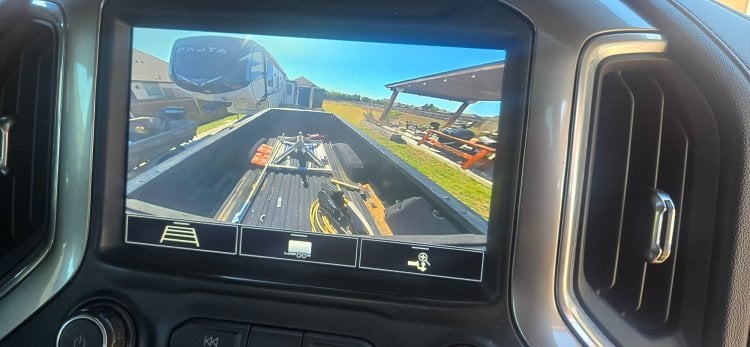

Hi, I've been a long time viewer and this is my first post. Thought I'd share how i was able to get bed view. I have a 2020 2500HD LT with only the hitch camera. I purchased a 5th wheel a few years back and started searching for ways to get the bed view as it's a pain to back, get out and check and all. I'm still waiting for a 50ohm switch to come in, but got the camera and all mounted and tested.



I initially bought this from ebay

84699124 OEM GMC Sierra Silverado High Mounted Stop Lamp 3rd Brake Cargo Camera



The camera it came with didn't work with my year truck. The GM upfitter bulletin 152 has a list of cameras and I purchased one from Amazon



https://www.gmupfitter.com/wp-content/uploads/2021/06/UI-Bulletin_152p.pdf

camera https://www.amazon.com/dp/B0CHFJ59DC?ref=ppx_yo2ov_dt_b_fed_asin_title





The connectors used at the camera and at the IOS module under the passenger side kick panel use Fakra orange M connectors. I ordered a couple of the female covers from Aliexpress as there's very limited sources in the States. Beware, I had a horrible time with the company they use to ship orders. The other ends I'm going to use Fakra Z since they're more available options.



Fakra M cover https://www.aliexpress.us/item/3256806060702442.html?spm=a2g0o.order_list.order_list_main.10.41bd1802ffDFxK&gatewayAdapt=glo2usa





I bought this cable to go from camera to the IOS module. I'll swap the female end cover with a Fakra M to fit on the camera. Other end will be left and I bought a short extension to go from that to IOS module as I'm planning on using a 50ohm switch and it hasn't arrived yet.



cables 16.4ft https://www.amazon.com/dp/B07HP647BX?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1



short extension https://www.amazon.com/Bingfu-Extension-Compatible-Navigation-Telematics/dp/B07PDP33XL/ref=sr_1_10?crid=IDV4H34C7158&dib=eyJ2IjoiMSJ9.QYNeJ6Qx0BEdEA7xNKb3BjNTGaFkDl8GmFIQen4FVGN23Bht9kBKomOHQgR-TwQhER1NBpV2XDRBrl9globoVfzvZwT9TnSNSu7FBqzdWgh_7ACar8hzklj-o3XPMTi_sMj44ZMfaAOfmAEB2C5oUEFLof1zFn_F9GB18op-PeO9PHX1dU7E33o3bHOfFpisBJINg-hLb7fc-JEMagWR-cbTzHOrrC2Mgnj0u1zz__Ecj2IoPIj991Amr_IZwD3dhWBD9qUnFojaBG4Otyu_0ema3zSuE6XxofVAEKLLXH8.1AAsLPgjNEc7B6c1YlB8uAC7asiFLaQZjefwn3wnr1o&dib_tag=se&keywords=fakra%2Bextension%2Bcable&qid=1761854006&s=electronics&sprefix=fakra%2Bextension%2Bcabl%2Celectronics%2C157&sr=1-10&th=1



One end of the short extension will need a Fakra M to go into the IOS module. There's a lot to take off to get the headliner down, but I think it was worth the effort. For now I plug this in when I have my trailer and the tailgate when I don't.








Another JR Senior Enthusiast

Another JR

Posted
Posted

For the benefit of others that might have similar camera projects:  They are a bit more money than the Chinese-made cables on Amazon, but if you can’t find a cable/connector assembly you need, Pasternack.com will make you whatever you need. They will have technical staff talk to you if you need help selecting the cable type from all their choices.
