Dual battery function


Recommended Posts

My 3500HD came with dual batteries.  Trying to figure out how they function.  The passenger side battery is connected to the starter and alternator (starter battery).  The drivers side battery has an isolator switch on top (backup battery).  I assume the backup battery is isolated with the truck off.  How do the batteries drain at that point?  If I run my truck camper off the truck batteries does it drain the starter battery or the backup battery?  There is no information I can find anywhere on how these are wired up and function. The information I find on the web seems to be that the isolator should isolate the starter battery.  It doesn't look like that on my truck.

Link to comment
Share on other sites

The Duramax's get their dual batteries hooked up in parallel with no isolator, as they need the power of both to get the engine going in adverse conditions.  Don't know your setup, maybe you can figure it out by getting the build sheet for the truck, to get what option it is, and go from there?

Link to comment
Share on other sites

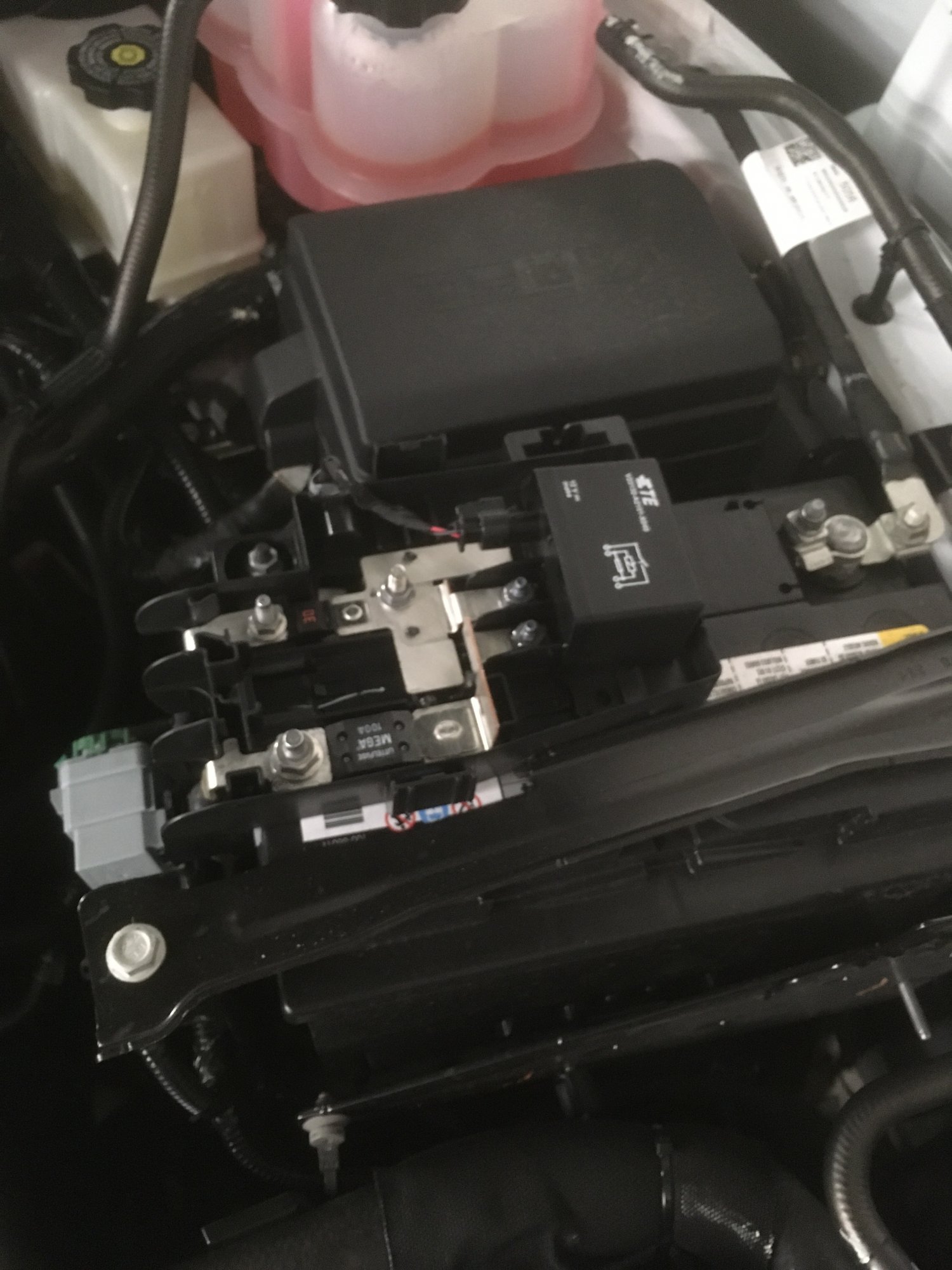

So that definitely looks like a isolator it looks like the 100amp fuse would be ur power coming in(charge wire) and the only thing powered by the battery is the 30 amp fuse...


Warning always think that a disconnected wire is gonna blow up in ur face... I'm not responsible

The way to see what is happening is to disconnect the 100 amp fuse and take a tester and see what power is coming to the cable that was hooked to the fuse if it's powered then that should be ur charge wire.

If the isolator side of the 100amp fuse is dead(0volts) then ur second battery will only charge when truck runs and discharging should not kill start battery

With out some testing it's hard to say how it is working just need more info wish I knew they made that before I started my project

Wish I knew about that isolator sooner


My bought fuse block is from a diesel pickup...it has a 400 and a 175 amp fuse in it

Sent from my Moto Z (2) using Tapatalk

Link to comment
Share on other sites

I thought it operated as such:



Truck off = batteries isolated

Truck on = batteries isolated

Truck running = batteries connected



100A fuse at isolator is so alternator can charge second battery (when truck running)



30A fuse at isolator goes to 12V+ of 7way trailer plug.



I think this means you can drain your second battery with a camper and still start your truck with primary battery.



I may be wrong, hoping someone else can back this claim.



...i did a little experimenting when wiring in my battery maintainer quick connects (one for each battery). My memory is foggy on those results.
