7 Pin Electrical Plug for Towing

[cdunclife]

I have a 2003 Silverado 1500.  I have a dump trailer.  I just re-wired my dump trailer.  When I plug the trailer into the truck I get crazy results on my trailer lights.

I need to know on the truck side 7 pin what each color wire does.  There are 7 colors, red, dark green, brown, yellow, blue, black, light green.  So what I am looking for is:

Red = right blinker

blue = left blinker and so on....

Please help

Thanks!

Clark

[David89GMC]

[cdunclife]

40 minutes ago, David89GMC said:

@David89GMCthis is great.  I'm a computer guy this is like reading a foreign language.  Can you provide more guidance please.  I really appreciate this.

Clark



[davester]

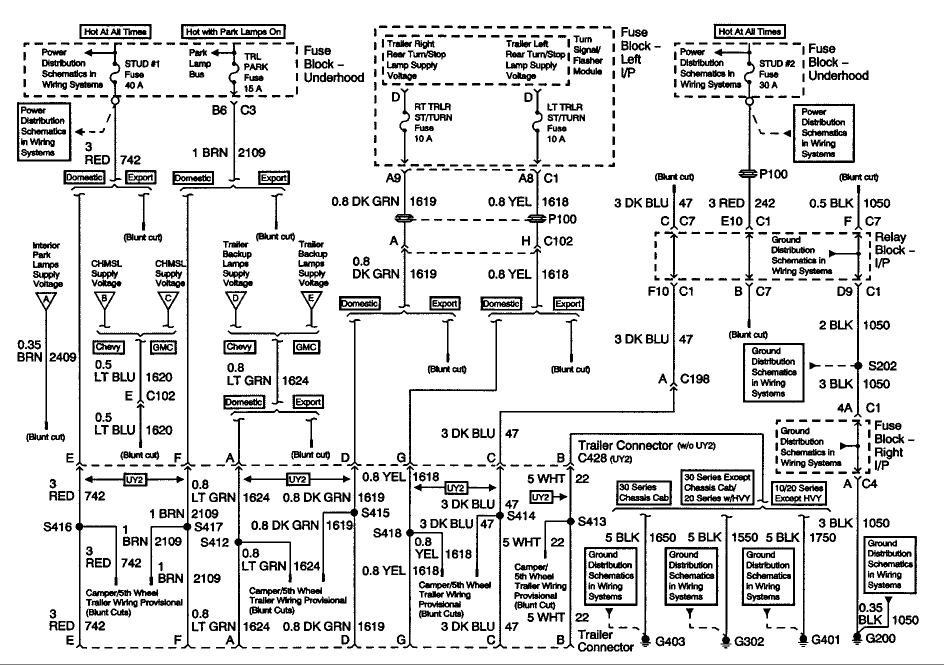

Along the bottom of that pic, there are the letters E, F, A, D, G, C, B, then "Trailer Connector"

Near the letters are Red, Brn, Lt Grn, Dk Grn, Yel, Dk Blu, and Wht.
