Which wire is power for parking lights

Recommended Posts

This is driving me nuts not a single Brown wire on my headlights switch and the one I tapped into isn't turning my cab lights on. Can anyone point me in the right direction here? 2006 gmc sierra sle. 5eef7466d72a2958e2461720b23dd41c.jpg13a152ab300432af63c355c16f646209.jpg



Sent from my SM-G925V using Tapatalk

Share this post


Link to post
Share on other sites

There is probably a trigger off the bcm.



The wire that is clamped


Edited by Chris
  • Like 1

Share this post


Link to post
Share on other sites

I need a diagram or something every single thing I've found is brown wire but my switch doesn't have one and that tan wire didn't work



Sent from my SM-G925V using Tapatalk

Share this post


Link to post
Share on other sites

It's a gray/black wire. That controls the parking lights off the bcm. I used a similar method for my backup camera.



Correction. That is the negative side

Edited by Chris

Share this post


Link to post
Share on other sites

Check this


Share this post


Link to post
Share on other sites

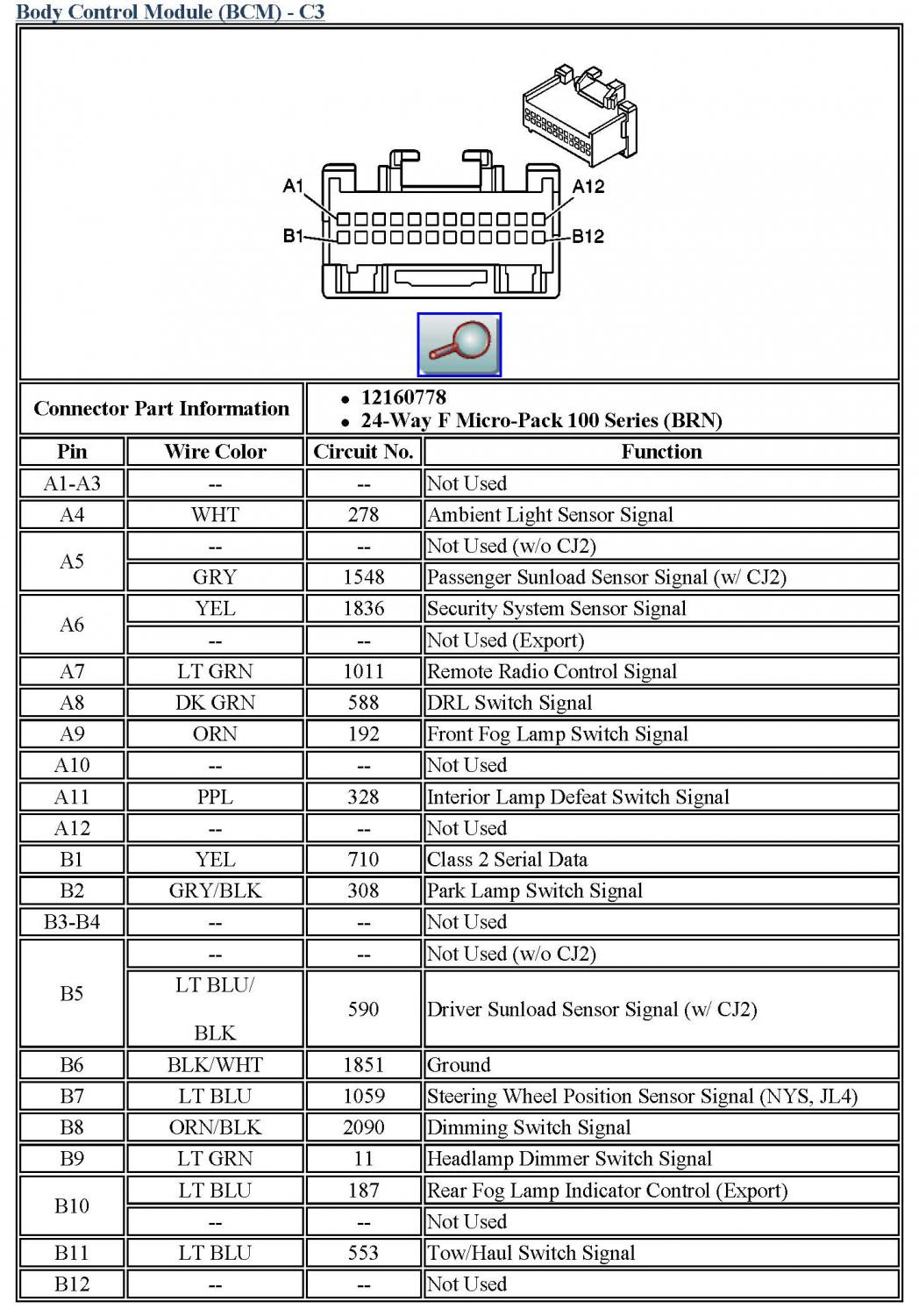

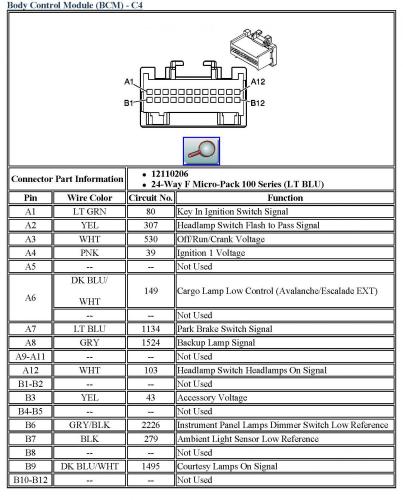

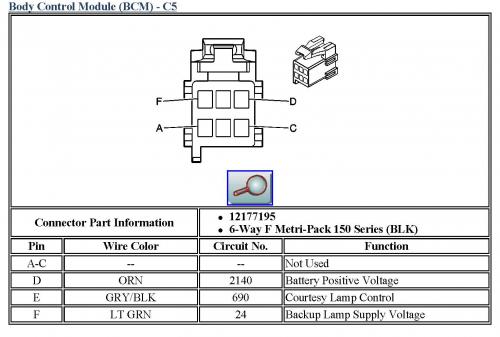

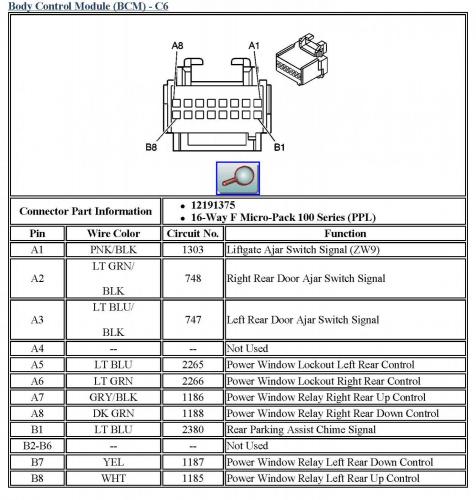

Here is the BCM pinout. find the one that suits you

























Share this post


Link to post
Share on other sites
On 3/19/2020 at 9:25 PM, Hawkboy.nathan said:

Trying to wire the lights to automatic locks

:dunno:

There's not a member here that has a clue as to what vehicle you're trying to do this in.  Mind giving us a clue or do you want us to just guess?

Share this post


Link to post
Share on other sites

2006- grey black negative trigger for parking lights. for a positive trigger search for wires after parking light relay
