Fuel pump lines Help!

[watson60]

I need some help on where I can get replacement lines or ends! All connectors that go to fuel pump are rusted and broke!

There is 3 lines and all of them where rusted to old fuel pump! Never seen a fuel pump so rusty! Need help so I can get my truck back running

[carkhz316]

Go to your local parts store. Dorman makes replacement connectors. The only issue is that they need to be pressed on with a special tool. My local store has it and lends it out. Supposedly one can press them on by hand after warming them up, but I've not had any luck doing it without the tool.

[watson60]

I'll try that tmrw.. I seen some replacement connectors but couldn't find all 3 since they are all different!



[chem_man]

I hate to say it, but with that amount of rust, you are looking at replacing the fuel pump.  I do not believe that the replacement fittings are for the fuel pump - I think they are for the fuel lines.



There is really nothing left to connect to on the line nearest the fuel tank pressure sensor.  Also, while you are at it, get a new fuel pump retaining ring since it is rusted to holy heck too!



Good Luck!

[watson60]

I already have a new fuel pump. Yeah the fuel pump is rusted to hell! Just gonna need new fittings for fuel lines to new fuel pump. Thank you! Damn Iowa rust!

[Supreme Pizza]

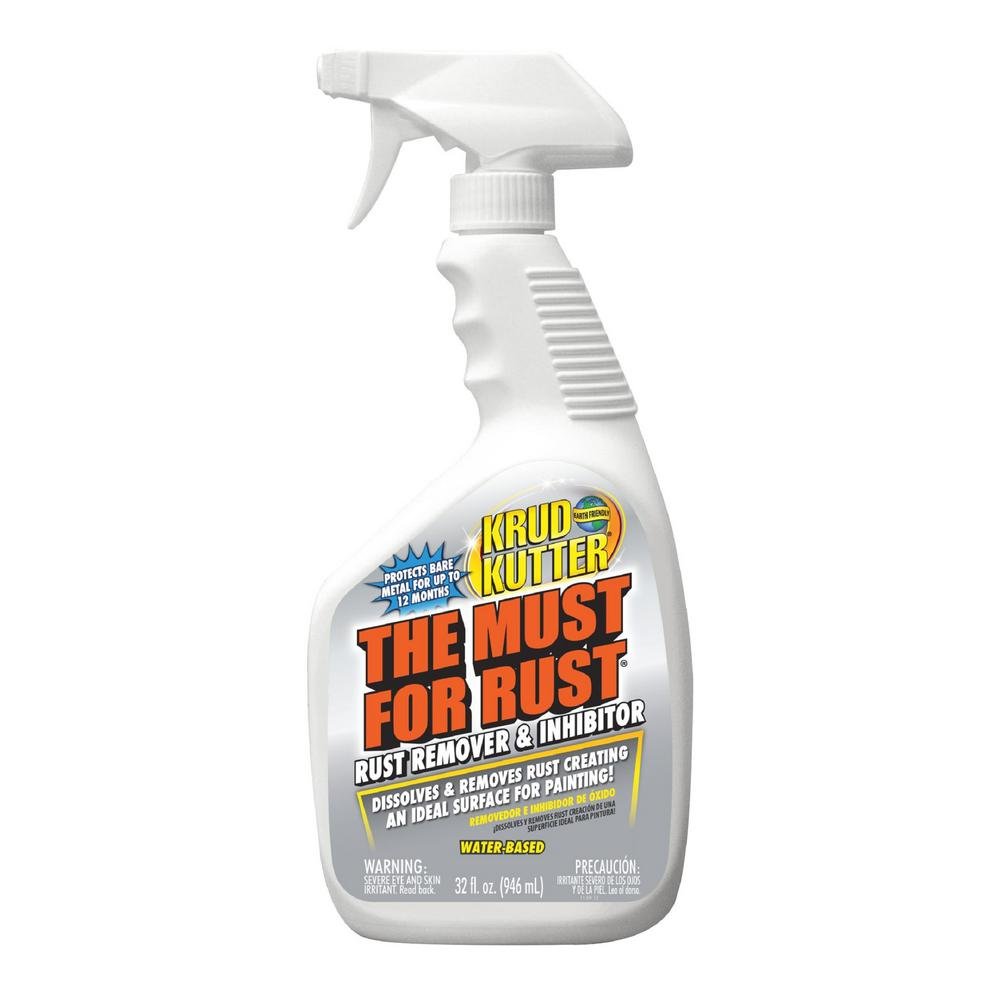

Spray the new pump with this stuff before you put the fuel tank back on. It will help keep it from rusting.









[watson60]

Well I ended up calling gm they gave me the part numbers 23248013, 25860606, 25860607. Looks like to replace all 3 lines is going to be over $200 apparently know one sells just the ends. Checked with 3 part stores

[Supreme Pizza]

Those part numbers are showing results on Amazon and eBay. Might be worth checking out.



Have you tried a salvage yard?

[watson60]

Yeah I will have to check the salavage yard tmrw. I did check amazon and ebay rock auto cheapest!
