Cargo lights when unlocking with FOB

4weight

By 4weight
in Modifications & Accessories

 Share

Recommended Posts

SS502 Senior Enthusiast

SS502

Posted
Posted (edited)
20 minutes ago, DenaliDH said:

What is the diode for in the gray connector on the left?

Edited by SS502
  • Replies 41
  • Created
  • Last Reply

Top Posters In This Topic

Popular Days

Top Posters In This Topic

Popular Days

Popular Posts

pgamboa
pgamboa

Need a diode to have your cargo lights follow the reverse lights. Sent from my iPhone using Tapatalk

pgamboa
pgamboa

Left diode is for puddle lamp (on DL3 Mirrors) to follow interior dome lamps. This is a requirement for 2014 trucks that upgrade from DL8 Mirrors to DL3 Mirrors. Sent from my iPhone using Tapatalk

sgand
sgand

That explains why I didn't see it in the engine bay. Thanks

Posted Images

pgamboa Senior Enthusiast

pgamboa

Posted
Posted

Left diode is for puddle lamp (on DL3 Mirrors) to follow interior dome lamps. This is a requirement for 2014 trucks that upgrade from DL8 Mirrors to DL3 Mirrors.


Sent from my iPhone using Tapatalk

  • Like 1
  • Thanks 1
SS502 Senior Enthusiast

SS502

Posted
Posted

I wanted to share what I found...this mod is awesome but my first choice of diodes was not. I ordered the right diodes but the first ones I ordered has a wire so thin it just slid right on through and didn’t seem to make contact...the second batch has a much thicker wire and worked perfectly. I’m not saying the thin won’t work but I don’t think they would have stayed in place even if I could get a good contact.



Bengalman21 New Member

Bengalman21

Posted
Posted
On 12/28/2018 at 10:17 PM, pgamboa said:

Need a diode to have your cargo lights follow the reverse lights.



Sent from my iPhone using Tapatalk

Same diode for fog lights that’s with high beams on?  Better photo of exactly where it needs to go?

TIA

pgamboa Senior Enthusiast

pgamboa

Posted
Posted
Same diode for fog lights that’s with high beams on?  Better photo of exactly where it needs to go?
TIA

Yes. If you zoom into the pic, it’s the top slot, and two slots down from that one.


Sent from my iPhone using Tapatalk
  • Like 1
4weight Enthusiast

4weight

Posted
  • Author
Posted (edited)
On 1/7/2019 at 3:24 PM, SS502 said:

I wanted to share what I found...this mod is awesome but my first choice of diodes was not. I ordered the right diodes but the first ones I ordered has a wire so thin it just slid right on through and didn’t seem to make contact...the second batch has a much thicker wire and worked perfectly. I’m not saying the thin won’t work but I don’t think they would have stayed in place even if I could get a good contact.



That’s exactly the problem I had, my first order of diodes simply were so thin it would not make a good connection.  So the Chanzon were the ones that worked correct?  I will give these a look.  Thanks !

Edited by 4weight
SS502 Senior Enthusiast

SS502

Posted
Posted (edited)
2 hours ago, 4weight said:

That’s exactly the problem I had, my first order of diodes simply were so thin it would not make a good connection.  So the Chanzon were the ones that worked correct?  I will give these a look.  Thanks !

Yes Sir, nice and sturdy...Chanzon ?

PM me your address and I’ll send you a few of them. I needed 3 (not 3 for the mod, I ruined 2 of them) just because I kept bending them too much, finally did use needle nose and that worked much better but I’ll send you like 10 of them on Monday.

Edited by SS502
sgand New Member

sgand

Posted
Posted
On 12/28/2018 at 11:17 PM, pgamboa said:

Need a diode to have your cargo lights follow the reverse lights.



Sent from my iPhone using Tapatalk

I must be blind, I cannot find where this is located.

pgamboa Senior Enthusiast

pgamboa

Posted
Posted
I must be blind, I cannot find where this is located.


No worries. I get asked this question all the time.




Sent from my iPhone using Tapatalk
r1mechanic Enthusiast

r1mechanic

Posted
Posted


No worries. I get asked this question all the time.




Sent from my iPhone using Tapatalk

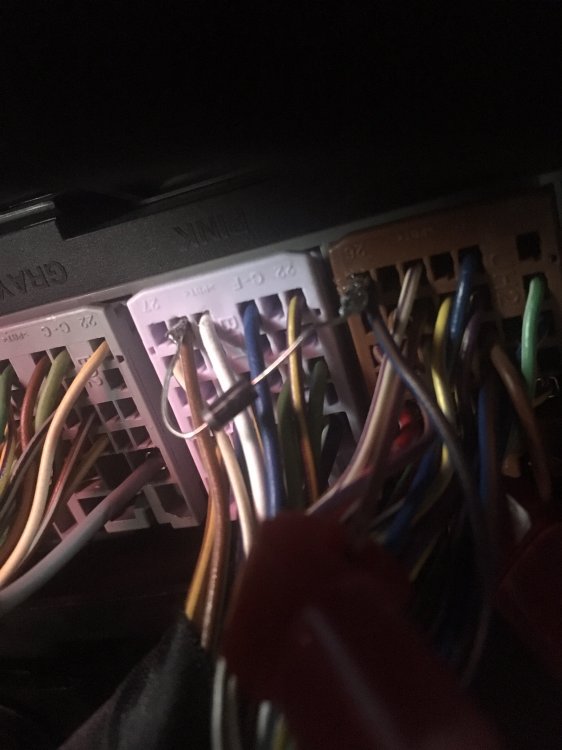

I had to sacrifice a diode for its wires and solder them to the one I was using for the jump and it worked a lot better for me. Bifocals suck sometimes!IMG_3392.jpg


Sent from my iPhone using Tapatalk
  • Like 1
sgand New Member

sgand

Posted
Posted
On 1/17/2019 at 8:06 PM, CovetedStyle said:

Under the dash driver side



On 1/18/2019 at 8:22 AM, pgamboa said:




No worries. I get asked this question all the time.




Sent from my iPhone using Tapatalk





That explains why I didn't see it in the engine bay. Thanks

  • Like 2
  • 1 month later...
Ravenkeeper Senior Enthusiast

Ravenkeeper

Posted
Posted
43 minutes ago, Spedelbrock said:

This is probably a stupid question but when installing the diode do you disconnect the battery?

I didn't, didn't even have the truck running.  Just crawled under the dash, and started pushing the diodes into place.

  • 1 year later...
Abdulrahman Alessa New Member

Abdulrahman Alessa

Posted
Posted (edited)

Dear members,



I followed this thread but i running for some issue.



I realize when i am unlocking the doors the revers light does not come on. is this normal or my car has middle east spec non USA?









Edited by Abdulrahman Alessa
