Torque specs for 5100 install

[USCGRetiredJosh]

Does anyone have the torque specs for all the factory hardware for the front and rear shocks, after replacing with 5100’s?



thank you

[Gangly]

Do a search.  I've posted them before in the past few months but can't remember them off the top of my head.

[Thejet07]

I was told 85 ft lbs should be good but don’t take my word for it


Sent from my iPhone using Tapatalk

[Gangly]



For the sway bar link you have to hold the bolt stationary while you thread the nut down to the base of the bolt.  Once the threaded nut reaches the base of the bolt, you can tighten it down to its specified torque spec without having to hold the bolt as well.



Torque Specs for the Upper Control Arm Ball Joint

First:  26 ft/lbs

Second:  Additional 60-75 degrees (A little shy of a 1/4 turn of a wrench)



Strut Bolts

Upper:  43 ft/lbs

Lower:  37 ft/lbs



Sway Bar Link

74 ft/lbs

[Thejet07]

Is that for the rears as well?


Sent from my iPhone using Tapatalk

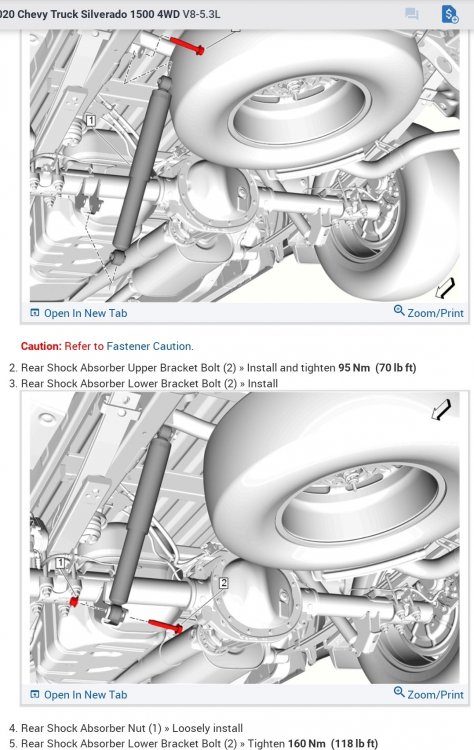

[Gangly]

Upper 70 ft/lbs

Lower 118 ft/lbs

[USCGRetiredJosh]

Thank you for the specs
