flat350

On my 19 the center console USB ports on the rear are powered from the harness under the pass. seat, the electronics inside the console are powered from the USB port on the dash with an extension harness, USB port on the dash needs to be swapped to a different one for the ext. harness to plug into it.

1994 Ford Bronco 302, 4X4 1972 Ford Bronco 302 4X4 1997 Ford Ranger 2.3 ( 262K miles, thing ran great, had to get rid of it when the threads on the radius arms started rotting off, along with parts of the frame ) 2000 Chevy S-10 ( 185K miles couldn't get out of it's own way, was a good work beater ) 2003 Chevy Trailblazer I6 ( developed a little knock with 265K miles on it ) 2014 Chevy Silverado LT2 5.3 6SP 4x4 (retirement gift ) 2019 Chevy Silverado LT 5.3 8SP 4x4 (2nd retirement gift, missed the full console and fog lights from the 14 so they got added)

Had service ESC, trailer brake, antilock brake, speed limited to 45MPH pop up one day starting it in the driveway. Dealer said they pressure checked the brake system found no problems, cleared the codes and they never came back. Didn't know why it happened.

I wonder if it would fit on a 19LT,I have a set in black on a garage kept 9000 mile truck. I'm in Illinois, shipping them back and forth would probably be pricey.

I don't have the trailer yet and I don't foresee a problem with it , only going to be 21' and 4200 lb. dry (travel trailer). Already have a weight dist. hitch and was just trying to figure out what all of the features with the tow package were, literature that you find doesn't seem to be real clear.

On a 19 LT with a 5.3, 8 sp. with the advanced trailering package does the package do anything for sway control?

Vroom offered me $42,160 for my 19LT with 9K miles that I was out the door at 38K and change in July of 19, can't find anything that would be the right replacement for it.

Did a little cover in 304SS, don't remember what gauge. Gave it a little bend at the front and back edge and it bolted right on top of the plastic with some longer trim screws.

Believe mine has a "built in Ft. Wayne" sticker on it.

Not a pain just takes time,I took the infotainment center out to do it,dozen clips on the trim .and a few bolts.The USB ports just snaps in and out with a couple of clips.The extension harness just routes from under the dash at the USB and under the top of the console to the ports on it inside the cover.It might have taken me 2 hours to swap out everything inc. the entire console. There are videos out there on removing the infotainment center,I think one of them might have been on Autostop's website.

The harness under the seat works the ports on the back of the console,the ports in the storage area of the console are wired to the dash with the extension harness.The new/replacement USB ports in the dash are different on the back with a provision for the ext. harness to plug in and feed the console,the original doesn't have it.There was another member on here that I talked to on the phone about the swap and he said the wireless charging on his worked mine doesn't have the option so I don't know. He's where I got the part number for the replacement USB ports.

Look into having them hydrodipped.

Found my console in a yard in Nevada after searching for 4 months for $461 shipped to Chicago,sold the jump seat on Ebay for $800.I found that it was better to call and not email the yard,much better response and the same console can be listed at different yards. The seats don't have to be removed,loosen the front bolts and remove the rear ones to be able to raise the rear a little to access the bolts The wiring under the pass. seat of an LT model plugs right into the console.The USB port swap requires you to remove almost everything around and including the infotainment center but its not that difficult.Swap the USB ports and connect the ext. harness to the console under the tray and the new port. Not accounting for my time it cost me nothing to do the swap Part Number Part Name Price Quantity Total 13529873 USB Port $73.02 1 84376073 Wire $29.89 1 84127263 Lower Panel $19.66 1 ImageAndParts-6.pdf ImageAndParts-4 (1).pdf ImageAndParts-3 (1).pdf

Won't work,the console body would still be black.

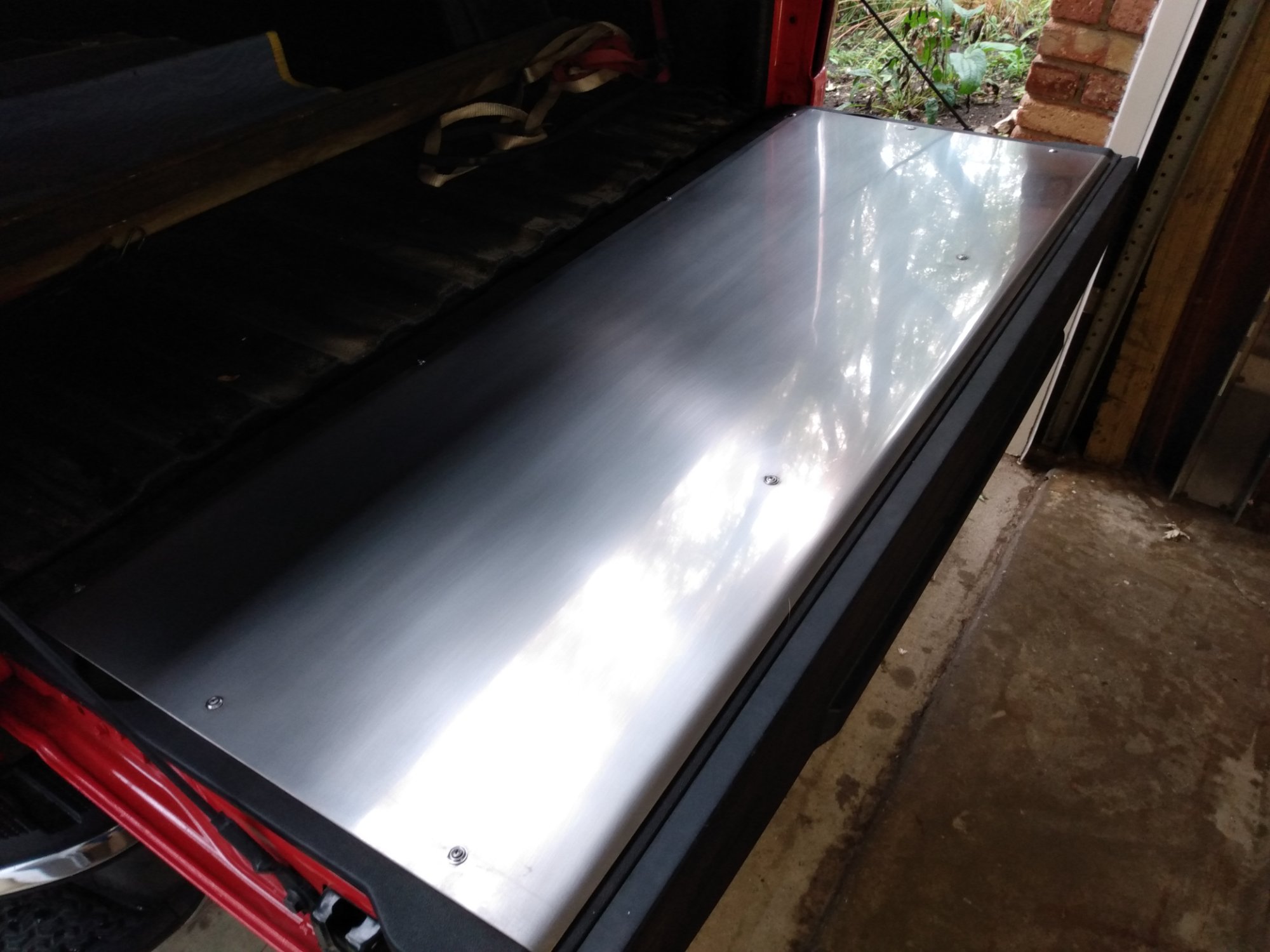

I finally got tired of trying to protect the plastic on the inside of the tailgate,buddy got me a piece of stainless,a little bending and it's done.

There's a couple of threads on here dealing with it,hardest part is finding the console.It took me 4 months of daily searching at salvage yards before I found one.

I have a pair of red ones with passive lock that could be repainted.

Here's one https://chicago.craigslist.org/nwc/pts/d/schaumburg-2019-silverado-jump-seat/7112400117.html

There's a thread on here somewhere where he tapped into a line somewhere to add a USB inside the top.

Has to be a way to reset it.

Wish they made this for the 19's on up.

Used a Tonneau Pro on my 14 and 19,seemed to hold up pretty good,easy on and off.

There's a couple of threads talking about the swap if you search.

I've had a few parts for a center console on order for 5 weeks now.They claim that they are not on BO,just that GM is shipping extremely slow.
