Mike1220 Senior Enthusiast

Mike1220

Posted
Posted



When I have some time I plan to run a new set. I will be buying the sensors and leaving the ones in my bumper in case I decide to go back. Please post picture when you do yours.

Check out post #14. Block8head had already done it to his bull bar





Sent from my iPhone using Tapatalk

  • Like 1
  • Replies 1.2k
  • Created
  • Last Reply

Top Posters In This Topic

Popular Days

Top Posters In This Topic

Popular Days

Popular Posts

Jon A
Jon A

A double row works well behind the Denali grill. Here's my 30" curved Totron:                 The LED's are 1" appart and the rows of holes in the grill just happen to be 1" ap

MotoMedic
MotoMedic

The correct term is "illegal commodities broker" thank you!   I actually work for an oil company, which is similar because both businesses provide highly desired products at artificially inflated

Danthaman69
Danthaman69

Here it is.

Posted Images

KUUG Enthusiast

KUUG

Posted
Posted

Check out post #14. Block8head had already done it to his bull bar





Sent from my iPhone using Tapatalk



I did see that, I was just worried about the nfab front&rear bars because they are a smaller diameter

TXS Heat Enthusiast

TXS Heat

Posted
Posted

I have to add that if you have use a bike rack you most likely will run into fitment issues as well.

Mike1220 Senior Enthusiast

Mike1220

Posted
Posted



I did see that, I was just worried about the nfab front&rear bars because they are a smaller diameter

Oh. I think it should still work. How much smaller are they? And I just realized I didn't post the link to the thread





For anyone else interested in seeing, here's the link:



http://www.gm-trucks.com/forums/index.php?/topic/161204-Brush-Guards-and-Bull-Bars





Sent from my iPhone using Tapatalk

KUUG Enthusiast

KUUG

Posted
Posted

Oh. I think it should still work. How much smaller are they? And I just realized I didn't post the link to the thread





For anyone else interested in seeing, here's the link:



http://www.gm-trucks.com/forums/index.php?/topic/161204-Brush-Guards-and-Bull-Bars





Sent from my iPhone using Tapatalk

Up front I am running an N-Fab light bar with a 40" combo pattern Rigid Industries E-Series.

tstehle can you answer this question? all I see is that its .095" wall
Overall diameter?
tstehle Enthusiast

tstehle

Posted
Posted



1.5" diameter





tstehle can you answer this question? all I see is that its .095" wall

Overall diameter?

  • Like 1
tstehle Enthusiast

tstehle

Posted
Posted

I have to add that if you have use a bike rack you most likely will run into fitment issues as well.

Valid point. Gives reason to get creative and do some custom racks above the tonneau cover. On the to do list.

TXS Heat Enthusiast

TXS Heat

Posted
Posted

Valid point. Gives reason to get creative and do some custom racks above the tonneau cover. On the to do list.

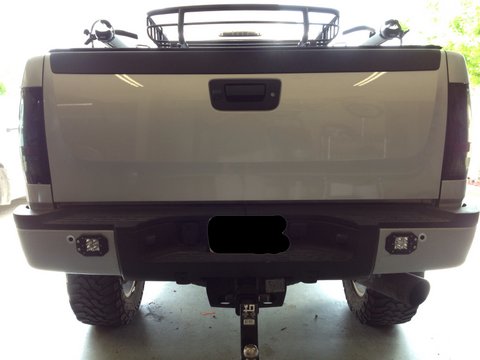

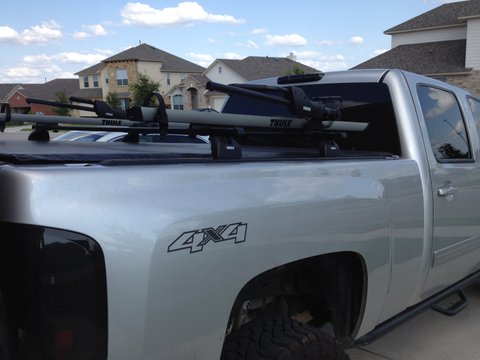

Been there done that - still have the rack just not my favorite - makes using the bed a pain.













  • Like 1
tstehle Enthusiast

tstehle

Posted
Posted

post-131584-0-03895700-1403567624_thumb.jpgpost-131584-0-96517000-1403567664_thumb.jpg

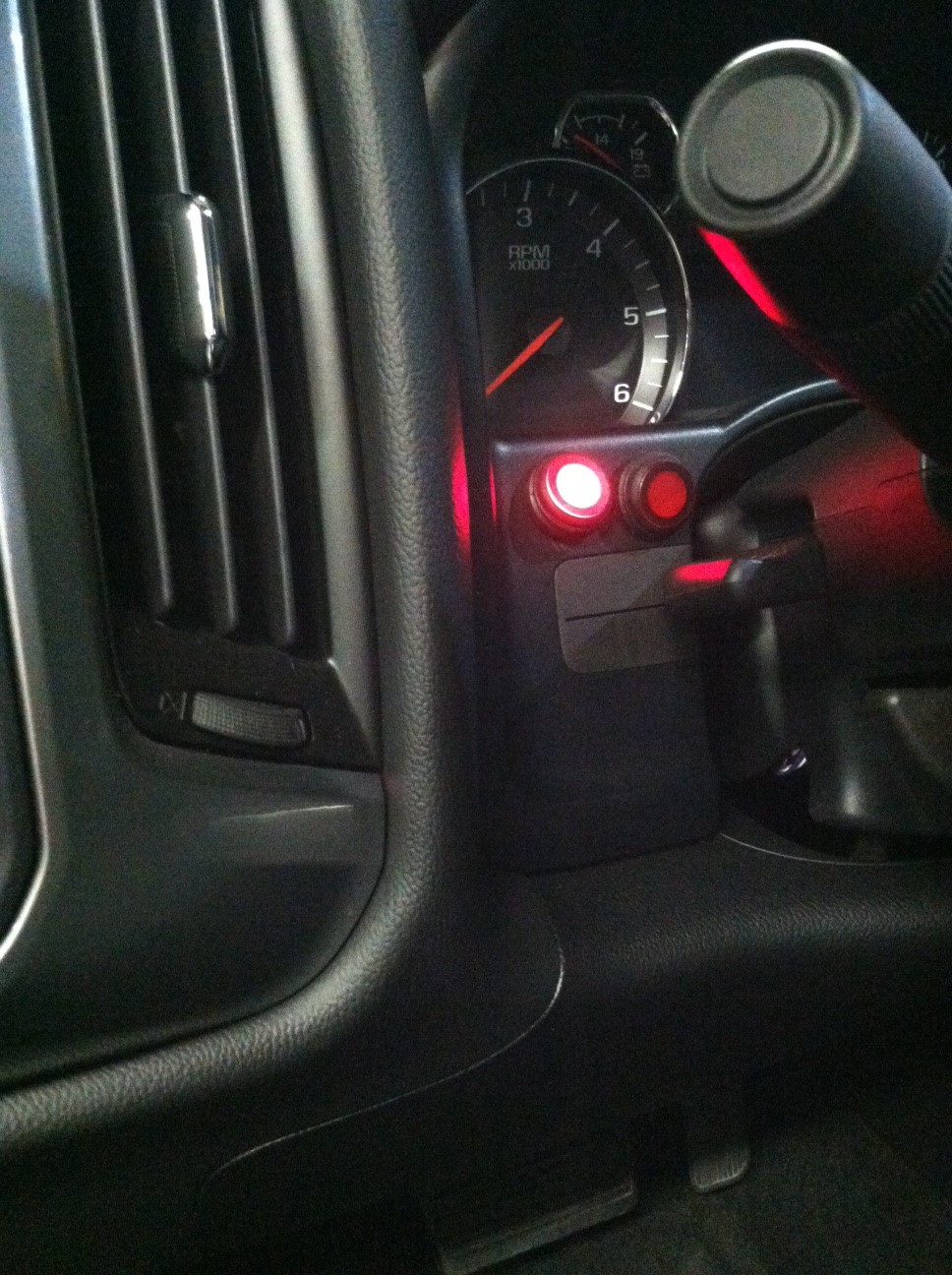

One last thing I wanted to share about my led light bars is the switch locations as some of you posted earlier. I think we have a great looking interior so I didn't want to disrupt the looks and wanted them in a location that felt like GM might put them there. Rigid Industries provides nice quality rocker switches with illuminated faces. These are somewhat hidden when seated in the driving position but you can easily see the glowing light to know when they are on and are easy to access.







  • Like 1
TXS Heat Enthusiast

TXS Heat

Posted
Posted

I removed the 12v outlets and replaced with toggle switches - they are a perfect fit - pictures make it look like they are gapped out but that's not the case - just bad photo













Sent from my iPad using Tapatalk HD

  • Like 3
Spurshot Senior Enthusiast

Spurshot

Posted
Posted

I've been thinking about the kind of lighting I want/need for driving the highways and trails on my hunting trips.



On the highways, big broad and long range beams are nice for when no other vehicles are around.



But I want nicely controlled low beams with good width and distance as well.



On trails, I'm going slower and don't need long range lights, but need to see left and right very close in to turn on tight trails and also to see when coming up a ridge.



I like the idea of that row in the grill where some have installed the single row LED bars.



So I'm thinking of maybe a set of floods that are pretty low power, maybe 2 or 3 LEDs each, pointed pretty sharply outward and down, and a set of floods slightly more powerful pointed straight ahead.



I plan to have HIDs in the main headlights eventually and have already have a HID kit for the fogs that I haven't installed.



Comments on your idea of a setup for my type of use?

  • Like 1
Mike1220 Senior Enthusiast

Mike1220

Posted
Posted (edited)

I've been thinking about the kind of lighting I want/need for driving the highways and trails on my hunting trips.



On the highways, big broad and long range beams are nice for when no other vehicles are around.



But I want nicely controlled low beams with good width and distance as well.



On trails, I'm going slower and don't need long range lights, but need to see left and right very close in to turn on tight trails and also to see when coming up a ridge.



I like the idea of that row in the grill where some have installed the single row LED bars.



So I'm thinking of maybe a set of floods that are pretty low power, maybe 2 or 3 LEDs each, pointed pretty sharply outward and down, and a set of floods slightly more powerful pointed straight ahead.



I plan to have HIDs in the main headlights eventually and have already have a HID kit for the fogs that I haven't installed.



Comments on your idea of a setup for my type of use?

If you do not feel that your tow hooks are absolutly necessary and wouldn't mind taking them out, I would put some light pods in that placement. And you could put a single row 20" in the bumper like Moto did.



For this set up you could get a bar that is purely a flood or purely a spot light and the pods could be the opposite of the bar.



Or you could get a bull bar and get a curved 20" bar. They have better side to side lighting than a straight bar





Just some things I thought of right away when I saw your post.





Sent from my iPhone using Tapatalk



EDIT:



I also would try to stick to stronger lights whichever route you end up taking. Once you have them in you may feel that you got lights that are too dim. But, I've never heard of someone complaining about a light bar being too bright, you know, except for the guy who tried to stare at the bar while it's on

Edited by Mike1220
ChevyTrucks_95 Enthusiast

ChevyTrucks_95

Posted
Posted

Just ordered a 50" led light bar and I am in need of some ideas on where to mount it. I have seen them mounted onto the roof right above the windshield, but was wanting to see other ideas. Post pictures please!!

Mike1220 Senior Enthusiast

Mike1220

Posted
Posted

Just ordered a 50" led light bar and I am in need of some ideas on where to mount it. I have seen them mounted onto the roof right above the windshield, but was wanting to see other ideas. Post pictures please!!

I'm curious to see what responses you get and what your findings are. I've never seen anyone mount a 50" anywhere but ontop of the roof.



I mean, I guess you could always put it above the tailgate and hook it to a dash switch. That would definitly teach those tailgaters a lesson and make backing up with 2.5% tinted windows much easier [emoji23]





Sent from my iPhone using Tapatalk

  • Like 2
Mike1220 Senior Enthusiast

Mike1220

Posted
Posted

I need some input/opinions.



I'm currently looking for a good, but cheap 20" LED light bar. I've started to think however, how much of a difference is there between a curved and straight bar? Now I know that since it's only about 20" (or I'll probably get a 24" actually), there won't be a whole lot of curve, but at 100ft away it's gotta make a difference. So would it be worth it to spend just a few extra dollars to get a curved bar?



If anyone has any experience or information on which would be better and what makes it better, let me know! I'm curious. Never really dealt with a light bar before outside of a cheap 13" bar on my old yukon that added some efficiency to flashing.





Sent from my iPhone using Tapatalk
