Back up camera error

jimmij

By jimmij
in Troubleshooting & Recalls

 Share

Recommended Posts

jimmij Enthusiast

jimmij

Posted
Posted

I went to back up today and received this error. Anyone have this issue and is there a reset or fix to it?






Sent from my SAMSUNG-SM-N900A using Tapatalk

jmayovsky New Member

jmayovsky

Posted
Posted

This can happen when the backup camera harness becomes disconnected or damaged. Inspect the cable that enters the the underside of the truck bed (center of tailgate) for damage and ensure it is firmly connected to the distribution box just above the spare tire. Hopefully its just a dirty/dusty connection and simply needs to be re-seated or possibly cleaned and sealed with dielectric grease :-)

jimmij Enthusiast

jimmij

Posted
  • Author
Posted

Thanks jmay, the truck is not even 2 weeks old so hopefully disconnected..

MMC Enthusiast

MMC

Posted
Posted

Try cleaning the lens, you get this message when its dirty or covered with snow.

jimmij Enthusiast

jimmij

Posted
  • Author
Posted

I think I found the issue, a blown back up light fuse. I did the LED back up lights and they worked for 7 days, I guess something changed and they are the cause of the blown fuse. Replaced the bulbs with the regular ones and the fuse didn't blow.

  • 1 month later...
Tea3gue Enthusiast

Tea3gue

Posted
Posted

I had this happen to me too, I just powered down my truck and waited a couple of min and powered it back up and the message was gone. Anyway, back up light? Man idk if that message would appear just for a reverse light, Bc that message stays on the display when in drive.

  • 4 years later...
JakeSanchez New Member

JakeSanchez

Posted
Posted
On 6/12/2014 at 10:04 AM, jimmij said:

I think I found the issue, a blown back up light fuse. I did the LED back up lights and they worked for 7 days, I guess something changed and they are the cause of the blown fuse. Replaced the bulbs with the regular ones and the fuse didn't blow.

Where is the fuse located?  Do you have a pic or diagram?  Same thing happened to me yesterday. :(

  • 1 year later...
Theripper388Nopi New Member

Theripper388Nopi

Posted
Posted

mine yesterday I went to back up and camera didn't even come up it just stayed on my radio it wouldn't go to a black screen it wouldn't give me an error message nothing I tried ...shutting the truck off going forward going backwards ..everything I tried just the radio was up never turned on ...now this morning I put it in reverse and it works don't know why...

  • 2 years later...
mikeyk101 Senior Enthusiast

mikeyk101

Posted
Posted
7 hours ago, Richt758 said:

I’m having the same issue now. Can someone tell me which fuse it is? Can’t seem to find it

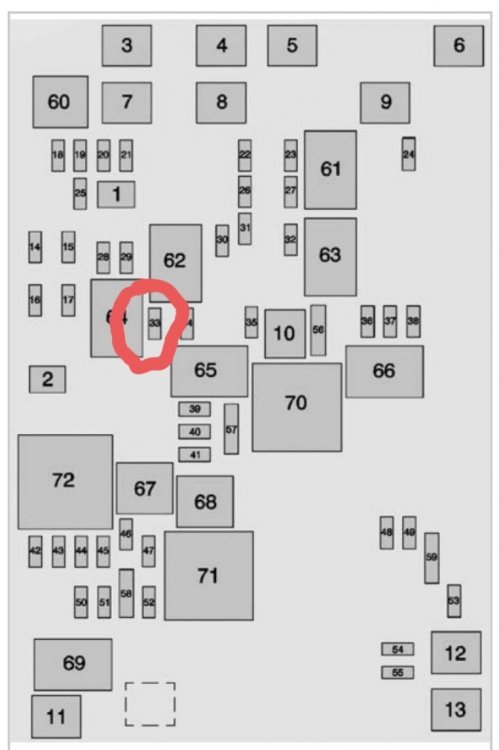

Reverse light fuse is in fuse block in engine compartment and should be #33
