Bose Wire Harness

[Daniel Formichelli]

Is any one able to provide me a part of the bose amp wire harness?  I cracked a connector.  I have a 2022 1500 LTD Pre Refresh.  Or even pinout or wiring diagram.

Edited April 11 by Daniel Formichelli

[davester]

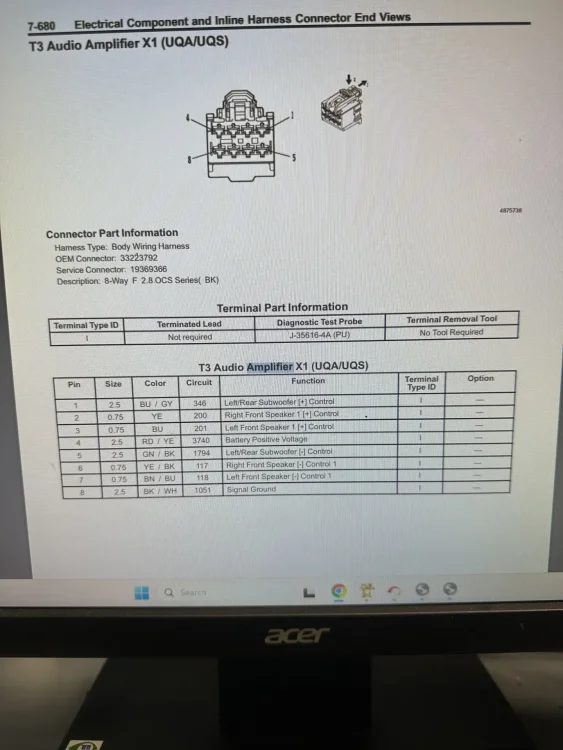

you might find it on gmupfitter.com, otherwise I suggest a subscription to alldata.com, it has wiring diagrams, connector pinouts, and p/n's for the connector shell and pins.  After getting that p/n, I would find/cross match it to the connector on a site like mouser.com



Or hit a junkyard for the connector (somewhat unlikley given the truck's year).

[Daniel Formichelli]

i forgot about all data.  Thank you!



[davester]

alldata should still be running specials right now, up to 30% off (discount depends on length of subscription).

[taze]

This is a combination of posts elsewhere in this forum that I used. Granted, I have 2021, but maybe the pre-refresh 22 is the same:

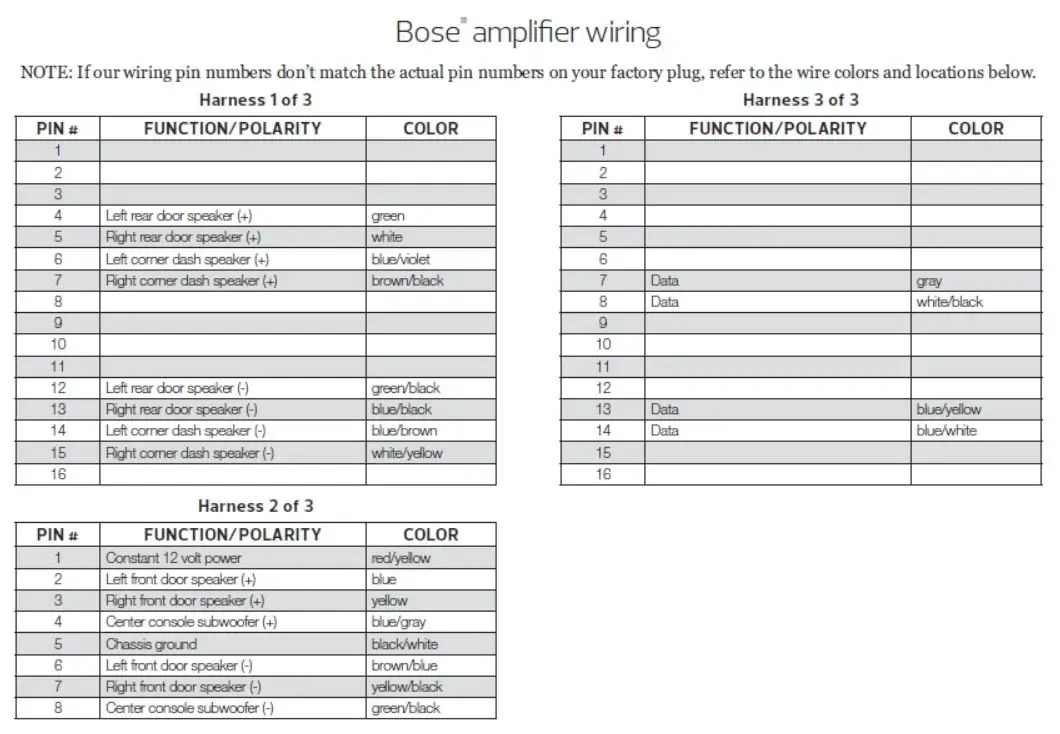

BOSE Amplifier

from the amplifier behind the rear seat on the wall:

Harness #1 = 16 pin

pin 4 = Left rear door speaker (+) green

pin 5 = Right rear door speaker (+) white

pin 6 = Left corner dash speaker (+) blue/violet

pin 7 = Right corner dash speaker (+) brown/black

pin 12 = Left rear door speaker (-) green/black

pin 13 = Right rear door speaker (-) blue/black

pin 14 = Left corner dash speaker (-) blue/brown)

pin 15 = Right Corner dash speaker (-) white/yellow

Harness #2 = 8 pin

pin 1 = Constant 12v power = RED/Yellow

pin 2 = Left Front door speaker (+) blue

pin 3 = Right Front door speaker (+) yellow

pin 4 = Center Console Subwoofer (+) Blue/GRAY

pin 5 = Chassis GROUND

pin 6 = Left front door speaker (-)

pin 7 = Right Front door speaker (-) = Yellow/Black

pin 8 = Center Console Subwoofer (-) = Green/Black

Harness #3 = 16 pin

all for data so do not mess with it. you can use this color code as a reference

pin 7 = gray

pin 8 = white/black

pin 13 = blue/yellow

pin 14 = blue/white



[Daniel Formichelli]

Thank you.
