Bug deflector

HELIRN74

By HELIRN74
in Modifications & Accessories

Recommended Posts

HELIRN74 Enthusiast

HELIRN74

Posted
Posted

Anyone have pictures of their bug deflector on their 2015 2500HD? I like the low profile look of the 1500 deflector. I was given the part # 19331067 for the GM chrome one for the 2500HD. SO who has some pictures of it installed?

Amiodynski Enthusiast

Amiodynski

Posted
Posted

I didn't get the chrome one, but I did install the black smoked one on mine. I've seen the chrome one in person, and it didn't do it for me. I can snap a picture of my truck if you want to see it..

Amiodynski Enthusiast

Amiodynski

Posted
Posted

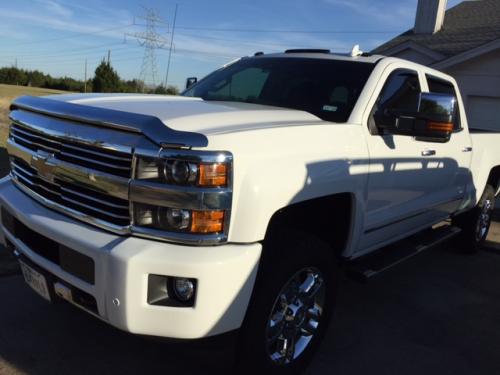

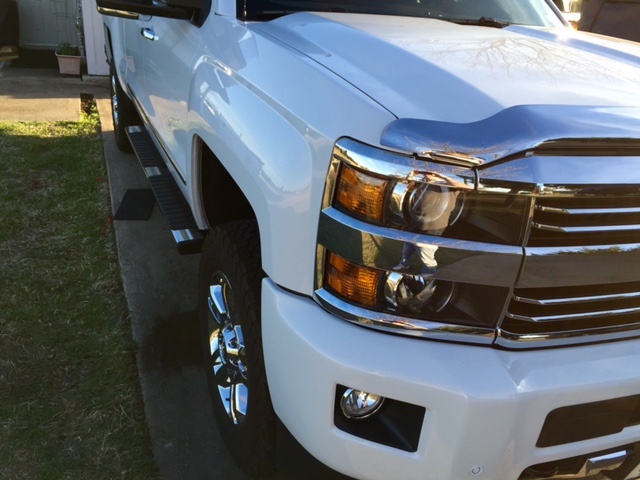

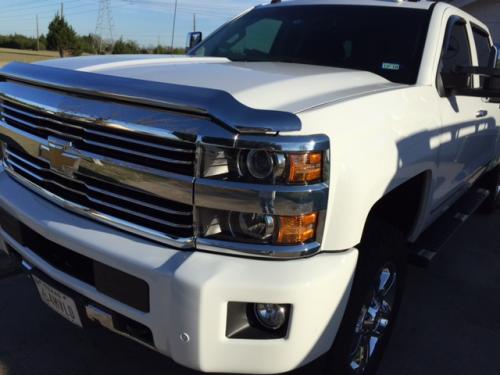

Here are a few pictures with different angles.


















Sent from my iPhone using Tapatalk

Amiodynski Enthusiast

Amiodynski

Posted
Posted

Looks sharp with the white!

Thank you, it would look great on yours too!





Sent from my iPhone using Tapatalk

Cowpie Senior Enthusiast

Cowpie

Posted
Posted

I have moved away from bug deflectors in the last few years. Never seem to deflect much anymore. The only thing I concentrate on doing up front is using a grill screen to keep bugs out of my radiator fins. Actually, same snaps for screen also doubles for mounting winter front in winter.

Amiodynski Enthusiast

Amiodynski

Posted
Posted

I have moved away from bug deflectors in the last few years. Never seem to deflect much anymore. The only thing I concentrate on doing up front is using a grill screen to keep bugs out of my radiator fins. Actually, same snaps for screen also doubles for mounting winter front in winter.

What snaps? I run the Cover in the winter, but it doesn't snap...

Cowpie Senior Enthusiast

Cowpie

Posted
Posted

Mine does. 8 snaps on the grill (4 high, 4 low) that I can either snap on bug screen in summer or winter front in winter. I obviously have a different one that you do. I don't have the OEM one. Been using setups like mine since about 1983. Nice and easy to install or remove in a few seconds. Of course, the winter front has adjustable openings in the front. I live in rural farm country, and the screen really keeps a lot of bugs out of the radiator.

Cowpie Senior Enthusiast

Cowpie

Posted
Posted

I am using the Fia winter front / bug screen combo on my 2500. Same product I have used on a '98 2500, '06 Jeep Liberty diesel, and 2013 1500. Each set of covers specifically designed for each vehicle, of course.



The pics are on a Ford, at their site, but here is where they are. I will try and get some pics on my 2500 this weekend when I get back home from business trip and post them.



http://www.gofia.com/store/index.php?route=product/category&path=70_69&make=749&model=80&year=2015

  • 1 year later...
2016HD Enthusiast

2016HD

Posted
Posted

Here are a few pictures with different angles.


















Sent from my iPhone using Tapatalk



Just wondering what size and type of led light bar you have behind the grill? Looks like a nice single row design? Im guessing around 30" ?? Any pics of it install or at night? Appreciate the help. Just about to start looking to order this etc.

Amiodynski Enthusiast

Amiodynski

Posted
Posted



Just wondering what size and type of led light bar you have behind the grill? Looks like a nice single row design? Im guessing around 30" ?? Any pics of it install or at night? Appreciate the help. Just about to start looking to order this etc.

I got it off Amazon. It was a 32" curved Double Row Cree chipped. 18000 lms. It came with a wireless remote that I simply programmed to my Homelink. Here are a few more pictures. 3c096529bc0d66032ebe6bb1d3d9282a.jpg










Sent from my iPhone using Tapatalk
