DIY Led bed lights

cmysstailights

Recommended Posts

cmysstailights Enthusiast

cmysstailights

Posted
Posted

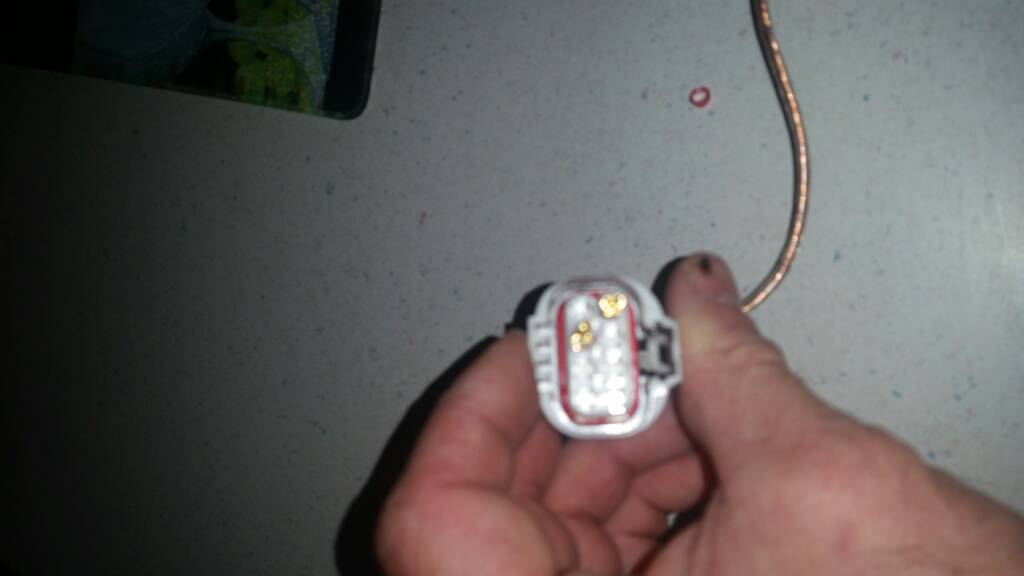

Didnt feel like spendi g 100 bucks, found everything in my garage so decided to give it a shot.

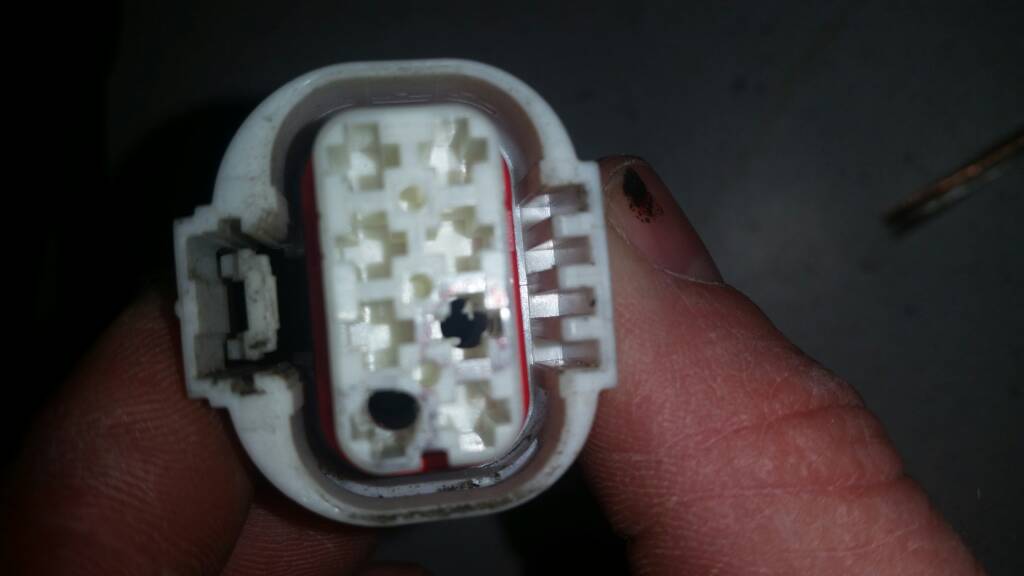

I used the stock blank plug. Just drilled out the corresponding holes.



Stripped inserted the wires. Soldered them on. When pushing them in place just make sure the orientation is correct, otherwise the terminals wont line up.

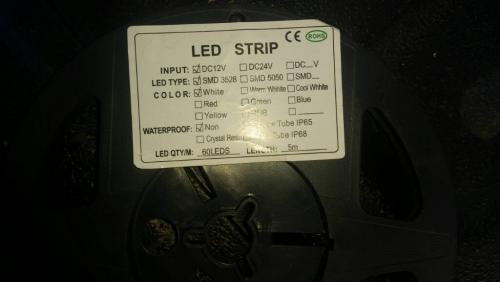

Ran my wires, installed the strip lights and they work.



Pics too big. When i get a chance ill post them

  • 3 weeks later...
nolabell Enthusiast

nolabell

Posted
Posted

Thanks for the write up. I think i am going to go this route as well. Couple questions:



1. When you said "soldered them on" what are you referring to there?

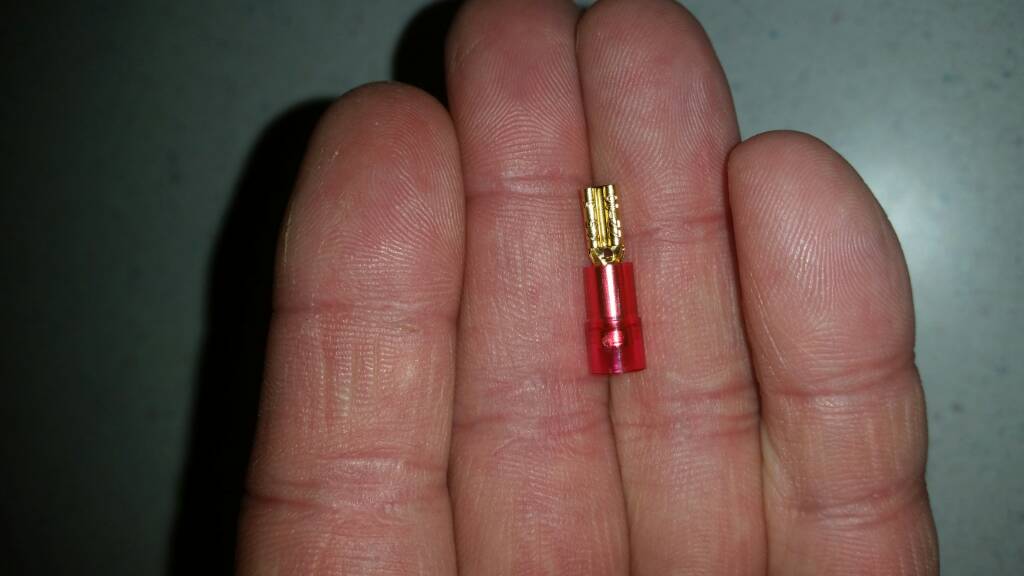

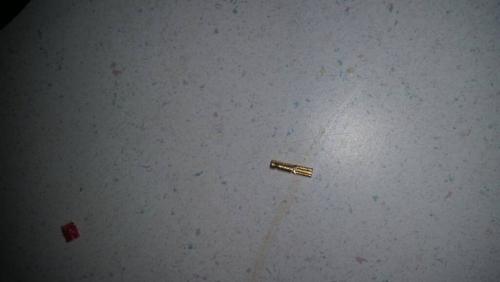

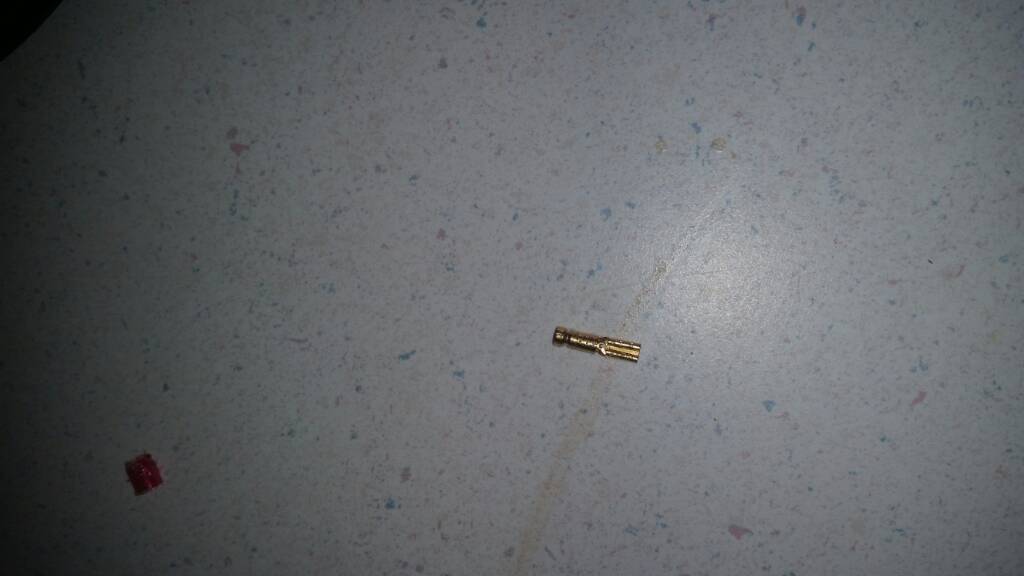

2. Wasnt sure what you used those gold connectors for? See pic below




nolabell Enthusiast

nolabell

Posted
Posted

I soldered that connector to the wires. That connector fits in the white plug after i drilled the hole.



Sent from my SM-G900P using Tapatalk

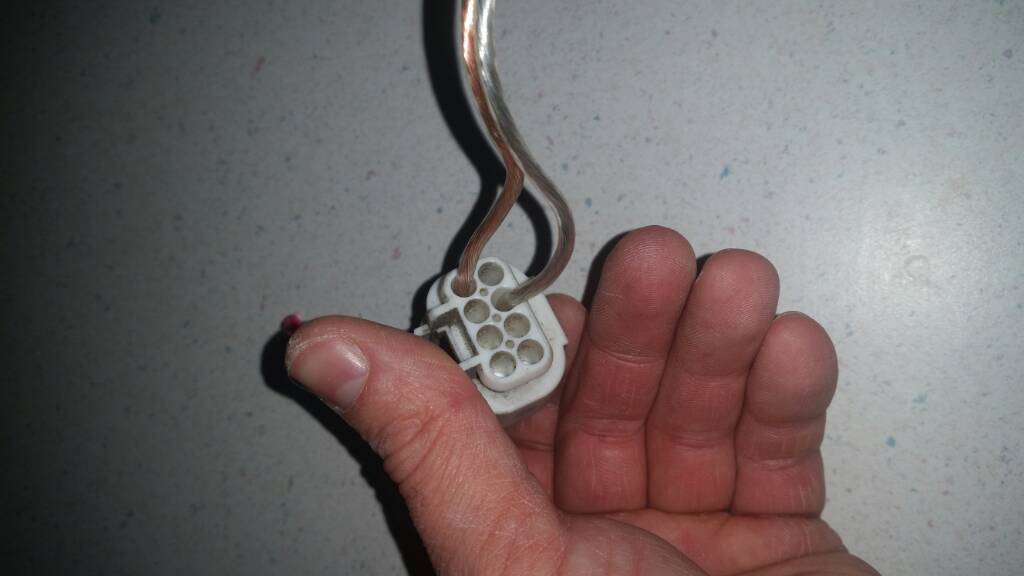

Is that just a 16-14 disconnect terminal? Also, the picture is a little blurry, which end connects to the wire and which end sticks through the drilled hole? I wasn't quite sure about your note about the orientation being correct.

cmysstailights Enthusiast

cmysstailights

Posted
  • Author
Posted

Thanks for the write up. I think i am going to go this route as well. Couple questions:



1. When you said "soldered them on" what are you referring to there?



2. Wasnt sure what you used those gold connectors for? See pic below

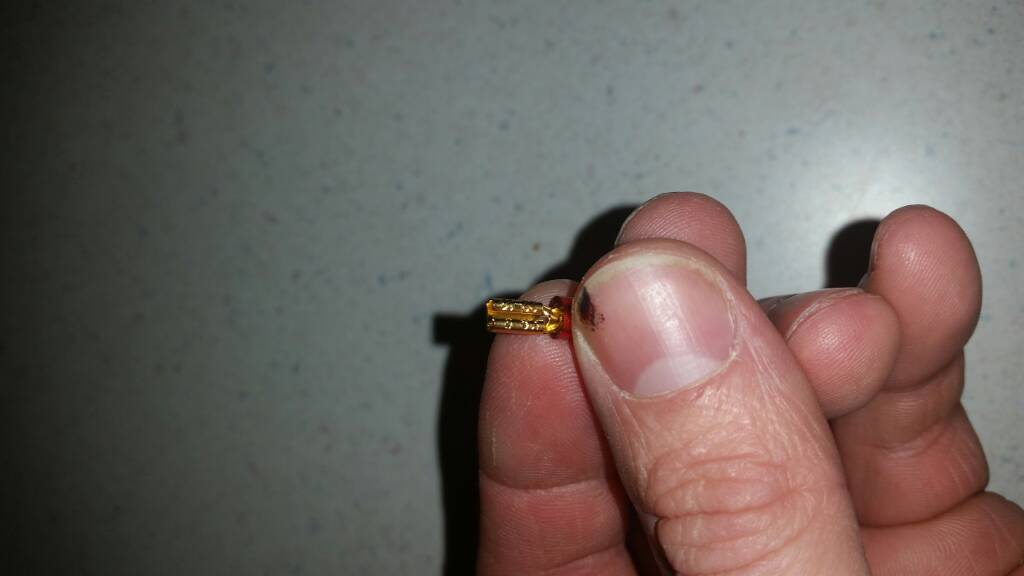

Gold connector gets inserted into the holes u drill in the blank plug. Make sure u put the wires through the holes first before soldering on the connectors



Sent from my SM-G900P using Tapatalk
