2015 2500HD Silverado with non power folding mirrors that have LED lights in them

[pgamboa]

So what activates the rearward cargo LED's in the mirrors?  I was under the impression that the cargo switch, when activated in park or neutral (reverse if you use a jumper), is what activates those mirror rearward LED's.  For me right now, the cargo switch ONLY activates the bed lights and the cargo light on the rear top of the truck.  Absolutely no switch with the transmission in any setting will activate the rearward cargo LED's.  They will not turn on under any circumstance.

The Cargo Lamp LEDs are tied to the cargo lamps and bed lights, activated by the same switch.

There is a missing link/circuit here. Not sure if it’s within the harness or from the door jamb, going into the cabin.

We can dig deeper.. if you are able to remove the door jamb connector and inspect the body side connector...

Looking to see if you have pins 9 and 11 present here.




Sent from my iPhone using Tapatalk

[Squished]

1 minute ago, pgamboa said:

The Cargo Lamp LEDs are tied to the cargo lamps and bed lights, activated by the same switch.

There is a missing link/circuit here. Not sure if it’s within the harness or from the door jamb, going into the cabin.

We can dig deeper.. if you are able to remove the door jamb connector and inspect the body side connector...

Looking to see if you have pins 9 and 11 present here.




Sent from my iPhone using Tapatalk

Thanks.  When I get the truck back today (if they still haven't figured it out) after replacing my heated seat element I'll check this.  I have to imagine they are there since the park lamp works but I will confirm.

[pgamboa]

If this was purchased used, there’s no telling wha the previous owner did. Let me know.


Sent from my iPhone using Tapatalk

[Squished]

Dealership just confirmed there is a missing harness to each mirror and quoted $1,200 for them to be installed.  Does that sound right?

[pgamboa]

If you like being robbed... then yes .

That’s why most come here looking for alternatives.

Let me know what Harness they are quoting you (part #s etc). I’ll fix ya up for at least 1/2 that ;). If you are able to confirm that door jamb connector... and maybe harness part#s of what you have installed now, I can help you fix this.


Sent from my iPhone using Tapatalk

[pgamboa]

And if Door Harnesses are all you need, I Charge $225 for a PnP Set. But I need to know what’s at door jamb to give you an idea of cost and what all will be involved.


Sent from my iPhone using Tapatalk

[Squished]

I just put 2 and 2 together....while watching your video three times on youtube.

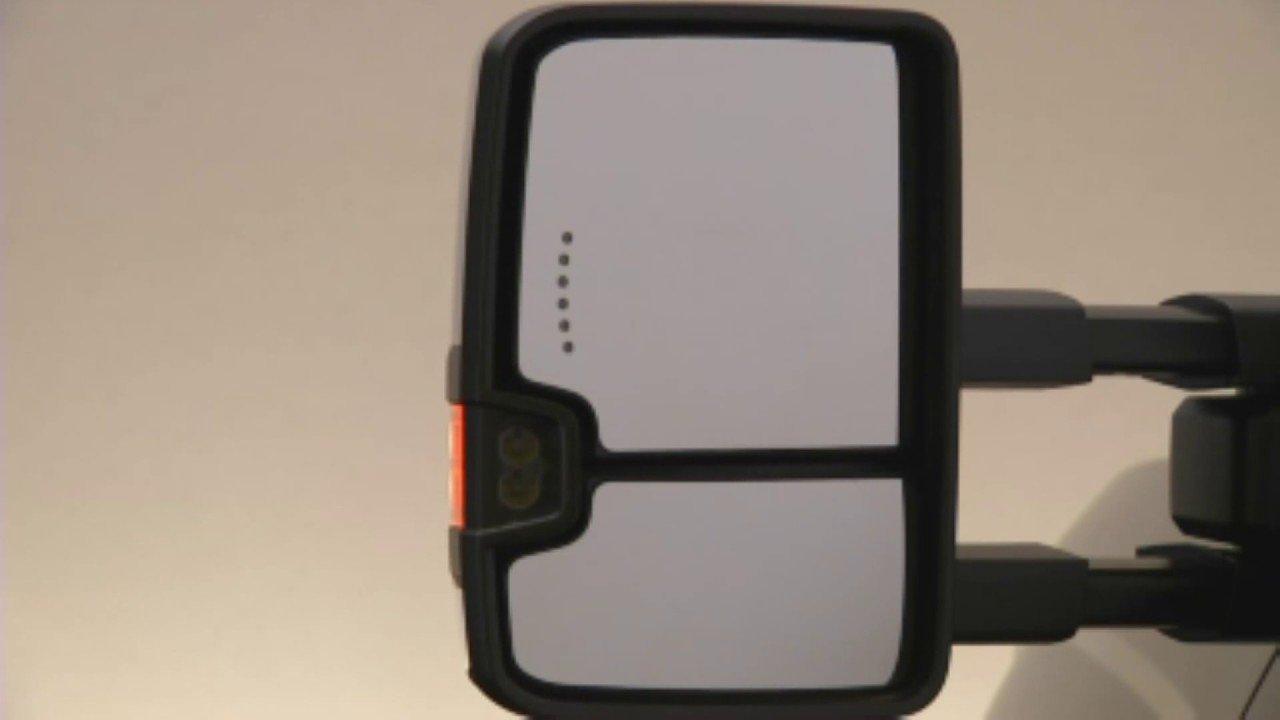

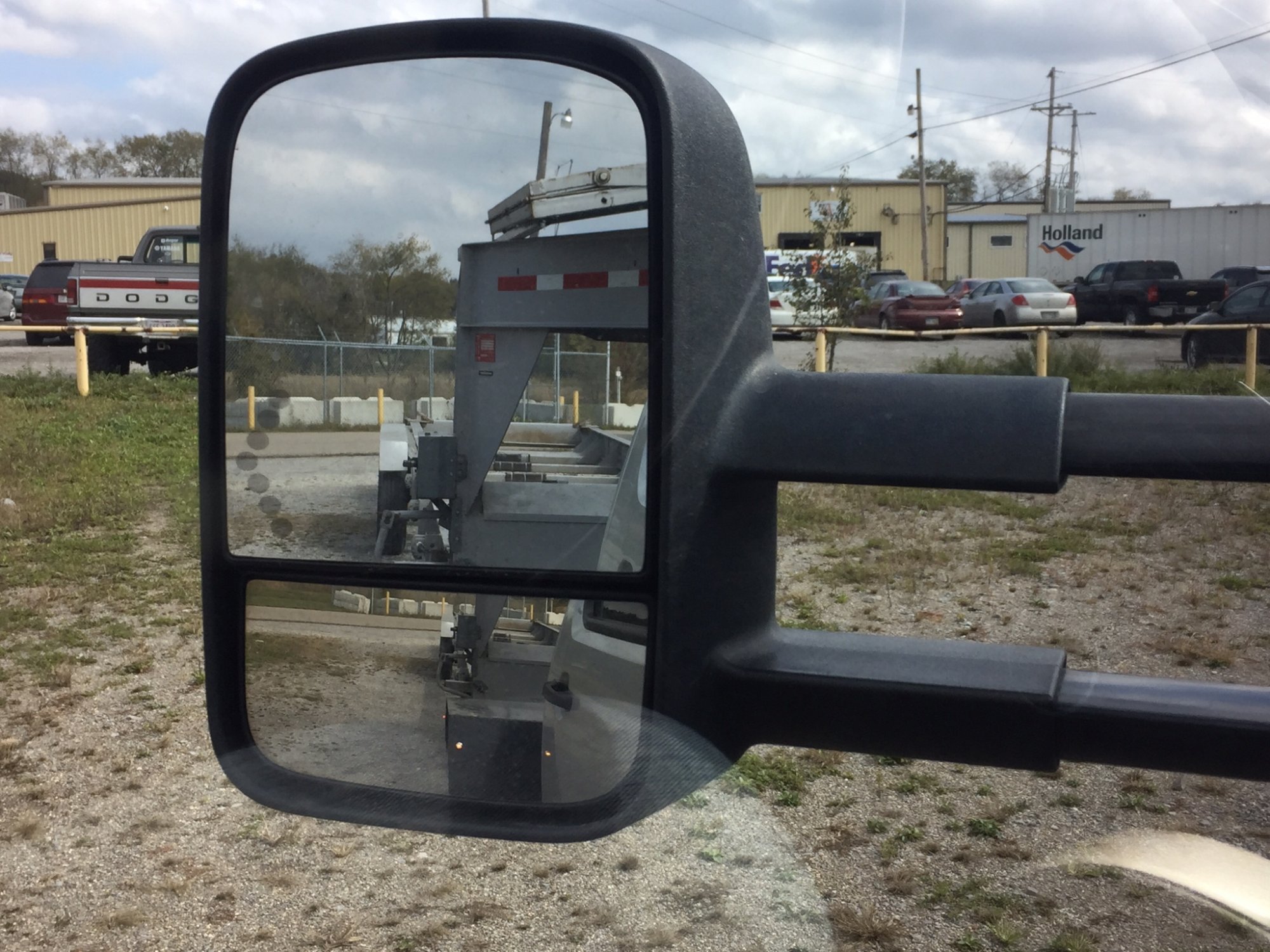

I'm 100% certain that the park lamp and turn signals work on my mirrors because someone made a comment of how nice the orange on the front mirrors looked at night the other night.  The attached image are the DPN mirrors that should be on my truck.  Evidently I have DQS mirrors somehow installed on my truck now with the missing harness to make the cargo lamp work.  The other image are what is actually installed on my truck.  I'll try and take the door jamb apart tomorrow and get some photos for you.  Hopefully all i need is the $225 PnP harness to do this.



This begs the question....why would someone swap the mirrors and not do the harness? Makes no sense to me.

[Squished]

Not sure if it helps Phil, but here's the build of my truck.  2015 2500HD LTZ with a Duramax.



Model: CK25743-2015 SILVERADO 2500 4WD CREW
Service Contract: No Branded Title: No Warranty Block: No PDI Status: Yes
Order Type: 90 - SPEC+EVENT USED CAR (CVMS USE)
Vehicle Build
Model: CK25743-2015 SILVERADO 2500 4WD CREW Order Number: RRMX60
Gross Vehicle Weight: 4,540 Build Date: 06/03/2014
Build Plant: F

Option Codes
*IVH is not the definitive source of GM Vehicle RPO information and is intended for service reference only. Should there be any questions about the vehicle's original build or RPO information please refer to the original vehicle invoice or window sticker.

1LZ - SILVERADO 1LZ EQUIPMENT GROUP: 1SZ - OPTION PACKAGE DISCOUNT
4AA - INTERIOR TRIM 8X2 - COMPONENT RR LH NON-COMPUTER
9X2 - COMPONENT RR RH NON-COMPUTER A31 - POWER WINDOWS, DRIVER EXPRESS
A45 - DRIVER SEAT, MEMORY ADJUST A48 - WINDOW, POWER, REAR SLIDING
A60 - LOCKING TAILGATE A68 - SEAT 60/40 REAR FOLDING BENCH
AKO - GLASS, DEEP-TINTED AN3 - SEATS, FRONT FULL FEATURE LEATHER APPOINTED BUCKETS & CENTER CONSOLE, FLOOR W/ USB PORTS
AQQ - REMOTE KEYLESS ENTRY AU3 - POWER DOOR LOCK SYSTEM
AXK - VEHICLE TYPE TRUCK AY0 - AIR BAGS
B0E - GM PRODUCTION WEEK B1J - WHEELHOUSE LINERS, REAR
B30 - COLOR KEYED CARPET B32 - FLOOR MATS, FRONT
B33 - FLOOR MATS, REAR B85 - BODY SIDE MOLDING, CHROME
BTV - REMOTE VEHICLE START BWN - CORNERSTEP, REAR BUMPER
C49 - ELECTRIC REAR WINDOW DEFOGGER C7A - GVW RATING - 10,000 LBS
CF5 - POWER SUNROOF CJ2 - AIR CONDITIONING, DUAL ZONE CLIMATE CONTROL
CMD - ASSEMBLY PLANT - FLINT, MI D07 - CENTER CONSOLE, FLOOR
DD8 - INSIDE REARVIEW MIRROR, AUTO DIMMING DH6 - VISORS, DRIVER AND FRONT PASSENGER, LIGHTED
DPN - POWER OUTSIDE CAMPER MIRRORS WITH HEAT AND TURN SIGNAL (REPLACES STD/OPT MIRRORS) E20 - DOOR HANDLES, CHROME
E2C - ORDER TO DELIVERY - EXPEDITE E63 - PICK UP BOX
EF7 - COUNTRY CODE, U.S.A. FE9 - 50-STATE EMISSIONS
FHX - VEHICLE FUEL DIESEL B20 G80 - AUTO LOCKING REAR DIFFERENTIAL
GT4 - REAR AXLE, 3.73 RATIO GTS - BLUE TOPAZ METALLIC
H3B - JET BLACK I15 - ENGINEERING YEAR 2015
IO6 - CHEVROLET MYLINK AUDIO SYSTEM W/ 8" DIAGONAL COLOR TOUCH & NAVIGATION (REPLACES STD./OPT. AUDIO SYSTEM) J95 - BRAKE HYD POWER, SRW, 4WHL DISC
JF4 - POWER ADJUSTABLE PEDALS JHD - HILL DESCENT CONTROL
JL1 - TRAILER BRAKE CONTROLLER K05 - ENGINE BLOCK HEATER
K34 - CRUISE CONTROL K40 - ENGINE EXHAUST BRAKE
K47 - HIGH CAPACITY AIR CLEANER KB6 - HEATED & COOLED SEATS DRIVER & FRONT PASSENGER
KC4 - ENGINE OIL COOLING SYSTEM KG4 - ALTERNATOR, 150 AMPS
KI4 - POWER OUTLET, 110-VOLT AC KNP - HD AUX TRANS. COOLING SYSTEM
LML - DURAMAX 6.6L V8 TURBO DIESEL MAH - MARKETING AREA NORTH AMERICA
MW7 - ALLISON 6-SPEED AUTOMATIC TRANS N37 - STEERING COLUMN, TILT & TELESCOPING
N79 - SPARE WHEEL, STEEL NP5 - LEATHER WRAP STEERING WHEEL
NQF - ELECTRONIC SHIFT TRANSFER CASE NT7 - EMISSION SYSTEM
NZZ - UNDERBODY SHIELDS PCH - DURAMAX PLUS PACKAGE: * DURAMAX 6.6L V8 TURBO DIESEL * ALLISON 6-SPEED AUTOMATIC TRANS * CHEVROLET MYLINK AUDIO SYSTEM W/ 8" DIAGONAL COLOR TOUCH & NAVIGATION * LTZ PLUS PACKAGE: POWER ADJUSTABLE PEDALS BOSE AUDIO SYSTEM FRONT AND REAR PARK ASSIST
PDF - LTZ PLUS PACKAGE PPA - EZ LIFT AND LOWER TAILGATE
PYS - 20" FORGED POLISHED ALUM WHEELS QFC - 20" ALL-TERRAIN BLACKWALL TIRES
R6C - IDENTIFIER - PDF PKG W/O UVD R6F - B-CODE ASSIGNMENT VOMS
R7V - SHOW VEHICLE ID R9J - IDENTIFIER - LTZ MODELS W/O STANDARD N37
R9N - FORCE ON ALL VEHICLES FOR PRICING OF INTERIOR TRIM R9Z - POMS EXPEDITE-SOLD ORDERS/TSE
SAF - SPARE TIRE LOCK SLM - STOCK ORDERS
SLT - SALES PACKAGE T3U - FRONT FOG LAMPS
TG5 - SINGLE-SLOT CD/MP3 PLAYER U01 - ROOF MARKER LAMPS
U2M - SIRIUSXM + SERVICE SUBSCRIPTION SOLD SEPARATELY BY SIRIUSXM AFTER 3 MONTHS U73 - ANTENNA - FIXED MAST
UD5 - FRONT AND REAR PARK ASSIST UDD - DRIVER INFO - COLOR DISPLAY
UE1 - ONSTAR UEU - FORWARD COLLISION ALERT
UF2 - LED LIGHTING, CARGO BOX UFL - LANE DEPARTURE WARNING
UG1 - UNVERSAL HOME REMOTE UJM - TIRE PRESSURE MONITOR SYSTEM (EXCL SPARE TIRE)
UK3 - STEERING WHEEL AUDIO CONTROLS UMN - SPEEDOMETER, MILES & KILO, MILES FOR ODOMETER
UQA - BOSE AUDIO SYSTEM UTJ - THEFT DETERRENT SYSTEM
UVC - REAR VISION CAMERA UY2 - CAMPER/5TH WHEEL TRAILER WIRING PROVISIONS
V22 - CHROME GRILLE SURROUND V46 - FRONT BUMPER, CHROME
V76 - BLACK RECOVERY HOOKS, FRONT V8D - VEHICLE STATEMENT
VJH - BUMPER, REAR CHROME VRK - VAA/COMPONENT REL ROOF TRIM
VT7 - OWNERS MANUAL ENGLISH VZX - SKID RESISTANT BEDLINER (DEALER INSTALLED)
WEA - Z71 APPEARANCE PACKAGE WMF - VIN MODEL YEAR 2015
X88 - CHEVROLET CONVERSION XL7 - FREQUENCY RATING 315 MH
Y65 - DRIVER ALERT PACKAGE: * LANE DEPARTURE WARNING * FORWARD COLLISION ALERT * SAFETY ALERT SEAT YE9 - TRIM PACKAGE
YM8 - LPO PROCESSING OPTION Z71 - Z71 OFF-ROAD PACKAGE: * TWIN TUBE RANCHO SHOCKS * UNDERBODY SHIELDS * HILL DESCENT CONTROL * DOOR SILL PLATES * UNIQUE Z71 GRILLE * Z71 BADGE AND Z71 PICKUP BOX DECALS
Z82 - TRAILERING EQUIPMENT PKG ZWF - 18" ALL-SEASON BW SPARE TIRE
ZY1 - SOLID PAINT

[newdude]

You have an early build truck.  You need the RZY jumper harness for any of the lights to work in the mirrors if it has the ones with all the lights installed.  You also will most likely need new door harnesses as well.



There are two different DPN mirrors.  There is DPN prior to August 14th 2014, and DPN post that date.  DPN prior is the top mirror you posted, DPN after that date is the bottom mirror you posted.  DQS is the new DPN with power fold and chrome caps.  If you have black caps and the lights they are DPN, if you have chrome caps and the lights, you may have the accessory kit DPN with chrome caps, or the DQS power folds.

[Squished]

10 minutes ago, newdude said:

You have an early build truck.  You need the RZY jumper harness for any of the lights to work in the mirrors if it has the ones with all the lights installed.  You also will most likely need new door harnesses as well.



There are two different DPN mirrors.  There is DPN prior to August 14th 2014, and DPN post that date.  DPN prior is the top mirror you posted, DPN after that date is the bottom mirror you posted.  DQS is the new DPN with power fold and chrome caps.  If you have black caps and the lights they are DPN, if you have chrome caps and the lights, you may have the accessory kit DPN with chrome caps, or the DQS power folds.



There has to be some kind of harness is the truck right now because the turn signals and parking lights work.  Unlock the doors, amber lights flash on the mirrors.  Use the left turn signal, and the turn signal on the mirror works.  The only thing that does not work is the rearward LED cargo light.

[Squished]

So my truck came with DPN and I have DPN mirrors still, just two different DPN mirrors.  I'll confirm the door harness for Phil and fingers crossed all I need is his $225 PNP kit.

[pgamboa]

I have not come across a truck/member that had Turn Signals AND Park Lamp, but no cargo lamps.

I have seen turn signals, but no park and Cargo.

Ether way, we can get this sorted out.


Sent from my iPhone using Tapatalk

[Squished]

Photo from drivers door.

[pgamboa]

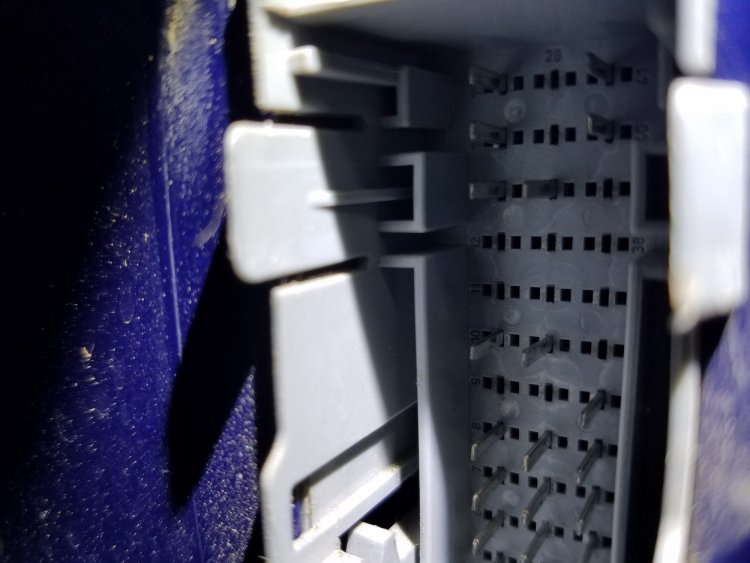

Photo from drivers door.

You can see pins 9 and 11 are missing. This means that whoever had the truck previously, wired up the Amber park lamps, tapping them somewhere else inside/behind the door panel. This is common for early 2015 builds. Installing the RZY Jumper supplemental harness is the way pins 9, 11, and 41 (if 41 were missing) gets provisioned.


Sent from my iPhone using Tapatalk

[Squished]

This is the part that doesn't make sense. When I unlock the doors the light comes on.  The amber light does not work in any other circumstance.
