Aftermarket Nav Install


Recommended Posts

Posted

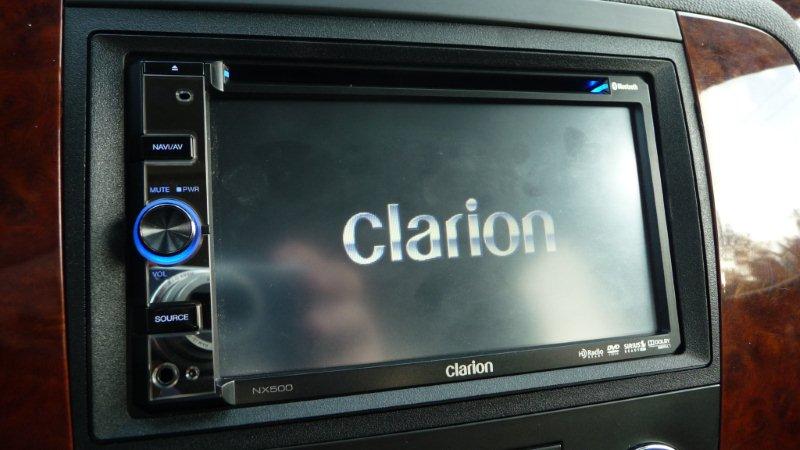

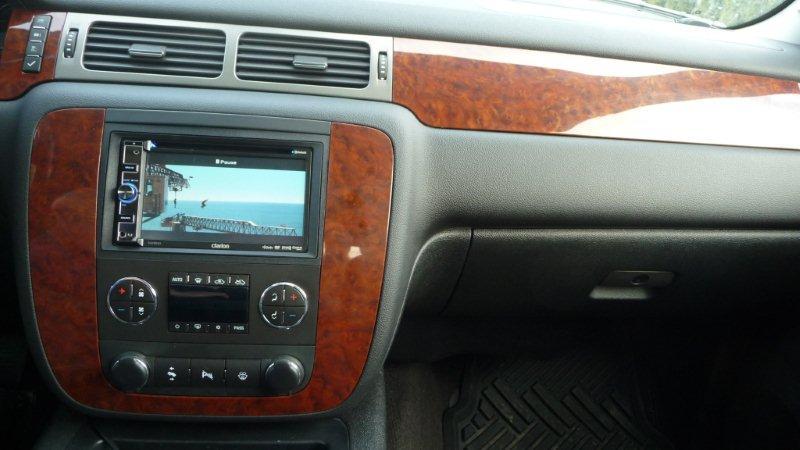

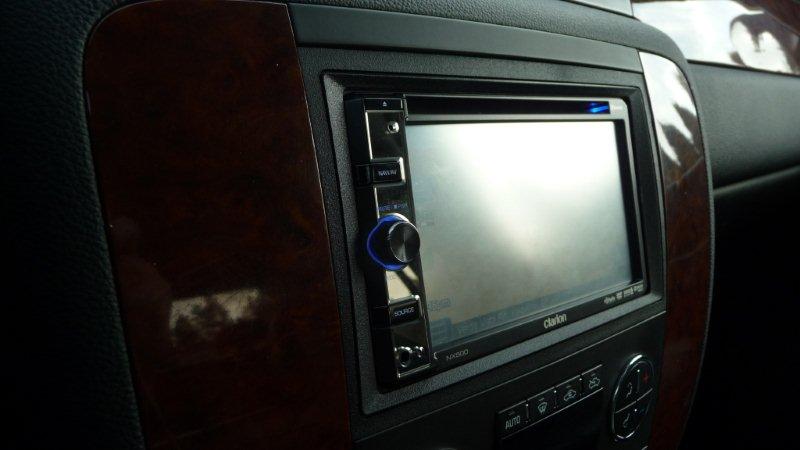

Just finished installing a Clarion NX500 Nav radio in my 08 Silverado. Thought I'd throw some pictures up in case it might help someone. So far, I've used the PAC OS-3 Bose module, as well as the Best Kits BKGMK317 Dash Kit. I originally bought the Metra dash kit, however the opening was too small to fit the Clarion deck. Having had both kits, I can say the Metra kit was a very close match in both color and texture to the original radio bezel, but the Best Kits is acceptable and seems to have a little better contour with the beveled design. I will add the PAC SWI-JACK steering wheel module and backup camera at a later date. All things considered, this is quite a straight forward install - the only problem I ran into was needing to trim the back of the radio pocket to allow room for the extra length of the NX500. Hope this helps. post-82884-1299915894_thumb.jpgpost-82884-1299915905_thumb.jpg[att















Posted
Looks good, do you have it wired to play movies when you are driving?



I wired the parking brake wire to a normally closed momentary switch instead so I could view the backup camera I have installed on my RV trailer while driving. As a result, it is possible to watch a DVD while driving if one would choose to commit suicide that way!

Posted

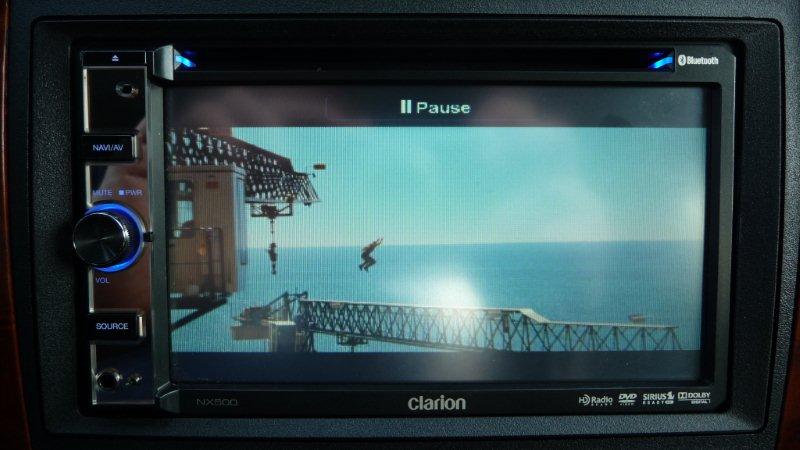

is that the scene from that james bond movie? lol where that white guy is chasing the black guy?



Yup - Casino Royale!

  • 2 weeks later...
Posted

Finally got all the pieces to add the backup camera as well. The camera was $16, and the chrome bezel was $12. For $28 bucks total, I'm pretty happy with the result.









Posted

Where did you get the camera and bezel so cheap? I am looking at doing the same thing to my LS and was wondering what the whole setup cost you in parts. I have the non Bose radioin my truck currently, so everything will probably have to be replaced and rewired.

Posted
Finally got all the pieces to add the backup camera as well. The camera was $16, and the chrome bezel was $12. For $28 bucks total, I'm pretty happy with the result.



Hey Mark - same question here. Where did you get the chrome bezel so cheap? Looking for something similar I just don't want it chrome...want it stock.

Posted

I picked up the bezel at Canadian Tire on clearance for $11.93. It didn't have the hole for the locking tailgate, so I had to drill that. The camera I ordered from ebay. It really did come on the slow boat from China. It is similar to this: http://cgi.ebay.ca/Night-Vision-Car-Rear-V...=item4cf3bce2e2



Ian - All told, I'm into the system for less than $700. The Clarion deck was $499 + tax, and the PAC OS-3 module was about $70 shipped. Still want to get the PAC module to get the steering wheel controls hooked up, but that can wait.

Posted

I will hopefully get the wires run this weekend if I get all my other chores done. Will post pics when she's up and running.

Posted

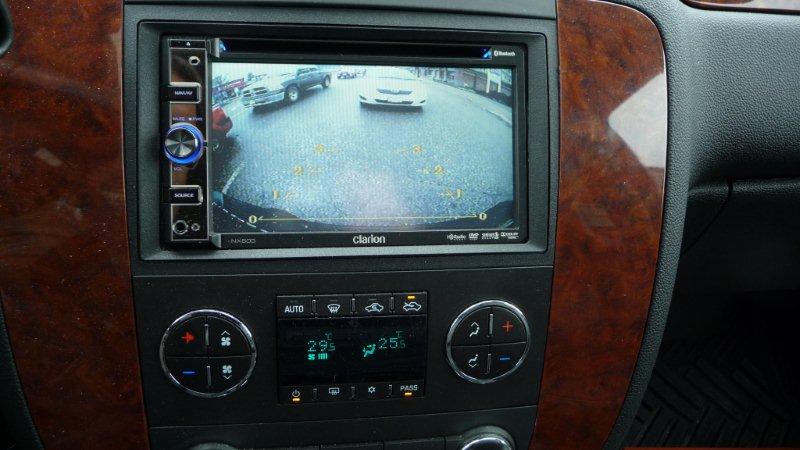

Can you post a pic of the LCD with the backup camera on? (day and night if possible)

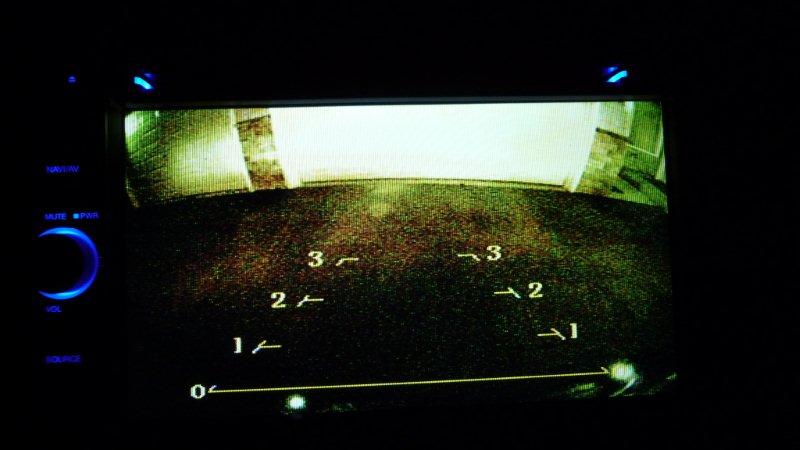

The night one is a darker than it should be as my passenger side light cluster was not working, so there were no reverse, stop or taillights on that side.
