Live from the Gen 5 Smallblock unveiling


Zane

Recommended Posts

Posted

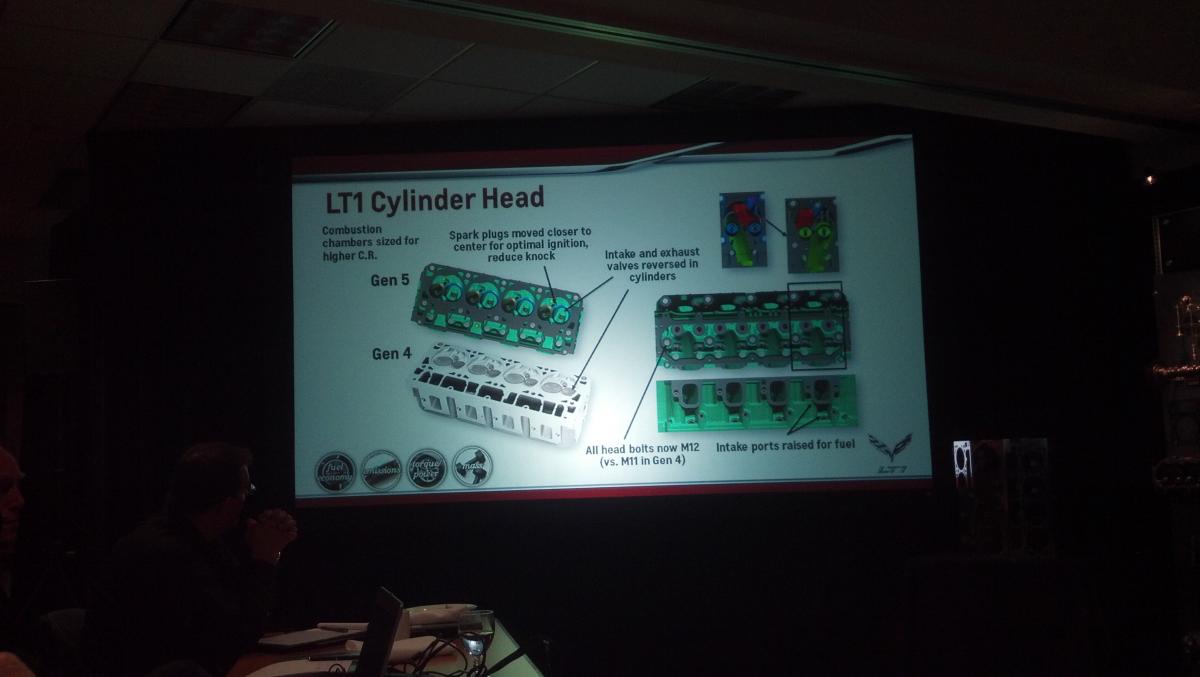

Detail of cylinder head

  • Intake/exhaust switched
  • New larger head bolts - M12



2012-10-24 09.27.44.jpg

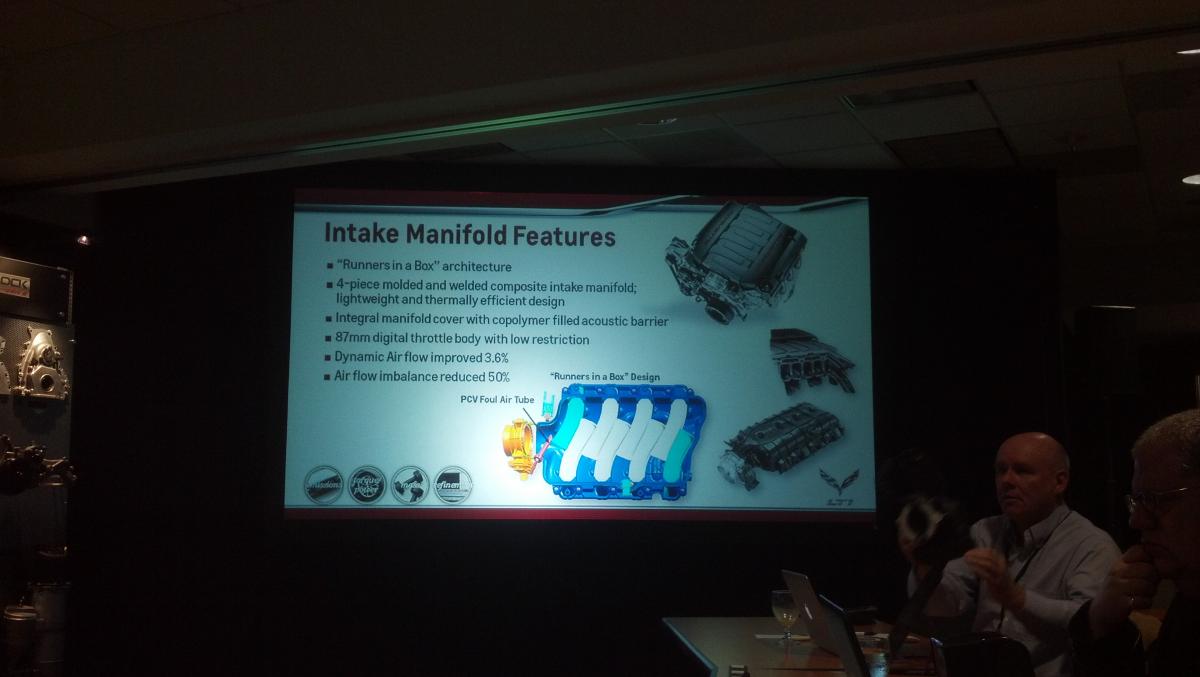

intake manifold detail

2012-10-24 09.29.29.jpg

2012-10-24 09.27.44.jpg

2012-10-24 09.29.29.jpg

2012-10-24 09.27.44.jpg

2012-10-24 09.29.29.jpg

2012-10-24 09.27.44.jpg

2012-10-24 09.29.29.jpg

  • Replies 73
  • Created
  • Last Reply
Posted

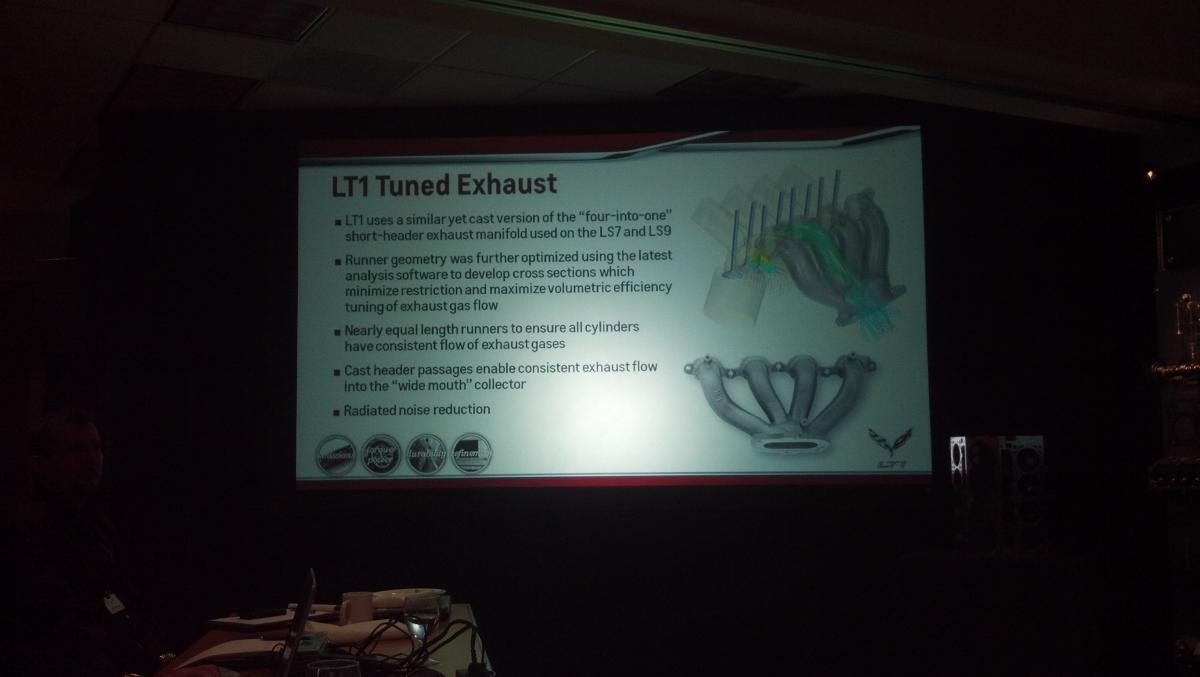

Tuned exhaust details

2012-10-24 09.31.11.jpg

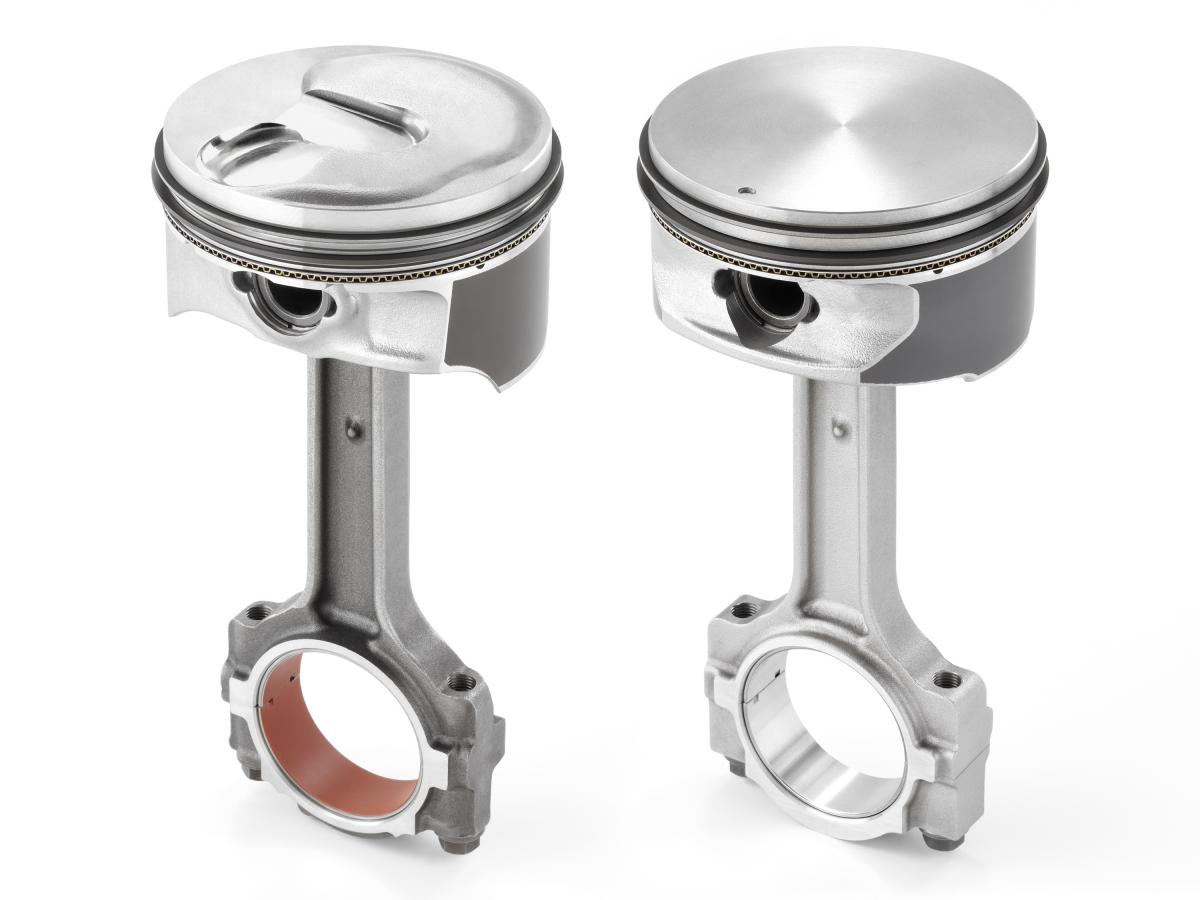

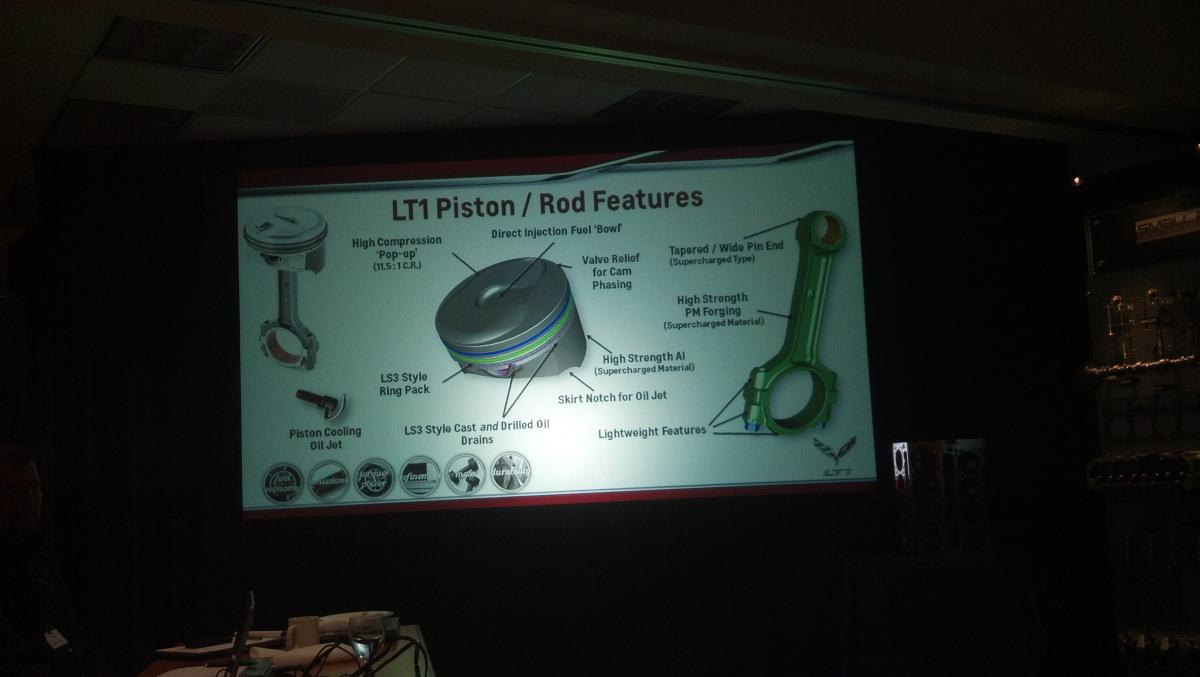

Piston/Rod details

2012-10-24 09.31.46.jpg



All new aluminum block

2012-10-24 09.33.08.jpg





  • Forged crankshaft
  • Polymer coated main and rod bearings



2012-10-24 09.31.11.jpg

2012-10-24 09.31.46.jpg

2012-10-24 09.33.08.jpg

2012-10-24 09.31.11.jpg

2012-10-24 09.31.46.jpg

2012-10-24 09.33.08.jpg

2012-10-24 09.31.11.jpg

2012-10-24 09.31.46.jpg

2012-10-24 09.33.08.jpg

Posted

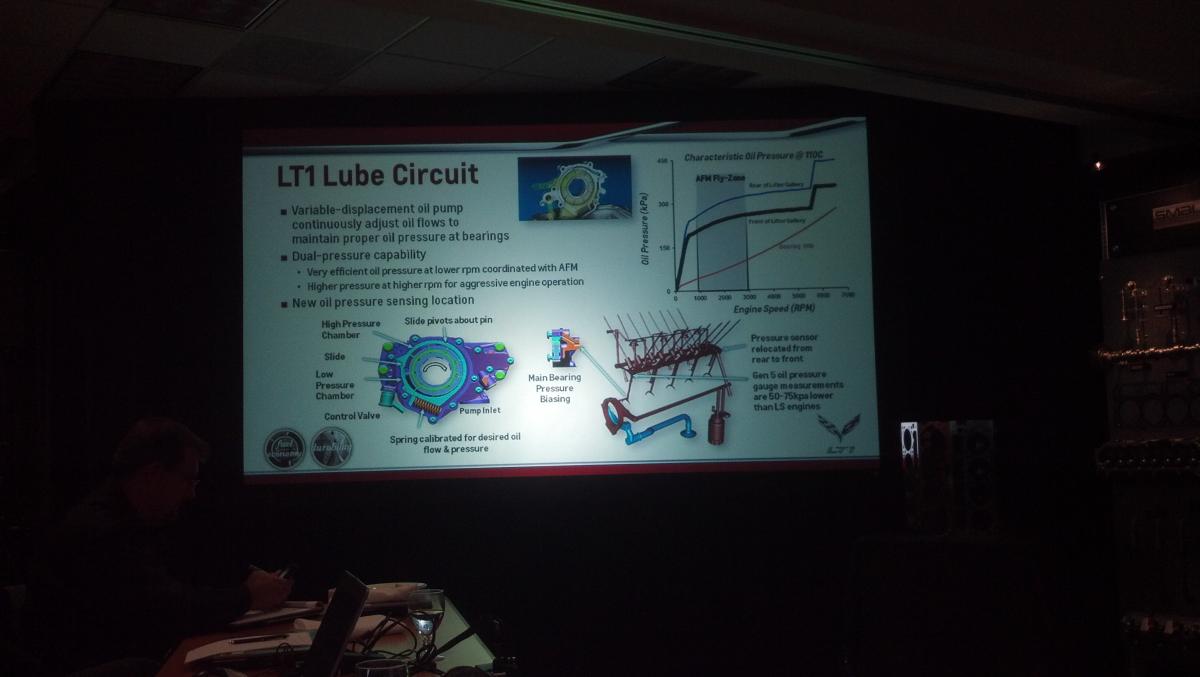

Entirely new "lube system"



Note that AFM only seems to work up until 3000rpm

2012-10-24 09.36.20.jpg





  • New lube system can switch between low and high pressure



2012-10-24 09.36.20.jpg

2012-10-24 09.36.20.jpg

2012-10-24 09.36.20.jpg

Posted

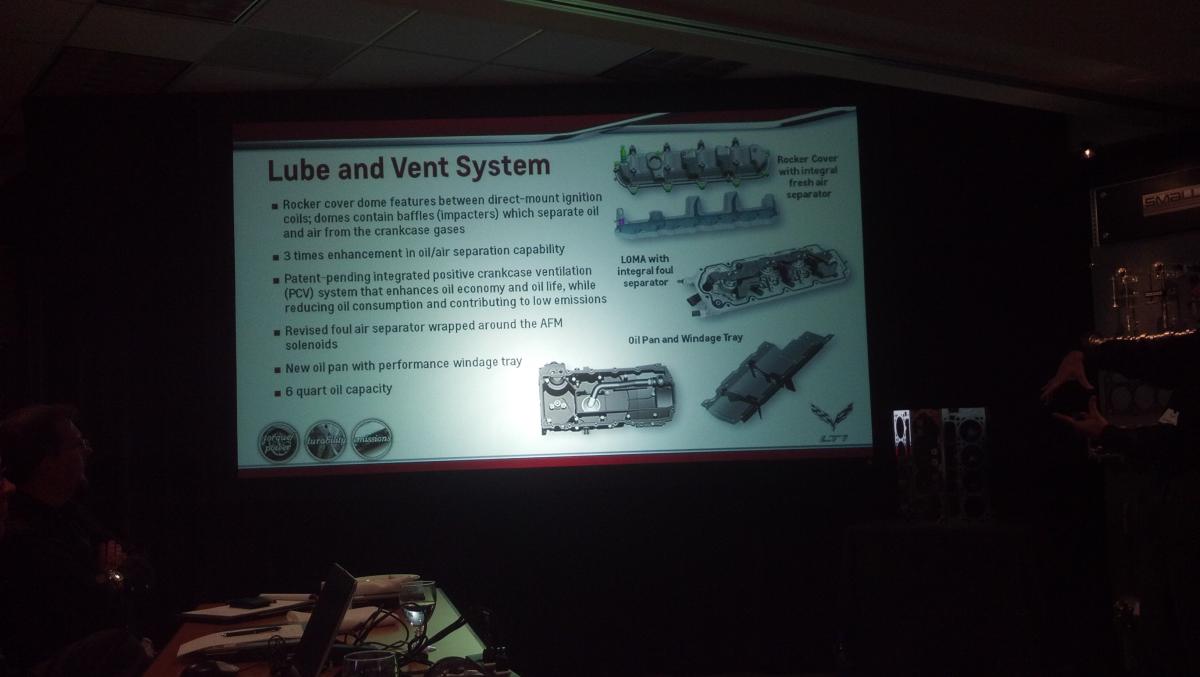

More lube stuff, baffles on the rocker covers

2012-10-24 09.39.45.jpg

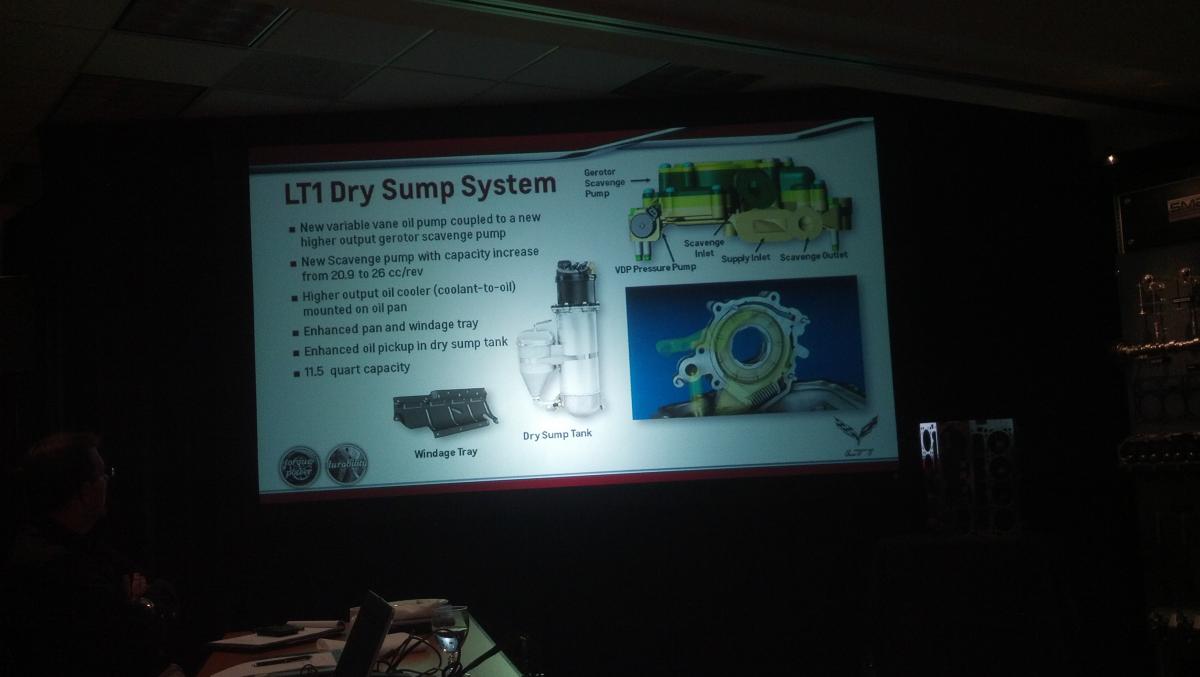

New dry sump oil system

2012-10-24 09.41.02.jpg

2012-10-24 09.39.45.jpg

2012-10-24 09.41.02.jpg

2012-10-24 09.39.45.jpg

2012-10-24 09.41.02.jpg

2012-10-24 09.39.45.jpg

2012-10-24 09.41.02.jpg

Posted

Q&A time.. I'll try my best to transcribe the best answers. Working on a tablet here.

  • Compact engine design essential for euro crash regulations



Posted



  • Ignition system has quicker response time
  • Running weight increased in mass over previous small block
  • New plenum allows for more even air flow



Posted



  • Correction, both wet and dry sump systems will be available



2012-10-24 09.52.25.jpg

2012-10-24 09.52.25.jpg

2012-10-24 09.52.25.jpg

2012-10-24 09.52.25.jpg

Posted



  • Dual equal cam phasing is used for the variable valve timing
  • Final fuel economy needs to be pinned down, better than previous car



Posted



  • Direct injection not added as a marketing feature, it was added from the start and all combustion designed around it



Posted



  • Only 2 valves per cylinder
  • First application of direct injection in and ohv engine
  • Gm says this is a commitment to produce V8 engines into the foreseeable future



Posted

Thanks Zane. The most interesting thread I've seen in a very long while. Any mention of the transmission they'll be using?
