RPO Code Updates & Questions

[revrnd]

Going thru the VIN label on the truck & found some codes not listed on the RPO lookup tool:



GEH: GVWR, 9500#



G1K: DEEP OCEAN BLUE METALLIC



H0U: JET BLACK, CLOTH SEAT TRIM



IO5: AUDIO SYSTEM, CHEVROLET MYLINK RADIO WITH 8” DIAGONAL COLOUR TOUCH-SCREEN AM/FM



PYQ: WHEEL, 17” MACHINED ALUMINUM



I also have questions about several other RPOs



AKO: RESTRAINT HEAD?



AXK:



BWN:



FHS:



I17:



J95: (brake related?)



MBC:



NE8:



NTB:



R7K: CONTROL SALES ITEM NO. 36



R7W: CONTROL SALES ITEM NO. 47



R9Z: CONTROL SALES ITEM NO.100



TDM: FLEET SALES CHEVRON COMMERCIAL GO#D7753 & D7756? (My truck definitely isn't part of the Chevron fleet LOL)



TG5:



UDD:



UJM:



VRK:



V8E:



WMH:



XL7: FREQUENCIES RATING 315 MHZ?



ZXT:



4AA:



8X2:



9X2:

[geektoad]

AXK: vehicle type truck

FHS: vehicle fuel gasoline e85

[revrnd]

Some RPO codes for MY2016 (Chev names for colours)



G1C: Slate Grey Metallic



G1E: Siren Red Tintcoat



GiF: Autumn Bronze Metallic



G7T: Butte Red Metallic



G7C: Red Hot



GAN: Silver Ice Metallic



GAZ: Summit White



GBA: Black



GXG: Tungsten Metallic



PYN: Wheel Painted Steel 17"



PYT: Wheel Painted Steel 18"



RT4: Wheel Black Painted Aluminum 18"



PYV: Wheel Chromed Aluminum 18"

PYU: Wheel 5 Spoke Polished Aluminum 20"



RQ9: Wheel Chromed Aluminum 20"



RTH: Wheel Polished Aluminum with Dark Argent Metallic Painted Pockets



PYW: Wheel Painted Steel 17"



P03: Trim Skins and Centre Caps Painted



P06: Trim Skins and Centre Caps Chrome



RS7: Wheels Forged Polished Aluminum 17"

[revrnd]

MY2015



PYS: Wheel Polished Forged Aluminum 20"

[newdude]

TG5: Player compact disc and MP3



UDD: Display instrument driver info enhanced (mulit color graphic)



UJM: Tire pressure indicator manual learn



VRK: Value added asm roof trim



V8E: Vehicle statement Canada



MBC: Marketing area Canada



I17: Engineering year 2017



ZXT: Tire spare LT265/70/17/E BW TL



4AA: Interior trim jet black



8X2: Component RR LH non-computer selected suspension



9X2: Component RR RH non-computer selected suspension



J95: Brake hyd. power, single rear wheel, 4 wheel disc



WMH: VIN model year 2017



BWN: Steps corner assist, bumper



NE8: Evaporative system level 3 emissions



NTB: Emission system federal, tier 3

[revrnd]

Thanks!

[revrnd]

"BWN: Steps corner assist, bumper" Does that confirm that there is a bumper available w/o the corner steps? When the box delete is optioned, is the bumper deleted as well? Or is that a stand alone option?



QXT: TIRE ALL LT265/70R17/E BW TL AT



ZXT: Tire spare LT265/70/17/E BW TL



I should've figured that out. I seem to recall that when you ordered in the 70s, you could specify separate tires for the front, rear & spare. I think my father would order OOR tires for the rear (snows in the winter), spec' the spare the same as the front & buy a 2nd tire to match the spare for dry weather use.



Example:

X prefix = front

Y prefix = rear

Z prefix = spare

(or something like that)

[newdude]

"BWN: Steps corner assist, bumper" Does that confirm that there is a bumper available w/o the corner steps? When the box delete is optioned, is the bumper deleted as well? Or is that a stand alone option?



QXT: TIRE ALL LT265/70R17/E BW TL AT



ZXT: Tire spare LT265/70/17/E BW TL



I should've figured that out. I seem to recall that when you ordered in the 70s, you could specify separate tires for the front, rear & spare. I think my father would order OOR tires for the rear (snows in the winter), spec' the spare the same as the front & buy a 2nd tire to match the spare for dry weather use.



Example:

X prefix = front

Y prefix = rear

Z prefix = spare

(or something like that)





When the K2 trucks came out, there was a bumper without steps. I think almost all of them were found on GMC All Terrain packaged trucks. They got rid of it few months in to production. Box delete I think deletes the bumper. ZW9 is box delete.



The QXT tires are the Bridgestone Duravis M700. Spare does match.

[redwngr]

Some RPO codes are 'reference only', meaning they can't be ordered individually, but will be supplied as a result of other selection.

[geektoad]





When the K2 trucks came out, there was a bumper without steps. I think almost all of them were found on GMC All Terrain packaged trucks. They got rid of it few months in to production. Box delete I think deletes the bumper. ZW9 is box delete.



The QXT tires are the Bridgestone Duravis M700. Spare does match.





Correct...my early build 2014 All-Terrain (built 10/13) had the non-step bumper.

[revrnd]

Some RPO codes are 'reference only', meaning they can't be ordered individually, but will be supplied as a result of other selection.

Also, there are/were "merchandising RPO codes" in the past. When I ordered my '82, MX0 was selected for A/T (THM700R4) @ the dealership, while the production RPO was MD8. Not sure if this is still the case.



Then you have the "broadcast codes" that the production people use for selecting parts. The most visible use of this recently was the 2 character code on the decal stuck on the GMT900 framerail. Engine & trans' assemblies, radiators, torsion bars, springs, axles etc use the 2 character code rather than the PN on the line. Mat'l handling on the other hand uses the 8 digit PN.

[newdude]

Also, there are/were "merchandising RPO codes" in the past. When I ordered my '82, MX0 was selected for A/T (THM700R4) @ the dealership, while the production RPO was MD8. Not sure if this is still the case.



Then you have the "broadcast codes" that the production people use for selecting parts. The most visible use of this recently was the 2 character code on the decal stuck on the GMT900 framerail. Engine & trans' assemblies, radiators, torsion bars, springs, axles etc use the 2 character code rather than the PN on the line. Mat'l handling on the other hand uses the 8 digit PN.



MX0 is still used too LOL. I've seen it on cars mostly. When you say 2 character codes, so like torsion bars...do you mean like how they were coded GK, GL, GF, etc.?

[revrnd]

When you say 2 character codes, so like torsion bars...do you mean like how they were coded GK, GL, GF, etc.?

Exactly!

Depending on the model (1500, 2500,3500) or options Z71, VYU, the bars differ.



The Torsion bars have a prefix to denote LH or RH. I tried to check mine for a label, but it wasn't visible. LGK & RGK would be an example.



I thought I could find some examples of the broadcast codes on some "note pads" (used scheduling sheets), but came up empty.

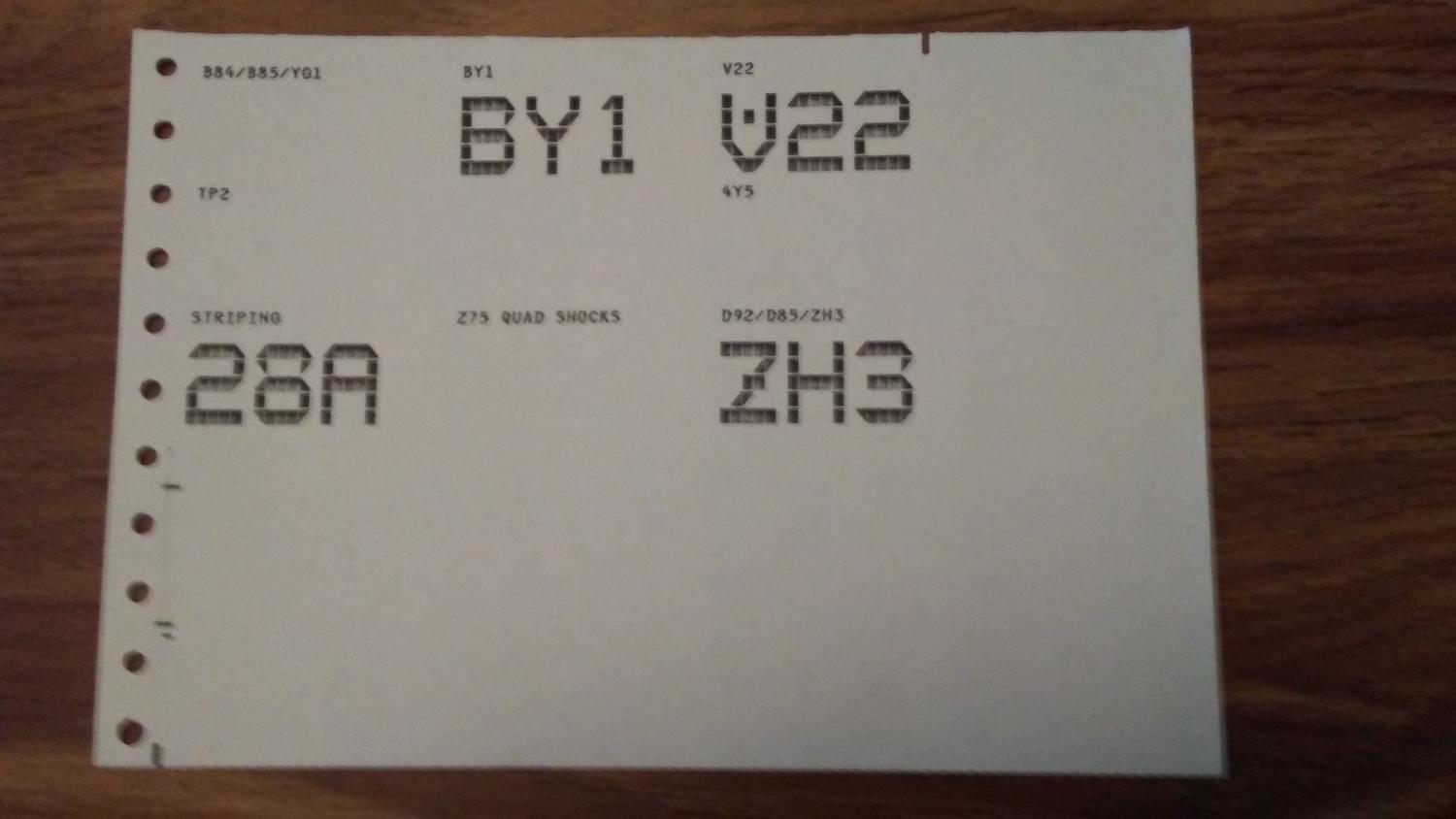

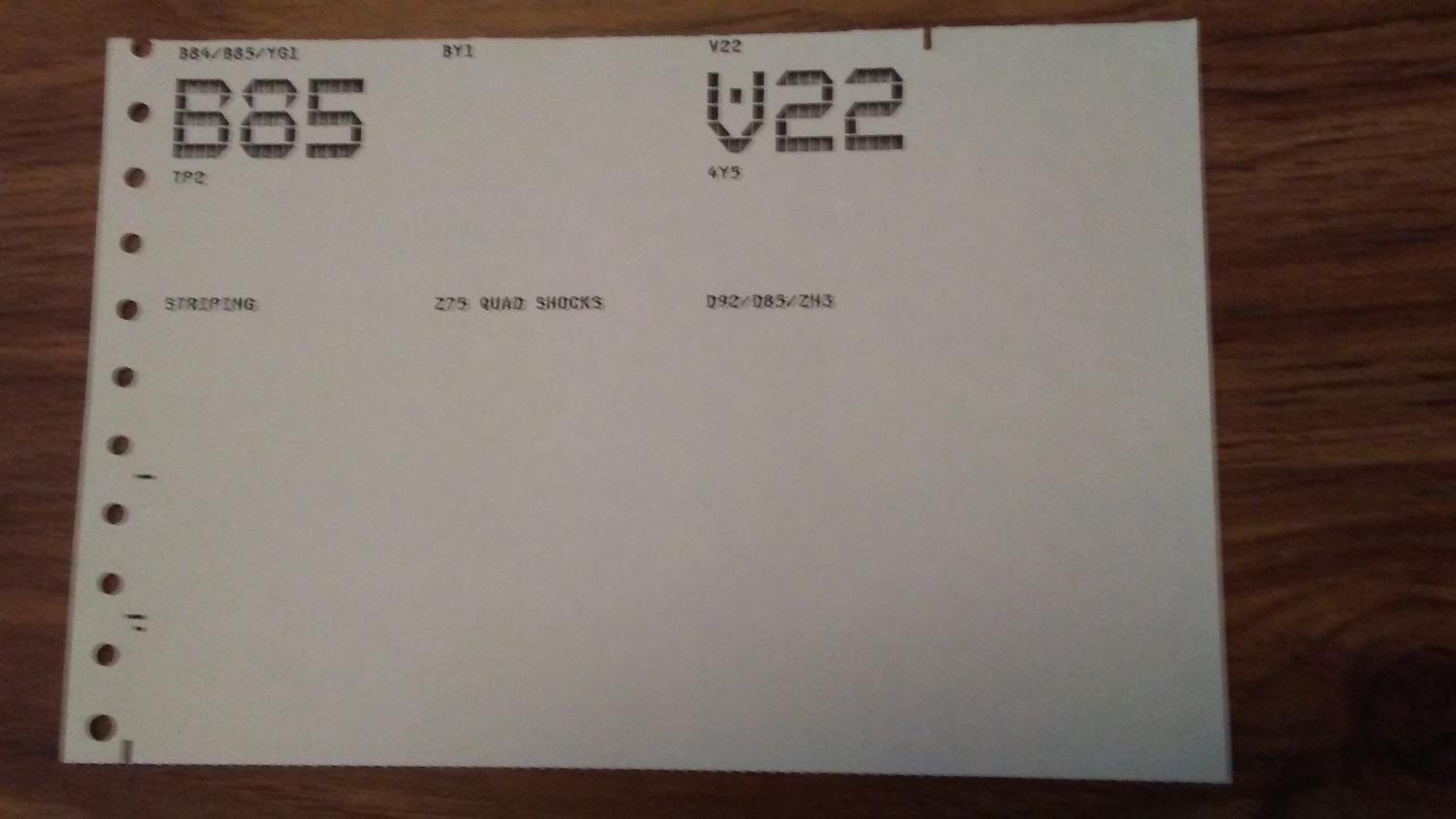

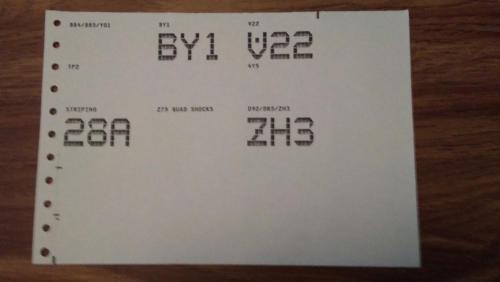

The 1st 3 pics are from the C/K truck era of '85 & '86. This paper work was attached to each cab/box/chassis/truck @ the start of each line. The assemblers would then know what parts were req'd to perform their job. Since I've got the lower part of the page, only the info contained on the upper portion was req'd. We'd cut the printouts (about 1 1/2" thick) on a band saw & keep the discarded portion for note pads.





[revrnd]

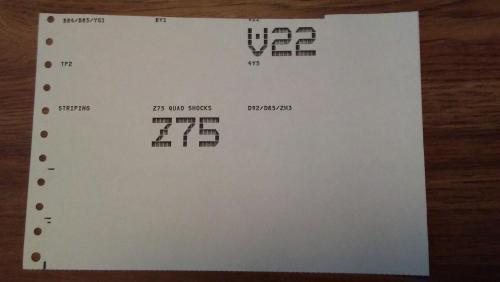

As you can see some of the codes have been used for quite a while. Not sure if we'll see a Z75 option referring to quad front shocks in the future (dual piggy back Fox Racing Shox) maybe?. LOL

[revrnd]

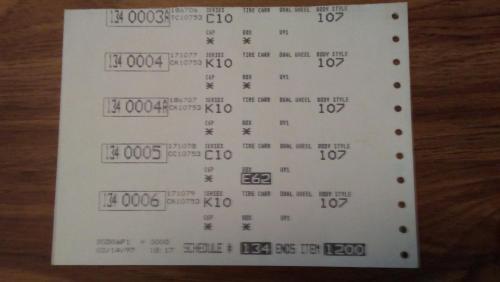

This pic is for the assemblers @ their bench & changed a bit for the GMT400.

134 is the schedule number & 0004 is the item number, that truck was a CK10753. For part of the program we built RO5 pickups, but no 1 ton chassis cabs.
