Need connector / wiring info...

krunch

By krunch
in Troubleshooting & Recalls

 Share

Recommended Posts

krunch Enthusiast

krunch

Posted
Posted (edited)

I'm assuming the purple and brown Fakra connectors on the right are for the OnStar and SiriusXM, but does anyone know which one is which?



Thanx,

Krunch




Edited by krunch
tbarn Senior Enthusiast

tbarn

Posted
Posted

They are cellular and gps. Can't remember which is which. If no one has an answer by later today I can look it up.

tbarn Senior Enthusiast

tbarn

Posted
Posted

Violet is cell 1(wireless) and brown is GPS and cell 2 (onstar)

krunch Enthusiast

krunch

Posted
  • Author
Posted

I am either confused, or not understanding you. My truck has no OEM XM radio. I just want to use the shark fin antenna on the roof for my Sirius One radio (lifetime sub).



Thanx,

Krunch

tbarn Senior Enthusiast

tbarn

Posted
Posted

Well, the XM antenna goes to the radio. What radio option do you have, I04 ,I05, I06, I0B or I03?

krunch Enthusiast

krunch

Posted
  • Author
Posted

Good question,  what’s a simple way to tell? I don’t have the original vehicle sticker. Last few digits of vin are 193826 does that help?



thanx,

krunch

tbarn Senior Enthusiast

tbarn

Posted
Posted

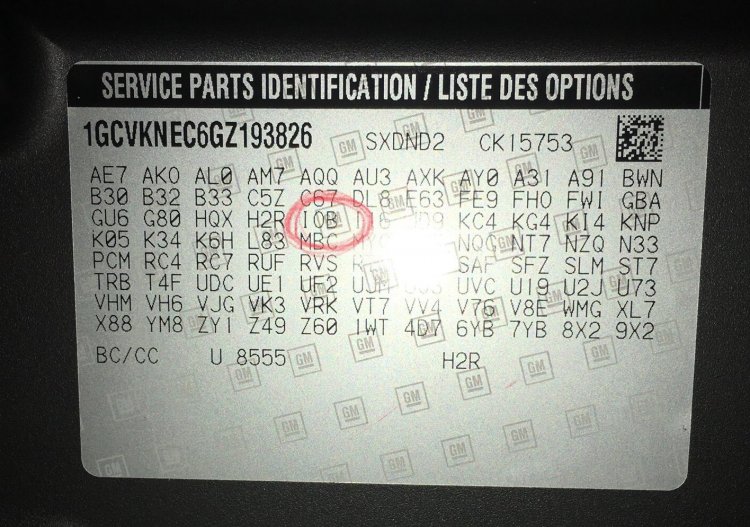

Is there a label in the glove box. Or upper box? If not I can get an option list but would the last 10 of the vin.

krunch Enthusiast

krunch

Posted
  • Author
Posted

IOB Possibly? Vin also on that label if I’m Wrong.






tbarn Senior Enthusiast

tbarn

Posted
Posted

OK. XM would still be in that radio if it had it. Pull the radio out and see if there is a spare coax cable too be found. I believe it would be a tan connector.

krunch Enthusiast

krunch

Posted
  • Author
Posted

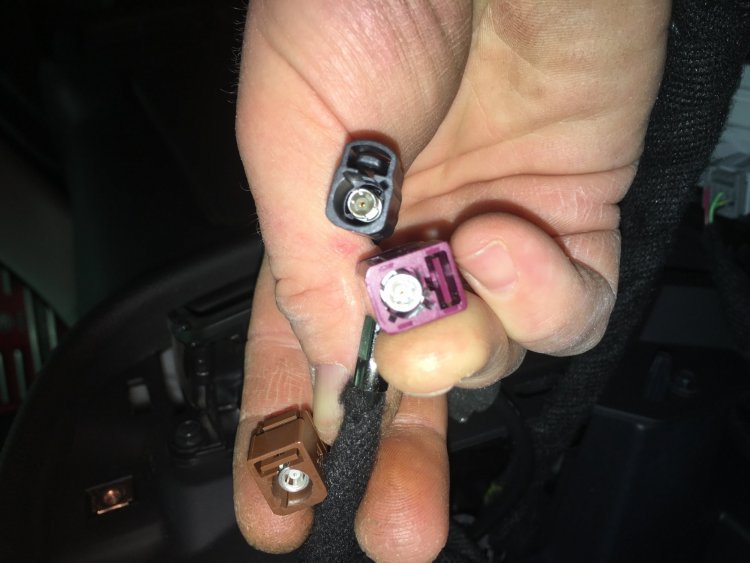

No luck on a tan connector... Purple, Brown, and black.



the metal collar on the black one looks a little smaller than the brown and purple.

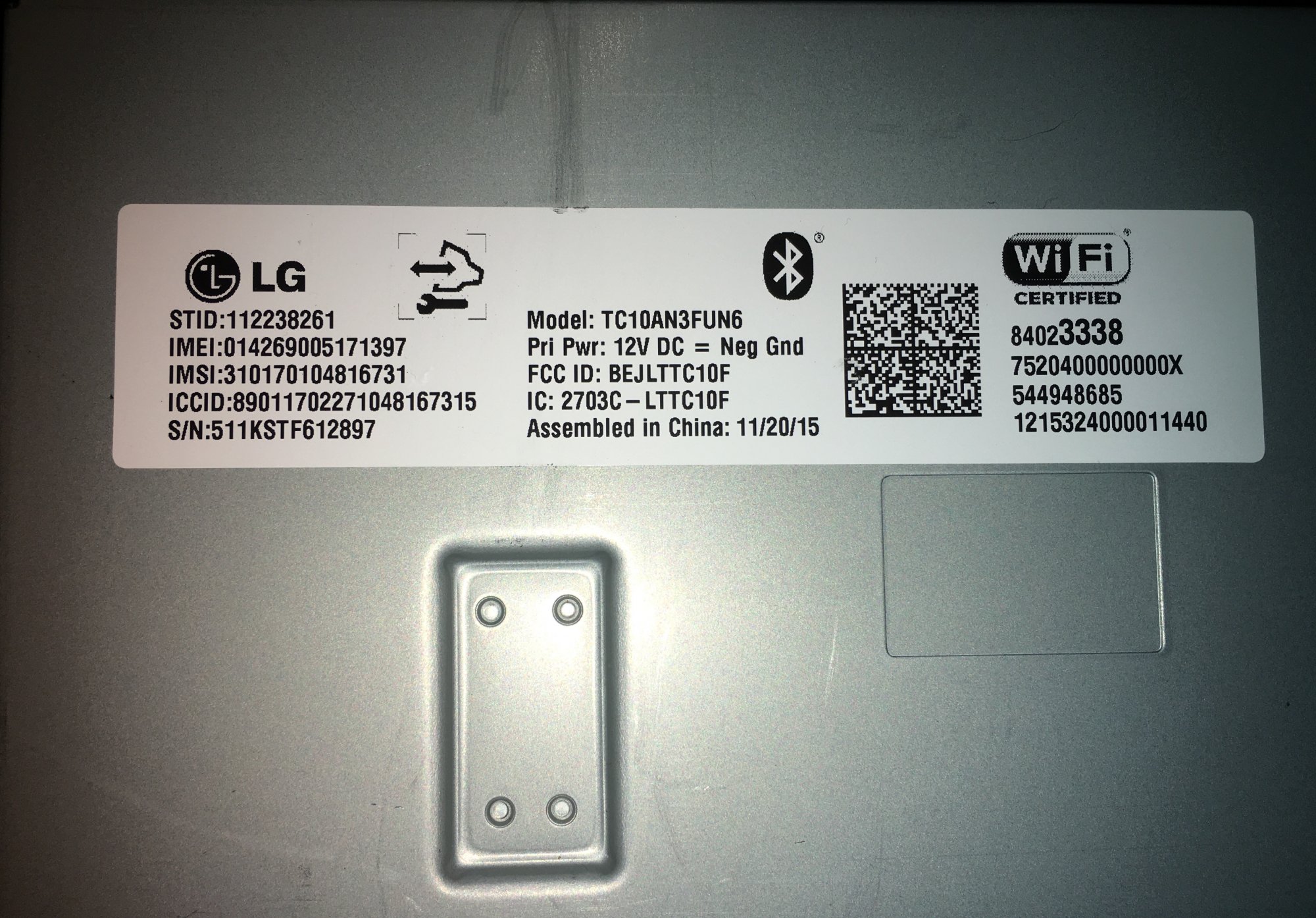

The brown and purple are connected to the wifi module, (bottom module on my pic a couple posts up).

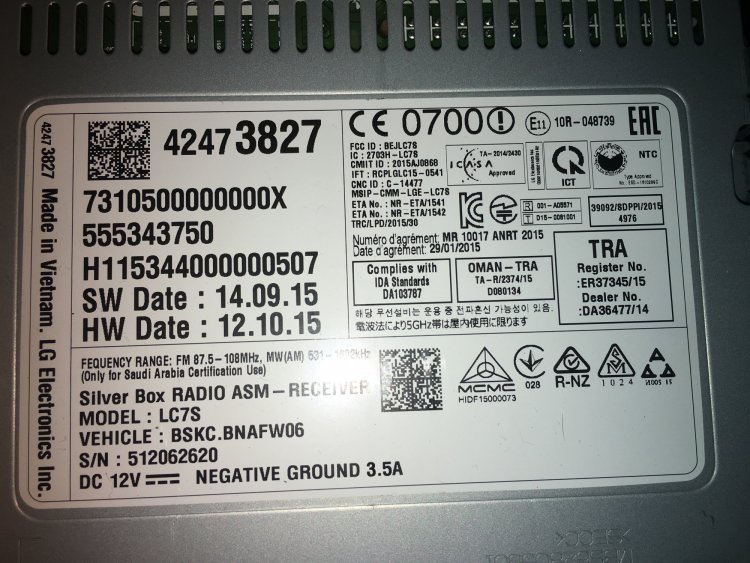

The black one is connected to the “ASM - Receiver” module that is located directly above the WiFi module.



Dont see a tan fakra connector in there in the immediate area.
