Part Number Needed

bronyaur · February 9, 2019

2002 Silverado 1500 Standard Cab

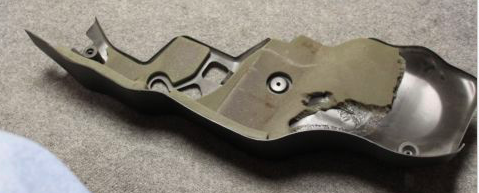

I need to find the part number for this piece. I'm not sure what it's called but it's the cover that goes over the blower motor under the dash on the passenger side. It's the first thing that needs to be removed when replacing the cabin air filter. I've seen it called a "hush cover", "blower motor access cover", etc. The picture came from a part that had previously been sold on eBay. You can see part of a number on the cover but not the whole number. Google searches on the partial number have come up empty. Thanks.

tbarn · February 9, 2019

Can't help with a p/n but it is called an "instrument panel insulation panel". There were 5 different ones available but only 2 may still be available. Call a dealer with your VIN.

2002.pdf

greatmizzou · February 9, 2019

I think that’s one of those perfect pieces to grab at a junkyard. Even in terrible trucks that piece is probably functional. Good luck!

newdude · February 9, 2019

Two numbers. 15177868 if you have buckets and center console, 15177869 if its bench. The first won't fit if you have a regular cab, so it would be 15177869, and it is Discontinued. It was $63.09 MSRP for a new one when they were available.

Junkyard, ebay, etc.

bronyaur · February 10, 2019

Excellent info. Thank you all very much.

rjp869 · February 12, 2019

On 2/9/2019 at 10:09 PM, bronyaur said:

Excellent info. Thank you all very much.

I might actually have one of these! Had a 99 Z71 extended cab my daughter wrecked & I bought it back from the insurance company & then stripped it of anything and everything usable. Including almost the entire interior. Let me see if I can track that thing down & I'll get back to you Tuesday.

greatmizzou · February 12, 2019

While you are at tell me the bolt screw size used to secure it. I’m currently using a wood screw lol

bronyaur · February 12, 2019

3 hours ago, rjp869 said:

I might actually have one of these! Had a 99 Z71 extended cab my daughter wrecked & I bought it back from the insurance company & then stripped it of anything and everything usable. Including almost the entire interior. Let me see if I can track that thing down & I'll get back to you Tuesday.

That would be great. I found one on eBay back in December and the guy wanted $62 for it. I hesitated and it sold. Now I can't find another one. If you find it let me know and I'm sure we can agree on a price, provided it's the right part. In the post above it says that there's a different part no. for bucket seats with a center console and it won't fit in my standard cab truck.

bronyaur · February 12, 2019

50 minutes ago, greatmizzou said:

While you are at tell me the bolt screw size used to secure it. I’m currently using a wood screw lol

According to the GM parts diagram, the part number for the bolts is 11589015, and is size M4.2 X 1.4 X 20. Amazon has a kit: https://www.amazon.com/General-Motors-BOLT-11589015/dp/B008Y8SIO0

rjp869 · February 12, 2019

11 hours ago, bronyaur said:

That would be great. I found one on eBay back in December and the guy wanted $62 for it. I hesitated and it sold. Now I can't find another one. If you find it let me know and I'm sure we can agree on a price, provided it's the right part. In the post above it says that there's a different part no. for bucket seats with a center console and it won't fit in my standard cab truck.

Just PM'd you with pix...found it, hopefully it's the one you need. And it would be nice to get that out of my shop I still have a decent amount of interior parts from the truck when my daughter wrecked it in fall of 2017, so if anyone needs anything please let me know (no engine or drivetrain parts, mainly just interior stuff and smaller parts & pieces). Most parts will fit the 99-02 trucks, some will also fit the 00-02 Suburban/Tahoe/Yukon.

bronyaur · February 23, 2019

Part received. Thank you very much, Bob. When I get a chance to work on the truck I'll let you know if it fits as-is or if it requires a bit of modification.
