Interior lighting?

[JAshworth03]

On 12/16/2019 at 4:47 AM, Smoothbassman said:

Yes.



I installed the OPT7 floor lighting kit.







The lights turn white when you open the door.



Easy 60 minute install.





Do you remember what fuse your tapped into?   Do you have to wire the aux wire in addition or will just the fuse tap work?



I got into the fuse box in the passenger side and this is where I started to get confused.  The fuses I pulled were 3 prong and the fuse taps are 2 prong.


Can you also show where you grounded.  Just looking for best option.


Picture(s) would be greatly appreciated!!!

Edited December 20, 2019 by JAshworth03
Added detail.

[JAshworth03]

4 hours ago, JAshworth03 said:

Do you remember what fuse your tapped into?   Do you have to wire the aux wire in addition or will just the fuse tap work?



I got into the fuse box in the passenger side and this is where I started to get confused.  The fuses I pulled were 3 prong and the fuse taps are 2 prong.


Can you also show where you grounded.  Just looking for best option.


Picture(s) would be greatly appreciated!!!

Update.  I found a way to get power via a spade connector on the open post next to 27/28.   Hiding the wires was really easy.   The backseats there are two elastic bands holding down the seat covers on both the driver and passenger side.  Slipped the LED strip into each side and good to go, no zip ties needed.


So now I have them powered and all the wires hidden, but I want to figure out how to tie them into the dome wire.  Also as a side note, no matter if I use the remote to turn them “off” or not, every time I power the truck on, they turn on.  It’s weird that the control box can remember what color they were last on, but can’t remember what power state they were last in.

Where can I find that wire (picture if you can) and how did you tie into it?

You mentioned with your setup that now they come on white with the door opening.  Did you have to leave the lights in the “on” mode?  What happens after that?  Can you manually power them on/off with the remote after you close the door?  Did you stay tied off via spade to the same fuse and then run the dome aux cable and ground?

Edited December 21, 2019 by JAshworth03
Added more information.

[mandrewbot3k]

What kit is everyone using? I ordered an opt7 aura pro kit and they then just cancelled my order with no explanation and they are showing as available. But now I’m not really interested in dealing with them. I want a hard wire kit, not use cig lighter.





Sent from my iPhone using Tapatalk



[Fernandw]

On 1/5/2020 at 4:17 PM, mandrewbot3k said:

What kit is everyone using? I ordered an opt7 aura pro kit and they then just cancelled my order with no explanation and they are showing as available. But now I’m not really interested in dealing with them. I want a hard wire kit, not use cig lighter.





Sent from my iPhone using Tapatalk



I put in the OPT7 Aura Pro x6 with door option.



Just a note, for the door option to work, the lights must be switched ON in the app.  It just changes the color to white upon entry.



I expected the lights to turn off after some time, but they stay on, until turned off manually with the app.



I used a free blade on the driver's side fuse block, wired in a fuse holder, and soldered it to the direct wire cord included in the kit.  I couldn't use the delivered fuse holders with the 3 prong fuses Chevy is putting in these trucks.



Easy to run the wires in the wire tray under the door sills.

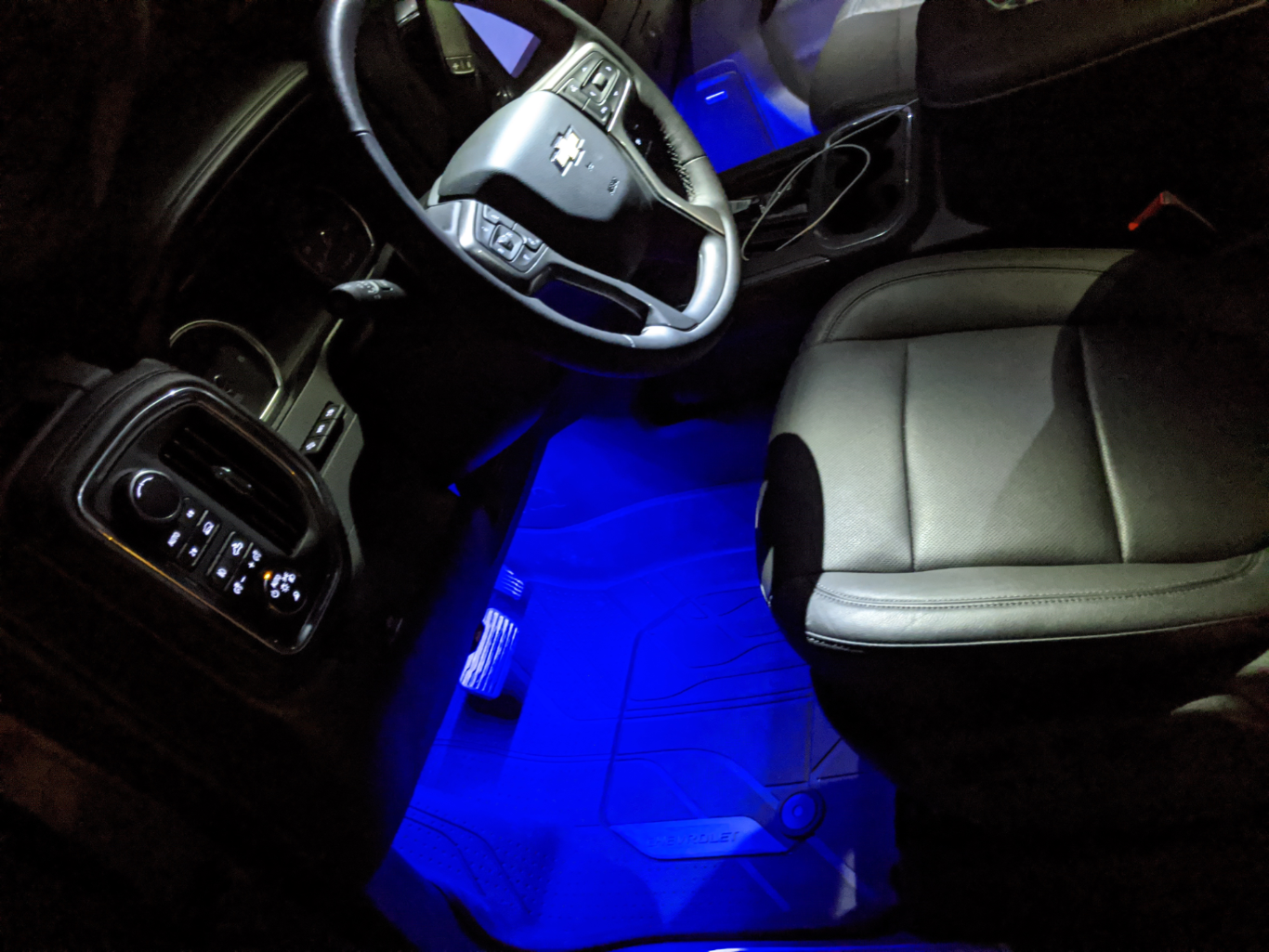

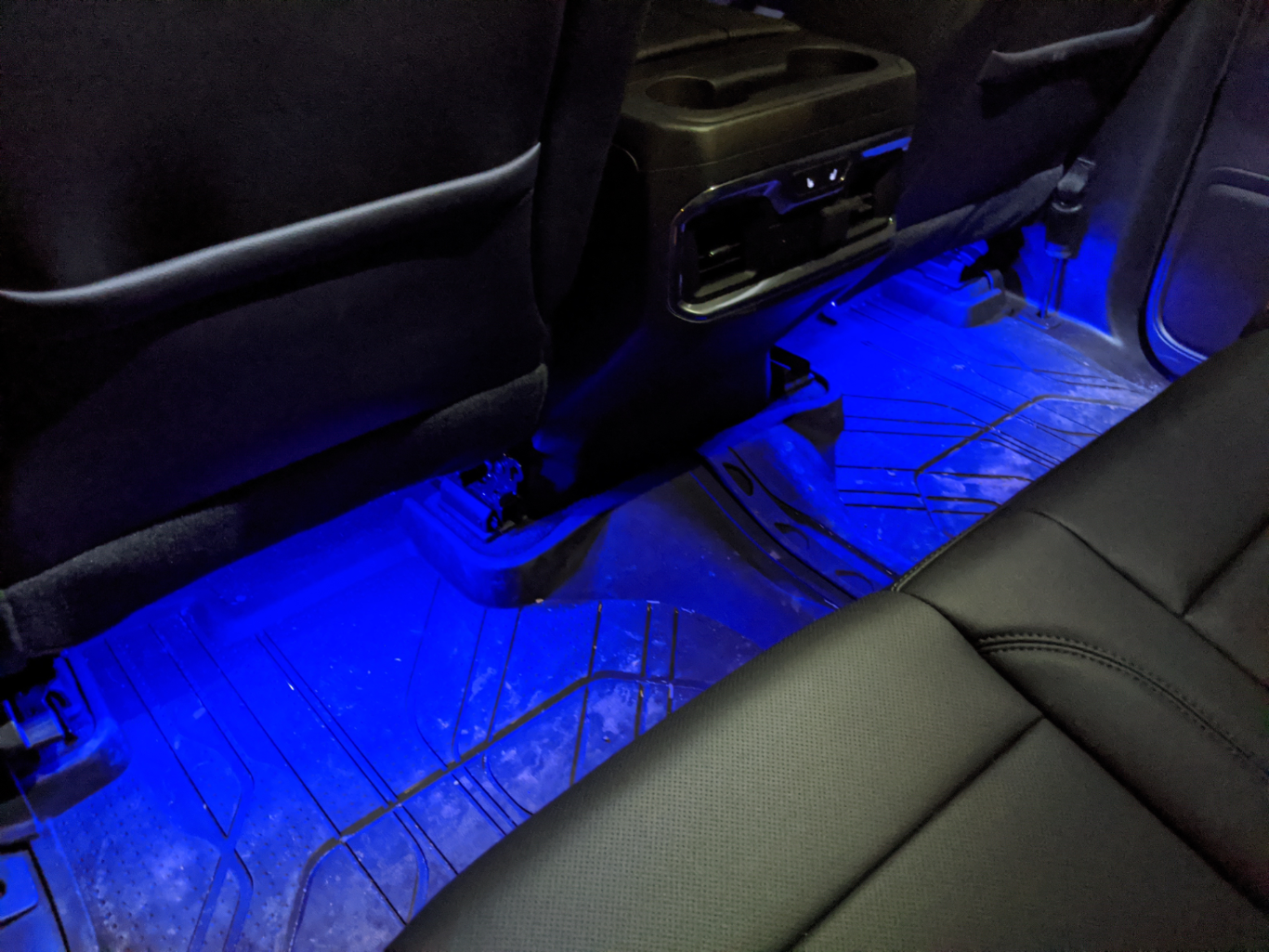

Door option below...

Edited January 7, 2020 by Fernandw
Pics added...

[Fernandw]

Wrapped all the wires with a zip tie and stored withing the two kick panels.  Zip tied the control on the driver's side to the holes in the plastic cowling, used a breadboard kit male to stick into the grey wire on the bcm on the first plug near the driver, pin 23, to add the light option.

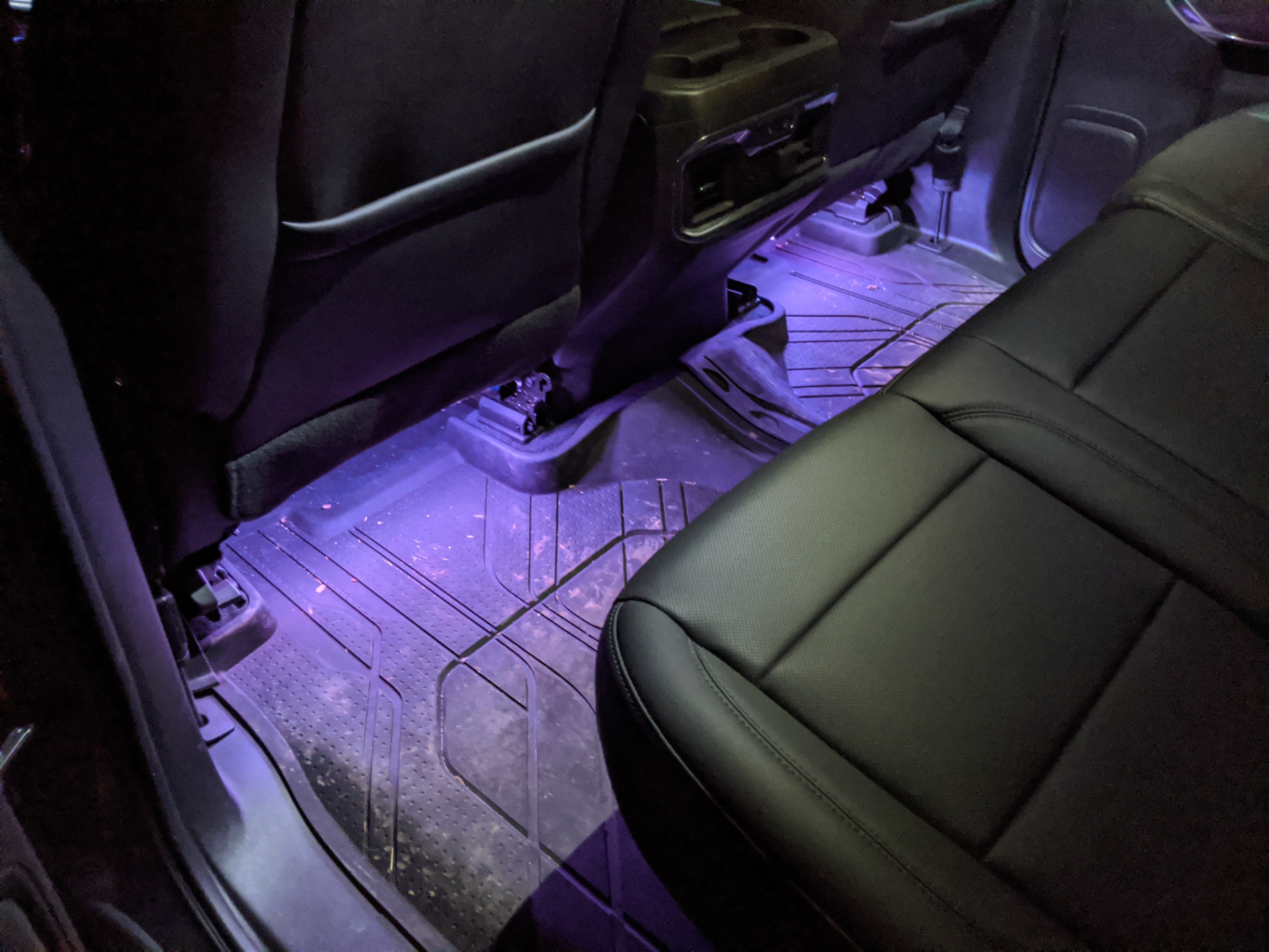

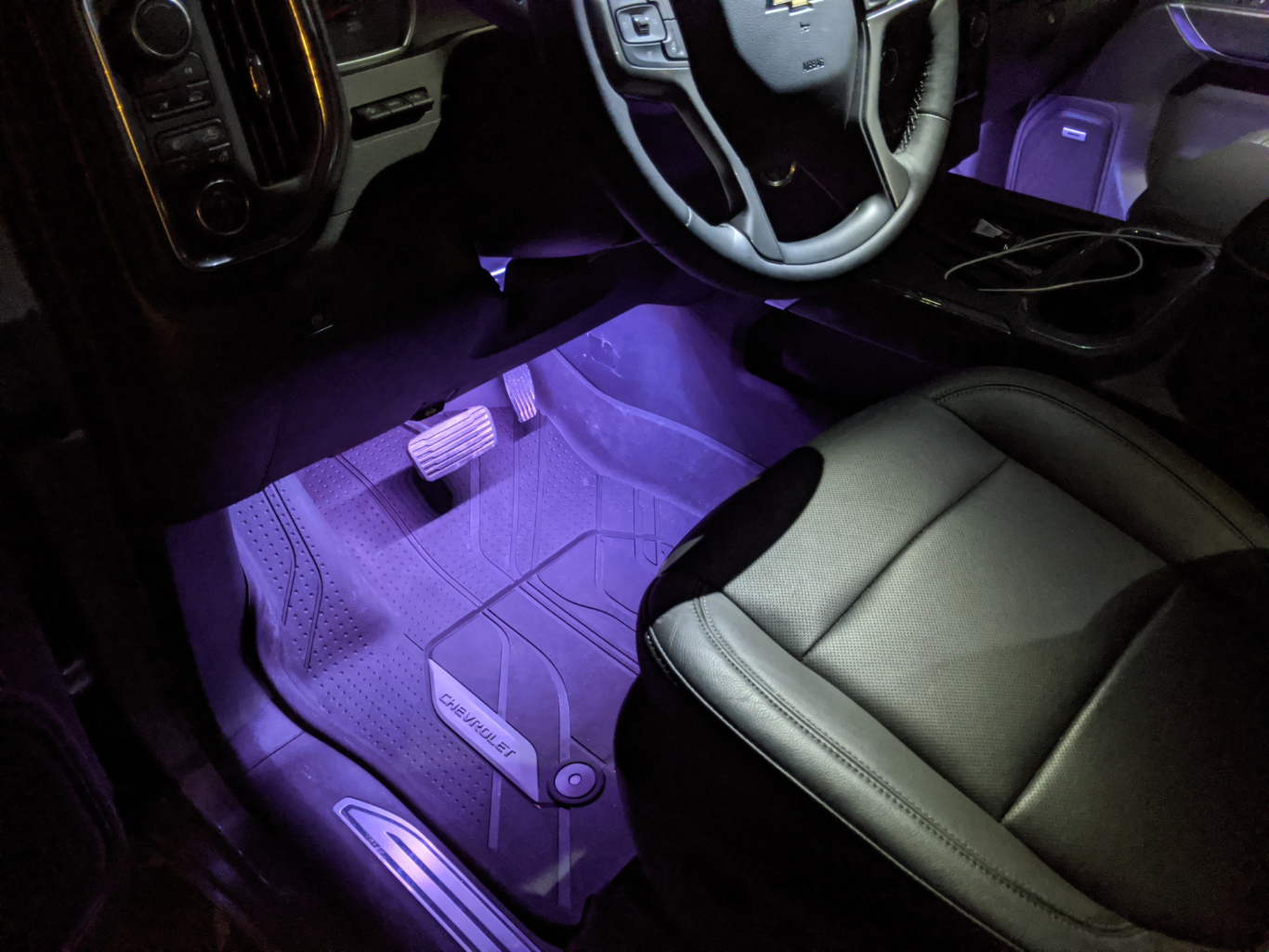

After turning the lights on...



[2k19Sierra]

Just installed mine this weekend too, pretty happy with it!  Wired it into the aux switches and changed the fuse location so they come on with ignition. Have to tap into the bcm yet to get the lights to come on with door open. Now I have to keep my floor mats clean!

[RayHan96]

On 12/16/2019 at 10:33 PM, mandrewbot3k said:



From what I understand you add full switched power to the main controller with an add a fuse and then use a second one for the control circuit which will act like the dome lights.


Sent from my iPhone using Tapatalk



Could you explain more how you got the lights to come on with the door? I had to order separately the correct 3 prong fuse adapter plug and play, cause that’s what Chevy did with the 2020 silverado, then I spliced it to the Aura lights connected that I already installed. From there I plugged it in on the passenger side fuse box in location F10. I’m getting power, it works on the app no problem, but I can’t figure out how to sync it with the dome lights for when the door opens. Can someone people help!!?? This is driving me nuts.

[kodiakdenali]

On 11/17/2020 at 2:13 PM, RayHan96 said:

Could you explain more how you got the lights to come on with the door? I had to order separately the correct 3 prong fuse adapter plug and play, cause that’s what Chevy did with the 2020 silverado, then I spliced it to the Aura lights connected that I already installed. From there I plugged it in on the passenger side fuse box in location F10. I’m getting power, it works on the app no problem, but I can’t figure out how to sync it with the dome lights for when the door opens. Can someone people help!!?? This is driving me nuts.

On the BCM, connector X1, pin 23, grey wire. this wire looks like its a command wire to the overhead console and the rear map lights (if you have them) which tells the controllers in those components to turn on the lights when the door opens. the question I have is, since it doesn't look like this wire drives any lights in the truck directly, how much current can it handle? looks like some have connected a few lights to it without issues. I may add a bunch more so I'm planning to run a relay from that signal. but anyway, that's the wire you want for your turn on, it should get 12V whenever the dome lights are on...door open, remote unlock etc. good luck! be sure to post results here.

Edited November 19, 2020 by kodiakdenali
typo

[Arboc]

I added LED Rock Lights to the upper console. Super easy, almost too bright, and they come on when you open door or push button to turn on map lights.

Drill holes



Let there be light







[TA^Guy]

On 12/18/2019 at 1:29 PM, econometrics said:

Yeah, my wife was trying to do her makeup in the truck on the way to a dinner the other night. It was dark outside, so she turned on the front interior lights (since GM cheaply removed the vanity lights)... they barely helped at all. She had to use her iPhone flashlight eventually.



It was pretty frustrating. With all the cheap, LED lighting tech these days, they should have made the interior lighting BETTER, not worse.

That's only lower models, and one reason I didn't purchase the RST I test drove.  For $1,000 more (w rebates they were the same price) my SLT had so many more included features, one being lighted vanity mirrors.



But, although I agree the light sucks in them, it's just ever so slightly better than my 2015.  the 2015 had no lens on the map lights, just a directional LED.  At least the lens on the T1s spread the light a tiny bit more.



And since I'm on a rant, WTF GM, no glove box light?  I'm on my 3rd GMC since 2013 and none have had a lighted glove box.



Planning on doing front and rear footwell lights in the spring.  For those that installed some, where did you tap in for them to come on with the dome light?

[TA^Guy]

17 hours ago, kodiakdenali said:

On the BCM, connector X1, pin 23, grey wire. this wire looks like its a command wire to the overhead console and the rear map lights (if you have them) which tells the controllers in those components to turn on the lights when the door opens. the question I have is, since it doesn't look like this wire drives any lights in the truck directly, how much current can it handle? looks like some have connected a few 9W lights to it without issues. I may add a bunch more so I'm planning to run a relay from that signal. but anyway, that's the wire you want for your turn on, it should get 12V whenever the dome lights are on...door open, remove unlock etc. good luck! be sure to post results here.

If you're planning on doing more lights I would run a simple relay.  Power the relay from a separate source, maybe a blank spot in the fuse panel, and then use the connection to Pin 23 as your switch power.  That way there is very little draw on Pin 23, and you can power whatever you'd like without worries.

[kodiakdenali]

3 minutes ago, TA^Guy said:

If you're planning on doing more lights I would run a simple relay.  Power the relay from a separate source, maybe a blank spot in the fuse panel, and then use the connection to Pin 23 as your switch power.  That way there is very little draw on Pin 23, and you can power whatever you'd like without worries.

Precisely what I intend to do.

[kodiakdenali]

3 hours ago, Arboc said:

I added LED Rock Lights to the upper console. Super easy, almost too bright, and they come on when you open door or push button to turn on map lights.

Drill holes



Let there be light







something like this is definitely on my list as well, I hope to use a flush mount light though but I've got the moonroof/sliding rear window on mine. I hope that when I look at the console with the extra controls it looks possible to do this, if not I will have to use a surface mounted pod as a plan B, something similar to the rock lights you used. on mine I am eyeing the space just aft of the factory map lights, depending on what's on the other side of the console of course.

how  much current do your lights draw?

did you power them directly from the grey dome lights turn on wire in the harness or did you use that to trigger a relay and use the B+ signal or your own power source to run them?

I want to do a at least a pair of 9W LED "bolt" lights here, and another pair in similar fashion on on the rear map lights unit.



I kind of like how, with the factory dome lights, when you have the door open they shine light out through the open door and illuminate the ground outside. that's pretty cool, but the unfortunately lack of light on the inside of the truck just has to be fixed.

[kodiakdenali]

I will likely have to do this in a few posts due to pictures, but here you go!

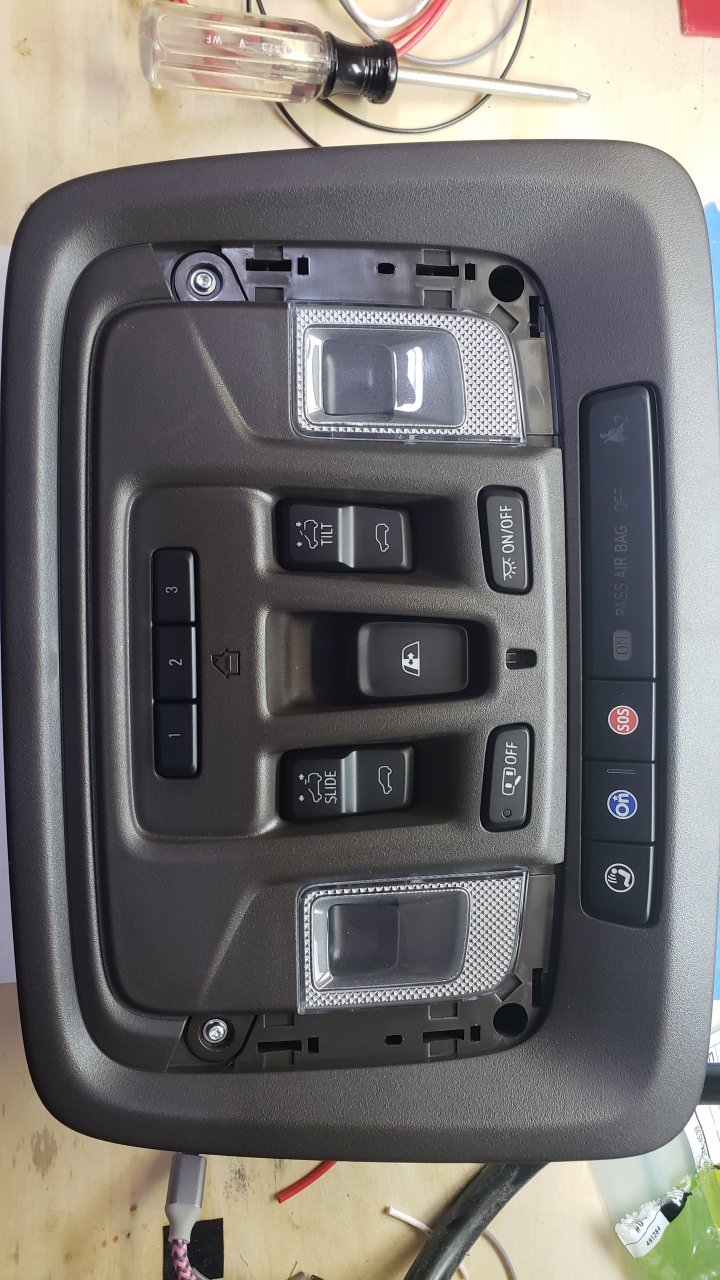

the youtube video posted is a good description of how to get the overhead console down. just be careful with it.

then step 1, verify that you can buy replacements for this part if everything goes horribly wrong! its about $160 on GMPartsDirect.



[kodiakdenali]

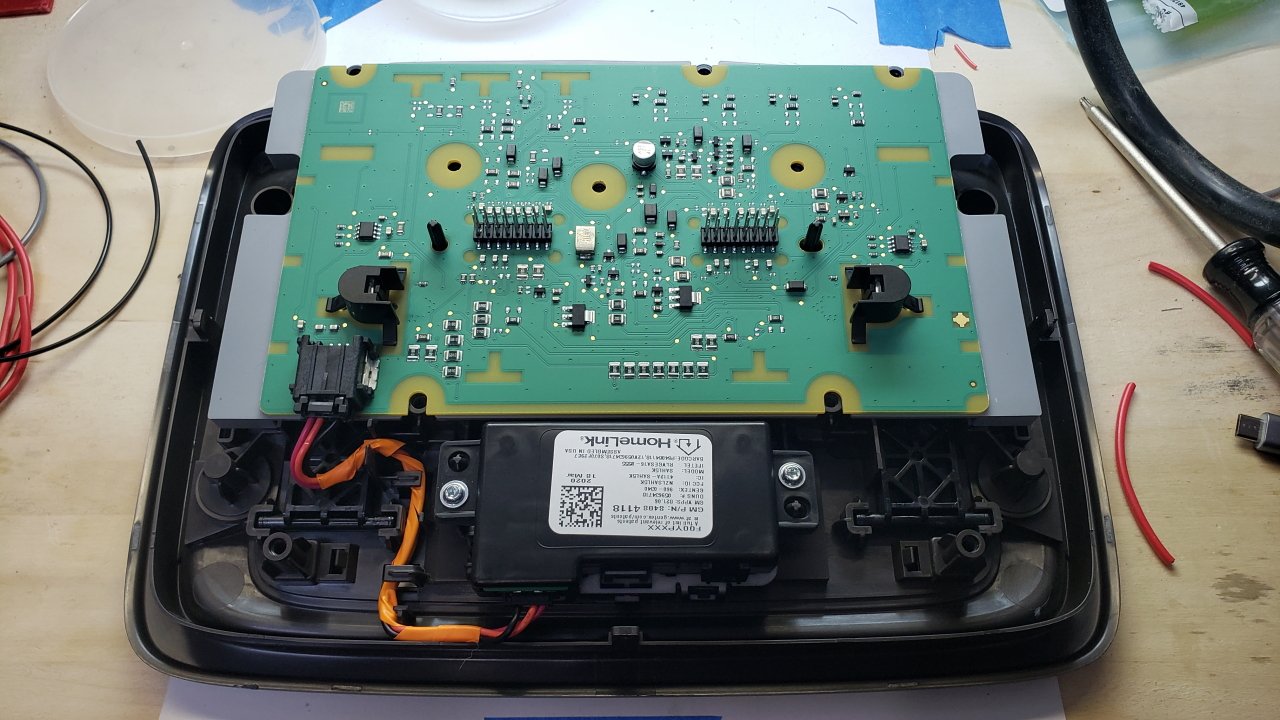

on the back there are several silver screws, once removed you can take off the black plastic part on the back of the console, revealing the circuit board within.
