14+ without factory fogs but want a set

[smcgillis10]

Does anyone have any options on putting fog lights on these trucks when they didn't have them from the factory? Just looking for options





Sent from my iPhone using Tapatalk

[CptMcSaug]

http://www.gen5diy.com/Chevrolet/Silverado/P-P-Harness13/Chevrolet-Silverado-Foglight-Harness/

[Silvern Sentry]

http://www.gen5diy.com/Chevrolet/Silverado/P-P-Harness13/Chevrolet-Silverado-Foglight-Harness/





I would recommend GEN5DIY. I am using their Non SLT to SLT DRL harness and it works great. I would imagine this works equally well.

[silveradosid]

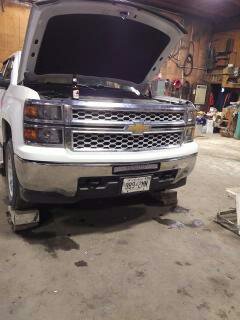

don't know if you want to try this but this is what I did. 20 inch led

[Marticus]

I am not sure if the wiring is there. But all the hard parts are available. You could get a factory bumper and brackets and lights and bolt it all up. Either run the fogs off a separate switch or look into a factory option.



Sent from my SAMSUNG-SM-G890A using Tapatalk

[Marticus]

1457216921167.jpgdon't know if you want to try this but this is what I did. 20 inch led

Do you have any clearer pictures. Looks sweet. Any details on how you mounted it.



Sent from my SAMSUNG-SM-G890A using Tapatalk

[silveradosid]

I used the template that was on the box to mark out bumper, with the exception of using a 3/4 drill bit for the corner, didn't want square corners. the light bar I bought has the mounting brackets on the back and are adjustable i adjusted the brackets so they matched the contour of the bumper and bolted it to the bottom flange of the bumper . I have an lt so I bought the aux switch panel from gm. put in relay under hood and aux switch gives the relay the ground to turn on, the aux switch even lights up to show that the light is on. I used black door edging to trim the hole I cut in the bumper. as I said don't know if you want to try this, it took a lot of measuring before to make it fit just right and still be able to adjust the light bar. I am lucky enough to have a shop with just about every tool known to man and it took about 4 and a half hours from start to finish. have to redo black trim now that it is hot out will be easy to shape it to the bumper

[silveradosid]

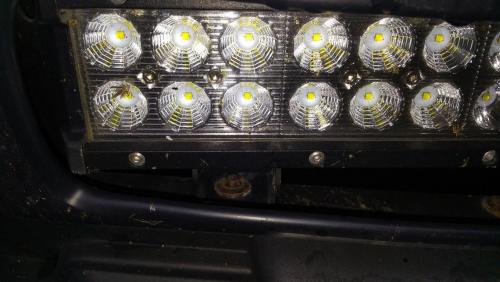

20160813_0726079.jpg] using existing bumper bolts
