07-13 fog lights?

Stierra

Recommended Posts

dsr611 Senior Enthusiast

dsr611

Posted
Posted

If the truck didn't originally have foglights, you won't have the foglight switch (shouldn't anyway)

carnau Enthusiast

carnau

Posted
Posted

I am actually going to make a video on this tomorrow. I do this install alot at our dealership. This is a LED kit that comes with a lightbar. I know you probably don't need the bar but the only way to get these exact lamps are with this kit. I sell the bar on Facebook just to recoup some of the money. The brackets line up perfect for these trucks.



Fog Light Kit - http://amzn.to/2xZmqXQ

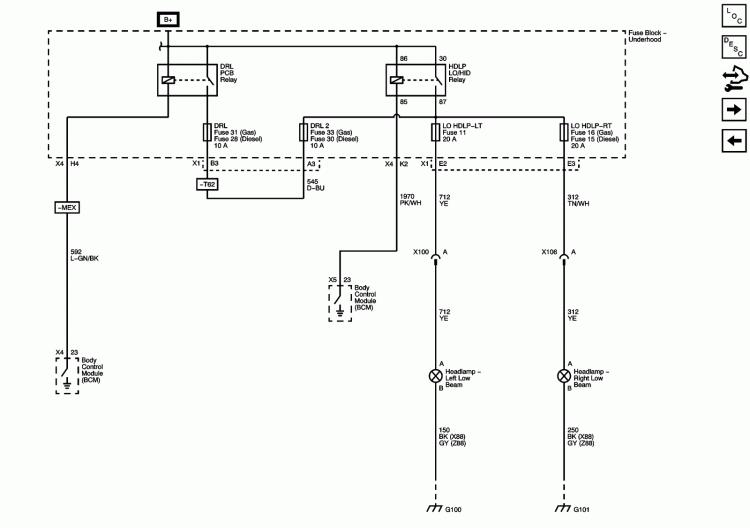

Ok so what I do and you may or may not want to do this. If the Low beam headlamps are on I want the fog lights on. So I wire a relay into circuit 712 of the wiring schematic I am listing below. What this does is when the Headlamps send power to the low beam bulb it turns the fog lights on. Now you can stop right there if you want to.

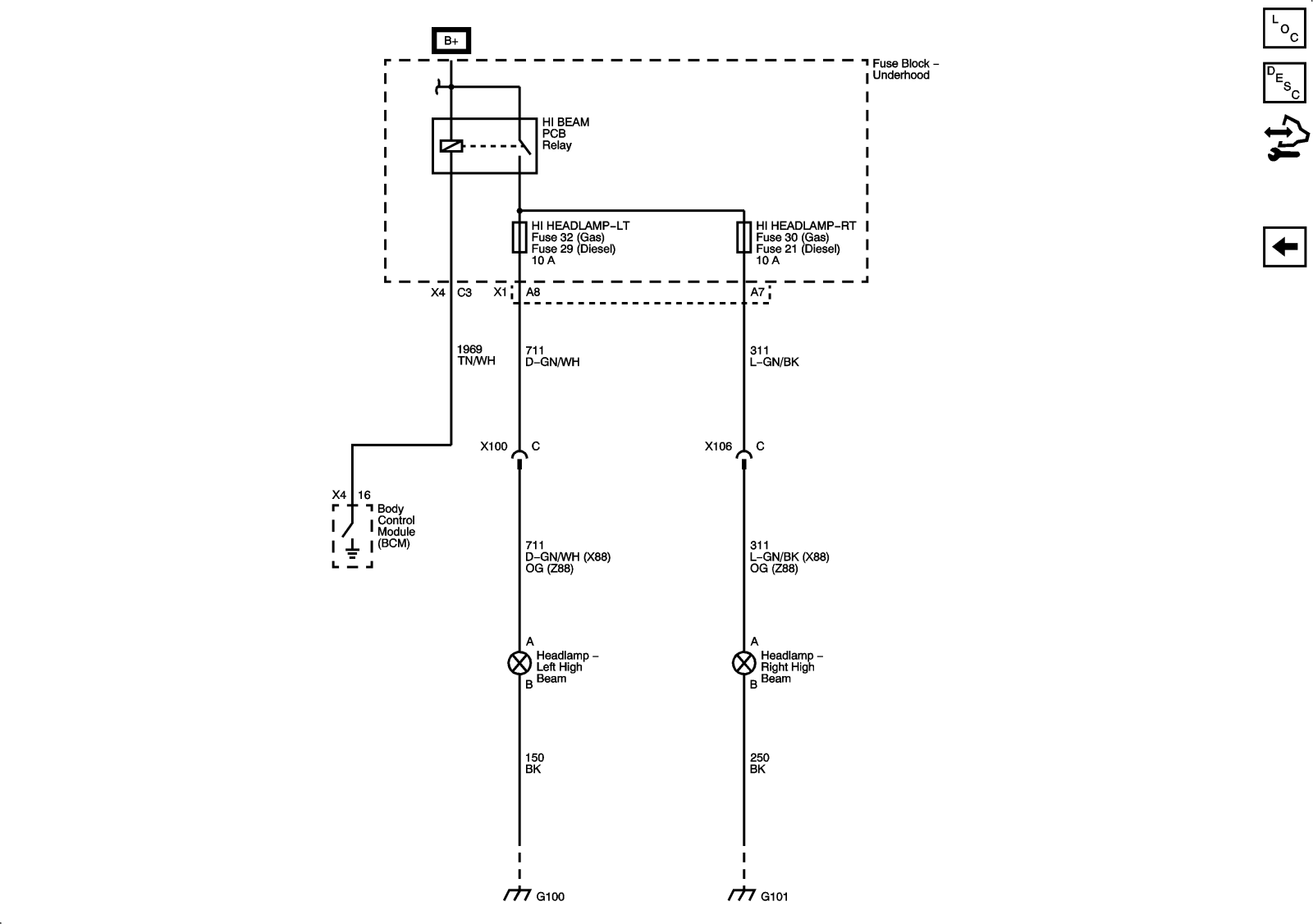

But me... I like to SEEEEEEEEEE at night. lol So I take a 1 way diode and I wire one side of it into circuit 1969 of the High beam headlamp (which is the high beam ground command signal) and then the other side of the wire into circuit 1970 (which is the command ground signal for the low beam headlights) and what this does is give me High beams, Low beams, and Fog lights all at the same time.



Diode - http://amzn.to/2h4Eeu7



I will link the video of the whole install when I get it finished if you're interested.
