Bed lighting - wiring?

1940ModelB

Recommended Posts

Crankycolnago Enthusiast

Crankycolnago

Posted
Posted

I used the trailer plug wires, i really didnt want the bedlights to come on unless i really need them on so wired off the trailer plug and placed the switch in the taligate jamb.

  • Replies 44
  • Created
  • Last Reply
15BlueSilverado Enthusiast

15BlueSilverado

Posted
Posted

I bought a $25 set of LEDs from Autozone and just tapped into the trailer harness underneath. I also added a switch in the bed so I can turn them on/off whenever. Since these pics were taken, I've added factory GM wire clips to hold the wires up out of site. gallery_167112_4425_6313985.jpggallery_167112_4425_122778.jpggallery_167112_4425_8643538.jpggallery_167112_4425_10495667.jpg

Neallynein Enthusiast

Neallynein

Posted
Posted
I bought a $25 set of LEDs from Autozone and just tapped into the trailer harness underneath. I also added a switch in the bed so I can turn them on/off whenever. Since these pics were taken, I've added factory GM wire clips to hold the wires up out of site. gallery_167112_4425_6313985.jpggallery_167112_4425_122778.jpggallery_167112_4425_8643538.jpggallery_167112_4425_10495667.jpg


So how’d you run the wiring? From the trailer harness to the switch then around the bed by the cab or did you split it after the switch to go to the other side? Thanks!


Sent from my iPhone using Tapatalk
15BlueSilverado Enthusiast

15BlueSilverado

Posted
Posted
3 minutes ago, Neallynein said:




So how’d you run the wiring? From the trailer harness to the switch then around the bed by the cab or did you split it after the switch to go to the other side? Thanks!


Sent from my iPhone using Tapatalk



Each set of four lights were on their own string, so I ran the right side, looking into the bed, down behind the taillight and across the bottom underneath to the left side and made all my connections there. Then I just put the switch in place on the 12v side and that was it. In all, it probably took me about maybe an hour to install.

2WRDR Enthusiast

2WRDR

Posted
Posted

On a 2018, anyone know where a always hot connection might be around the rear of truck?  I have my lights mounted.  The kit came with a switch and I currently have the positive side tapped into on of the rear running lights.  Since I already have a switch, it would be nice to begin the circuit with an always hot supply.

mfennema Enthusiast

mfennema

Posted
Posted
9 minutes ago, 2WRDR said:

On a 2018, anyone know where a always hot connection might be around the rear of truck?  I have my lights mounted.  The kit came with a switch and I currently have the positive side tapped into on of the rear running lights.  Since I already have a switch, it would be nice to begin the circuit with an always hot supply.

On earlier trucks there used to be a wire that went to the 7 way connector at the hitch that would be always hot once you hooked it up under the hood and added the fuse.  Might check into that?

2WRDR Enthusiast

2WRDR

Posted
Posted

mfennema, thanks for the tip.  On my 2018, the 7 pin trailer connector had an always hot 12VDC pin.  I tied that to the LED set of bed lighting I had installed and with the switch that came with the MICTUNING 2Pcs 60" White LED Cargo Truck Bed Light Strip  and this works great.  Being low current draw of LEDs I'm not too worried about a dead battery since this is my daily driver.  On the back of the truck next to the 7 pin trailer connector is a diagram if you look close.  That and a 12VDC troubleshooting light made it easy to find the positive 12V source.

EpicLT Enthusiast

EpicLT

Posted
Posted
On 3/24/2018 at 1:52 PM, cbrsilv15 said:






There’s a dummy plug on the box under the bed where the factory bed lights plug into. I made my own and just used some leds from amazon. Way brighter than the 2 that are oem. Plus $30 > $100+.


Sent from my iPhone using Tapatalk

Sorry to quote you a year later, but I am wondering if I pull the OEM dummy plug, can I just drill 2 holes where the pos and neg are and then pass wires through there? Then seal those 2 slots with silicone or whatever you used?

cbrsilv15 Senior Enthusiast

cbrsilv15

Posted
Posted
12 minutes ago, EpicLT said:

Sorry to quote you a year later, but I am wondering if I pull the OEM dummy plug, can I just drill 2 holes where the pos and neg are and then pass wires through there? Then seal those 2 slots with silicone or whatever you used?

Exactly what I did. Just drill the hole large enough for the wire. Pass that through and then put the terminals on. I wanted a nice tight fit.

EpicLT Enthusiast

EpicLT

Posted
Posted
4 minutes ago, cbrsilv15 said:

Exactly what I did. Just drill the hole large enough for the wire. Pass that through and then put the terminals on. I wanted a nice tight fit.

Will I have the same terminals do you think in a 2018?

cbrsilv15 Senior Enthusiast

cbrsilv15

Posted
Posted
5 minutes ago, EpicLT said:

Will I have the same terminals do you think in a 2018?

No. 14-15 are different from the 16-18. Same concept, different pin locations on the plug. Just a different style plug.

  • 3 months later...
Cdyer1985 New Member

Cdyer1985

Posted
Posted

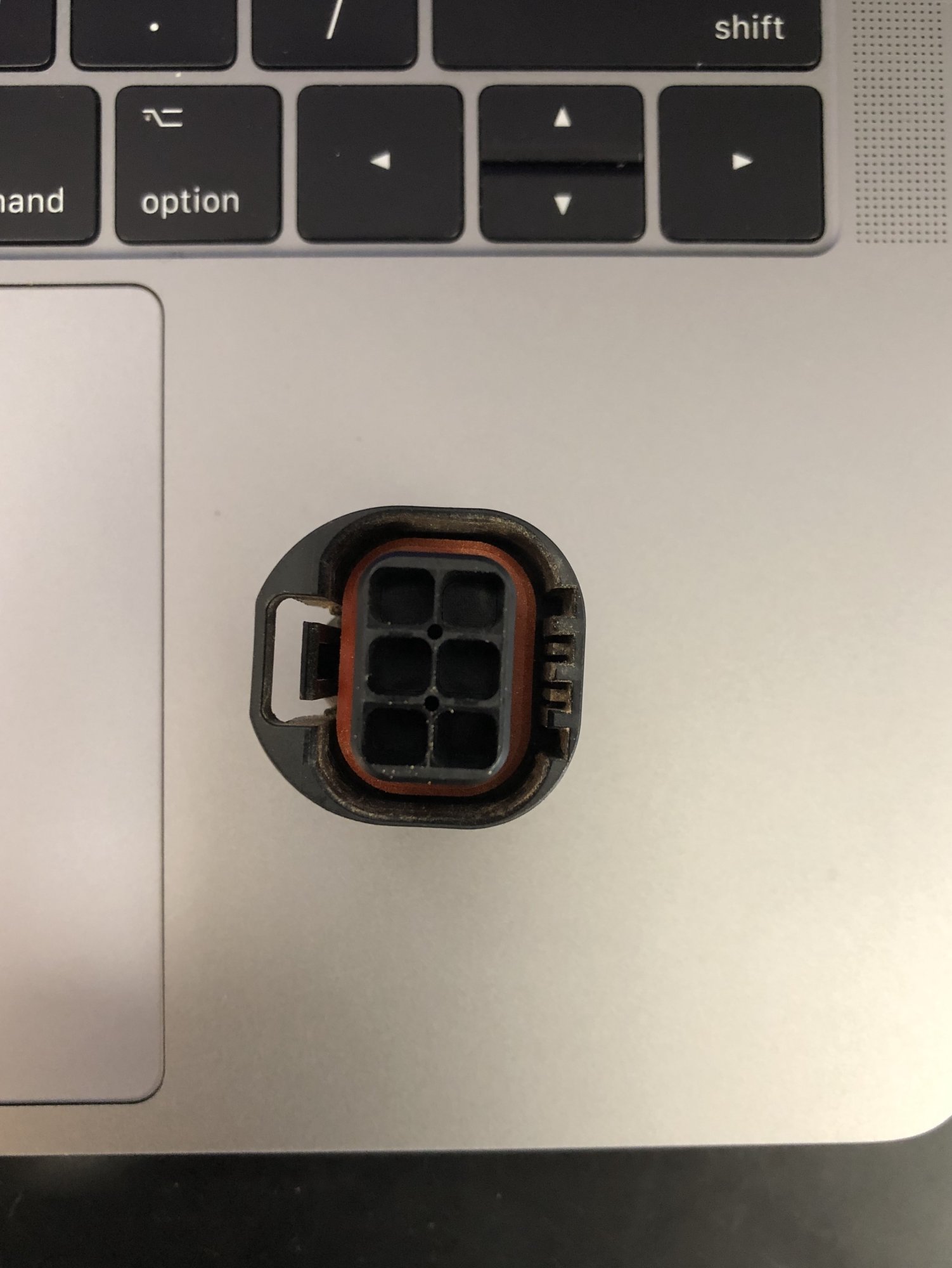

Sorry to bring this topic back but has anyone with a 16-18 built their own connector using the dummy plug? If so are there any pictures of the finished connector? I'm about to start the process and I'm not sure how the finished connector (specifically the inside) should look. Here is a picture of what I am starting with.
