T1 Switched Power Source

Smoothbassman · September 28, 2019

Sorry.... I just realized you posted that before. Been a long week!

I not sure where to look for the BCM connector, can you help me out?

White connector under your dash. Driver's side.

It's where the green wire is going into.

1 row of pins. 3 Over. It's one of the two gray wires in this connector.

Sent from my SM-N960U1 using Tapatalk

Robbie Regala · October 3, 2019

On 12/5/2018 at 11:27 AM, 1FUNC5 said:

Has anyone had the issue of this power source cutting off and back on when the truck cranks from auto stop start ??????

I am, I was wondering why my dash cam was cutting on and off, it doesn't happen every time though.

Smoothbassman · October 6, 2019

No.

I do see a voltage drop though. Haven't measured it but it's there.

Sent from my SM-N960U1 using Tapatalk

JAshworth03 · January 5, 2020

On 9/28/2019 at 6:11 PM, Smoothbassman said:

White connector under your dash. Driver's side.

It's where the green wire is going into.

1 row of pins. 3 Over. It's one of the two gray wires in this connector.

Sent from my SM-N960U1 using Tapatalk

Hoping you might be able to help.

I have the same Opt 7 kit as you. I have a spade powering it and connected to the open prong next to the 50. That works fine.

I ran the aux wire from the Opt7 control box to the grey wire in the BCM and T tapped into it as I want the lights to power on and off with dome.

I have everything connected and grounded properly, but can’t get the dome feature to power on and off with this kit.

what am I missing? Do I need a different power source since this one is switched. Super frustrated.

Saloonwarrior · February 1, 2020

You mentioned adding relays for your footwell leds. Is it really necessary with such low current draw?

JAshworth03 · February 1, 2020

3 hours ago, Saloonwarrior said:

You mentioned adding relays for your footwell leds. Is it really necessary with such low current draw?

I still can’t get them to come on and off with the door. I’ve tried everything. I have to manually switch them off as they come on every time when I open the door.

MAK2013 · February 9, 2020

On 1/5/2020 at 10:56 AM, JAshworth03 said:

Hoping you might be able to help.

I have the same Opt 7 kit as you. I have a spade powering it and connected to the open prong next to the 50. That works fine.

I ran the aux wire from the Opt7 control box to the grey wire in the BCM and T tapped into it as I want the lights to power on and off with dome.

I have everything connected and grounded properly, but can’t get the dome feature to power on and off with this kit.

what am I missing? Do I need a different power source since this one is switched. Super frustrated.

I just bought the Opt7 kit. Did you ever figure out how to get it on/off with the domes? I definitely want it coming on when I open the doors but don’t want them on all the time while driving

JAshworth03 · February 9, 2020

On 2/1/2020 at 10:04 AM, JAshworth03 said:

42 minutes ago, Alex Kemple said:

I just bought the Opt7 kit. Did you ever figure out how to get it on/off with the domes? I definitely want it coming on when I open the doors but don’t want them on all the time while driving

I still can’t figured it out. Mine stay on and I use the remote to turn off.

MAK2013 · February 12, 2020

On 2/9/2020 at 4:28 PM, JAshworth03 said:

I still can’t figured it out. Mine stay on and I use the remote to turn off.

I'm lost. I have the Opt7 kit fully wired in. Connected the accessory wire to the grey wire (dome light) on the driver side. I tried every spade connector on the passenger fuse box. There's one that's RAP and a few others that are always hot. I want the lights to come on when I open the door or the dome light comes on. With the RAP power, it only comes on if the vehicle is on. With the always hot connections, the lights stay on constantly. There has to be a spot in the fuse box that's door/dome activated... I love the lights but I need a way for them to come on with the dome/door without running all of the power off of that 24 gauge grey wire on the plug...

JAshworth03 · February 12, 2020

1 minute ago, Alex Kemple said:

I'm lost. I have the Opt7 kit fully wired in. Connected the accessory wire to the grey wire (dome light) on the driver side. I tried every spade connector on the passenger fuse box. There's one that's RAP and a few others that are always hot. I want the lights to come on when I open the door or the dome light comes on. With the RAP power, it only comes on if the vehicle is on. With the always hot connections, the lights stay on constantly. There has to be a spot in the fuse box that's door/dome activated... I love the lights but I need a way for them to come on with the dome/door without running all of the power off of that 24 gauge grey wire on the plug...

Exact same boat!!!

Miubhi · February 22, 2020

On 12/5/2018 at 10:27 AM, 1FUNC5 said:

Has anyone had the issue of this power source cutting off and back on when the truck cranks from auto stop start ??????

Yes i have as well, only with my Roof mounted dvd player i installed. my radar detector doesnt shut of thou, so its probably just a drop in voltage causeing the shut off. not a full discharge of power. I just got the Autostop Eliminator and will hope this will just cut the problem out all together as i dont want that feature anyways. save on gas milage my ...

Zeker · February 25, 2020

Hooked mine up last night. Wired them into the dome lights. Thanks Smoothbassman!

Gilbertvc · March 12, 2020

On 10/22/2018 at 7:54 AM, 2019_Silverado_HC said:

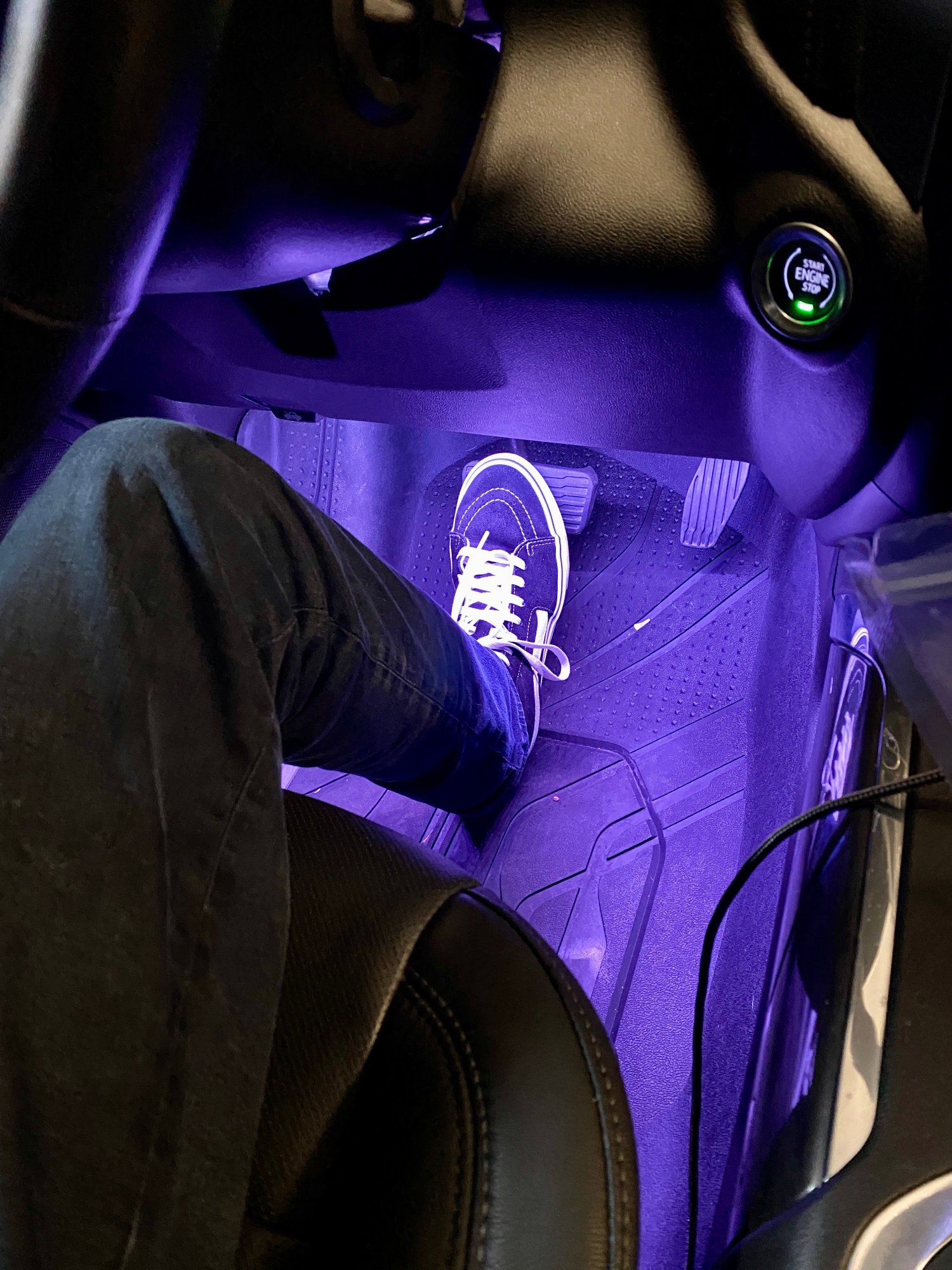

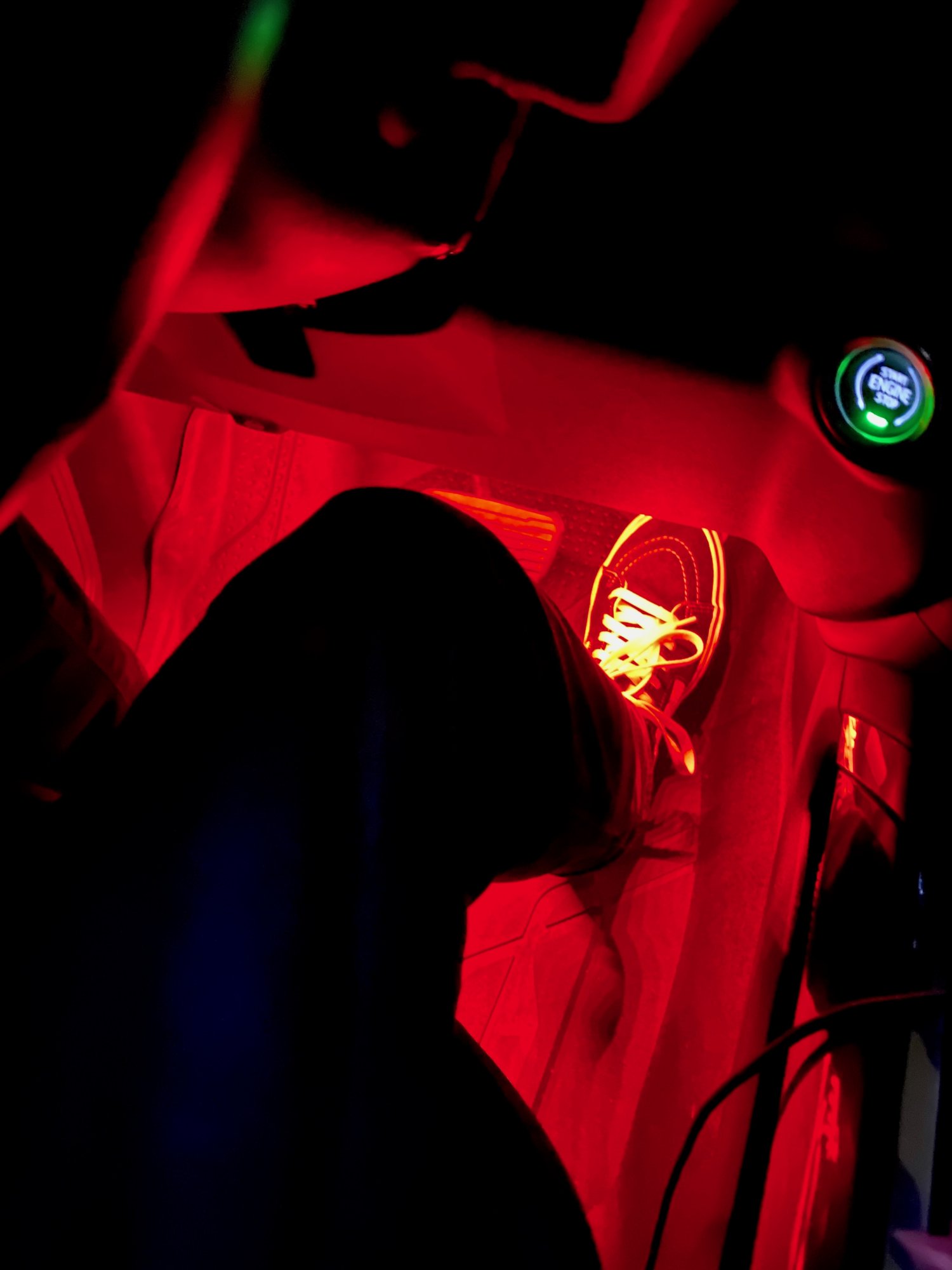

I installed some RGB footwell lights this weekend (picture forthcoming) and part of the project involved locating a switched power source and preferably one with retained accessory power. In the right fuse panel (passenger side) by fuse F27 which is a square shaped fuse, there is an additional prong next to it that will accept a spade connector which you can then run a wire to a separate fuse for whatever you are installing. I hope this helps someone else since wiring diagrams are not readily available on the net yet. Enjoy!

Thank you for taking the time to post your suggestion. My 2015 Silverado did not have the panel on the passenger side so I was unaware it even existed. My dash cam now works as it should.

Gerstein1989 · July 14, 2020

On 2/11/2020 at 9:24 PM, JAshworth03 said:

Exact same boat!!!

On 2/11/2020 at 9:23 PM, Alex Kemple said:

I'm lost. I have the Opt7 kit fully wired in. Connected the accessory wire to the grey wire (dome light) on the driver side. I tried every spade connector on the passenger fuse box. There's one that's RAP and a few others that are always hot. I want the lights to come on when I open the door or the dome light comes on. With the RAP power, it only comes on if the vehicle is on. With the always hot connections, the lights stay on constantly. There has to be a spot in the fuse box that's door/dome activated... I love the lights but I need a way for them to come on with the dome/door without running all of the power off of that 24 gauge grey wire on the plug...

Hey guys not sure if your still trying to figure this out but I have the same kit as you. If you want he lights only to come on with dome lights you just connect the power wire to the pin for the domes on the bcm. If you want it to come on when you enter and exit but also want it on while your driving you run the power wire through the grommet to the engine bay and wire it to the purple wire on your headlight harness. That is the parking lights wire. Then run the accessory wire to the dome light wire in the bcm. This is the way I have mine set up. It took me a while to figure it out. For some reason when you try hooking your power wire to the bcm headlight wire it doesn’t do anything. So if anyone is still looking to do this and want it to work this way. This is the way to do it. No relays needed as this kit has a control box. If anyone needs help just message me.

MAK2013 · July 14, 2020

10 minutes ago, Gerstein1989 said:

Hey guys not sure if your still trying to figure this out but I have the same kit as you. If you want he lights only to come on with dome lights you just connect the power wire to the pin for the domes on the bcm. If you want it to come on when you enter and exit but also want it on while your driving you run the power wire through the grommet to the engine bay and wire it to the purple wire on your headlight harness. That is the parking lights wire. Then run the accessory wire to the dome light wire in the bcm. This is the way I have mine set up. It took me a while to figure it out. For some reason when you try hooking your power wire to the bcm headlight wire it doesn’t do anything. So if anyone is still looking to do this and want it to work this way. This is the way to do it. No relays needed as this kit has a control box. If anyone needs help just message me.

I haven’t messed with mine since the original install, but I really want mine to come on during door open/close and while driving. That setup sounds like exactly what I want. Do you have pictures of where on the BCM it connects? I’m sure I can find the purple headlight wire but I’ve had a hell of a time finding the dome wire, especially since online diagrams are sparse. It would be awesome if you did a short writeup based on the wires you tapped. Thank you for the update, you’ve re-piqued my interest!
